How to get visible size of DisplayObject with perspective projection

The following is entirely a math question.

As we know, PerspectiveProjection delivers perspective transformations in 3D represented by the interdependent values of fieldOfView and focalLength according to the following formula:

focalLength = stageWidth/2 * (cos(fieldOfView/2) / sin(fieldOfView/2)

_{(source: bgstaal.net)}

Q: How to get the visible on-screen size of the DisplayObject (Cube on the above-linked image) to which PerspectiveProjection has been applied?

A more thorough description and illustrative code on the issue in ActionScript 3 lacks functionality for visible bounds 开发者_如何学Cof DisplayObject.

I think I'm missing the point.

I did a simple test in the ide, put 3 clips together like so:

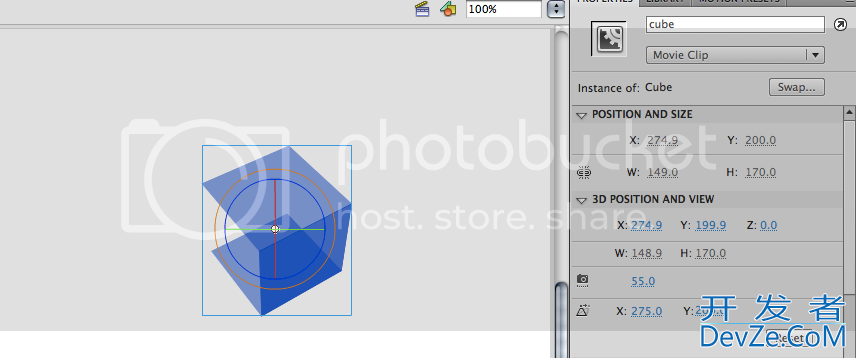

The width and height report the size of the visible 3d area, as you can see in the property inspector as well. You can access just as simple as

trace(cube.width + ' by ' + cube.height);

at runtime or with a bit of jsfl:

var doc = fl.getDocumentDOM();
fl.outputPanel.clear();
fl.trace(doc.selection[0].width + ' by ' + doc.selection[0].height);

for one selected clip at authortime, within the IDE.

I did a similar test with a bit of actionscript:

//draw faces
var front:Sprite = drawFace();
var back:Sprite = drawFace();
var left:Sprite = drawFace();
var right:Sprite = drawFace();
var top:Sprite = drawFace();
var bottom:Sprite = drawFace();
//transform faces
front.z  = -50;
back.z   =  50;
left.x   = -50;
right.x  =  50;
top.y    = -50;
bottom.y =  50;
left.rotationY = right.rotationY = 90;
top.rotationX = bottom.rotationX = 90;
//putem them all together
var cube:Sprite = new Sprite();
cube.addChild(front);
cube.addChild(back);
cube.addChild(left);
cube.addChild(right);
cube.addChild(top);
cube.addChild(bottom);
addChild(cube);
cube.x = stage.stageWidth * .5;
cube.y = stage.stageHeight* .5;
cube.z = -100;
cube.rotationX = cube.rotationY = 30;

trace(cube.width + ' by ' + cube.height);
trace(cube.getBounds(this));
trace(cube.transform.pixelBounds);
this.addEventListener(Event.ENTER_FRAME, loop);
function loop(event:Event):void {
    cube.rotationY += 3;
    var b:Rectangle = cube.getBounds(this);
    graphics.clear();
    graphics.lineStyle(1,0x009900);
    graphics.drawRect(b.x,b.y,b.width,b.height);
}

function drawFace():Sprite{
    var s:Sprite = new Sprite();
    s.graphics.beginFill(0x000099,.5);
    s.graphics.drawRect(-50,-50,100,100);
    s.graphics.endFill();
    return s;
}

Here is a modified sample from Programming Actionscript 3.0

package {
    import flash.display.*
    import flash.events.*;
    import flash.utils.getTimer;
    import flash.geom.*;

    public class Triangles extends Sprite {
        var x1:Number = -100,y1:Number = -100,z1:Number = 0,t1:Number = 0;
        var x2:Number = 100,y2:Number = -100,z2:Number = 0,t2:Number = 0;
        var x3:Number = 100,y3:Number = 100,z3:Number = 0,t3:Number = 0;
        var x4:Number = -100,y4:Number = 100,z4:Number = 0,t4:Number = 0;
        var v1 = new Vector3D(-100,-100,0,0);
        var v2 = new Vector3D(100,-100,0,0);
        var v3 = new Vector3D(100,100,0,0);
        var v4 = new Vector3D(-100,100,0,0);
        var focalLength:Number = 200;
        var indices:Vector.<int>;

        var container:Sprite;

        var bitmapData:BitmapData; // texture
        var imageLoader:ImageLoader;

        public function Triangles():void {
            indices =  new Vector.<int>();
            indices.push(0,1,3, 1,2,3);

            container = new Sprite(); // container to draw triangles in
            container.x = 200;
            container.y = 200;
            addChild(container);

            imageLoader = new ImageLoader("head.jpg");
            imageLoader.addEventListener(Event.COMPLETE, onImageLoaded);
        }

        function onImageLoaded(event:Event):void {
            bitmapData = imageLoader.bitmap.bitmapData;
            addEventListener(Event.ENTER_FRAME, rotatePlane);
        }
        function rotatePlane(event:Event):void {
            var ticker = getTimer()/1600;
            z2 = z3 = -(z1 = z4 = 100*Math.sin(ticker));
            x2 = x3 = -(x1 = x4 = 100*Math.cos(ticker));

            v2.z = v3.z = -(v1.z = v4.z = 100*Math.sin(ticker));
            v2.x = v3.x = -(v1.x = v4.x = 100*Math.cos(ticker));


            t1 = focalLength/(focalLength + z1);
            t2 = focalLength/(focalLength + z2);
            t3 = focalLength/(focalLength + z3);
            t4 = focalLength/(focalLength + z4);

            v1.w = focalLength/(focalLength + v1.z);
            v2.w = focalLength/(focalLength + v2.z);
            v3.w = focalLength/(focalLength + v3.z);
            v4.w = focalLength/(focalLength + v4.z);

            // determine triangle vertices based on t values
            var vertices:Vector.<Number> = new Vector.<Number>();
            //vertices.push(x1*t1,y1*t1, x2*t2,y2*t2, x3*t3,y3*t3, x4*t4,y4*t4);

            vertices.push(v1.x*v1.w,v1.y*v1.w, v2.x*v2.w,v2.y*v2.w, v3.x*v3.w,v3.y*v3.w, v4.x*v4.w,v4.y*v4.w);
            var uvtData:Vector.<Number> = new Vector.<Number>();
            uvtData.push(0,0,v1.w, 1,0,v2.w, 1,1,v3.w, 0,1,v4.w);

            // draw
            container.graphics.clear();
            container.graphics.beginBitmapFill(bitmapData);
            container.graphics.drawTriangles(vertices, indices, uvtData);
            var b:Rectangle = container.transform.pixelBounds;
            graphics.clear();
            graphics.lineStyle(1,0x009900);
            graphics.drawRect(b.x,b.y,b.width,b.height);
        }
    }
}

pixelBounds work well here, but it's a simple plane. pixelBounds wouldn't work in the previous example, but getBounds() seems to work fine.
