PyQt5使用pyqtgraph绘制波形图

目录

• 主程序代码
• UI界面设计
• 控件提升
• UI设计文件
• UI生成文件
• 运行效果

主程序代码

import sys
import numpy as np
from PyQt5.QtGui import *
from PyQt5.QtCore import *
from PyQt5.QtWidgets import *

import pyqtgraph as pg

from ui_demo02 import Ui_MainWindow


class GraphDemowWindow(QMainWindow, Ui_MainWindow):
    def __init__(self, parent=None):
        super(GraphDemowWindow, self).__init__(parent)
        self.setupUi(self)

        pg.setConfigOptions(antialias=True) # 设置开启抗锯齿

        self.drawGraphicsLayouwww.devze.comtWidget()
        self.drawpoltWidget()

    # 在QWidget控件提升为pyqtgraph.GraphicsLayoutWidget类型的控件上画波形
    def drawGraphicsLayoutWidget(self):
        # pyqtgraph.GraphicsLayoutWidget 支持的方法有：
        # ['nextRow', 'nextCol', 'nextColumn', 'addPlot', 'addViewBox', 'addItem', 'getItem', 'addLayout', 'addLabel', 编程'removeItem', 'itemIndex', 'clear']
        self.graphicsLayout.clear() # 清除
        plt1 = self.graphicsLayout.addPlot(y=np.random.normal(size=1000), title="温度")
        plt2 = self.graphicsLayout.addPlot(y=np.random.normal(size=500)编程客栈, title="湿度")
        self.graphicsLayout.nextRow() # 图像坐标换行
        plt3 = self.graphicsLayout.addPlot(y=np.random.normal(size=800), title="光照度")
        plt4 = self.graphicsLayout.addPlot(y=np.random.normal(size=800),android title="紫外线强度")


    # 在QWidget控件提升为pyqtgraph.PlotWidget类型的控件上画波形
    def drawPoltWidget(self):
        # pyqtgraph.PlotWidget 支持的方法有：
        # ['addItem', 'removeItem', 'autoRange', 'clear', 'setAxisItems', 'setXRange',
        #           'setYRange', 'setRange', 'setASPectLocked', 'setMouseEnabled',
        #           'setXLink', 'setYLink', 'enableAutoRange', 'disableAutoRange',
        #           'setLimits', 'register', 'unregister', 'viewRect']


        # pen = pg.mkPen(255, 0, 0)
        # pen = pg.mkPen("#ff0000")
        # pen = pg.mkPen(color='r', width=3)
        pen = pg.mkPen({'color':'0F0', 'width':1})
        plt1 = self.graphplot.plot(np.random.normal(size=100), pen=pen,  symbolBrush=(255, 0, 0), symbolPen=(0, 255, 0))

        pen2 = pg.mkPen(color="F00", width=1)
        plt2 = self.graphPlot.plot(np.random.normal(size=50), pen=pen2,  symbolBrush=(0, 255, 0), symbolPen=(255, 0, 0))

        self.graphPlot.setAntialiasing(True)
        self.graphPlot.setBackground("#ffffff")




if __name__ == "__main__":
    app = QApplication(sys.argv)
    win = GraphDemowWindow()
    win.show()
    sys.exit(app.exec_())

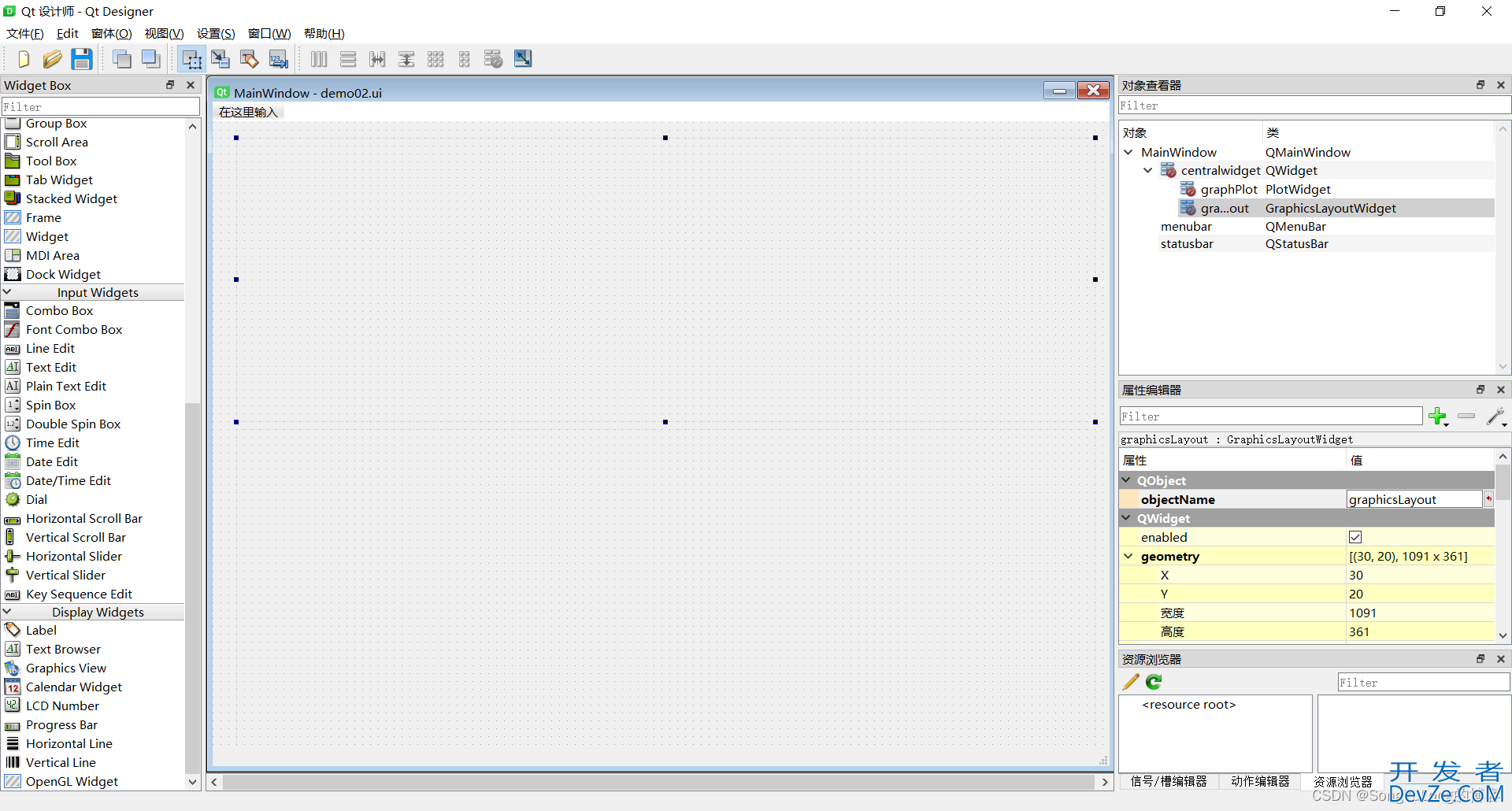

UI界面设计

包含了两个QWidget控件也可以是QGraphicsView控件类型。

两个控件分别提升为pyqtgraph.GraphicsLayoutWidget类型和pyqtgraph.PlotWidget

GraphicsLayoutWidget类型通过addPlot方法添加波形数据，每个波形都占有独立的区域。

plt1 = self.graphicsLayout.addPlot(y=np.random.normal(size=1000), title=“温度”)
plt2 = self.graphicsLayout.addPlot(y=np.random.normal(size=500), title=“湿度”)

PlotWidget类型通过plot方法添加波形数据，同一控件内多个plot占用同一窗口区域。

pen2 = pg.mkPen(color=“F00”, width=1)
plt2 = self.graphPlot.plot(np.random.normal(size=50), pen=pen2, symbolBrush=(0, 255, 0), symbolPen=(255, 0, 0))

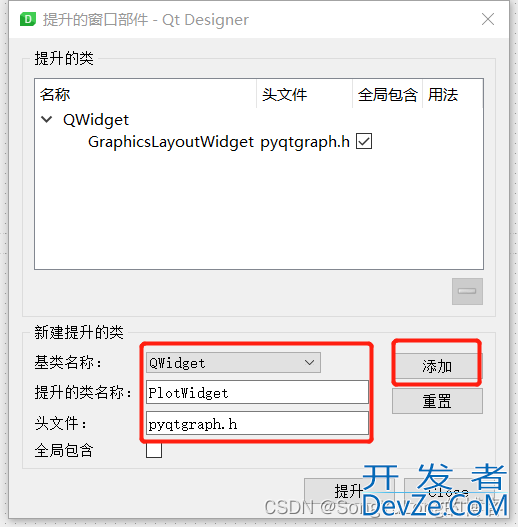

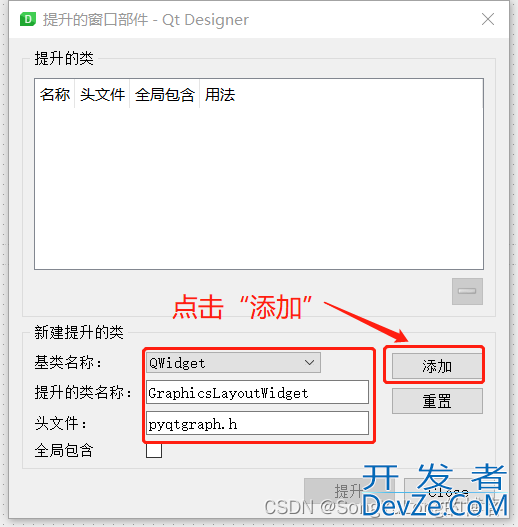

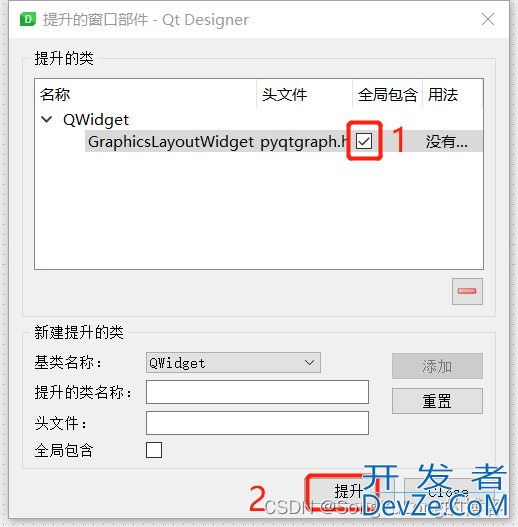

控件提升

UI设计文件

<?XML version="1.0" encoding="UTF-8"?>
<ui version="4.0">
 <class>MainWindow</class>
 <widget class="QMainWindow" name="MainWindow">
  <property name="geometry">
   <rect>
    <x>0</x>
    <y>0</y>
    <width>1139</width>
    <height>844</height>
   </rect>
  </property>
  <property name="windowTitle">
   <string>MainWindow</string>
  </property>
  <widget class="QWidget" name="centralwidget">
   <widget class="GraphicsLayoutWidget" name="gr开发者_C学习aphicsLayout" native="true">
    <property name="geometry">
     <rect>
      <x>30</x>
      <y>20</y>
      <width>1091</width>
      <height>361</height>
     </rect>
    </property>
   </widget>
   <widget class="PlotWidget" name="graphPlot" native="true">
    <property name="geometry">
     <rect>
      <x>30</x>
      <y>390</y>
      <width>1091</width>
      <height>411</height>
     </rect>
    </property>
   </widget>
  </widget>
  <widget class="QMenuBar" name="menubar">
   <property name="geometry">
    <rect>
     <x>0</x>
     <y>0</y>
     <width>1139</width>
     <height>26</height>
    </rect>
   </property>
  </widget>
  <widget class="QStatusBar" name="statusbar"/>
 </widget>
 <customwidgets>
  <customwidget>
   <class>GraphicsLayoutWidget</class>
   <extends>QWidget</extends>
   <header location="global">pyqtgraph.h</header>
   <container>1</container>
  </customwidget>
  <customwidget>
   <class>PlotWidget</class>
   <extends>QWidget</extends>
   <header location="global">pyqtgraph.h</header>
   <container>1</container>
  </customwidget>
 </customwidgets>
 <resources/>
 <connections/>
</ui>

UI生成文件

# -*- coding: utf-8 -*-

# Form implementation generated from reading ui file 'd:\project\python\pyqtgraph\PygraphDemo2\demo02.ui'
#
# Created by: PyQt5 UI code generator 5.15.7
#
# WARNING: Any manual changes made to this file will be lost when pyuic5 is
# run again.  Do not edit this file unless you know what you are doing.


from PyQt5 import QtCore, QtGui, QtWidgets


class Ui_MainWindow(object):
    def setupUi(self, MainWindow):
        MainWindow.setObjectName("MainWindow")
        MainWindow.resize(1139, 844)
        self.centralwidget = QtWidgets.QWidget(MainWindow)
        self.centralwidget.setObjectName("centralwidget")
        self.graphicsLayout = GraphicsLayoutWidget(self.centralwidget)
        self.graphicsLayout.setGeometry(QtCore.QRect(30, 20, 1091, 361))
        self.graphicsLayout.setObjectName("graphicsLayout")
        self.graphPlot = PlotWidget(self.centralwidget)
        self.graphPlot.setGeometry(QtCore.QRect(30, 390, 1091, 411))
        self.graphPlot.setObjectName("graphPlot")
        MainWindow.setCentralWidget(self.centralwidget)
        self.menubar = QtWidgets.QMenuBar(MainWindow)
        self.menubar.setGeometry(QtCore.QRect(0, 0, 1139, 26))
        self.menubar.setObjectName("menubar")
        MainWindow.setMenuBar(self.menubar)
        self.statusbar = QtWidgets.QStatusBar(MainWindow)
        self.statusbar.setObjectName("statusbar")
        MainWindow.setStatusBar(self.statusbar)

        self.retranslateUi(MainWindow)
        Q编程tCore.QMetaObject.connectSlotsByName(MainWindow)

    def retranslateUi(self, MainWindow):
        _translate = QtCore.QCoreApplication.translate
        MainWindow.setWindowTitle(_translate("MainWindow", "MainWindow"))
from pyqtgraph import GraphicsLayoutWidget, PlotWidget

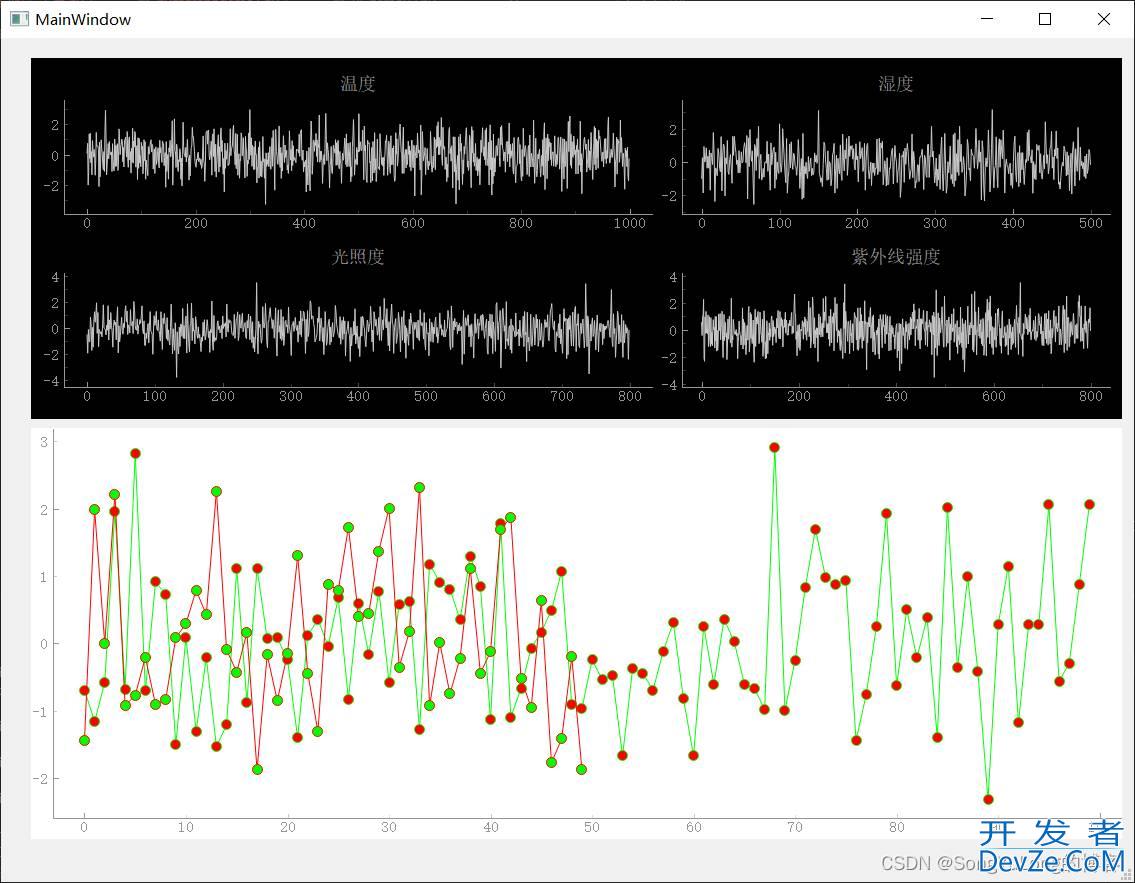

运行效果
