GateWay动态路由与负载均衡详细介绍

目录

• 概述
• 项目实例
• 1.gateway-server模块
• 1.1.pom.XML文件
• 1.2.application.yml文件
• 1.3.主函数类
• 2.login-service模块
• 2.1.pom.xml文件
• 2.2.application.yml文件
• 2.3.LoginController文件
• 2.4.主函数类
• 3.功能测试

概述

从之前的配置里面我们可以看到我们的 URL 都是写死的，这不符合我们微服务的要求，我们微服务是只要知道服务的名字，根据名字去找，而直接写死就没有负载均衡的效果了 默认情况下 Gateway 会根据注册中心的服务列表，以注册中心上微服务名为路径创建动态路 由进行转发，从而实现动态路由的功能。

需要注意的是 uri 的协议为 lb（ load Balance ），表示启用 Gateway 的负载均衡功能。

lb://serviceName 是 spring cloud gateway 在微服务中自动为我们创建的负载均衡 uri

协议：就是双方约定的一个接头暗号

http ： //

项目实例

1.gateway-server模块

1.1.pom.xml文件

<www.devze.com;?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.12.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.it</groupId>
    <artifactId>gateway-server</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>gateway-server</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <Java.version>1.8</java.version>
        <spring-cloud.version>Hoxton.SR12</spring-cloud.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>开发者_Go开发spring-cloud-starter-gateway</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-netflix-eureka-client</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

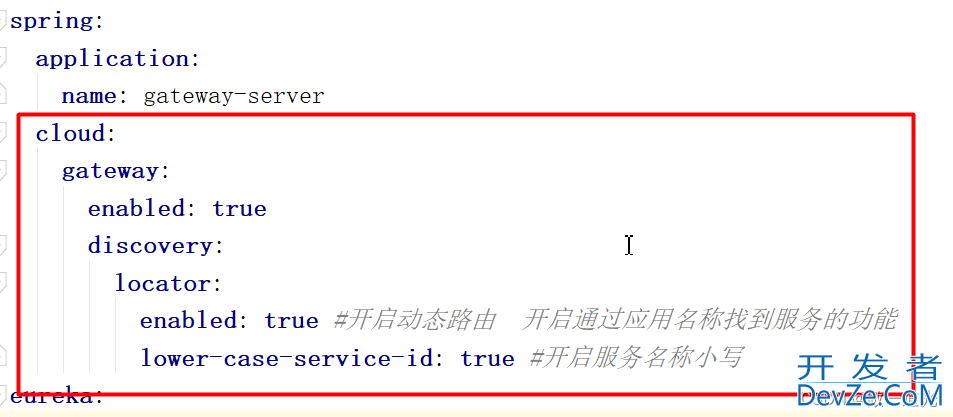

1.2.application.yml文件

server:

  port: 80

spring:

  application:

    name: gateway-server

  cloud:

    gateway:

      enabled: true

      discovery:

        locator:

          enabled: true #开启动态路由  开启通过应用名称找到服务的功能

          lower-case-service-id: true #开启服务名称小写

eureka:

  client:

    service-url:

      defaultZone: http://192.168.174.133:8761/eureka

    registry-fetch-interval-seconds: 3

  instance:

    hostname: localhost

    instance-id: ${eureka.instance.hostname}:${spring.application.name}:${server.port}

1.3.主函数类

package com.it;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
@SpringBootApplication
@EnableEurekaClient
public class GatewayServerApplication {
    public static vo编程客栈id main(String[] args) {
        SpringApplication.run(GatewayServerApplication.class, args);
    }
}

2.login-service模块

2.1.pom.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>www.devze.com;spring-boot-starter-parent</artifactId>
        <version>2.3.12.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.it</groupId>
    <artifactId>login-service</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>login-service</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
        <spring-cloud.version>Hoxton.SR12</spring-cloud.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-netflix-eureka-client</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

2.2.application.yml文件

server:

  port: 8081

spring:

  application:

    name: login-service

eureka:

  client:

    service-url:

      defaultZone: http://192.168.174.133:8761/eureka

    registry-fetch-interval-seconds: 3

  instance:

    hostname: localhost

    instance-id: ${eureka.instance.hostname}:${spring.application.name}:${server.port}

2.3.LoginController文件

package com.it.controller;
import org.springframework.web.bind.annotation.GetMapping;
import java.util.UUID;
public class LoginController {
    @GetMapping("doLogin")
    public String doLogin(String name,String pwd){
        System.out.println(name);
        System.out.println(pwdTWBNNmC);
        String s = UUID.randomUUID().toString();
        return s;
    }
}

2.4.主函数类

package com.it;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.sp编程ringframework.cloud.netflix.eureka.EnableEurekaClient;
@SpringBootApplication
@EnableEurekaClient
public class LoginServiceApplication {
    public static void main(String[] args) {
        SpringApplication.run(LoginServiceApplication.class, args);
    }
}

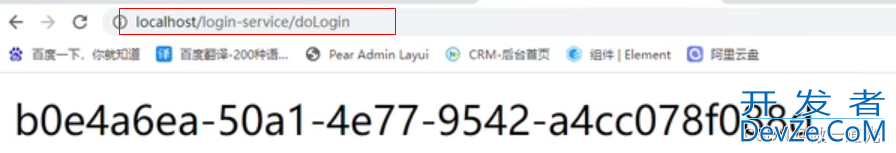

3.功能测试

启动动态路由后，访问路径时需要在localhost后面加上，要访问服务的名称，后面再跟上这个服务中的方法接口名

如果不加服务名称，还是按照以前的方法写，会导致访问报404
