C# WinForm实现跨平台串口通讯的解决方案

目录

• 摘要
• 1. 引言
• 1.1 跨平台挑战
• 1.2 解决方案概览
• 2. 跨平台串口通讯架构设计
• 2.1 整体架构
• 2.2 设计原则
• 2.3 平台检测机制
• 3. Windows平台串口操作
• 3.1 基于System.IO.Ports的实现
• 3.2 Windows设备管理器集成
• 4. linux/MACOS平台适配
• 4.1 Linux平台串口路径
• 4.2 权限管理
• 4.3 Linux平台实现
• 5. 第三方库集成解决方案
• 5.1 SerialPortStream库介绍
• 5.2 SerialPortStream集成示例
• 5.3 安装和配置
• 5.4 平台比较表格
• 6. 完整示例项目
• 6.1 接口定义
• 6.2 工厂模式实现
• 6.3 WinForm界面实现
• 7. 性能优化与最佳实践
• 7.1 异步编程优化
• 7.2 内存管理优化
• 7.3 平台特定性能优化
• 7.4 最佳实践指南
• 8. 常见问题与解决方案
• 8.1 串口无法打开问题
• 8.2 数据丢失或乱码问题
• 8.3 跨平台兼容性问题
• 9. 总结
• 9.1 技术要点总结
• 9.2 开发收益
• 9.3 适用场景
• 9.4 技术发展趋势

摘要

随着现代软件开发对跨平台兼容性需求的不断增长，C# WinForm应用程序在串口通讯方面也面临着从Windows向Linux和macOS等平台扩展的挑战。本文将深入探讨如何使用C# WinForm实现真正的跨平台串口通讯解决方案，包括Windows平台的原生支持、Linux/macOS平台的适配方案，以及第三方库的集成使用。

1. 引言

串口通讯作为工业控制、嵌入式系统和物联网设备连接的重要手段，在现代软件开发中扮演着至关重要的角色。传统的C# WinForm应用程序主要依赖于System.IO.Ports.SerialPort类来实现串口通讯，但这个类在跨平台支持方面存在一些限制和挑战。

1.1 跨平台挑战

在实现跨平台串口通讯时，开发者主要面临以下挑战：

• 平台特定的硬件抽象：不同操作系统对串口硬件的抽象方式不同
• 驱动程序差异：Windows使用COM端口，而Linux/macOS使用设备文件
• 权限管理：不同平台的串口访问权限机制各异
• 性能差异：原生库在不同平台上的性能表现不一致

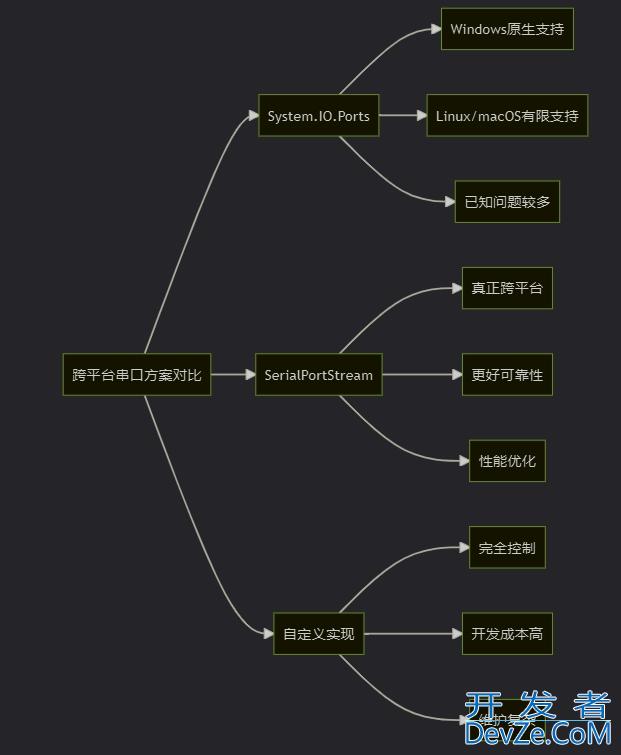

1.2 解决方案概览

本文将介绍三种主要的跨平台串口通讯解决方案：

• 原生System.IO.Ports适配：基于.NET标准库的跨平台支持
• 第三方库集成：使用SerialPortStream等成熟的跨平台库
• 平台特定实现：针对不同平台提供专门的优化实现

2. 跨平台串口通讯架构设计

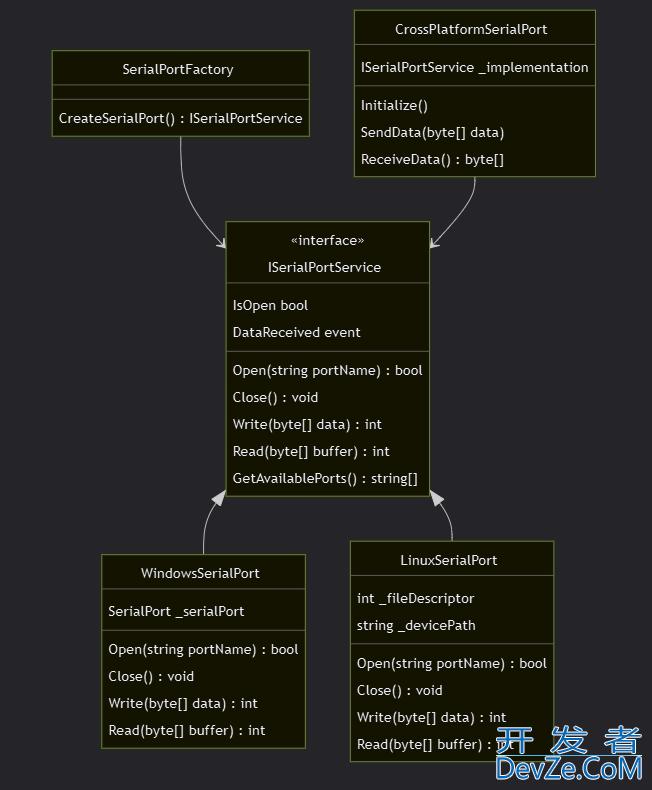

2.1 整体架构

2.2 设计原则

接口抽象：定义统一的串口操作接口

工厂模式：根据运行平台自动选择合适的实现

异常处理：统一的错误处理和异常管理

异步支持：提供异步操作以避免UI阻塞

2.3 平台检测机制

/// <summary>
/// 平台检测服务类
/// 用于识别当前运行的操作系统平台
/// </summary>
public static class PlatformDetector
{
    /// <summary>
    /// 检测当前是否为Windows平台
    /// </summary>
    /// <returns>如果是Windows平台返回true，否则返回false</returns>
    public static bool IsWindows()
    {
        return RuntimeInformation.IsOSPlatform(OSPlatform.Windows);
    }

    /// <summary>
    /// 检测当前是否为Linux平台
    /// </summary>
    /// <returns>如果是Linux平台返回true，否则返回false</returns>
    public static bool IsLinux()
    {
        return RuntimeInformation.IsOSPlatform(OSPlatform.Linux);
    }

    /// <summary>
    /// 检测当前是否为macOS平台
    /// </summary>
    /// <returns>如果是macOS平台返回true，否则返回false</returns>
    public static bool IsMacOS()
    {
        return RuntimeInformation.IsOSPlatform(OSPlatform.OSX);
    }

    /// <summary>
    /// 获取当前平台的串口路径前缀
    /// </summary>
    /// <returns>串口路径前缀字符串</returns>
    public static string GetSerialPortPrefix()
    {
        if (IsWindows())
            return "COM";
        else if (IsLinux())
            return "/dev/ttyUSB";
        else if (IsMacOS())
            return "/dev/cu.";
        else
            throw new PlatformNotSupportedException("不支持的操作系统平台");
    }
}

3. Windows平台串口操作

3.1 基于System.IO.Ports的实现

Windows平台可以直接使用.NET Framework或.NET Core内置的System.IO.Ports.SerialPort类：

using System;
using System.IO.Ports;
using System.Threading.Tasks;
using System.Windows.Forms;

/// <summary>
/// Windows平台串口通讯实现类
/// 基于System.IO.Ports.SerialPort的Windows原生实现
/// </summary>
public class WindowsSerialPortService : ISerialPortService
{
    private SerialPort _serialPort;
    private bool _isOpen;

    /// <summary>
    /// 数据接收事件
    /// 当有数据到达时触发此事件
    /// </summary>
    public event Action<byte[]> DataReceived;

    /// <summary>
    /// 获取串口是否已打开
    /// </summary>
    public bool IsOpen => _isOpen && _serialPort?.IsOpen == true;

    /// <summary>
    /// 构造函数，初始化Windows串口服务
    /// </summary>
    public WindowsSerialPortService()
    {
        _serialPort = new SerialPort();
        _isOpen = false;
    }

    /// <summary>
    /// 打开指定的串口
    /// </summary>
    /// <param name="portName">COM端口名称，例如：COM1, COM2</param>
    /// <param name="baudRate">波特率，默认9600</param>
    /// <param name="dataBits">数据位，默认8位</param>
    /// <param name="parity">校验位，默认无校验</param>
    /// <param name="stopBits">停止位，默认1位</param>
    /// <returns>成功打开返回true，否则返回false</returns>
    public bool Open(string portName, int baudRate = 9600, int dataBits = 8,
                    Parity parity = Parity.None, StopBits stopBits = StopBits.One)
    {
        try
        {
            if (_isOpen)
            {
                Close(); // 如果已经打开，先关闭
            }

            // 配置串口参数
            _serialPort.PortName = portName;
            _serialPort.BaudRate = baudRate;
            _serialPort.DataBits = dataBits;
            _serialPort.Parity = parity;
            _serialPort.StopBits = stopBits;

            // 设置超时时间
            _serialPort.ReadTimeout = 1000;
            _serialPort.WriteTimeout = 1000;

            // 启用数据到达事件
            _serialPort.DataReceived += SerialPort_DataReceived;

            // 打开串口
            _serialPort.Open();
            _isOpen = true;

            return true;
        }
        catch (Exception ex)
        {
            // 记录错误日志
            MessageBox.Show($"打开串口失败: {ex.Message}", "错误",
                          MessageBoxButtons.OK, MessageBoxIcon.Error);
            return false;
        }
    }

    /// <summary>
    /// 关闭串口连接
    /// </summary>
    public void Close()
    {
        try
        {
            if (_serialPort?.IsOpen == true)
            {
                _serialPort.DataReceived -= SerialPort_DataReceived;
                _serialPort.Close();
            }
            _isOpen = false;
        }
        catch (Exception ex)
        {
            // 记录关闭串口时的错误
            Console.WriteLine($"关闭串口时发生错误: {ex.Message}");
        }
    }

    /// <summary>
    /// 向串口写入数据
    /// </summary>
    /// <param name="data">要发送的字节数组</param>
    /// <returns>实际发送的字节数</returns>
    public int Write(byte[] data)
    {
        try
        {
            if (!IsOpen)
            {
                throw new InvalidOperationException("串口未打开");
            }

            _serialPort.Write(data, 0, data.Length);
            return data.Length;
        }
        catch (Exception ex)
        {
            Console.WriteLine($"写入数据失败: {ex.Message}");
            return 0;
        }
    }

    /// <summary>
    /// 从串口读取数据
    /// </summary>
    /// <param name="buffer">接收数据的缓冲区</param>
    /// <returns>实际读取的字节数</returns>
    public int Read(byte[] buffer)
    {
        try
android        {
            if (!IsOpen)
            {
                return 0;
            }

            return _serialPort.Read(buffer, 0, buffer.Length);
        }
        catch (TimeoutException)
        {
            // 读取超时是正常现象，返回0
            return 0;
        }
        catch (Exception ex)
        {
            Console.WriteLine($"读取数据失败: {ex.Message}");
            return 0;
        }
    }

    /// <summary>
    /// 获取系统中可用的串口列表
    /// </summary>
    /// <returns>可用串口名称数组</returns>
    public string[] GetAvailablePorts()
    {
        try
        {
            return SerialPort.GetPortNames();
        }
        catch (Exception ex)
        {
            Console.WriteLine($"获取串口列表失败: {ex.Message}");
            return new string[0];
        }
    }

    /// <summary>
    /// 串口数据接收事件处理器
    /// </summary>
    private void SerialPort_DataReceived(object sender, SerialDataReceivedEventArgs e)
    {
        try
        {
            SerialPort sp = sender as SerialPort;
            int bytesToRead = sp.BytesToRead;

            if (bytesToRead > 0)
            {
                byte[] buffer = new byte[bytesToRead];
                int bytesRead = sp.Read(buffer, 0, bytesToRead);

                if (bytesRead > 0)
                {
                    // 调整数组大小以匹配实际读取的数据
                    Array.Resize(ref buffer, bytesRead);
                    DataReceived?.Invoke(buffer);
                }
            }
        }
        catch (Exception ex)
        {
            Console.WriteLine($"接收数据时发生错误: {ex.Message}");
        }
    }

    /// <summary>
    /// 释放资源
    /// </summary>
    public void Dispose()
    {
        Close();
        _serialPort?.Dispose();
    }
}

3.2 Windows设备管理器集成

为了更好地管理Windows系统中的串口设备，我们可以集成WMI查询功能：

using System.Management;
using System.Collections.Generic;

/// <summary>
/// Windows设备信息查询类
/// 用于获取详细的串口设备信息
/// </summary>
public class WindowsDeviceManager
{
    /// <summary>
    /// 串口设备信息结构
    /// </summary>
    public class SerialPortInfo
    {
        public string PortName { get; set; }
        public string Description { get; set; }
        public string Manufacturer { get; set; }
        public string DeviceID { get; set; }
        public bool IsPresent { get; set; }
    }

    /// <summary>
    /// 通过WMI查询获取详细的串口设备信息
    /// </summary>
    /// <returns>串口设备信息列表</returns>
    public static List<SerialPortInfo> GetDetailedPortInfo()
    {
        List<SerialPortInfo> portInfoList = new List<SerialPortInfo>();

        try
        {
            // 使用WMI查询串口设备
            ManagementObjectSearcher searcher = new ManagementObjectSearcher(
                "SELECT * FROM Win32_PnPEntity WHERE ClassGuid=\"{4d36e978-e325-11ce-bfc1-08002be10318}\"");

            foreach (ManagementObject obj in searcher.Get())
            {
                string name = obj["Name"]?.ToString();
                if (!string.IsNullOrEmpty(name) && name.Contains("COM"))
                {
                    // 提取COM端口号
                    int startIndex = name.IndexOf("COM");
                    int endIndex = name.IndexOf(")", startIndex);
                    string portName = endIndex > startIndex ?
                        name.Substring(startIndex, endIndex - startIndex) :
                        name.Substring(startIndex);

                    SerialPortInfo portInfo = new SerialPortInfo
                    {
                        PortName = portName,
                        Description = name,
                        Manufacturer = obj["Manufacturer"]?.ToString(),
                        DeviceID = obj["DeviceID"]?.ToString(),
                        IsPresent = obj["Present"]?.ToString().ToLower() == "true"
                    };

                    portInfoList.Add(portInfo);
                }
            }
        }
        catch (Exception ex)
        {
            Console.WriteLine($"WMI查询失败: {ex.Message}");
        }

        return portInfoList;
    }

    /// <summary>
    /// 检查指定COM端口是否存在且可用
    /// </summary>
    /// <param name="portName">COM端口名称</param>
    /// <returns>如果端口存在且可用返回true</returns>
    public static bool IsPortAvailable(string portName)
    {
        try
        {
            using (SerialPort testPort = new SerialPort(portName))
            {
                testPort.Open();
                testPort.Close();
                return true;
            }
        }
        catch
        {
            return false;
        }
    }
}

4. Linux/macOS平台适配

4.1 Linux平台串口路径

在Linux系统中，串口设备通常映射为以下路径：

• USB转串口设备：/dev/ttyUSB0, /dev/ttyUSB1等
• 板载串口：/dev/ttyS0, /dev/ttyS1等
• 蓝牙串口：/dev/rfcomm0等

4.2 权限管理

# 查看当前用户所属的组
groups $USER

# 将用户添加到dialout组以获取串口访问权限
sudo usermod -a -G dialout $USER

# 临时修改串口设备权限（重启后失效）
sudo chmod 666 /dev/ttyUSB0

4.3 Linux平台实现

using System;
using System.IO;
using System.Runtime.InteropServices;
using System.Threading;
using System.Threading.Tasks;

/// <summary>
/// Linux平台串口通讯实现类
/// 使用底层文件操作方式实现串口通讯
/// </summary>
public class LinuxSerialPortService : ISerialPortService
{
    // P/Invoke 声明Linux系统调用
    [DllImport("libc", SetLastError = true)]
    private static extern int open(string pathname, int flags);

    [DllImport("libc", SetLastError = true)]
    private static extern int close(int fd);

    [DllImport("libc", SetLastError = true)]
    private static extern IntPtr read(int fd, byte[] buf, UIntPtr count);

    [DllImport("libc", SetLastError = true)]
    private static extern IntPtr write(int fd, byte[] buf, UIntPtr count);

    [DllImport("libc", SetLastError = true)]
    private static extern int tcgetattr(int fd, ref termIOS termios_p);

    [DllImport("libc", SetLastError = true)]
    private static extern int tcsetattr(int fd, int optional_actions, ref termios termios_p);

    // Linux文件操作标志
    private const int O_RdwR = 0x02;
    private const int O_NOCTTY = 0x100;
    private const int O_NONblock = 0x800;

    // termios结构体（简化版本）
    [StructLayout(LayoutKind.Sequential)]
    private struct termios
    {
        public uint c_iflag;
        public uint c_oflag;
        public uint c_cflag;
        public uint c_lflag;
        public byte c_line;
        [MarshalAs(UnmanagedType.ByValArray, SizeConst = 32)]
        public byte[] c_cc;
        public uint c_ispeed;
        public uint c_ospeed;
    }

    private int _fileDescriptor = -1;
    private string _devicePath;
    private bool _isOpen;
    private CancellationTokenSource _cancellationTokenSource;
    private Task _readTask;

    /// <summary>
    /// 数据接收事件
    /// </summary>
    public event Action<byte[]> DataReceived;

    /// <summary>
    /// 获取串口是否已打开
    /// </summary>
    public bool IsOpen => _isOpen && _fileDescriptor >= 0;

    /// <summary>
    /// 打开指定的串口设备
    /// </summary>
    /// <param name="devicePath">设备路径，例如：/dev/ttyUSB0</param>
    /// <param name="baudRate">波特率</param>
    /// <returns>成功打开返回true</returns>
    public bool Open(string devicePath, int baudRate = 9600)
    {
        try
        {
            if (_isOpen)
            {
                Close();
            }

            // 检查设备文件是否存在
            if (!File.Exists(devicePath))
            {
                Console.WriteLine($"设备文件不存在: {devicePath}");
                return false;
            }

            // 打开设备文件
            _fileDescriptor = open(devicePath, O_RDWR | O_NOCTTY | O_NONBLOCK);
            if (_fileDescriptor < 0)
            {
                Console.WriteLine($"无法打开设备: {devicePath}，错误码: {Marshal.GetLastWin32Error()}");
                return false;
            }

            // 配置串口参数
            if (!ConfigureSerialPort(baudRate))
            {
                close(_fileDescriptor);
                _fileDescriptor = -1;
                return false;
            }

            _devicePath = devicePath;
            _isOpen = true;

            // 启动数据接收任务
            StartReceiveTask();

            Console.WriteLine($"成功打开串口: {devicePath}");
            return true;
        }
        catch (Exception ex)
        {
            Console.WriteLine($"打开串口失败: {ex.Message}");
            return false;
        }
    }

    /// <summary>
    /// 配置串口参数
    /// </summary>
    /// <param name="baudRate">波特率</param>
    /// <returns>配置成功返回true</returns>
    private bool ConfigureSerialPort(int baudRate)
    {
        try
        {
            termios tty = new termios();

            // 获取当前终端属性
            if (tcgetattr(_fileDescriptor, ref tty) != 0)
            {
                Console.WriteLine("获取终端属性失败");
                return false;
            }

            // 配置波特率（简化实现，实际应用中需要更详细的配置）
            // 这里只是演示，实际应用中需要根据具体的波特率设置相应的常量
            tty.c_cflag = 0x00001800; // 基本配置
            tty.c_iflag = 0;
            tty.c_oflag = 0;
            tty.c_lflag = 0;

            // 应用配置
            if (tcsetattr(_fileDescriptor, 0, ref tty) != 0)
            {
                Console.WriteLine("设置终端属性失败");
                return false;
            }

            return true;
        }
        catch (Exception ex)
        {
            Console.WriteLine($"配置串口参数失败: {ex.Message}");
            return false;
        }
    }

    /// <summary>
    /// 启动数据接收任务
    /// </summary>
    private void StartReceiveTask()
    {
        _cancellationTokenSource = new CancellationTokenSource();
        _readTask = Task.Run(() => ReceiveDataLoop(_cancellationTokenSource.Token));
    }

    /// <summary>
    /// 数据接收循环
    /// </summary>
    /// <param name="cancellationToken">取消令牌</param>
    private void ReceiveDataLoop(CancellationToken cancellationToken)
    {
        byte[] buffer = new byte[1024];

        while (!cancellationToken.IsCancellationRequested && _isOpen)
        {
            try
            {
                IntPtr result = read(_fileDescriptor, buffer, new UIntPtr((uint)buffer.Length));
                int bytesRead = result.ToInt32();

                if (bytesRead > 0)
                {
                    byte[] receivedData = new byte[bytesRead];
                    Array.Copy(buffer, receivedData, bytesRead);
                    DataReceived?.Invoke(receivedData);
                }
                else if (bytesRead < 0)
                {
                    // 检查是否是EAGAIN错误（非阻塞模式下的正常情况）
                    int error = Marshal.GetLastWin32Error();
                    if (error != 11) // EAGAIN
                    {
                        Console.WriteLine($"读取数据错误: {error}");
                        break;
                    }
                }

                // 短暂休眠避免过度占用CPU
                Thread.Sleep(10);
            }
            catch (Exception ex)
            {
                Console.WriteLine($"数据接收循环异常: {ex.Message}");
                break;
            }
        }
    }

    /// <summary>
    /// 向串口写入数据
    /// </summary>
    /// <param name="data">要发送的字节数组</param>
    /// <returns>实际发送的字节数</returns>
    public int Write(byte[] data)
    {
        try
        {
            if (!IsOpen)
            {
                Console.WriteLine("串口未打开");
                return 0;
            }

            IntPtr result = write(_fileDescriptor, data, new UIntPtr((uint)data.Length));
            int bytesWritten = result.ToInt32();

            if (bytesWritten < 0)
            {
                Console.WriteLine($"写入数据失败，错误码: {Marshal.GetLastWin32Error()}");
                return 0;
            }

            return bytesWritten;
        }
        catch (Exception ex)
        {
            Console.WriteLine($"写入数据异常: {ex.Message}");
            return 0;
        }
    }

    /// <summary>
    /// 关闭串口连接
    /// </summary>
    public void Close()
    {
        try
        {
            _isOpen = false;

            // 停止接收任务
            _cancellationTokenSource?.Cancel();
            _readTask?.Wait(1000); // 等待最多1秒

            // 关闭文件描述符
            if (_fileDescriptor >= 0)
            {
                close(_fileDescriptor);
                _fileDescriptor = -1;
            }

            Console.WriteLine("串口已关闭");
        }
        catch (Exception ex)
        {
            Console.WriteLine($"关闭串口异常: {ex.Message}");
        }
    }

    /// <summary>
    /// 获取可用的串口设备列表
    /// </summary>
    /// <returns>设备路径数组</returns>
    public string[] GetAvailablePorts()
    {
        try
        {
            List<string> ports = new List<string>();

            // 扫描常见的串口设备路径
            string[] prefixes = { "/dev/ttyUSB", "/dev/ttyACM", "/dev/ttyS", "/dev/rfcomm" };

            foreach (string prefix in prefixes)
            {
                for (int i = 0; i < 32; i++) // 检查前32个设备
                {
                    string devicePath = $"{prefix}{i}";
                    if (File.Exists(devicePath))
                    {
                        ports.Add(devicePath);
                    }
                }
            }

            return ports.ToArray();
        }
        catch (Exception ex)
        {
            Console.WriteLine($"获取串口列表失败: {ex.Message}");
            return new string[0];
        }
    }

    /// <summary>
    /// 读取数据（同步方式）
    /// </summary>
    /// <param name="buffer">接收缓冲区</param>
    /// <returns>实际读取的字节数</returns>
    public int Read(byte[] buffer)
    {
        try
        {
            if (!IsOpen)
            {
                return 0;
            }

            IntPtr result = read(_fileDescriptor, buffer, new UIntPtr((uint)buffer.Length));
            int bytesRead = result.ToInt32();

            return bytesRead > 0 ? bytesRead : 0;
        }
        catch (Exception ex)
        {
            Console.WriteLine($"读取数据异常: {ex.Message}");
            return 0;
        }
    }

    /// <summary>
    /// 释放资源
    /// </summary>
    public void Dispose()
    {
        Close();
        _cancellationTokenSource?.Dispose();
    }
}

5. 第三方库集成解决方案

5.1 SerialPortStream库介绍

SerialPortStream是一个独立的串口实现库，它为开发者提供了比标准System.IO.Ports.SerialPort更可靠的编程客栈跨平台串口通讯解决方案。该库的主要优势包括：

• 真正的跨平台支持：Windows、Linux、macOS全平台支持
• 更好的可靠性：解决了原生库的一些已知问题
• 完全缓冲：所有数据都在内存中缓冲，减少数据丢失
• 更好的性能：优化的异步I/O操作

5.2 SerialPortStream集成示例

using RJCP.IO.Ports;
using System;
using System.Text;
using System.Threading.Tasks;

/// <summary>
/// 基于SerialPortStream的跨平台串口服务实现
/// 提供统一的串口操作接口，支持Windows、Linux、macOS平台
/// </summary>
public class SerialPortStreamService : ISerialPortService
{
    private SerialPortStream _serialPort;
    private bool _isOpen;

    /// <summary>
    /// 数据接收事件
    /// </summary>
    public event Action<byte[]> DataReceived;

    /// <summary>
    /// 获取串口是否已打开
    /// </summary>
    public bool IsOpen => _isOpen && _serialPort?.IsOpen == true;

    /// <summary>
    /// 构造函数
    /// </summary>
    public SerialPortStreamService()
    {
        _isOpen = false;
    }

    /// <summary>
    /// 打开串口连接
    /// </summary>
    /// <param name="portName">端口名称</param>
    /// <param name="baudRate">波特率</param>
    /// <param name="dataBits">数据位</param>
    /// <param name="parity">校验位</param>
    /// <param name="stopBits">停止位</param>
    /// <returns>成功返回true</returns>
    public bool Open(string portName, int baudRate = 9600, int dataBits = 8,
                    Parity parity = Parity.None, StopBits stopBits = StopBits.One)
    {
        try
        {
            if (_isOpen)
            {
                Close();
            }

            // 创建SerialPortStream实例
            _serialPort = new SerialPortStream(portName, baudRate, dataBits, parity, stopBits);

            // 配置缓冲区大小
            _serialPort.ReadBufferSize = 4096;
            _serialPort.WriteBufferSize = 4096;

            // 设置超时
            _serialPort.ReadTimeout = 1000;
            _serialPort.WriteTimeout = 1000;

            // 注册数据接收事件
            _serialPort.DataReceived += OnDataReceived;
            _serialPort.ErrorReceived += OnErrorReceived;

            // 打开端口
            _serialPort.Open();
            _isOpen = true;

            Console.WriteLine($"成功打开串口: {portName}");
            return true;
        }
        catch (Exception ex)
        {
            Console.WriteLine($"打开串口失败: {ex.Message}");
            return false;
        }
    }

    /// <summary>
    /// 关闭串口连接
    /// </summary>
    public void Close()
    {
        try
        {
            if (_serialPort?.IsOpen == true)
            {
                _serialPort.DataReceived -= OnDataReceived;
                _serialPort.ErrorReceived -= OnErrorReceived;
                _serialPort.Close();
            }
            _isOpen = false;
            Console.WriteLine("串口已关闭");
        }
        catch (Exception ex)
        {
            Console.WriteLine($"关闭串口时发生错误: {ex.Message}");
        }
    }

    /// <summary>
    /// 写入数据到串口
    /// </summary>
    /// <param name="data">要发送的数据</param>
    /// <returns>实际发送的字节数</returns>
    public int Write(byte[] data)
    {
        try
        {
            if (!IsOpen)
            {
                throw new InvalidOperationException("串口未打开");
            }

            _serialPort.Write(data, 0, data.Length);
            return data.Length;
        }
        catch (Exception ex)
        {
            Console.WriteLine($"写入数据失败: {ex.Message}");
            return 0;
        }
    }

    /// <summary>
    /// 从串口读取数据
    /// </summary>
    /// <param name="buffer">接收缓冲区</param>
    /// <returns>实际读取的字节数</returns>
    public int Read(byte[] buffer)
    {
        try
        {
            if (!IsOpen)
            {
                return 0;
            }

            return _serialPort.Read(buffer, 0, buffer.Length);
        }
        catch (Exception ex)
        {
            Console.WriteLine($"读取数据失败: {ex.Message}");
            return 0;
        }
    }

    /// <summary>
    /// 获取可用的串口列表
    /// </summary>
    /// <returns>串口名称数组</returns>
    public string[] GetAvailablePorts()
    {
        try
        {
            return SerialPortStream.GetPortNames();
        }
        catch (Exception ex)
        {
            Console.WriteLine($"获取串口列表失败: {ex.Message}");
            return new string[0];
        }
    }

    /// <summary>
    /// 异步发送字符串数据
    /// </summary>
    /// <param name="text">要发送的文本</param>
    /// <returns>异步任务</returns>
    public async Task<bool> WriteStringAsync(string text)
    {
        try
        {
            if (!IsOpen)
            {
                return false;
            }

            byte[] data = Encoding.UTF8.GetBytes(text);
            await _serialPort.WriteAsync(data, 0, data.Length);
            return true;
        }
        catch (Exception ex)
        {
            Console.WriteLine($"异步发送数据失败: {ex.Message}");
            return false;
        }
    }

    /// <summary>
    /// 数据接收事件处理器
    /// </summary>
    private void OnDataReceived(object sender, SerialDataReceivedEventArgs e)
    {
        try
        {
            SerialPortStream sp = sender as SerialPortStream;
            int bytesToRead = sp.BytesToRead;

            if (bytesToRead > 0)
            {
                byte[] buffer = new byte[bytesToRead];
                int bytesRead = sp.Read(buffer, 0, bytesToRead);

                if (bytesRead > 0)
                {
                    Array.Resize(ref buffer, bytesRead);
                    DataReceived?.Invoke(buffer);
                }
            }
        }
        catch (Exception ex)
        {
            Console.WriteLine($"处理接收数据时发生错误: {ex.Message}");
        }
    }

    /// <summary>
    /// 错误事件处理器
    /// </summary>
    private void OnErrorReceived(object sender, SerialErrorReceivedEventArgs e)
    {
        Console.WriteLine($"串口错误: {e.EventType}");
    }

    /// <summary>
    /// 释放资源
    /// </summary>
    public void Dispose()
    {
        Close();
        _serialPort?.Dispose();
    }
}

5.3 安装和配置

5.3.1 NuGet包安装

<PackageReference Include="SerialPortStream" Version="2.4.1" />

或使用包管理器控制台：

Install-Package SerialPortStream

5.3.2 Linux平台额外配置

在Linux平台上使用SerialPortStream需要编译本地库：

# 克隆仓库
git clone https://github.com/jcurl/serialportstream.git
cd serialportstream/dll/serialUnix
./build.sh

# 将编译的库添加到LD_LIBRARY_PATH
export LD_LIBRARY_PATH=$PWD/bin/usr/local/lib:$LD_LIBRARY_PATH

5.4 平台比较表格

6. 完整示例项目

6.1 接口定义

首先定义统一的串口服务接口：

using System;
using System.IO.Ports;

/// <summary>
/// 跨平台串口服务接口
/// 定义了所有平台都需要实现的串口操作方法
/// </summary>
public interface ISerialPortService : IDisposable
{
    /// <summary>
    /// 数据接收事件
    /// </summary>
    event Action<byte[]> DataReceived;

    /// <summary>
    /// 串口是否已打开
    /// </summary>
    bool IsOpen { get; }

    /// <summary>
    /// 打开串口
    /// </summary>
    /// <param name="portName">端口名称</param>
    /// <param name="baudRate">波特率</param>
    /// <param name="dataBits">数据位</param>
    /// <param name="parity">校验位</param>
    /// <param name="stopBits">停止位</param>
    /// <returns>成功返回true</returns>
    bool Open(string portName, int baudRate = 9600, int dataBits = 8,
             Parity parity = Parity.None, StopBits stopBits = StopBits.One);

    /// <summary>
    /// 关闭串口
    /// </summary>
    void Close();

    /// <summary>
    /// 写入数据
    /// </summary>
    /// <param name="data">要发送的数据</param>
    /// <returns>实际发送的字节数</returns>
    int Write(byte[] data);

    /// <summary>
    /// 读取数据
    /// </summary>
    /// <param name="buffer">接收缓冲区</param>
    /// <returns>实际读取的字节数</returns>
    int Read(byte[] buffer);

    /// <summary>
    /// 获取可用串口列表
    /// </summary>
    /// <returns>串口名称数组</returns>
    string[] GetAvailablePorts();
}

6.2 工厂模式实现

using System;
using System.Runtime.InteropServices;

/// <summary>
/// 串口服务工厂类
/// 根据当前运行平台自动创建合适的串口服务实例
/// </summary>
public static class SerialPortServiceFactory
{
    /// <summary>
    /// 创建适合当前平台的串口服务实例
    /// </summary>
    /// <param name="preferredProvider">首选的串口提供者</param>
    /// <returns>串口服务实例</returns>
    public static ISerialPortService CreateSerialPortService(SerialPortProvider preferredProvider = SerialPortProvider.Auto)
    {
        switch (preferredProvider)
        {
            case SerialPortProvider.Auto:
                return CreateAutoDetectedService();
            case SerialPortProvider.SystemIOPorts:
                return new WindowsSerialPortService();
            case SerialPortProvider.SerialPortStream:
                return new SerialPortStreamService();
            case SerialPortProvider.NativeLinux:
                if (RuntimeInformation.IsOSPlatform(OSPlatform.Linux))
                    return new LinuxSerialPortService();
                else
                    throw new PlatformNotSupportedException("原生Linux实现仅支持Linux平台");
            default:
                throw new ArgumentException($"不支持的串口提供者: {preferredProvider}");
        }
    }

    /// <summary>
    /// 自动检测并创建最佳的串口服务
    /// </summary>
    /// <returns>串口服务实例</returns>
    private static ISerialPortService CreateAutoDetectedService()
    {
        // 优先级：SerialPortStream > 平台原生实现
        try
        {
            // 尝试使用SerialPortStream（最佳跨平台方案）
            return new SerialPortStreamService();
        }
        catch (Exception ex)
        {
            Console.WriteLine($"SerialPortStream不可用，回退到平台原生实现: {ex.Message}");

            // 回退到平台特定实现
            if (RuntimeInformation.IsOSPlatform(OSPlatform.Windows))
            {
                return new WindowsSerialPortService();
            }
            else if (RuntimeInformation.IsOSPlatform(OSPlatform.Linux))
            {
                return new LinuxSerialPortService();
            }
            else
            {
                throw new PlatformNotSupportedException($"不支持的平台: {RuntimeInformation.OSDescription}");
            }
        }
    }

    /// <summary>
    /// 获取当前平台的默认串口前缀
    /// </summary>
    /// <returns>串口前缀字符串</returns>
    public static string GetDefaultPortPrefix()
    {
        if (RuntimeInformation.IsOSPlatform(OSPlatform.Windows))
            return "COM";
        else if (RuntimeInformation.IsOSPlatform(OSPlatform.Linux))
            return "/dev/ttyUSB";
        else if (RuntimeInformation.IsOSPlatform(OSPlatform.OSX))
            return "/dev/cu.usbserial";
        else
            return "UNKNOWN";
    }
}

/// <summary>
/// 串口提供者枚举
/// </summary>
public enum SerialPortProvider
{
    Auto,                // 自动选择最佳实现
    SystemIOPorts,       // 使用System.IO.Ports
    SerialPortStream,    // 使用SerialPortStream库
    NativeLinux         // 使用原生Linux实现
}

6.3 WinForm界面实现

using System;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

/// <summary>
/// 跨平台串口通讯演示窗体
/// 展示如何在WinForm中集成跨平台串口通讯功能
/// </summary>
public partial class CrossPlatformSerialForm : Form
{
    private ISerialPortService _serialPortService;
    private StringBuilder _receivedDataBuilder;

    // 界面控件
    private ComboBox cmbPortName;
    private ComboBox cmbBaudRate;
    private ComboBox cmbDataBits;
    private ComboBox cmbParity;
    private ComboBox cmbStopBits;
    private ComboBox cmbProvider;
    private Button btnRefreshPorts;
    private Button btnOpen;
    private Button btnClose;
    private TextBox txtSendData;
    private Button btnSend;
    private TextBox txtReceiveData;
    private Button btnClearReceive;
    private Label lblStatus;
    private CheckBox chkHexDisplay;

    public CrossPlatformSerialForm()
    {
        InitializeComponent();
        InitializeSerialPortSjservice();
        _receivedDataBuilder = new StringBuilder();
    }

    /// <summary>
    /// 初始化界面控件
    /// </summary>
    private void InitializeComponent()
    {
        this.Text = "C# WinForm跨平台串口通讯演示";
        this.Size = new Size(800, 600);
        this.StartPosition = FormStartPosition.CenterScreen;

        // 创建控件
        CreateSerialPortControls();
        CreateDataControls();
        CreateStatusControls();

        // 布局控件
        LayoutControls();

        // 绑定事件
        BindEvents();

        // 初始化数据
        InitializeControlValues();
    }

    /// <summary>
    /// 创建串口配置控件
    /// </summary>
    private void CreateSerialPortControls()
    {
        // 串口名称
        var lblPortName = new Label { Text = "串口:", Location = new Point(10, 15), Size = new Size(50, 23) };
        cmbPortName = new ComboBox { Location = new Point(70, 12), Size = new Size(120, 23), DropDownStyle = ComboBoxStyle.DropDownList };

        // 刷新串口按钮
        btnRefreshPorts = new Button { Text = "刷新", Location = new Point(200, 12), Size = new Size(60, 23) };

        // 波特率
        var lblBaudRate = new Label { Text = "波特率:", Location = new Point(280, 15), Size = new Size(50, 23) };
        cmbBaudRate = new ComboBox { Location = new Point(340, 12), Size = new Size(80, 23), DropDownStyle = ComboBoxStyle.DropDownList };

        // 数据位
        var lblDataBits = new Label { Text = "数据位:", Location = new Point(430, 15), Size = new Size(50, 23) };
        cmbDataBits = new ComboBox { Location = new Point(490, 12), Size = new Size(60, 23), DropDownStyle = ComboBoxStyle.DropDownList };

        // 校验位
        var lblParity = new Label { Text = "校验:", Location = new Point(560, 15), Size = new Size(40, 23) };
        cmbParity = new ComboBox { Location = new Point(610, 12), Size = new Size(80, 23), DropDownStyle = ComboBoxStyle.DropDownList };

        // 停止位
        var lblStopBits = new Label { Text = "停止位:", Location = new Point(10, 45), Size = new Size(50, 23) };
        cmbStopBits = new ComboBox { Location = new Point(70, 42), Size = new Size(80, 23), DropDownStyle = ComboBoxStyle.DropDownList };

        // 提供者选择
        var lblProvider = new Label { Text = "提供者:", Location = new Point(160, 45), Size = new Size(50, 23) };
        cmbProvider = new ComboBox { Location = new Point(220, 42), Size = new Size(120, 23), DropDownStyle = ComboBoxStyle.DropDownList };

        // 连接控制按钮
        btnOpen = new Button { Text = "打开串口", Location = new Point(350, 42), Size = new Size(80, 23) };
        btnClose = new Button { Text = "关闭串口", Location = new Point(440, 42), Size = new Size(80, 23), Enabled = false };

        // 添加到窗体
        this.Controls.AddRange(new Control[] {
            lblPortName, cmbPortName, btnRefreshPorts,
            lblBaudRate, cmbBaudRate,
            lblDataBits, cmbDataBits,
            lblParity, cmbParity,
            lblStopBits, cmbStopBits,
            lblProvider, cmbProvider,
            btnOpen, btnClose
        });
    }

    /// <summary>
    /// 创建数据收发控件
    /// </summary>
    private void CreateDataControls()
    {
        // 发送数据区域
        var grpSend = new GroupBox { Text = "发送数据", Location = new Point(10, 80), Size = new Size(760, 80) };
        txtSendData = new TextBox { Location = new Point(10, 25), Size = new Size(650, 23) };
        btnSend = new Button { Text = "发送", Location = new Point(670, 25), Size = new Size(80, 23) };
        grpSend.Controls.AddRange(new Control[] { txtSendData, btnSend });

        // 接收数据区域
        var grpReceive = new GroupBox { Text = "接收数据", Location = new Point(10, 170), Size = new Size(760, 320) };
        txtReceiveData = new TextBox {
            Location = new Point(10, 25),
            Size = new Size(740, 250),
            Multiline = true,
            ScrollBars = ScrollBars.Vertical,
            ReadOnly = true,
            Font = new Font("Consolas", 9)
        };
        btnClearReceive = new Button { Text = "清空", Location = new Point(10, 285), Size = new Size(80, 23) };
        chkHexDisplay = new CheckBox { Text = "十六进制显示", Location = new Point(100, 285), Size = new Size(120, 23) };
        grpReceive.Controls.AddRange(new Control[] { txtReceiveData, btnClearReceive, chkHexDisplay });

        this.Controls.AddRange(new Control[] { grpSend, grpReceive });
    }

    /// <summary>
    /// 创建状态控件
    /// </summary>
    private void CreateStatusControls()
    {
        lblStatus = new Label {
            Text = "就绪",
            Location = new Point(10, 510),
            Size = new Size(760, 23),
            BorderStyle = BorderStyle.FixedSingle,
            TextAlign = ContentAlignment.MiddleLeft
        };
        this.Controls.Add(lblStatus);
    }

    /// <summary>
    /// 布局控件（此处省略具体布局代码）
    /// </summary>
    private void LayoutControls()
    {
        // 实际项目中可以使用TableLayoutPanel或其他布局控件
        // 此处为简化演示，直接使用绝对定位
    }

    /// <summary>
    /// 绑定事件处理器
    /// </summary>
    private void BindEvents()
    {
        btnRefreshPorts.Click += BtnRefreshPorts_Click;
        btnOpen.Click += BtnOpen_Click;
        btnClose.Click += BtnClose_Click;
        btnSend.Click += BtnSend_Click;
        btnClearReceive.Click += BtnClearReceive_Click;
        chkHexDisplay.CheckedChanged += ChkHexDisplay_CheckedChanged;
        this.FormClosing += CrossPlatformSerialForm_FormClosing;
    }

    /// <summary>
    /// 初始化控件值
    /// </summary>
    private void InitializeControlValues()
    {
        // 波特率选项
        cmbBaudRate.Items.AddRange(new object[] { 9600, 19200, 38400, 57600, 115200 });
        cmbBaudRate.SelectedIndex = 0;

        // 数据位选项
        cmbDataBits.Items.AddRange(new object[] { 7, 8 });
        cmbDataBits.SelectedIndex = 1;

        // 校验位选项
        cmbParity.Items.AddRange(Enum.GetNames(typeof(System.IO.Ports.Parity)));
        cmbParity.SelectedIndex = 0; // None

        // 停止位选项
        cmbStopBits.Items.AddRange(Enum.GetNames(typeof(System.IO.Ports.StopBits)));
        cmbStopBits.SelectedIndex = 1; // One

        // 提供者选项
        cmbProvider.Items.AddRange(Enum.GetNames(typeof(SerialPortProvider)));
        cmbProvider.SelectedIndex = 0; // Auto

        // 刷新串口列表
        RefreshPortList();
    }

    /// <summary>
    /// 初始化串口服务
    /// </summary>
    private void InitializeSerialPortService()
    {
        try
        {
            _serialPortService = SerialPortServiceFactory.CreateSerialPortService();
            _serialPortService.DataReceived += OnDataReceived;
            UpdateStatus("串口服务初始化成功");
        }
        catch (Exception ex)
        {
            UpdateStatus($"串口服务初始化失败: {ex.Message}");
            MessageBox.Show($"串口服务初始化失败: {ex.Message}", "错误", MessageBoxButtons.OK, MessageBoxIcon.Error);
        }
    }

    /// <summary>
    /// 刷新串口列表
    /// </summary>
    private void RefreshPortList()
    {
        try
        {
            cmbPortName.Items.Clear();
            string[] ports = _serialPortService?.GetAvailablePorts() ?? new string[0];
            cmbPortName.Items.AddRange(ports);

            if (cmbPortName.Items.Count > 0)
            {
                cmbPortName.SelectedIndex = 0;
            }

            UpdateStatus($"发现 {ports.Length} 个串口设备");
        }
        catch (Exception ex)
        {
            UpdateStatus($"刷新串口列表失败: {ex.Message}");
        }
    }

    /// <summary>
    /// 数据接收事件处理器
    /// </summary>
    private void OnDataReceived(byte[] data)
    {
        // 由于事件可能在非UI线程中触发，需要使用Invoke进行线程安全的UI更新
        if (this.InvokeRequired)
        {
            this.Invoke(new Action<byte[]>(OnDataReceived), data);
            return;
        }

        try
        {
            string displayText;
            if (chkHexDisplay.Checked)
            {
                // 十六进制显示
                displayText = string.Join(" ", data.Select(b => b.ToString("X2"))) + " ";
            }
            else
            {
                // ASCII显示
                displayText = Encoding.UTF8.GetString(data);
            }

            _receivedDataBuilder.Append(displayText);
            txtReceiveData.Text = _receivedDataBuilder.ToString();

            // 自动滚动到底部
            txtReceiveData.SelectionStart = txtReceiveData.Text.Length;
            txtReceiveData.ScrollToCaret();

            UpdateStatus($"接收到 {data.Length} 字节数据");
        }
        catch (Exception ex)
        {
            UpdateStatus($"处理接收数据失败: {ex.Message}");
        }
    }

    /// <summary>
    /// 更新状态栏信息
    /// </summary>
    private void UpdateStatus(string message)
    {
        if (lblStatus.InvokeRequired)
        {
            lblStatus.Invoke(new Action<string>(UpdateStatus), message);
            return;
        }

        lblStatus.Text = $"{DateTime.Now:HH:mm:ss} - {message}";
    }

    // 事件处理器实现
    private void BtnRefreshPorts_Click(object sender, EventArgs e)
    {
        RefreshPortList();
    }

    private async void BtnOpen_Click(object sender, EventArgs e)
    {
        try
        {
            if (cmbPortName.SelectedItem == null)
            {
                MessageBox.Show("请选择串口", "提示", MessageBoxButtons.OK, MessageBoxIcon.Warning);
                return;
            }

         python   // 根据选择的提供者重新创建服务
            var provider = (SerialPortProvider)Enum.Parse(typeof(SerialPortProvider), cmbProvider.SelectedItem.ToString());
            _serialPortService?.Dispose();
            _serialPortService = SerialPortServiceFactory.CreateSerialPortService(provider);
            _serialPortService.DataReceived += OnDataReceived;

            // 解析参数
            string portName = cmbPortName.SelectedItem.ToString();
            int baudRate = (int)cmbBaudRate.SelectedItem;
            int dataBits = (int)cmbDataBits.SelectedItem;
            var parity = (System.IO.Ports.Parity)Enum.Parse(typeof(System.IO.Ports.Parity), cmbParity.SelectedItem.ToString());
            var stopBits = (System.IO.Ports.StopBits)Enum.Parse(typeof(System.IO.Ports.StopBits), cmbStopBits.SelectedItem.ToString());

            // 异步打开串口
            bool success = await Task.Run(() => _serialPortService.Open(portName, baudRate, dataBits, parity, stopBits));

            if (success)
            {
                btnOpen.Enabled = false;
                btnClose.Enabled = true;
                btnSend.Enabled = true;
                EnableSerialPortControls(false);
                UpdateStatus($"串口 {portName} 已打开");
            }
            else
            {
                MessageBox.Show("打开串口失败", "错误", MessageBoxButtons.OK, MessageBoxIcon.Error);
            }
        }
        catch (Exception ex)
        {
            MessageBox.Show($"打开串口异常: {ex.Message}", "错误", MessageBoxButtons.OK, MessageBoxIcon.Error);
            UpdateStatus($"打开串口异常: {ex.Message}");
        }
    }

    private void BtnClose_Click(object sender, EventArgs e)
    {
        try
        {
            _serialPortService?.Close();
            btnOpen.Enabled = true;
            btnClose.Enabled = false;
            btnSend.Enabled = false;
            EnableSerialPortControls(true);
            UpdateStatus("串口已关闭");
        }
        catch (Exception ex)
        {
            UpdateStatus($"关闭串口异常: {ex.Message}");
        }
    }

    private async void BtnSend_Click(object sender, EventArgs e)
    {
        try
        {
            if (string.IsNullOrEmpty(txtSendData.Text))
            {
                MessageBox.Show("请输入要发送的数据", "提示", MessageBoxButtons.OK, MessageBoxIcon.Warning);
                return;
            }

            byte[] data = Encoding.UTF8.GetBytes(txtSendData.Text);
            int bytesSent = await Task.Run(() => _serialPortService.Write(data));

            if (bytesSent > 0)
            {
                UpdateStatus($"发送了 {bytesSent} 字节数据");
            }
            else
            {
                UpdateStatus("发送数据失败");
            }
        }
        catch (Exception ex)
        {
            MessageBox.Show($"发送数据异常: {ex.Message}", "错误", MessageBoxButtons.OK, MessageBoxIcon.Error);
            UpdateStatus($"发送数据异常: {ex.Message}");
        }
    }

    private void BtnClearReceive_Click(object sender, EventArgs e)
    {
        _receivedDataBuilder.Clear();
        txtReceiveData.Clear();
        UpdateStatus("已清空接收数据");
    }

    private void ChkHexDisplay_CheckedChanged(object sender, EventArgs e)
    {
        // 可以在这里实现显示格式切换逻辑
        UpdateStatus($"显示格式已切换为: {(chkHexDisplay.Checked ? "十六进制" : "ASCII")}");
    }

    private void EnableSerialPortControls(bool enabled)
    {
        cmbPortName.Enabled = enabled;
        cmbBaudRate.Enabled = enabled;
        cmbDataBits.Enabled = enabled;
        cmbParity.Enabled = enabled;
        cmbStopBits.Enabled = enabled;
        cmbProvider.Enabled = enabled;
        btnRefreshPorts.Enabled = enabled;
    }

    private void CrossPlatformSerialForm_FormClosing(object sender, FormClosingEventArgs e)
    {
        try
        {
            _serialPortService?.Dispose();
        }
        catch (Exception ex)
        {
            Console.WriteLine($"释放串口资源时发生错误: {ex.Message}");
        }
    }
}

7. 性能优化与最佳实践

7.1 异步编程优化

在跨平台串口通讯中，异步编程是提升性能的关键。以下是一些优化建议：

/// <summary>
/// 异步串口数据处理类
/// 优化串口数据的异步读写性能
/// </summary>
public class AsyncSerialPortProcessor
{
    private readonly ISerialPortService _serialPort;
    private readonly SemaphoreSlim _writeSemaphore;
    private readonly CancellationTokenSource _cancellationTokenSource;
    private readonly ConcurrentQueue<byte[]> _sendQueue;
    private readonly Task _sendTask;

    public AsyncSerialPortProcessor(ISerialPortService serialPort)
    {
        _serialPort = serialPort;
        _writeSemaphore = new SemaphoreSlim(1, 1); // 确保写操作的线程安全
        _cancellationTokenSource = new CancellationTokenSource();
        _sendQueue = new ConcurrentQueue<byte[]>();

        // 启动异步发送任务
        _sendTask = ProcessSendQueueAsync(_cancellationTokenSource.Token);
    }

    /// <summary>
    /// 异步发送数据（非阻塞）
    /// </summary>
    /// <param name="data">要发送的数据</param>
    /// <returns>发送任务</returns>
    public Task<bool> SendAsync(byte[] data)
    {
        _sendQueue.Enqueue(data);
        return Task.FromResult(true);
    }

    /// <summary>
    /// 处理发送队列的异步任务
    /// </summary>
    private async Task ProcessSendQueueAsync(CancellationToken cancellationToken)
    {
        while (!cancellationToken.IsCancellationRequested)
        {
            try
            {
                if (_sendQueue.TryDequeue(out byte[] data))
                {
                    await _writeSemaphore.WaitAsync(cancellationToken);
                    try
                    {
                        await Task.Run(() => _serialPort.Write(data), cancellationToken);
                    }
                    finally
                    {
                        _writeSemaphore.Release();
                    }
                }
                else
                {
                    // 队列为空时稍作延迟，避免CPU占用过高
                    await Task.Delay(1, cancellationToken);
                }
            }
            catch (OperationCanceledException)
            {
                break;
            }
            catch (Exception ex)
            {
                // 记录错误但继续处理
                Console.WriteLine($"发送数据时发生错误: {ex.Message}");
                await Task.Delay(100, cancellationToken); // 错误恢复延迟
            }
        }
    }

    public void Dispose()
    {
        _cancellationTokenSource.Cancel();
        _sendTask?.Wait(5000); // 等待最多5秒
        _writeSemaphore?.Dispose();
        _cancellationTokenSource?.Dispose();
    }
}

7.2 内存管理优化

/// <summary>
/// 内存池优化的串口数据缓冲区
/// 减少GC压力，提升性能
/// </summary>
public class OptimizedSerialBuffer
{
    private readonly ArrayPool<byte> _arrayPool;
    private readonly int _bufferSize;

    public OptimizedSerialBuffer(int bufferSize = 4096)
    {
        _arrayPool = ArrayPool<byte>.Shared;
        _bufferSize = bufferSize;
    }

    /// <summary>
    /// 租用缓冲区
    /// </summary>
    /// <returns>租用的字节数组</returns>
    public byte[] RentBuffer()
    {
        return _arrayPool.Rent(_bufferSize);
    }

    /// <summary>
    /// 归还缓冲区
    /// </summary>
    /// <param name="buffer">要归还的缓冲区</param>
    /// <param name="clearArray">是否清空数组内容</param>
    public void ReturnBuffer(byte[] buffer, bool clearArray = true)
    {
        _arrayPool.Return(buffer, clearArray);
    }

    /// <summary>
    /// 优化的数据复制方法
    /// </summary>
    /// <param name="source">源数据</param>
    /// <param name="sourceOffset">源偏移量</param>
    /// <param name="destination">目标数据</param>
    /// <param name="destinationOffset">目标偏移量</param>
    /// <param name="count">复制字节数</param>
    public static void FastCopy(byte[] source, int sourceOffset, byte[] destination, int destinationOffset, int count)
    {
        if (count > 0)
        {
            Buffer.BlockCopy(source, sourceOffset, destination, destinationOffset, count);
        }
    }
}

7.3 平台特定性能优化

/// <summary>
/// 平台特定的性能优化管理器
/// </summary>
public static class PlatformPerformanceOptimizer
{
    /// <summary>
    /// 获取推荐的缓冲区大小
    /// 根据不同平台返回最优的缓冲区大小
    /// </summary>
    /// <returns>推荐的缓冲区大小</returns>
    public static int GetRecommendedBufferSize()
    {
        if (PlatformDetector.IsWindows())
        {
            // Windows平台建议使用较大的缓冲区
            return 8192;
        }
        else if (PlatformDetector.IsLinux())
        {
            // Linux平台建议使用中等大小的缓冲区
            return 4096;
        }
        else if (PlatformDetector.IsMacOS())
        {
            // macOS平台建议使用中等大小的缓冲区
            return 4096;
        }
        else
        {
            // 未知平台使用默认大小
            return 2048;
        }
    }

    /// <summary>
    /// 获取推荐的线程池配置
    /// </summary>
    public static void OptimizeThreadPool()
    {
        // 根据CPU核心数优化线程池
        int processorCount = Environment.ProcessorCount;

        // 设置最小工作线程数
        ThreadPool.SetMinThreads(processorCount, processorCount);

        // 设置最大工作线程数（避免过多线程导致上下文切换开销）
        ThreadPool.SetMaxThreads(processorCount * 4, processorCount * 4);
    }

    /// <summary>
    /// 设置进程优先级（需要管理员权限）
    /// </summary>
    public static void SetHighPriority()
    {
        try
        {
            Process.GetCurrentProcess().PriorityClass = ProcessPriorityClass.High;
        }
        catch (Exception ex)
        {
            Console.WriteLine($"设置进程优先级失败: {ex.Message}");
        }
    }
}

7.4 最佳实践指南

/// <summary>
/// 跨平台串口通讯最佳实践指南
/// </summary>
public static class SerialPortBestPractices
{
    /// <summary>
    /// 检查串口配置的有效性
    /// </summary>
    /// <param name="portName">串口名称</param>
    /// <param name="baudRate">波特率</param>
    /// <returns>配置是否有效</returns>
    public static bool ValidateConfiguration(string portName, int baudRate)
    {
        // 1. 检查串口名称格式
        if (string.IsNullOrEmpty(portName))
            return false;

        // 2. 检查平台特定的串口名称格式
        if (PlatformDetector.IsWindows())
        {
            if (!portName.StartsWith("COM", StringComparison.OrdinalIgnoreCase))
                return false;
        }
        else if (PlatformDetector.IsLinux())
        {
            if (!portName.StartsWith("/dev/tty", StringComparison.Ordinal))
                return false;
        }
        else if (PlatformDetector.IsMacOS())
        {
            if (!portName.StartsWith("/dev/cu.", StringComparison.Ordinal))
                return false;
        }

        // 3. 检查波特率是否在有效范围内
        int[] validBaudRates = { 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600 };
        if (!validBaudRates.Contains(baudRate))
        {
            Console.WriteLine($"警告: 非标准波特率 {baudRate}，可能在某些平台上不支持");
        }

        return true;
    }

    /// <summary>
    /// 获取推荐的超时设置
    /// </summary>
    /// <param name="baudRate">波特率</param>
    /// <returns>推荐的超时时间（毫秒）</returns>
    public static int GetRecommendedTimeout(int baudRate)
    {
        // 根据波特率计算合理的超时时间
        // 低波特率需要更长的超时时间
        if (baudRate <= 9600)
            return 5000;
        else if (baudRate <= 57600)
            return 3000;
        else if (baudRate <= 115200)
            return 2000;
        else
            return 1000;
    }

    /// <summary>
    /// 实现重试机制
    /// </summary>
    /// <param name="operation">要执行的操作</param>
    /// <param name="maxRetries">最大重试次数</param>
    /// <param name="delayMs">重试间隔（毫秒）</param>
    /// <returns>操作是否成功</returns>
    public static async Task<bool> RetryOperation(Func<bool> operation, int maxRetries = 3, int delayMs = 1000)
    {
        for (int i = 0; i <= maxRetries; i++)
        {
            try
            {
                if (operation())
                    return true;
            }
            catch (Exception ex)
            {
                Console.WriteLine($"操作失败 (第{i + 1}次尝试): {ex.Message}");

                if (i == maxRetries)
                    throw; // 最后一次重试失败，抛出异常
            }

            if (i < maxRetries)
            {
                await Task.Delay(delayMs);
            }
        }

        return false;
    }
}

8. 常见问题与解决方案

8.1 串口无法打开问题

问题描述：程序报告串口打开失败或权限不足

解决方案：

/// <summary>
/// 串口诊断工具类
/// 用于诊断和解决常见的串口问题
/// </summary>
public static class SerialPortDiagnostics
{
    /// <summary>
    /// 诊断串口无法打开的问题
    /// </summary>
    /// <param name="portName">串口名称</param>
    /// <returns>诊断结果和建议</returns>
    public static string DiagnosePortOpenFailure(string portName)
    {
        var issues = new List<string>();
        var suggestions = new List<string>();

        try
        {
            // 1. 检查串口是否存在
            string[] availablePorts = SerialPort.GetPortNames();
            if (!availablePorts.Contains(portName))
            {
                issues.Add($"串口 {portName} 不存在");
                suggestions.Add($"可用串口: {string.Join(", ", availablePorts)}");
            }

            // 2. 平台特定检查
            if (PlatformDetector.IsLinux() || PlatformDetector.IsMacOS())
            {
                // 检查权限
                if (!CheckUnixPortPermissions(portName))
                {
                    issues.Add("权限不足");
                    suggestions.Add($"尝试运行: sudo chmod 666 {portName}");
                    suggestions.Add("或将用户添加到dialout组: sudo usermod -a -G dialout $USER");
                }
            }

            // 3. 检查是否被其他程序占用
            if (IsPortInUse(portName))
            {
                issues.Add("串口可能被其他程序占用");
                suggestions.Add("关闭可能占用串口的其他程序");
                suggestions.Add("使用 lsof 命令检查串口占用情况（Linux/macOS）");
            }

        }
        catch (Exception ex)
        {
            issues.Add($"诊断过程中发生错误: {ex.Message}");
        }

        string result = "串口诊断结果:\n";
        result += "问题:\n" + string.Join("\n", issues.Select(i => $"  - {i}"));
        result += "\n建议:\n" + string.Join("\n", suggestions.Select(s => $"  - {s}"));

        return result;
    }

    /// <summary>
    /// 检查Unix系统上的串口权限
    /// </summary>
    private static bool CheckUnixPortPermissions(string portName)
    {
        try
        {
            var fileInfo = new FileInfo(portName);
            return fileInfo.Exists; // 简化的权限检查
        }
        catch
        {
            return false;
        }
    }

    /// <summary>
    /// 检查串口是否被占用
    /// </summary>
    private static bool IsPortInUse(string portName)
    {
        try
        {
            using (var testPort = new SerialPort(portName))
            {
                testPort.Open();
                testPort.Close();
                return false; // 能够打开说明没有被占用
            }
        }
        catch
        {
            return true; // 无法打开可能是被占用
        }
    }
}

8.2 数据丢失或乱码问题

问题描述：接收到的数据不完整或出现乱码

解决方案：

/// <summary>
/// 数据完整性检查器
/// 用于检测和处理数据丢失或乱码问题
/// </summary>
public class DataIntegrityChecker
{
    private readonly Queue<byte> _dataBuffer;
    private readonly object _bufferLock;
    private int _expectedSequence;

    public DataIntegrityChecker()
    {
        _dataBuffer = new Queue<byte>();
        _bufferLock = new object();
        _expectedSequence = 0;
    }

    /// <summary>
    /// 处理接收到的数据
    /// </summary>
    /// <param name="data">接收到的原始数据</param>
    /// <returns>处理后的完整数据包</returns>
    public List<byte[]> ProcessReceivedData(byte[] data)
    {
        var completePackets = new List<byte[]>();

        lock (_bufferLock)
        {
            // 将新数据添加到缓冲区
            foreach (byte b in data)
            {
                _dataBuffer.Enqueue(b);
            }

            // 尝试从缓冲区中提取完整的数据包
            while (TryExtractPacket(out byte[] packet))
            {
                if (ValidatePacket(packet))
                {
                    completePackets.Add(packet);
                }
                else
                {
                    Console.WriteLine("检测到损坏的数据包，已丢弃");
                }
            }
        }

        return completePackets;
    }

    /// <summary>
    /// 尝试从缓冲区提取完整数据包
    /// </summary>
    private bool TryExtractPacket(out byte[] packet)
    {
        packet = null;

        // 简化的数据包提取逻辑（假设固定长度的数据包）
        const int packetLength = 10;

        if (_dataBuffer.Count >= packetLength)
        {
            packet = new byte[packetLength];
            for (int i = 0; i < packetLength; i++)
            {
                packet[i] = _dataBuffer.Dequeue();
            }
            return true;
        }

        return false;
    }

    /// <summary>
    /// 验证数据包的完整性
    /// </summary>
    private bool ValidatePacket(byte[] packet)
    {
        // 实现校验和验证
        if (packet.Length < 2) return false;

        byte calculatedChecksum = 0;
        for (int i = 0; i < packet.Length - 1; i++)
        {
            calculatedChecksum ^= packet[i];
        }

        return calculatedChecksum == packet[packet.Length - 1];
    }
}

8.3 跨平台兼容性问题

问题描述：程序在不同平台上表现不一致

解决方案：

/// <summary>
/// 跨平台兼容性管理器
/// 处理不同平台间的差异和兼容性问题
/// </summary>
public static class CrossPlatformCompatibility
{
    /// <summary>
    /// 获取平台特定的串口配置
    /// </summary>
    /// <param name="portName">串口名称</param>
    /// <returns>平台优化的配置</returns>
    public static SerialPortConfig GetPlatformOptimizedConfig(string portName)
    {
        var config = new SerialPortConfig();

        if (PlatformDetector.IsWindows())
        {
            // Windows平台优化配置
            config.ReadBufferSize = 8192;
            config.WriteBufferSize = 4096;
            config.ReadTimeout = 1000;
            config.WriteTimeout = 1000;
            config.DtrEnable = false;
            config.RtsEnable = false;
        }
        else if (PlatformDetector.IsLinux())
        {
            // Linux平台优化配置
            config.ReadBufferSize = 4096;
            config.WriteBufferSize = 2048;
            config.ReadTimeout = 2000;
            config.WriteTimeout = 2000;
            config.DtrEnable = true; // Linux上通常需要启用DTR
            config.RtsEnable = true;
        }
        else if (PlatformDetector.IsMacOS())
        {
            // macOS平台优化配置
            config.ReadBufferSize = 4096;
            config.WriteBufferSize = 2048;
            config.ReadTimeout = 1500;
            config.WriteTimeout = 1500;
            config.DtrEnable = true;
            config.RtsEnable = false;
        }

        return config;
    }

    /// <summary>
    /// 平台特定的串口名称转换
    /// </summary>
    /// <param name="genericPortName">通用串口名称</param>
    /// <returns>平台特定的串口名称</returns>
    public static string ConvertPortName(string genericPortName)
    {
        if (PlatformDetector.IsWindows())
        {
            // Windows: COM1, COM2, ...
            if (!genericPortName.StartsWith("COM"))
            {
                if (int.TryPar编程客栈se(genericPortName, out int portNumber))
                {
                    return $"COM{portNumber}";
                }
            }
        }
        else if (PlatformDetector.IsLinux())
        {
            // Linux: /dev/ttyUSB0, /dev/ttyACM0, ...
            if (!genericPortName.StartsWith("/dev/"))
            {
                if (int.TryParse(genericPortName, out int portNumber))
                {
                    return $"/dev/ttyUSB{portNumber}";
                }
            }
        }
        else if (PlatformDetector.IsMacOS())
        {
            // macOS: /dev/cu.usbserial-xxx
            if (!genericPortName.StartsWith("/dev/"))
            {
                if (int.TryParse(genericPortName, out int portNumber))
                {
                    return $"/dev/cu.usbserial-{portNumber:D4}";
                }
            }
        }

        return genericPortName;
    }
}

/// <summary>
/// 串口配置类
/// </summary>
public class SerialPortConfig
{
    public int ReadBufferSize { get; set; } = 4096;
    public int WriteBufferSize { get; set; } = 2048;
    public int ReadTimeout { get; set; } = 1000;
    public int WriteTimeout { get; set; } = 1000;
    public bool DtrEnable { get; set; } = false;
    public bool RtsEnable { get; set; } = false;
}

9. 总结

9.1 技术要点总结

架构设计：采用接口抽象和工厂模式，实现了良好的扩展性和可维护性

平台适配：分别针对Windows、Linux和macOS平台提供了专门的实现方案

第三方库集成：展示了如何集成SerialPortStream等成熟的跨平台库

性能优化：通过异步编程、内存管理和平台特定优化提升了整体性能

错误处理：建立了完善的错误处理和诊断机制

9.2 开发收益

跨平台兼容：一套代码可以在多个平台上运行，大大减少了开发和维护成本

高性能：通过各种优化手段，确保了在高频率数据传输场景下的稳定性

易于扩展：良好的架构设计使得添加新的串口实现变得简单

生产就绪：完整的错误处理和诊断功能确保了解决方案的生产可用性

9.3 适用场景

本解决方案特别适用于以下场景：

• 工业自动化控制系统
• 物联网设备通讯
• 科学仪器数据采集
• 嵌入式系统开发工具
• 跨平台的设备管理软件

9.4 技术发展趋势

随着.NET技术的不断发展，跨平台串口通讯技术也在持续改进：

• .NET 7/8的改进：新版本对System.IO.Ports的跨平台支持更加完善
• 云原生集成：串口通讯与云平台的集成将变得更加紧密
• 容器化部署：支持在docker容器中运行的串口应用将成为趋势
• AI辅助诊断：引入机器学习算法来自动诊断和解决串口通讯问题

以上就是C# WinForm实现跨平台串口通讯的解决方案的详细内容，更多关于C#跨平台串口通讯 的资料请关注编程客栈(www.devze.com)其它相关文章！
