springBoot集成flowable的流程解析
目录
- 前言
- 一、pom中引入Flowable相关框架
- 二、相关配置文件
- 1.application.properties配置文件
- 2.审批流程XML文件，默认放置在resources下的processess文件夹下
- 三、控制层代码块
- 四、Service层，请假条新增、审批、查询的业务处理
- 五、POJO相关类
- 六、页面代码，页面文件放在resources的templates文件夹下
- 1.提交请假条申请页面vacation.html
- 2.审批请假条页面list.html
- 3.已审批请假条查询页面search.html
- 七、启动并测试

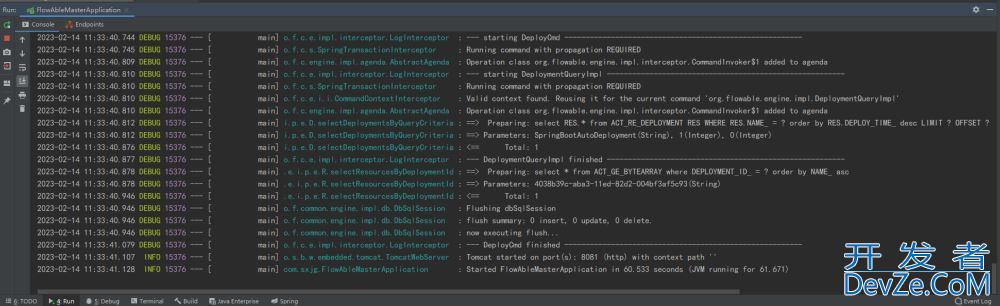

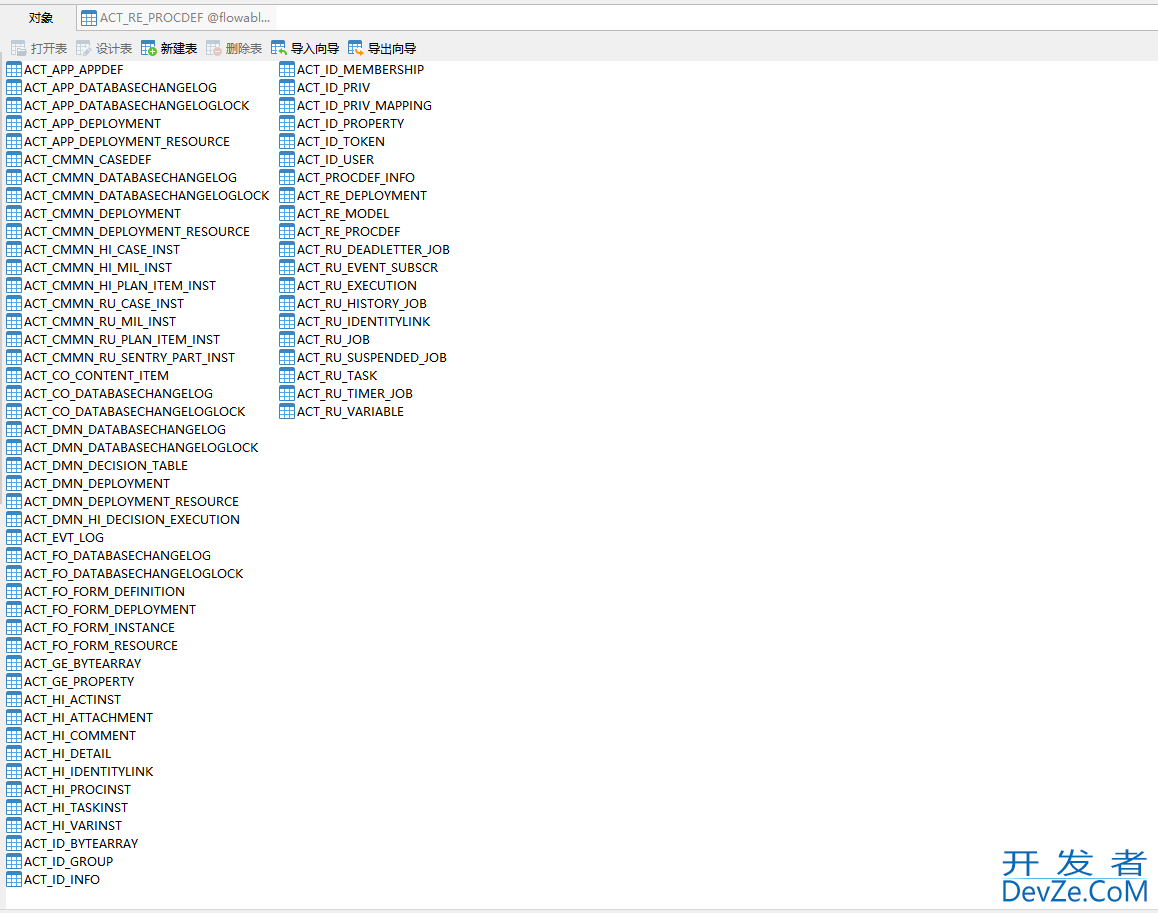

- 1.第一次运行，系统会自动创建flowable需要数据表结构

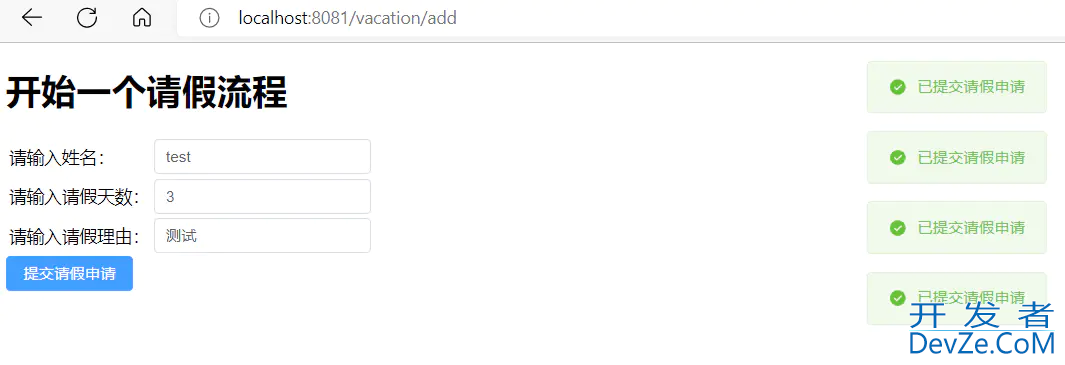

- 2.输入url地址：localhost:8081/vacation/add，建立几个请假条

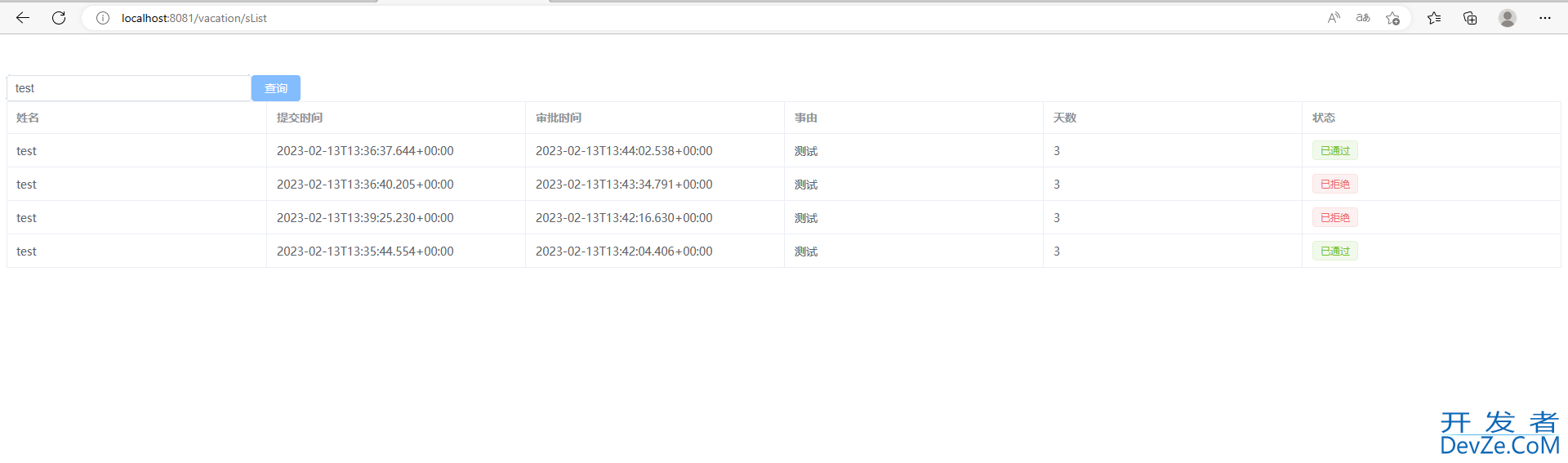

- 3.作为请假人，查询一下自己提交的假条审批了.
前言
Flowable可以十分灵活地加入你的应用/服务/构架。可以将JAR形式发布的Flowable库加入应用或服务，来嵌入引擎。
以JAR形式发布使Flowable可以轻易加入任何Java环境：Java SE；Tomcat、Jetty或Spring之类的servlet容器；
JBoss或WebSphere之类的Java EE服务器，等等。 另外，也可以使用Flowable REST API进行HTTP调用。
也有许多Flowable应用（Flowable Modeler, Flowable Admin, Flowable IDM 与 Flowable Task），提供了直接可用的UI示例，可以使用流程与任务。
一、pom中引入Flowable相关框架
本Demo使用的SpringBoot版本是2.7.5
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.7.5</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
php </dependency>
<!-- 工作流flowable架包 -->
<dependency>
<groupId>org.flowable</groupId>
<artifactId>flowable-spring-boot-starter</artifactId>
<version>6.4.0</version>
</dependency>
<!-- mysql数据库连接架包 -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
http://www.devze.com <version>8.0.11</version>
</dependency>
<!-- myBATis ORM 架包 -->
<dependency>
<groupId>org.mybatis.spring.boot</groupId>
<artifactId>mybatis-spring-boot-starter</artifactId>
<version>2.2.2</version>
</dependency>
<!-- thymeleaf架包 -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-thymeleaf</artifactId>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
二、相关配置文件
1.application.properties配置文件
server.port=8081 #数据库配置 spring.datasource.url=jdbc:mysql://localhost:3306/flowable01?autoReconnect=true&useUnicode=true&characterEncoding=utf8&useSSL=false&serverTimezone=GMT%2B8 spring.datasource.username=root spring.datasource.password=song@1234 spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver #开启调试信息 logging.level.org.flowable=DEBUG #业务流程涉及的表自动生成 flowable.database-schema-update=true flowable.async-executor-activate=false

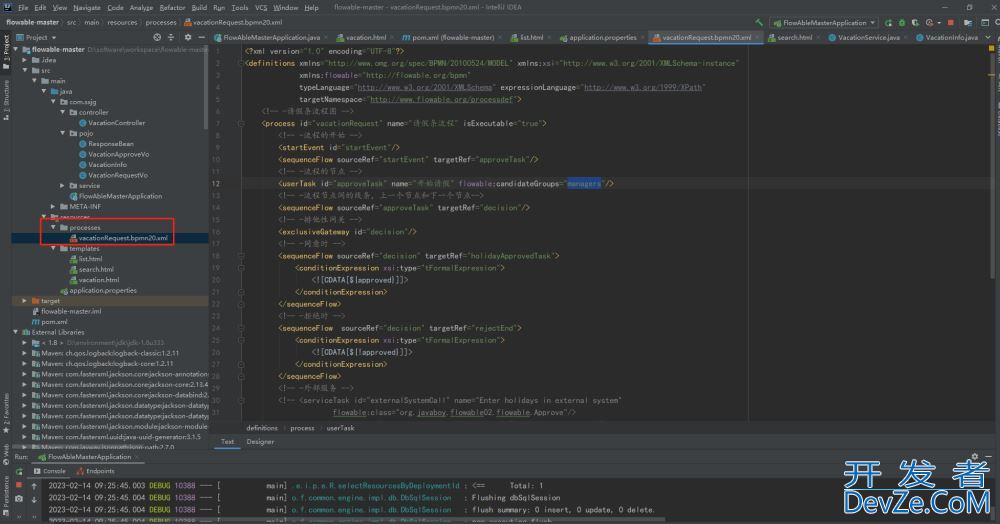

2.审批流程xml文件，默认放置在resources下的processess文件夹下
vacationRequest.bpmn20.xml 内容如下：
三、控制层代码块
package com.sxjg.controller;
import com.sxjg.pojo.ResponseBean;
import com.sxjg.pojo.VacationApproveVo;
import com.sxjg.pojo.VacationRequestVo;
import com.sxjg.service.VacationService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;
import org.springframework.web.servlet.ModelAndView;
/**
* @project 请假流程测试
* @Description
* @Author songwp
* @Date 2023/2/13 20:06
* @Version 1.0.0
**/
@RequestMapping("vacation")
@RestController
public class VacationController {
@Autowired
VacationService vacationService;
/**
* 请假条新增页面
* @return
*/
@GetMapping("/add")
public ModelAndView add(){
return new ModelAndView("vacation");
}
/**
* 请假条审批列表
* @return
*/
@GetMapping("/aList")
public ModelAndView aList(){
return new ModelAndView("list");
}
/**
* 请假条查询列表
* @return
*/
@GetMapping("/sList")
public ModelAndView sList(){
return new ModelAndView("search");
}
/**
* 请假请求方法
* @param vacationRequestVO
* @return
*/
@PostMapping
public ResponseBean askForLeave(@RequestBody VacationRequestVo vacationRequestVO) {
return vacationService.askForLeave(vacationRequestVO);
}
/**
* 获取待审批列表
* @param identity
* @return
*/
@GetMapping("/list")
public ResponseBean leaveList(String identity) {
return vacationService.leaveList(identity);
}
/**
* 拒绝或同意请假
* @param vacationVO
* @return
*/
@PostMapping("/handler")
public ResponseBean askForLeaveHandler(@RequestBody VacationApproveVo vacationVO) {
return vacationService.askForLeaveHandler(vacationVO);
}
/**
* 请假查询
* @param name
* @return
*/
@GetMapping("/search")
public ResponseBean searchResult(String name) {
return vacationService.searchResult(name);
}
}
四、Service层，请假条新增、审批、查询的业务处理
package com.sxjg.service;
import com.sxjg.pojo.ResponseBean;
import com.sxjg.pojo.VacationApproveVo;
import com.sxjg.pojo.VacationInfo;
import com.sxjg.pojo.VacationRequestVo;
import java.util.ArrayList;
import java.util.Date;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import org.flowable.engine.HistoryService;
import org.flowable.engine.RuntimeService;
import org.flowable.engine.TaskService;
import org.flowable.engine.history.HistoricProcessInstance;
import org.flowable.task.api.Task;
import org.flowable.variable.api.history.HistoricVariableInstance;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;
/**
* @project 请假流程测试
* @Description
* @Author songwp
* @Date 2023/2/13 20:08
* @Version 1.0.0
**/
@Service
public class VacationService {
@Autowired
RuntimeService runtimeService;
@Autowired
TaskService taskService;
@Autowired
HistoryService historyService;
/**
* 申请请假
* @param vacationRequestVO
* @return
*/
@Transactional
public ResponseBean askForLeave(VacationRequestVo vacationRequestVO) {
Map<String, Object> variables = new HashMap<>();
variables.put("name", vacationRequestVO.getName());
variables.put("days", vacationRequestVO.getDays());
variables.put("reason", vacationRequestVO.getReason()编程);
try {
//指定业务流程
runtimeService.startProcessInstanceByKey("vacationRequest", vacationRequestVO.getName(), variables);
return ResponseBean.ok("已提交请假申请");
} catch (Exception e) {
e.printStackTrace();
}
return ResponseBean.error("提交申请失败");
}
/**
* 审批列表
* @param identity
* @return
*/
public ResponseBean leaveList(String identity) {
List<Task> tasks = taskService.createTaskQuery().taskCandidateGroup(identity).list();
List<Map<String, Object>> list = new ArrayList<>();
for (int i = 0; i < tasks.size(); i++) {
Task task = tasks.get(i);
Map<String, Object> variables = taskService.getVariables(task.getId());
variables.put("id", task.getId());
list.add(variables);
}
return ResponseBean.ok("加载成功", list);
}
/**
* 操作审批
* @param vacationVO
* @return
*/
public ResponseBean askForLeaveHandler(VacationApproveVo vacationVO) {
try {
boolean approved = vacationVO.getApprove();
Map<String, Object> variables = new HashMap<String, Object>();
variables.put("approved", approved);
variables.put("employee", vacationVO.getName());
Task task = taskService.createTaskQuery().taskId(vacationVO.getTaskId()).singleResult();
taskService.complete(task.getId(), variables);
if (approved) {
//如果是同意，还需要继续走一步
Task t = taskService.createTaskQuery().processInstanceId(task.getProcessInstanceId()).singleResult();
taskService.complete(t.getId());
}
return ResponseBean.ok("操作成功");
} catch (Exception e) {
e.printStackTrace();
}
return ResponseBean.error("操作失败");
}
/**
* 请假列表
* @param name
* @return
*/
public ResponseBean searchResult(String name) {
List<VacationInfo> vacationInfos = new ArrayList<>();
List<HistoricProcessInstance> historicProcessInstances = historyService.createHistoricProcessInstanceQuery().processInstanceBusinessKey(name).finished().orderByProcessInstanceEndTime().desc().list();
for (HistoricProcessInstance historicProcessInstance : historicProcessInstances) {
VacationInfo vacationInfo = new VacationInfo();
Date startTime = historicProcessInstance.getStartTime();
Date endTime = historicProcessInstance.getEndTime();
List<HistoricVariableInstance> historicVariableInstances = historyService.createHistoricVariableInstanceQuery()
.processInstanceId(historicProcessInstance.getId())
.list();
for (HistoricVariableInstance historicVariableInstance : historicVariableInstances) {
String variableName = historicVariableInstance.getVariableName();
Object value = historicVariableInstance.getValue();
if ("reason".equals(variableName)) {
vacationInfo.setReason((String) value);
} else if ("days".equals(variableName)) {
vacationInfo.setDays(Integer.parseInt(value.toString()));
} else if ("approved".equals(variableName)) {
vacationInfo.setStatus((Boolean) value);
gGRjtOmxO} else if ("name".equals(variableName)) {
vacationInfo.setName((String) value);
}
}
vacationInfo.setStartTime(startTime);
vacationInfo.setEndTime(endTime);
vacationInfos.add(vacationInfo);
}
return ResponseBean.ok("ok", vacationInfos);
}
}
五、POJO相关类
import lombok.Data;
/**
* 请假条审批
* @Date
*/
@Data
public class VacationApproveVo {
private String taskId;
private Boolean approve;
private String name;
}
import lombok.Data;
/**
* 请假条申请
* @Date
*/
@Data
public class VacationRequestVo {
private String name;
private Integer days;
private String reason;
}
import lombok.Data;
/**
* 响应类
* @Date
*/
@Data
public class ResponseBean {
private Integer status;
private String msg;
private Object data;
public static ResponseBean ok(String msg, Object data) {
return new ResponseBean(200, msg, data);
}
public static ResponseBean ok(String msg) {
return new ResponseBean(200, msg, null);
}
public static ResponseBean error(String msg, Object data) {
return new ResponseBean(500, msg, data);
}
public static ResponseBean error(String msg) {
return new ResponseBean(500, msg, null);
}
private ResponseBean() {
}
private ResponseBean(Integer status, String msg, Object data) {
this.status = status;
this.msg = msg;
this.data = data;
}
}
import java.util.Date;
import lombok.Data;
/**
* 请假条DO
* @Date
*/
@Data
public class VacationInfo {
private String name;
private Date startTime;
private Date endTimewww.devze.com;
private String reason;
private Integer days;
private Boolean status;
}
六、页面代码，页面文件放在resources的templates文件夹下
1.提交请假条申请页面vacation.html
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>提交请假条申请页面</title>
<script src="https://unpkg.com/axIOS/dist/axios.min.js"></script>
<!-- Import style -->
<link rel="stylesheet" href="https://unpkg.com/element-plus/dist/index.css"/>
<script src="https://unpkg.com/vue@3"></script>
<!-- Import component library -->
<script src="//unpkg.com/element-plus"></script>
</head>
<body>
<div id="app">
<h1>开始一个请假流程</h1>
<table>
<tr>
<td>请输入姓名：</td>
<td>
<el-input type="text" v-model="afl.name"/>
</td>
</tr>
<tr>
<td>请输入请假天数：</td>
<td>
<el-input t开发者_Python培训ype="text" v-model="afl.days"/>
</td>
</tr>
<tr>
<td>请输入请假理由：</td>
<td>
<el-input type="text" v-model="afl.reason"/>
</td>
</tr>
</table>
<el-button type="primary" @click="submit">提交请假申请</el-button>
</div>
<script>
Vue.createApp(
{
data() {
return {
afl: {
name: 'test',
days: 3,
reason: '测试'
}
}
},
methods: {
submit() {
let _this = this;
axios.post('/vacation', this.afl)
.then(function (response) {
if (response.data.status == 200) {
//提交成功
_this.$message.success(response.data.msg);
} else {
//提交失败
_this.$message.error(response.data.msg);
}
})
.catch(function (error) {
console.log(error);
});
}
}
}
).use(ElementPlus).mount('#app')
</script>
</body>
</html>
2.审批请假条页面list.html
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>审批请假条页面</title>
<script src="https://unpkg.com/axios/dist/axios.min.js"></script>
<!-- Import style -->
<link rel="stylesheet" href="https://unpkg.com/element-plus/dist/index.css"/>
<script src="https://unpkg.com/vue@3"></script>
<!-- Import component library -->
<script src="//unpkg.com/element-plus"></script>
</head>
<body>
<div id="app">
<div>
<div>请选择你的身份：</div>
<div>
<el-select name="" id="" v-model="identity" @change="initTasks">
<el-option :value="iden" v-for="(iden,index) in identities" :key="index" :label="iden"></el-option>
</el-select>
<el-button type="primary" @click="initTasks">刷新一下</el-button>
</div>
</div>
<el-table border strip :data="tasks">
<el-table-column prop="name" label="姓名"></el-table-column>
<el-table-column prop="days" label="请假天数"></el-table-column>
<el-table-column prop="reason" label="请假原因"></el-table-column>
<el-table-column lable="操作">
<template #default="scope">
<el-button type="primary" @click="approveOrReject(scope.row.id,true,scope.row.name)">批准</el-button>
<el-button type="danger" @click="approveOrReject(scope.row.id,false,scope.row.name)">拒绝</el-button>
</template>
</el-table-column>
</el-table>
</div>
<script>
Vue.createApp(
{
data() {
return {
tasks: [],
identities: [
'managers'
],
identity: ''
}
},
methods: {
initTasks() {
let _this = this;
axios.get('/vacation/list?identity=' + this.identity)
.then(function (response) {
_this.tasks = response.data.data;
})
.catch(function (error) {
console.log(error);
});
},
approveOrReject(taskId, approve,name) {
let _this = this;
axios.post('/vacation/handler', {taskId: taskId, approve: approve,name:name})
.then(function (response) {
_this.$message.success("审批成功");
_this.initTasks();
})
.catch(function (error) {
_this.$message.error("操作失败");
console.log(error);
});
}
}
}
).use(ElementPlus).mount('#app')
</script>
</body>
</html>
3.已审批请假条查询页面search.html
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>已审批请假条查询页面</title>
<script src="https://unpkg.com/axios/dist/axios.min.js"></script>
<!-- Import style -->
<link rel="stylesheet" href="https://unpkg.com/element-plus/dist/index.css"/>
<script src="https://unpkg.com/vue@3"></script>
<!-- Import component library -->
<script src="//unpkg.com/element-plus"></script>
</head>
<body>
<div id="app">
<div style="margin-top: 50px">
<el-input v-model="name" style="width: 300px" placeholder="请输入用户名"></el-input>
<el-button type="primary" @click="search">查询</el-button>
</div>
<div>
<el-table border strip :data="historyInfos">
<el-table-column prop="name" label="姓名"></el-table-column>
<el-table-column prop="startTime" label="提交时间"></el-table-column>
<el-table-column prop="endTime" label="审批时间"></el-table-column>
<el-table-column prop="reason" label="事由"></el-table-column>
<el-table-column prop="days" label="天数"></el-table-column>
<el-table-column label="状态">
<template #default="scope">
<el-tag type="success" v-if="scope.row.status">已通过</el-tag>
<el-tag type="danger" v-else>已拒绝</el-tag>
</template>
</el-table-column>
</el-table>
</div>
</div>
<script>
Vue.createApp(
{
data() {
return {
historyInfos: [],
name: 'zhangsan'
}
},
methods: {
search() {
let _this = this;
axios.get('/vacation/search?name=' + this.name)
.then(function (response) {
if (response.data.status == 200) {
_this.historyInfos=response.data.data;
} else {
_this.$message.error(response.data.msg);
}
})
.catch(function (error) {
console.log(error);
});
}
}
}
).use(ElementPlus).mount('#app')
</script>
</body>
</html>
七、启动并测试
1.第一次运行，系统会自动创建flowable需要数据表结构
2.输入url地址：localhost:8081/vacation/add，建立几个请假条

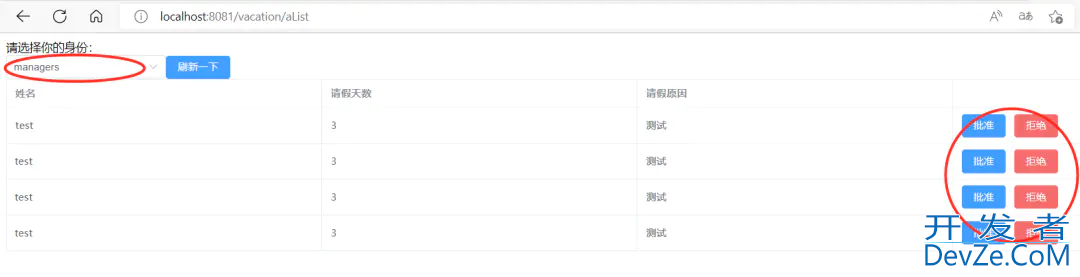

2.请假条建立好了，审批处理一下
注意：第一次运行这个demo，权限暂且不管，角色也先写死，先把demo跑起来再说。四个请假条两个通过，两个拒绝，操作完成后，在待审批列表不在出现
3.作为请假人，查询一下自己提交的假条审批了.
通过查询结果得知，两个通过，两个拒绝。至此，一个简单的请假条审批流程走完了！！！
加载中,请稍侯......
精彩评论
