Android进阶事件分发机制解决事件冲突

目录

• 引言
• 1 android 事件分发机制
• 1.1 事件分发流程
• 1.2 View的事件消费
• 1.3 ViewGroup的事件分发 -- ACTION_DOWN
• 1.1.1 万事皆始于ACTION_DOWN
• 1.1.2 ViewGroup拦截事件
• 1.1.3 ViewGroup不拦截事件
• 1.4 ViewGroup的事件分发 -- ACTION_MOVE
• 2 Android事件冲突处理
• 2.1 内部拦截法
• 2.2 外部拦截法

引言

相信伙伴们在日常的开发工作中，一定会遇到事件冲突的问题，e.g. 一个页面当手指滑动的时候，会翻到下一页；点击的时候，需要响应页面中的元素点击事件，这个时候如果没有处理滑动事件，可能遇到的问题就是在滑动翻页的时候却只响应了点击事件，这个就是点击事件与滑动事件的冲突。其实还有很多常见的经典事件，e.g. RecyclerView嵌套滑动，Viewpager与RecyclerView嵌套滑动等，所以这个时候我们需要对事件分发非常了解，才能针对需求做相应的处理。

1 Android 事件分发机制

这是一个老生常谈的问题，相信伙伴们都了解常见的Android事件类型：ACTION_DOWN、ACTION_MOVE、ACTION_UP，分别代表手指按下屏幕的事件、手指滑动的事件以及手指抬起的事件，那么从手指按下到事件响应，中间经历了什么呢？我们从Google的源码中去寻找答案。

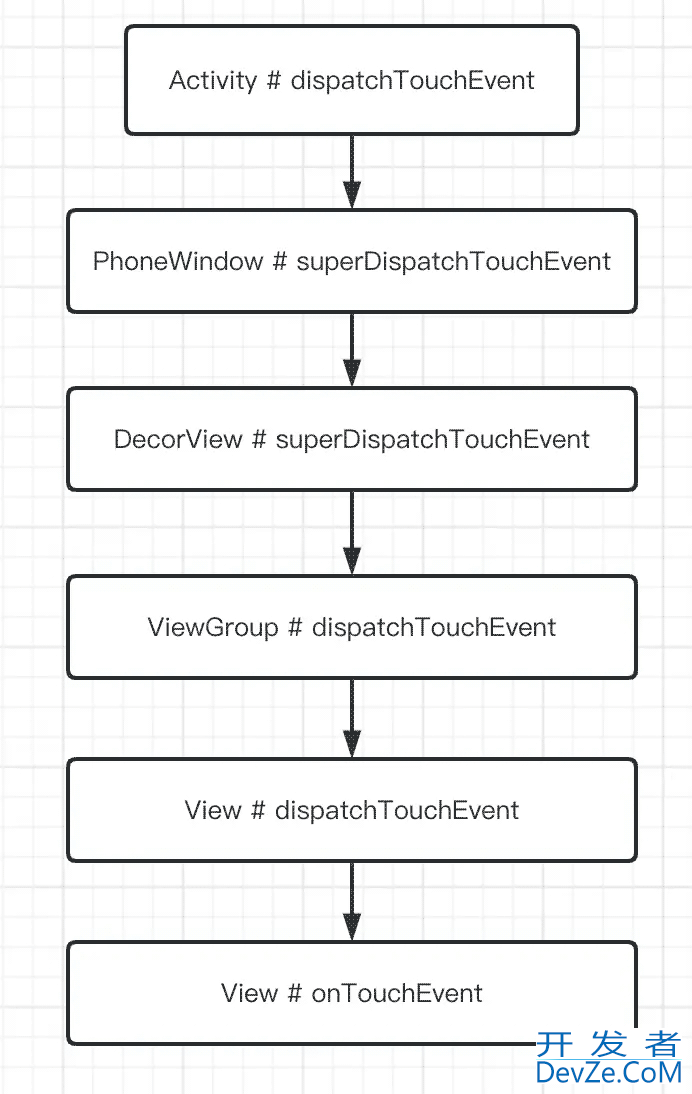

1.1 事件分发流程

因为对于组件来说，这个事件要么消费要么不消费（事件处理），而对于容器来说，还需要做的一件事就是分发事件，通常是先分发后处理，而View就只是处理事件。

因此在进行事件冲突处理的时候，对于事件是否向下分发给子View消费，就需要在父容器中做拦截，子View仅做事件消费。

1.2 View的事件消费

首先我们先不看事件是如何分发的，先关注下事件是如何被处理的，在View的dispatchTouchEvent方法中，就包含对事件的处理全过程。

public boolean dispatchTouchEvent(MotionEvent event) {
    //......
    boolean result = false;
    if (mInputEventConsistencyVerifier != null) {
        mInputEventConsistencyVerifier.onTouchEvent(event, 0);
    }
    final int actionMasked = event.getActionMasked();
    if (actionMasked == MotionEvent.ACTION_DOWN) {
        // Defensive cleanup for new gesture
        stopNestedScroll();
    }
    if (onFilterTouchEventForSecurity(event)) {
        if ((mViewFlags & ENABLED_MASK) == ENABLED && handleScrollBarDragging(event)) {
            result = true;
        }
        //核心代码1
        ListenerInfo li = mListenerInfo;
        if (li != null && li.mOnTouchListener != null
                && (mViewFlags & ENABLED_MASK) == ENABLED
                && li.mOnTouchListener.onTouch(this, event)) {
            result = true;
        }
        //核心代码2
        if (!result && onTouchEvent(event)) {
            result = true;
        }
    }
    if (!result && mInputEventConsistencyVerifier != null) {
        mInputEventConsistencyVerifier.onUnhandledEvent(event, 0);
    }
    // Clean up after nested scrolls if this is the end of a gesture;
    // also cancel it if we tried an ACTION_DOWN but we didn't want the rest
    // of the gesture.
    if (actionMasked == MotionEvent.ACTION_UP ||
            actionMasked == MotionEvent.ACTION_CANCEL ||
            (actionMasked == MotionEvent.ACTION_DOWN && !result)) {
        stopNestedScroll();
    }
    return result;
}

看到dispatchTouchEvent，我们可能会想，这个方法名看着像是分发事件的方法，View不是仅仅消费事件吗，还需要处理分发？其实不是这样的，因为View对于事件可以有选择的，可以选择不处理事件，那么就会往上派给父类去处理这个事件，如果能够消费，那么就在onTouchEvent中处理了。

核心代码1：首先拿到一个ListenerInfo对象，这个对象中标记了这个View设置的监听事件，这里有几个判断条件：

（1）ListenerInfo不为空，而且设置了OnTouchListener监听；

（2）设置了OnTouchListener监听，而且onTouch方法返回了true

这个时候，result设置为true；

核心代码2：如果满足了核心代码1的全部条件，那么核心代码2就不会走到onTouchEvent这个判断条件中，因为result = true不满足条件直接break。

那么如果设置了OnTouchListener监听，而且onTouch方法返回了false，那么result = false，核心代码2就能够执行onTouchEvent方法，我们看下这个方法实现。

public boolean onTouchEvent(MotionEvent event) {
    //......
    if (clickable || (viewFlags & TOOLTIP) == TOOLTIP) {
        switch (action) {
            case MotionEvent.ACTION_UP:
                mPrivateFlags3 &= ~PFLAG3_FINGER_DOWN;
                if ((viewFlags & TOOLTIP) == TOOLTIP) {
                    handleToohttp://www.devze.comltipUp();
                }
                if (!clickable) {
                    removeTapCallback();
                    removeLongPressCallback();
                    mInContextButtonPress = false;
                    mHASPerformedLongPress = false;
                    mIgnoreNextUpEvent = false;
                    break;
                }
                boolean prepressed = (mPrivateFlags & PFLAG_PREPRESSED) != 0;
                if ((mPrivateFlags & PFLAG_PRESSED) != 0 || prepressed) {
                    // take focus if we don't have it already and we should in
                    // touch mode.
                    boolean focusTaken = false;
                    if (isFocusable() && isFocusableInTouchMode() && !isFocused()) {
                        focusTaken = requestFocus();
                    }
                    if (prepressed) {
                        // The button is being released before we actually
                        // showed it as pressed.  Make it show the pressed
                        // state now (before scheduling the click) to ensure
                        // the user sees it.
                        setPressed(true, x, y);
                    }
                    if (!mHasPerformedLongPress && !mIgnoreNextUpEvent) {
                        // This is a tap, so remove the longpress check
                        removeLongPressCallback();
                        // Only perform take click actions if we were in the pressed state
                        if (!focusTaken) {
                            // Use a Runnable and post this rather than calling
                            // performClick directly. This lets other visual state
                            // of the view update before click actions start.
                            if (mPerformClick == null) {
                                mPerformClick = new PerformClick();
                            }
                            if (!post(mPerformClick)) {
                                performClickInternal();
                            }
                        }
                    }
                    if (mUnsetPressedState == null) {
                        mUnsetPressedState = new UnsetPressedState();
                    }
                    if (prepressed) {
                        postDelayed(mUnsetPressedState,
                                ViewConfiguration.getPressedStateDuration());
                    } else if (!post(mUnsetPressedState)) {
                        // If the post failed, unpress right now
                        mUnsetPressedState.run();
                    }
                    removeTapCallback();
                }
                mIgnoreNextUpEvent = false;
                break;
            case MotionEvent.ACTION_DOWN:
                if (event.getSource() == InputDevice.SOURCE_TOUCHSCREEN) {
                    mPrivateFlags3 |= PFLAG3_FINGER_DOWN;
                }
                mHasPerformedLongPress = false;
                if (!clickable) {
                    checkForLongClick(
                            ViewConfiguration.getLongPressTimeout(),
                            x,
                            y,
                            TOUCH_GESTURE_CLASSIFIED__CLASSIFICATION__LONG_PRESS);
                    break;
                }
                if (performButtonActionOnTouchDown(event)) {
                    break;
                }
                // Walk up the hierarchy to determine if we're inside a scrolling container.
                boolean isInScrollingContainer = isInScrollingContainer();
                // For views inside a scrolling container, delay the pressed feedback for
                // a short period in case this is a scroll.
                if (isInScrollingContainer) {
                    mPrivateFlags |= PFLAG_PREPRESSED;
                    if (mPendingCheckForTap == null) {
                        mPendingCheckForTap = new CheckForTap();
                    }
                    mPendingCheckForTap.x = event.getX();
                    mPendingCheckForTap.y = event.getY();
                    postDelayed(mPendingCheckForTap, ViewConfiguration.getTapTimeout());
                } else {
                    // Not inside a scrolling container, so show the feedback right away
                    setPressed(true, x, y);
                    checkForLongClick(
                            ViewConfiguration.getLongPressTimeout(),
                            x,
                            y,
                            TOUCH_GESTURE_CLASSIFIED__CLASSIFICATION__LONG_PRESS);
                }
                break;
        //----------注意这里的返回值，clickable为true----------//
        return true;
    }
    //----------注意这里的返回值，clickable为false----------//
    return false;
}

这里就是对所有事件的处理，包括但不限于ACTION_DOWN、ACTION_UP，我们需要知道一点就是，View的click事件其实是在ACTION_UP中处理的。我们从上面的源码中可以看出来，在ACTION_UP中有一个方法performClickInternal，具体实现为performClick方法。

public boolean performClick() {
    // We still need to call this method to handle the cases where performClick() was called
    // externally, instead of through performClickInternal()
    notifyAutofillManagerOnClick();
    final boolean result;
    final ListenerInfo li = mListenerInfo;
    if (li != null && li.mOnClickListener != null) {
        playSoundEffect(SoundEffectConstants.CLICK);
        li.mOnClickListener.onClick(this);
        result = true;
    } else {
        result = false;
    }
    sendAccessibilityEvent(AccessibilityEvent.TYPE_VIEW_CLICKED);
    notifyEnterOrExitForAutoFillIfNeeded(true);
    return result;
}

在这个方法中，我们貌似看到同样的一段代码，如果设置了OnClickListener监听，那么就会执行onClick方法也就是响应点击事件。

所以通过上面的分析，我们能够了解，如果同一个View同时设置了setOnClickListener和setOnTouchListener，如果setOnTouchListener返回了false，那么点击事件是可以响应的；如果setOnTouchListener返回了true，那么点击事件将不再响应。

binding.tvHello.setOnClickListener {
    Log.e("TAG","OnClick")
}
binding.tvHello.setOnTouchListener(object : View.OnTouchListener{
    override fun onTouch(v: View?, event: MotionEvent?): Boolean {
        Log.e("TAG","onTouch")
        return false
    }
})

还需要注意一点的就是，对于clickable这个android属性要求非常严格，必须要设置为true才可以进行事件的消费，也就是说在clickable为true的时候，onTouchEvent才会返回true，否则就会返回false，这个DOWN事件没有被消费，也就是说在dispatchTransformedTouchEvent方法中返回了false，此时就不会给 mFirstTouchTraget == null 赋值，后续MOVE事件进来就不会处理，这里需要非常注意。

这里伙伴们如果不理解，可以换句话说：就是当DOWN事件来临之后，其实ViewGroup一定会将事件分发给子View，看子View要不要消费，如果子View不是clickable的，也就是说clickable = false，那么此时子View的onTouchEvent返回false，那么dispatchTouchEvent也是返回false，代表子View不消费这个事件，那么此时dispatchTransformedTouchEvent也是返回了false，mFirstTouchTraget还是空；因为子View没有消费DOWN事件，那么后续事件不会再触发了。

1.3 ViewGroup的事件分发 -- ACTION_DOWN

前面我们介绍了View对于事件的消费，不管是click还是touch，都有对应的标准决定是否能够响应事件，最终View的dispatchTouchEvent返回值，就是result的值，只要有一个事件被消费，那么这个事件就算是到头了，但是，如果最终事件没有被消费，也就是说dispatchTouchEvent返回了false，那么父容器就能够拿到这个状态，决定谁去处理这个事件。

所以ViewGroup就像是荷官，卡牌就是事件，她可以决定牌发到谁的手里，所以ViewGroup的事件分发机制核心就在于dispatchTouchEvent方法。

public boolean dispatchTouchEvent(MotionEvent ev) {
    // ......
    if (onFilterTouchEventForSecurity(ev)) {
        final int action = ev.getAction();
        final int actionMasked = action & MotionEvent.ACTION_MASK;
        // Handle an initial down.
        if (actionMasked == MotionEvent.ACTION_DOWN) {
            // Throw away all previous state when starting a new touch gesture.
            // The framework may have dropped the up or cancel event for the previous gesture
            // due to an app switch, ANR, or some other state change.
            cancelAndClearTouchtargets(ev);
            resetTouchState();
        }
        // Check for interception.
        final boolean intercepted;
        if (actionMasked == MotionEvent.ACTION_DOWN
                || mFirstTouchTarget != null) {
            final boolean disallowIntercept = (mGroupFlags & FLAG_DISALLOW_INTERCEPT) != 0;
            if (!disallowIntercept) {
                intercepted = onInterceptTouchEvent(ev);
                ev.setAction(action); // restore action in case it was changed
            } else {
                intercepted = false;
            }
        } else {
            // There are no touch targets and this action is not an initial down
            // so this view group continues to intercept touches.
            intercepted = true;
        }
        // If intercepted, start normal event dispatch. Also if there is already
        // a view that is handling the gesture, do normal event dispatch.
        if (intercepted || mFirstTouchTarget != null) {
            ev.setTargetAccessibilityFocus(false);
        }
        // Check for cancelation.
        final boolean canceled = resetCancelNextUpFlag(this)
                || actionMasked == MotionEvent.ACTION_CANCEL;
        // Update list of touch targets for pointer down, if needed.
        final boolean isMouseEvent = ev.getSource() == InputDevice.SOURCE_MOUSE;
        final boolean split = (mGroupFlags & FLAG_SPLIT_MOTION_EVENTS) != 0
                && !isMouseEvent;
        TouchTarget newTouchTarget = null;
        boolean alreadyDispatchedToNewTouchTarget = false;
        // -------- 这里是不拦截的时候会走的地方 -------//
        if (!canceled && !intercepted) {
            // If the event is targeting accessibility focus we give it to the
            // view that has accessibility focus and if it does not handle it
            // we clear the flag and dispatch the event to all children as usual.
            // We are looking up the accessibility focused host to avoid keeping
            // state since these events are very rare.
            View childwithAccessibilityFocus = ev.isTargetAccessibilityFocus()
                    ? findChildWithAccessibilityFocus() : null;
            if (actionMasked == MotionEvent.ACTION_DOWN
                    || (split && actionMasked == MotionEvent.ACTION_POINTER_DOWN)
                    || actionMasked == MotionEvent.ACTION_HOVER_MOVE) {
                final int actionIndex = ev.getActionIndex(); // always 0 for down
                final int idBitsToAssign = split ? 1 << ev.getPointerId(actionIndex)
                        : TouchTarget.ALL_POINTER_IDS;
                // Clean up earlier touch targets for this pointer id in case they
                // have become out of sync.
                removePointersFromTouchTargets(idBitsToAssign);
                final int childrenCount = mChildrenCount;
                if (newTouchTarget == null && childrenCount != 0) {
                    final float x =
                            isMouseEvent ? ev.getXCursorPosition() : ev.getX(actionIndex);
                    final float y =
                            isMouseEvent ? ev.getYCursorPosition() : ev.getY(actionIndex);
                    // Find a child that can receive the event.
                    // Scan children from front to back.
                    final ArrayList<View> preorderedList = buildTouchDispatchChildList();
                    final boolean customOrder = preorderedList == null
                            && isChildrenDrawingOrderEnabled();
                    final View[] children = mChildren;
                    for (int i = childrenCount - 1; i >= 0; i--) {
                        final int childIndex = getAndVerifyPreorderedIndex(
                                childrenCount, i, customOrder);
                        final View child = getAndVerifyPreorderedView(
                                preorderedList, children, childIndex);
                        // If there is a view that has accessibility focus we want it
                        // to get the event first and if not handled we will perform a
                        // normal dispatch. We may do a double iteration but this is
                        // safer given the timeframe.
                        if (childWithAccessibilityFocus != null) {
                            if (childWithAccessibilityFocus != child) {
                                continue;
                            }
                            childWithAccessibilityFocus = null;
                            i = childrenCount - 1;
                        }
                        if (!child.canReceivePointerEvents()
                                || !isTransformedTouchPointInView(x, y, child, null)) {
                            ev.setTargetAccessibilityFocus(false);
                            continue;
                        }
                        newTouchTarget = getTouchTarget(child);
                        if (newTouchTarget != null) {
                            // Child is already receiving touch within its bounds.
                            // Give it the new pointer in addition to the ones it is handling.
                            newTouchTarget.pointerIdBits |= idBitsToAssign;
                            break;
                        }
                        resetCancelNextUpFlag(child);
                        if (dispatchTransformedTouchEvent(ev, false, child, idBitsToAssign)) {
                            // Child wants to receive touch within its bounds.
                            mLastTouchDownTime = ev.getDownTime();
                            if (preorderedList != null) {
                                // childIndex points into presorted list, find original index
                                for (int j = 0; j < childrenCount; j++) {
                                    if (children[childIndex] == mChildren[j]) {
                                        mLastTouchDownIndex = j;
                                        break;
                                    }
                                }
                            } else {
                                mLastTouchDownIndex = childIndex;
                            }
                            mLastTouchDownX = ev.getX();
                            mLastTouchDownY = ev.getY();
                            newTouchTarget = addTouchTarget(child, idBitsToAssign);
                            alreadyDispatchedToNewTouchTarget = true;
                            break;
                        }
                        // The accessibility focus didn't handle the event, so clear
                        // the flag and do a normal dispatch to all children.
                        ev.setTargetAccessibilityFocus(false);
                    }
                    if (preorderedList != null) preorderedList.clear();
                }
                if (nphpewTouchTarget == null && mFirstTouchTarget != null) {
                    // Did not find a child to receive the event.
                    // Assign the pointer to the least recently added target.
                    newTouchTarget = mFirstTouchTarget;
                    while (newTouchTarget.next != null) {
                        newTouchTarget = newTouchTarget.next;
                    }
                    newTouchTarget.pointerIdBits |= idBitsToAssign;
                }
            }
        }
        //-------------这里是拦截之后会走的地方-------------//
        // Dispatch to touch targets.
        if (mFirstTouchTarget == null) {
            // No touch targets so treat this as an ordinary view.
            handled = dispatchTransformedTouchEvent(ev, canceled, null,
                    TouchTarget.ALL_POINTER_IDS);
        } else {
            // Dispatch to touch targets, excluding the new touch target if we already
            // dispatched to it.  Cancel touch targets if necessary.
            TouchTarget predecessor = null;
            TouchTarget target = mFirstTouchTarget;
            while (target != null) {
                final TouchTarget next = target.next;
                if (alreadyDispatchedToNewTouchTarget && target == newTouchTarget) {
                    handled = true;
                } else {
                    final boolean cancelChild = resetCancelNextUpFlag(target.child)
                            || intercepted;
                    if (dispatchTransformedTouchEvent(ev, cancelChild,
                            target.child, target.pointerIdBits)) {
                        handled = true;
                    }
                    if (cancelChild) {
                        if (predecessor == null) {
                            mFirstTouchTarget = next;
                        } else {
                            predecessor.next = next;
                        }
                        target.recycle();
                        target = next;
                        continue;
                    }
                }
                predecessor = target;
                target = next;
            }
        }
        // Update list of touch targets for pointer up or cancel, if needed.
        if (canceled
                || actionMasked == MotionEvent.ACTION_UP
                || actionMasked == MotionEvent.ACTION_HOVER_MOVE) {
            resetTouchState();
        } else if (split && actionMasked == MotionEvent.ACTION_POINTER_UP) {
            final int actionIndex = ev.getActionIndex();
            final int idBitsToRemove = 1 << ev.getPointerId(actionIndex);
            removePointersFromTouchTargets(idBitsToRemove);
        }
    }
    if (!handled && mInputEventConsistencyVerifier != null) {
        mInputEventConsistencyVerifier.onUnhandledEvent(ev, 1);
    }
    return handled;
}

1.1.1 万事皆始于ACTION_DOWN

看着dispatchTouchEvent这么长的代码，是不是脑袋都昏了，我给伙伴们分下层，首先一切的事件分发都是从ACTION_DOWN事件开始，所以我们可以看下ACTION_DOWN事件是如何处理的。

核心代码1：

final boolean intercepted;
if (actionMasked == MotionEvent.ACTION_DOWN
        || mFirstTouchTarget != null) {
    final boolean disallowIntercept = (mGroupFlags & FLAG_DISALLOW_INTERCEPT) != 0;
    if (!disallowIntercept) {
        intercepted = onInterceptTouchEvent(ev);
        ev.setAction(action); // restore action in case it was changed
    } else {
        intercepted = false;
    }
} else {
    // There are no touch target开发者_JAV培训s and this action is not an initial down
    // so this view group continues to intercept touches.
    intercepted = true;
}

当ACTION_DWON事件来了之后，首先调用ViewGroup的dispatchTouchEvent方法，在上面这段代码中，就是判断ViewGroup是否要拦截这个事件，如果DOWN事件都被拦截了，就没有小弟的份了。

所以如果当前是DOWN事件，或者mFirstTouchTarget不为空。首先这里有一个变量mFirstTouchTarget，我们可以认为这个就是可能会消费事件的View，因为首次肯定为空，但是当前为DOWN事件，所以这个条件是满足的，那么就会进入到代码块中。

在代码块中，有一个disallowIntercept变量，这个变量标志着子View是否需要消费这个事件，如果需要消费这个事件，子View可以调用requestDisallowInterceptTouchEvent这个方法，设置为true，那么父容器就不会拦截。

所以如果子View需要消费这个事件，那么disallowIntercept = true，这个时候intercepted = false，意味着父容器不会拦截；如果子View不消费这个事件，那么disallowIntercept = false，然后会判断ViewGroup中的onInterceptTouchEvent方法，是否由父容器消费这个事件从而决定intercepted的值。

所以看到这里，其实我们在解决事件冲突的时候就会有两种方式：一种就是重写父容器的onInterceptTouchEvent方法，由父容器决定是否拦截；另一种就是由子View调用requestDisallowInterceptTouchEvent方法，通知父容器是否能够拦截。

那么假设，当前ViewGroup要拦截这个事件，也就是在onInterceptTouchEvent中返回了true

override fun onInterceptTouchEvent(ev: MotionEvent?): Boolean {
    return true
}

1.1.2 ViewGroup拦截事件

那么既然拦截了事件，那么当前ViewGroup就需要决定到底处不处理事件，如果不处理就需要向上传递。

因为ViewGroup拦截了事件，因此intercepted = true，在1.3开头的代码中，我标记了2个位置，一个是拦截会走的位置，一个是没有拦截会走的位置。

核心代码2：

if (mFirstTouchTarget == null) {
    // No touch targets so treat this as an ordinary view.
    handled = dispatchTransformedTouchEvent(ev, canceled, null,
            TouchTarget.ALL_POINTER_IDS);
} else {
    // Dispatch to touch targets, excluding the new touch target if we already
    // dispatched to it.  Cancel touch targets if necessary.
    TouchTarget predecessor = null;
    TouchTarget target = mFirstTouchTarget;
    while (target != null) {
        final TouchTarget next = target.next;
        if (alreadyDispatchedToNewTouchTarget && target == newTouchTarget) {
            handled = true;
        } else {
            final boolean cancelChild = resetCancelNextUpFlag(target.child)
                    || intercepted;
            if (dispatchTransformedTouchEvent(ev, cancelChild,
                    target.child, target.pointerIdBits)) {
                handled = true;
            }
            if (cancelChild) {
                if (predecessor == null) {
                    mFirstTouchTarget = next;
                } else {
                    predecessor.next = next;
                }
                target.recycle();
                target = next;
                continue;
            }
        }
        predecessor = target;
        target = next;
    }
}

因为这个时候，mFirstTouchTarget还是为空的，所以会调用dispatchTransformedTouchEvent方法。

private boolean dispatchTransformedTouchEvent(MotionEvent event, boolean cancel,
        View child, int desiredPointerIdBits) {
    final boolean handled;
    // ......
    // Perform any necessary transformations and dispatch.
    if (child == null) {
        handled = super.dispatchTouchEvent(transformedEvent);
    } else {
        final float offsetX = mScrollX - child.mLeft;
        final float offsetY = mScrollY - child.mTop;
        transformedEvent.offsetLocation(offsetX, offsetY);
        if (! child.hasIdentityMatrix()) {
            transformedEvent.transform(child.getInverseMatrix());
        }
        handled = child.dispatchTouchEvent(transformedEvent);
    }
    // Done.
    transformedEvent.recycle();
    return handled;
}

这时候需要注意一点，这个方法第三个参数为null； 所以当child为空的时候，就会调用父类的dispatchTouchEvent，也就是View的dispatchTouchEvent方法，在1.2小节中我们是对这个方法做过分析的，也是会决定是否处理这个事件，最终返回是否处理的结果。

所以这一次的结果（handled的值）最终决定了当前ViewGroup是否会处理这个事件，如果不处理，那么就扔到上级再判断。

1.1.3 ViewGroup不拦截事件

如果ViewGroup不拦截事件，那么intercepted = false，所以会走到分发事件的代码中。

核心代码3：

if (!canceled && !intercepted) {
    if (actionMasked == MotionEvent.ACTION_DOWN
            || (split && actionMasked == MotionEvent.ACTION_POINTER_DOWN)
            || actionMasked == MotionEvent.ACTION_HOVER_MOVE) {
        final int actionIndex = ev.getActionIndex(); // always 0 for down
        final int idBitsToAssign = split ? 1 << ev.getPointerId(actionIndex)
                : TouchTarget.ALL_POINTER_IDS;
        // Clean up earlier touch targets for this pointer id in case they
        // h编程ave become out of sync.
        removePointersFromTouchTargets(idBitsToAssign);
        final int childrenCount = mChildrenCount;
        if (newTouchTarget == null && childrenCount != 0) {
            final float x =
                    isMouseEvent ? ev.getXCursorPosition() : ev.getX(actionIndex);
            final float y =
                    isMouseEvent ? ev.getYCursorPosition() : ev.getY(actionIndex);
            // Find a child that can receive the event.
            // Scan children from front to back.
            final ArrayList<View> preorderedList = buildTouchDispatchChildList();
            final boolean customOrder = preorderedList == null
                    && isChildrenDrawingOrderEnabled();
            final View[] children = mChildren;
            //----------遍历集合，从后往前取------------//
            for (int i = childrenCount - 1; i >= 0; i--) {
                final int childIndex = getAndVerifyPreorderedIndex(
                        childrenCount, i, customOrder);
                final View child = getAndVerifyPreorderedView(
                        preorderedList, children, childIndex);
                // If there is a view that has accessibility focus we want it
                // to get the event first and if not handled we will perform a
                // normal dispatch. We may do a double iteration but this is
                // safer given the timeframe.
                if (childWithAccessibilityFocus != null) {
                    if (childWithAccessibilityFocus != child) {
                        continue;
                    }
                    childWithAccessibilityFocus = null;
                    i = childrenCount - 1;
                }
                //-----判断View是否有消费的可能性---------//
                if (!child.canReceivePointerEvents()
                        || !isTransformedTouchPointInView(x, y, child, null)) {
                    ev.setTargetAccessibilityFocus(false);
                    continue;
                }
                newTouchTarget = getTouchTarget(child);
                if (newTouchTarget != null) {
                    // Child is already receiving touch within its bounds.
                    // Give it the new pointer in addition to the ones it is handling.
                    newTouchTarget.pointerIdBits |= idBitsToAssign;
                    break;
                }
                resetCancelNextUpFlag(child);
                //-------- 这个方法需要注意，第三个参数不为空----------//
                if (dispatchTransformedTouchEvent(ev, false, child, idBitsToAssign)) {
                    // Child wants to receive touch within its bounds.
                    mLastTouchDownTime = ev.getDownTime();
                    if (preorderedList != null) {
                        // childIndex points into presorted list, find original index
                        for (int j = 0; j < childrenCount; j++) {
                            if (children[childIndex] == mChildren[j]) {
                                mLastTouchDownIndex = j;
                                break;
                            }
                        }
                    } else {
                        mLastTouchDownIndex = childIndex;
                    }
                    mLastTouchDownX = ev.getX();
                    mLastTouchDownY = ev.getY();
                    newTouchTarget = addTouchTarget(child, idBitsToAssign);
                    alreadyDispatchedToNewTouchTarget = true;
                    break;
                }
                // The accessibility focus didn't handle the event, so clear
                // the flag and do a normal dispatch to all children.
                ev.setTargetAccessibilityFocus(false);
            }
            if (preorderedList != null) preorderedList.clear();
        }
        if (newTouchTarget == null && mFirstTouchTarget != null) {
            // Did not find a child to receive the event.
            // Assign the pointer to the least recently added target.
            newTouchTarget = mFirstTouchTarget;
            while (newTouchTarget.next != null) {
                newTouchTarget = newTouchTarget.next;
            }
            newTouchTarget.pointerIdBits |= idBitsToAssign;
        }
    }
}

这里首先会判断事件是否为down事件，只有down事件才会分发，如果是move或者up事件便不会分发。所以伙伴们需要牢记一点，如果在某个控件上产生了up事件，即便是设置了onClickListener，因为没有接收到down事件，所以也不会响应点击事件。

然后调用buildTouchDispatchChildList方法，对当前ViewGroup全部的子View根据Z轴顺序排序，

ArrayList<View> buildOrderedChildList() {
    final int childrenCount = mChildrenCount;
    if (childrenCount <= 1 || !hasChildWithZ()) return null;
    if (mPreSortedChildren == null) {
        mPreSortedChildren = new ArrayList<>(childrenCount);
    } else {
        // callers should clear, so clear shouldn't be necessary, but for safety...
        mPreSortedChildren.clear();
        mPreSortedChildren.ensureCapacity(childrenCount);
    }
    final boolean customOrder = isChildrenDrawingOrderEnabled();
    for (int i = 0; i < childrenCount; i++) {
        // add next child (in child order) to end of list
        final int childIndex = getAndVerifyPreorderedIndex(childrenCount, i, customOrder);
        final View nextChild = mChildren[childIndex];
        final float currentZ = nextChild.getZ();
        // insert ahead of any Views with greater Z
        int insertIndex = i;
        while (insertIndex > 0 && mPreSortedChildren.get(insertIndex - 1).getZ() > currentZ) {
            insertIndex--;
        }
        mPreSortedChildren.add(insertIndex, nextChild);
    }
    return mPreSortedChildren;
}

这里我们可以看到是按照Z轴值从高到低排序，Z值越大，说明其层级越深，最终拿到一个View的集合。

然后遍历取值的时候，是按照倒序取值的方式，因为Z值越小，说明其层级越浅，事件被消费的概率就越高；取出一个View之后，首先需要判断它是否具备消费事件的可能性。

if (!child.canReceivePointerEvents()
        || !isTransformedTouchPointInView(x, y, child, null)) {
    ev.setTargetAccessibilityFocus(false);
    continue;
}

第一个条件：View是可见的，或者 getAnimation() != null

protected boolean canReceivePointerEvents() {
    return (mViewFlags & VISIBILITY_MASK) == VISIBLE || getAnimation() != null;
}

第二个条件：当前View在点击（x,y）的范围之内，如果离着手指点击的位置很远，肯定不可能消费。

protected boolean isTransformedTouchPointInView(float pythonx, float y, View child,
        PointF outLocalPoint) {
    final float[] point = getTempLocationF();
    point[0] = x;
    point[1] = y;
    transformPointToViewLocal(point, child);
    final boolean isInView = child.pointInView(point[0], point[1]);
    if (isInView && outLocalPoint != null) {
        outLocalPoint.set(point[0], point[1]);
    }
    return isInView;
}

所以经过层层筛选，也就只剩下一小部分可能会消费事件的View，那么怎么把他揪出来呢？经过筛选的View最终调用了dispatchTransformedTouchEvent方法，在1.1.2中我们介绍了这个方法，就是用来判断是否消费事件的，这里传入的第三个参数不为空！

回到前面dispatchTransformedTouchEvent方法中，当child不为空的时候，走到else代码块中，最终还是调用了child的dispatchTouchEvent方法。

所以如果当前View消费了DOWN事件，那么返回值为true，也就是dispatchTransformedTouchEvent返回了true，那么会进入下面代码块中。

if (dispatchTransformedTouchEvent(ev, false, child, idBitsToAssign)) {
    // Child wants to receive touch within its bounds.
    mLastTouchDownTime = ev.getDownTime();
    if (preorderedList != null) {
        // childIndex points into presorted list, find original index
        for (int j = 0; j < childrenCount; j++) {
            if (children[childIndex] == mChildren[j]) {
                mLastTouchDownIndex = j;
                break;
            }
        }
    } else {
        mLastTouchDownIndex = childIndex;
    }
    mLastTouchDownX = ev.getX();
    mLastTouchDownY = ev.getY();
    //----- 这里就是给mFirstTouchTarget赋值--------//
    newTouchTarget = addTouchTarget(child, idBitsToAssign);
    alreadyDispatchedToNewTouchTarget = true;
    break;
}

因为当前child消费了事件，那么我们前面提到的mFirstTouchTarget就是由child封装一层得来的，也就是调用了addTouchTarget方法，也就是说当一个child消费了一个DOWN事件之后，mFirstTouchTarget就不再为空了。

private TouchTarget addTouchTarget(@NonNull View child, int pointerIdBits) {
    final TouchTarget target = TouchTarget.obtain(child, pointerIdBits);
    target.next = mFirstTouchTarget;
    mFirstTouchTarget = target;
    return target;
}

如果全部都不处理，那么mFirstTouchTarget还是为空，走到下面还是会执行ViewGroup拦截事件的逻辑，也就是1.1.2中的逻辑，所以说，如果全部的子View都不处理，其实跟ViewGroup拦截事件的本质是一致的。

1.4 ViewGroup的事件分发 -- ACTION_MOVE

前面我们介绍了ViewGroup对于ACTION_DOWN事件的分发处理，因为DOWN事件只有一次，MOVE可以有无数次，所以在处理完DOWN事件之后，就会有MOVE事件涌进来。

所以还是回到前面的判断条件中，我们对于MOVE事件的分发，需要基于DOWN事件的处理；

final boolean intercepted;
if (actionMasked == MotionEvent.ACTION_DOWN
        || mFirstTouchTarget != null) {
    final boolean disallowIntercept = (mGroupFlags & FLAG_DISALLOW_INTERCEPT) != 0;
    if (!disallowIntercept) {
        intercepted = onInterceptTouchEvent(ev);
        ev.setAction(action); // restore action in case it was changed
    } else {
        intercepted = false;
    }
} else {
    // There are no touch targets and this action is not an initial down
    // so this view group continues to intercept touches.
    intercepted = true;
}

如果ViewGroup拦截了事件：

那么mFirstTouchTarget == null，会走到else中，此时 intercepted = true，那么就会走到ViewGroup拦截逻辑中，会调用dispatchTransformedTouchEvent，第三个参数child == null，那么如果ViewGroup不消费不处理，就会交给上级处理。

如果ViewGroup不拦截事件：

那么mFirstTouchTarget != null，此时还是会判断子View是否拦截该事件，如果拦截，那么intercepted = true，还是会走上面的拦截逻辑；如果不拦截，那么intercepted = false，会走到ViewGroup不拦截事件的逻辑中。

if (newTouchTarget == null && mFirstTouchTarget != null) {
    // Did not find a child to receive the event.
    // Assign the pointer to the least recently added target.
    newTouchTarget = mFirstTouchTarget;
    while (newTouchTarget.next != null) {
        newTouchTarget = newTouchTarget.next;
    }
    newTouchTarget.pointerIdBits |= idBitsToAssign;
}

因为只有DOWN事件的时候，才会遍历View树，如果是MOVE事件，不会进入循环，不再分发，而是走上面的逻辑，此时newTouchTarget == null 而且 mFirstTouchTarget不为空，此时会给newTouchTarget重新赋值，然后继续往下走。

if (mFirstTouchTarget == null) {
    // No touch targets so treat this as an ordinary view.
    handled = dispatchTransformedTouchEvent(ev, canceled, null,
            TouchTarget.ALL_POINTER_IDS);
} else {
    // Dispatch to touch targets, excluding the new touch target if we already
    // dispatched to it.  Cancel touch targets if necessary.
    TouchTarget predecessor = null;
    TouchTarget target = mFirstTouchTarget;
    while (target != null) {
        final TouchTarget next = target.next;
        if (alreadyDispatchedToNewTouchTarget && target == newTouchTarget) {
            handled = true;
        } else {
            final boolean cancelChild = resetCancelNextUpFlag(target.child)
                    || intercepted;
            if (dispatchTransformedTouchEvent(ev, cancelChild,
                    target.child, target.pointerIdBits)) {
                handled = true;
            }
            if (cancelChild) {
                if (predecessor == null) {
                    mFirstTouchTarget = next;
                } else {
                    predecessor.next = next;
                }
                target.recycle();
                target = next;
                continue;
            }
        }
        predecessor = target;
        target = next;
    }
}

因为mFirstTouchTarget != null，因此会走到else代码块中，因为alreadyDispatchedToNewTouchTarget是在事件分发时才赋值为true，所以在while循环中（一次循环，单点触控），会走else代码块，其实还是会调用dispatchTransformedTouchEvent方法判断是否处理事件，所以这就形成了一条责任链，当一个View消费了DOWN事件之后，后续的事件系统默认都会给他消费，除非特殊情况。

2 Android事件冲突处理

基于Android事件分发机制，DOWN事件只会执行一次，而且只是做分发工作，而MOVE事件会有无数次，所以对于事件冲突来说，只能在MOVE事件中进行处理。

if (actionMasked == MotionEvent.ACTION_DOWN
        || mFirstTouchTarget != null) {
    final boolean disallowIntercept = (mGroupFlags & FLAG_DISALLOW_INTERCEPT) != 0;
    if (!disallowIntercept) {
        intercepted = onInterceptTouchEvent(ev);
        ev.setAction(action); // restore action in case it was changed
    } else {
        intercepted = false;
    }
} else {
    // There are no touch targets and this action is not an initial down
    // so this view group continues to intercept touches.
    intercepted = true;
}

针对这种分发机制，前面也提到了两种处理方式，要么在父容器的onInterceptTouchEvent中判断是否拦截事件，要么控制disallowIntercept的值，所以就出现了2种拦截法。

2.1 内部拦截法

此方式指的是在子View中，通过控制disallowIntercept的值，来让父容器决定是否拦截事件。

class MotionEventLayout(
    val mContext: Context,
    val attrs: AttributeSet? = null,
    val defStyleAttr: Int = 0
) : FrameLayout(mContext, attrs, defStyleAttr) {
    override fun onInterceptTouchEvent(ev: MotionEvent?): Boolean {
        return true
    }
}

如果在父容器的onInterceptTouchEvent方法中返回true，那么down一定会被拦截而不会分发给子View，所以子View不会响应任何事件。

class MotionEventChildLayout(
    val mContext: Context,
    val attrs: AttributeSet? = null,
    val defStyleAttr: Int = 0
) : FrameLayout(mContext, attrs, defStyleAttr) {
    private var startX = 0
    private var startY = 0
    override fun dispatchTouchEvent(ev: MotionEvent?): Boolean {
        when (ev?.action) {
            MotionEvent.ACTION_DOWN -> {
                //不能被拦截
                parent.requestDisallowInterceptTouchEvent(true)
            }
            MotionEvent.ACTION_MOVE -> {
                var endX = ev.rawX
                var endY = ev.rawY
                //竖向滑动
                if (abs(endX - startX) > abs(endY - startY)) {
                    parent.requestDisallowInterceptTouchEvent(false)
                }
                startX = endX
                startY = endY
            }
        }
        return super.dispatchTouchEvent(ev)
    }
}

所以使用内部拦截法时，对于DOWN事件不能被拦截，需要将requestDisallowInterceptTouchEvent设置为true，这样父容器在分发事件时，就不会走自身的onInterceptTouchEvent方法（此时无论设置true或者false都是无效的），intercepted = false，此时事件就会被分发到子View。

然后在滑动时，如果父容器支持左右滑动，子View支持上下滑动，那么就可以判断：如果横向滑动的距离大于竖直方向滑动的距离，任务在左右滑动，此时事件处理交给父容器处理；反之则交给子View处理。

这是我们理解中的处理方式，看着好像没问题，但是实际运行时发现无效！！ 我们明明设置了requestDisallowInterceptTouchEvent为true，为什么没生效呢？

if (actionMasked == MotionEvent.ACTION_DOWN) {
    // Throw away all previous state when starting a new touch gesture.
    // The framework may have dropped the up or cancel event for the previous gesture
    // due to an app switch, ANR, or some other state change.
    cancelAndClearTouchTargets(ev);
    resetTouchState();
}

通过源码我们发现，当DOWN事件触发之后，会清除所有的标志位，包括disallowIntercept，所以在使用内部拦截法的时候，我们需要保证外部容器不能拦截DOWN事件，其实这个不会有问题的，大不了所有的子View都不处理，最终再扔给你处理。

override fun onInterceptTouchEvent(ev: MotionEvent?): Boolean {
    if (ev?.action == MotionEvent.ACTION_DOWN) {
        super.onInterceptTouchEvent(ev)
        return false
    }
    return true
}

所以在父容器的onInterceptTouchEvent方法中，不能对DOWN事件进行拦截，这里返回了false。

因为父容器没有拦截down事件，所以事件被分发给了子View（可以上下滑动），紧接着MOVE事件来了，全部交给了子View处理，这时的mFirstTouchTarget还是子View的。如果用户手势改成了左右滑动，那么这个过程两者是如何完成转换的呢？

此时，mFirstTouchTarget != null，action == MOVE，disallowIntercept = false，因为是move事件，所有标志位不会被清除，此时会走到这里。

if (!disallowIntercept) {
    intercepted = onInterceptTouchEvent(ev);
    ev.setAction(action); // restore action in case it was changed
}

此时，父容器的onInterceptTouchEvent返回的是true，要拦截子View的事件了，此时intercepted = true，因为mFirstTouchTarget != null，所以在拦截逻辑里，是会走到else代码块中的。

while (target != null) {
    final TouchTarget next = target.next;
    if (alreadyDispatchedToNewTouchTarget && target == newTouchTarget) {
        handled = true;
    } else {
        final boolean cancelChild = resetCancelNextUpFlag(target.child)
                || intercepted;
        if (dispatchTransformedTouchEvent(ev, cancelChild,
                target.child, target.pointerIdBits)) {
            handled = true;
        }
        if (cancelChild) {
            if (predecessor == null) {
                mFirstTouchTarget = next;
            } else {
                predecessor.next = next;
            }
            target.recycle();
            target = next;
            continue;
        }
    }
    predecessor = target;
    target = next;
}

因为这个时候 intercepted = true，所以cancelChild = true，所以在dispatchTransformedTouchEvent方法中，第二个参数为true。

private boolean dispatchTransformedTouchEvent(MotionEvent event, boolean cancel,
        View child, int desiredPointerIdBits) {
    final boolean handled;
    // Canceling motions is a special case.  We don't need to perform any transformations
    // or filtering.  The important part is the action, not the contents.
    final int oldAction = event.getAction();
    if (cancel || oldAction == MotionEvent.ACTION_CANCEL) {
        event.setAction(MotionEvent.ACTION_CANCEL);
        if (child == null) {
            handled = super.dispatchTouchEvent(event);
        } else {
            handled = child.dispatchTouchEvent(event);
        }
        event.setAction(oldAction);
        return handled;
    }
}

这时会触发一个ACTION_CANCEL事件，这个事件是子View事件被上层拦截的时候触发的，其实当前这个MOVE事件做的一件事，就是执行了子View的cancel事件，然后将mFirstTouchTarget置为了空；因为MOVE事件很多，所以下个MOVE事件进来之后，又会走到判断是否拦截的逻辑中。

此时父容器会冷酷地拦截这些MOVE事件，原本属于子View的MOVE事件，而且不会往下分发，走到拦截逻辑中，因为此时mFirstTouchTarget为空，所以直接由自身决定是否消费，肯定消费了，因为在左右滑动，也就是这样完成的事件消费处理权的切换。

2.2 外部拦截法

那么对于外部拦截法，则是需要动态修改onInterceptTouchEvent的返回值，如果用户左右滑动，那么就拦截，onInterceptTouchEvent返回true，此时intercepted = true，就不再走事件分发流程了。

class MotionEventLayout(
    val mContext: Context,
    val attrs: AttributeSet? = null,
    val defStyleAttr: Int = 0
) : FrameLayout(mContext, attrs, defStyleAttr) {
    private var startX = 0f
    private var startY = 0f
    override fun onInterceptTouchEvent(ev: MotionEvent?): Boolean {
        var intercepted = false
        when (ev?.action) {
            MotionEvent.ACTION_DOWN -> {
            }
            MotionEvent.ACTION_MOVE -> {
                val endX = ev.rawX
                val endY = ev.rawY
                //竖向滑动
                intercepted = abs(endX - startX) > abs(endY - startY)
                startX = endX
                startY = endY
            }
        }
        return intercepted
    }
}

相较于内部拦截法，外部拦截就显得比较简单了，完全由父容器发牌决定。

以上就是Android进阶事件分发机制解决事件冲突的详细内容，更多关于Android事件冲突解决的资料请关注我们其它相关文章！
