解读torch.nn.GRU的输入及输出示例

目录

• 一、输入到GRU的参数
• ①input的shape
• ②h_0的shape
• 二、GRU返回的数据
• ①output
• ②h_n
• 三、代码示例
• 四、输出
• 总结

我们有时会看到GRU中输入的参数有时是一个，但是有时又有两个。这难免会让人们感到疑惑，那么这些参数到底是什么呢。

一、输入到GRU的参数

输入的参数有两个，分别是input和h_0。

Inputs: input, h_0

①input的shape

The shape of jsinput:(seq_len, BATch, input_size) : tensor containing the feature of the input sequence. The input can also be a packed variable length sequence。

See functorch.nn.utils.rnn.pack_padded_sequencefor details.

②h_0的shape

从下面的解释中也可以看出，这个参数可以不提供，那么就默认为0.

The shape of h_0:(num_layers * num_directions, batch, hidden_size): tensor containing the initial hidden state for each element in the batch.

Defaults to zero if not provided. If the RNN is bidirectional num_directions should be 2, else it should be 1.

综上，可以只输入一个参数。当输入两个参数的时候，那么第二个参数相当于是一个隐含层的输出。

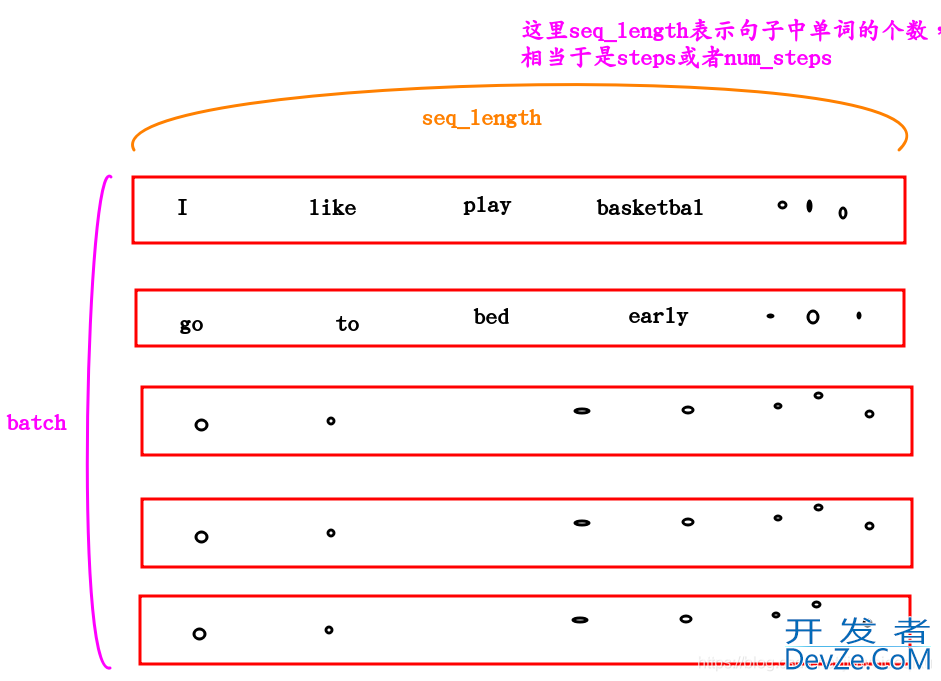

为了便于理解，下面是一幅图：

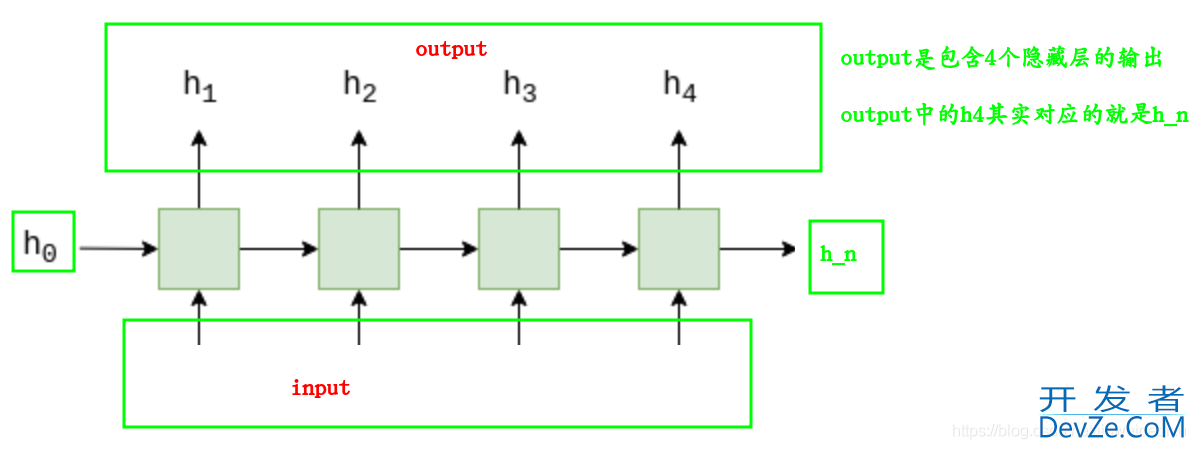

二、GRU返回的数据

输出有两个，分别是output和h_n

①output

output 的shape是：(seq_len, batch, num_directions * hidden_size): tensor containing the output features h_t from the last layer of the GRU, for each t.

If a class:torch.nn.utils.rnn.PackedSequence has been given as the input, the output will also be a packed sequence.

For the unpacked case, the directions can be swww.devze.comeparated using output.view(seq_len, batch, num_directions, hidden_size), with forward and backward being direction 0 and 1 respectively.

Similarly, the directions can be separated in the packed case.

②h_n

h_n的shape是：(num_layers * num_directions, batch, hidden_size): tensor containing the hidden state for t = seq_len

Like output, the layers can javascriptbe separated using

h_n.view(num_layers, num_directions, batch, hidden_size).

三、代码示例

数据的shape是[batch,seq_len,emb_dim]

RNN接收输入的数据的shape是[seq_len,batch,emb_dim]

即前两个维度调换就行了。

可以知道，加入批处理的时候一次处理128个句子，每个句子中有5个单词，那么上图中展示的input_data的shape是:[128,5,emb_dim]。

结合代码分析，本例子将演示有1个句子和5个句子的情况。假设每个句子中有9个单词，所以seq_len=9,并且每个单词对应的emb_dim=3，所以对应数据的shape是: [batch,9,3]，由于输入到RNN中数据格式的格式，所以为[9,batch,3]

import torch
import torch.nn as nn

emb_dim = 3
hidden_dim = 2
rnn = nn.GRU(emb_dim,hidden_dim)
#rnn = nn.GRU(9,1,3)
print(type(rnn))

tensor1 = torch.tensor([[-0.5502, -0.1920, 1.1845],
[-0.8003, 2.0783, 0.0175],
[ 0.6761, 0.7183, -1.0084],
[ 0.9514, 1.4772, -0.2271],
[-1.0146, 0.7912, 0.2003],
[-0.5502, -0.1920, 1.1845],
[-0.8003, 2.0783, 0.0175],
[ 0.1718, 0.1070, 0.4255],
[-2.6727, -1.5680, -0.8369]])

tensor2 = torch.tensor([[-0.5502, -0.1920]])

# 假设input只有一个句子，那么batch为1
print('--------------batch=1时------------')
data = tensor1.unsqueeze(0)
h_0 = tensor2[0].unsqueeze(0).unsqueeze(0)
print('data.shape: [batch,seq_len,emb_dim]',data.shape)
print('')
input = data.transpose(0,1)
print('input.shape: [seq_len,batch,emb_dim]',input.shape)
print('h_0.shape: [1,batch,hidden_dim]',h_0.shape)
print('')
# 输入到rnn中
output,h_n = rnn(input,h_0)
print('output.shape: [seq_len,batch,hidden_dim]',output.shape)
print('h_n.shape: [1,batch,hidden_dim]',h_n.shape)

# 假设input中有5个句子，所以,batch = 5
print('\n--------------batch=5时------------')
data = tensor1.unsqueeze(0).repeat(5,1,1) # 由于batch为5
h_0 = tensor2[0].unsqueeze(0).repeat(1,5,1) # 由于batch为5
print('data.shape: [batch,seq_len,emb_dim]',data.shape)
print('')
input = data.transpose(0,1)

print('input.shape: [seq_len,batch,emb_dim]',input.shape)
print('h_0.shape: [1,batch,hidden_dim]',h_0.shape)
print('')
# 输入到rnn中
output,h_n = rnn(input,h_0)
print('output.shape: [seq_len,batch,hidden_dim]',output.shape)
print('h_n.shape: [1,batch,hidden_dim]',h_n.shape)

四、输出

<class ‘torch.nn.modules.rnn.GRU’>

--------------batch=1时------------

data.shape: [batch,seq_len,emb_dim] torch.Size([1, 9, 3])

input.shape: [seq_len,batch,emb_dim] torch.Size([9, 1, 3])

h_0.shape: [1,batch,hidden_dim] torch.Size([1, 1, 2])

http://www.devze.com

output.shape: [seq_len,batch,开发者_Python入门hidden_dim] torch.Size([9, 1, 2])

h_n.shape: [1,batch,hidden_dim] torch.Size([1, 1, 2])

--------------batch=5时------------

data.shape: [batch,seq_len,emb_dim] torch.Size([5, 9, 3])

input.shape: [seq_len,batch,emb_dim] torch.Size([9, 5, 3])

h_0.shape: [1,batch,hidden_dim] torch.Size([1, 5, 2])

output.shape: [seq_len,batch,hidden_dim] torch.Size([9, 5, 2])

h_n.shape: [1,batch,hidden_dim] torch.Size([1, 5, 2])

总结

以上为个人经验，希望能给大家一个参考，也希望大javascript家多多支持我们。
