SpringSecurity自定义Form表单使用方法讲解
目录
- 背景
- 实验-HttpBasic
- 实验-自定义登录页面
- 实验-自定义登录接口
- 实验-自定义登录数据参数
- 实验-自定义登录失败、成功处理器
- 实验-自定义登录成功跳转页面
- 实验-自定义退出接口
背景
本系列教程，是作为团队内部的培训资料准备的。主要以实验的方式来体验SpringSecurity的各项Feature。
新建一个SpringBoot项目，起名springboot-security-form，核心依赖为Web，SpringSecurity与Thymeleaf。
<dependencies><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-thymeleaf</artifactId></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-security</artifactId></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-devtools</artifactId><scope>runtime</scope><optional>true</optional></dependency><dependency><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId><optional>true</optional></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-test</artifactId><scope>test</scope></dependency> </dependencies>

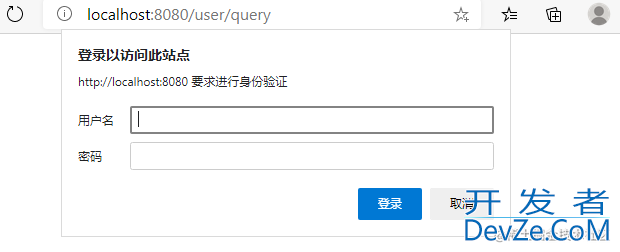

实验-HttpBasic
@Override
protected void configure(AuthenticationManagerBuilder auth) throws Excep编程客栈tion {// There is no PasswordEncoder mapped for the id "null"PasswordEncoder encoder = PasswordEncoderFactories.createDelegatingPasswordEncoder();String yourPassword = "123";System.out.println("Encoded password: " + encoder.encode(yourPassword));// Config account info and permissionsauth.inMemoryAuthentication().withUser("dev").password(encoder.encode(yourPassword)).authorities("p1").and().withUser("test").password(encoder.encode(yourPassword)).authorities("p2");
}
@Override
protected void configure(HttpSecurity http) throws Exception {http.authorizeRequests().antMatchers("/user/add").hasAuthority("p1").antMatchers("/user/query").hasAuthority("p2").antMatchers("/user/**").authenticated().anyRequest().permitAll() // Let other request pass.and().httpBasic();
}
实验-自定义登录页面
登录页面配置
@Override
protected void configure(HttpSecurity http) throws Exception {http.authorizeRequests().antMatchers("/user/add").hasAuthority("p1").antMatchers("/user/query").hasAuthority("p2").antMatchers("/user/**").authenticated().anyRequest().permitAll() // Let other request pass.and().csrf().disable() // turn off csrf, or will be 403 forbidden.formLogin() // Support form and HTTPBasic.loginPage("/login");
}
后端登录页面接口
@Controller
public class LoginController {@GetMapping("/login")public String login() {return "login";}@GetMapping(value = "/user/add")@ResponseBodypublic String AccessResource1() {return " Access Resource 1: Add User";}@GetMapping(value = "/user/query")@ResponseBodypublic String accessResource2() {return " Access Resource 2: Query User";}
}
前端模板
<!DOCTYPE html> <html lang="en"> <head><meta charset="UTF-8"><title>Login</title> </head> <body> <form action="login" method="post"><span>用户名</span><input type="text" name="username" /> <br><span>密码</span><input type="password" name="password" /> <br><input type="submit" value="登录"> </form> </body> </html>
Note：此时，需要先关闭CSRF，.csrf().disable()，否则报403；
实验-自定义登录接口
默认登录页面接口与登录数据提交接口是同一个：/login，顺着.loginPage，进入FormLoginConfigurer，源码如下：
@Override
public FormLoginConfigurer<H> loginPage(String loginPage) {return super.loginPage(loginPage);
}
继续进入父类的loginPage方法，
protected T loginPage(String loginPage) {setLoginPage(loginPage);updateAuthenticationDefaults();this.customLoginPage = true;return getSelf();
}
继续跟踪进入方法updateAuthenticationDefaults();，可以看到，如果没有配置loginProcessingUrl，那么loginProcessingUrl与loginPage便相同。
protected final void updateAuthenticationDefaults() {if (loginProcessingUrl == null) {loginProcessingUrl(loginPage);}if (failureHandler == null) {failureUrl(loginPage + "?error");}final LogoutConfigurer<B> logoutConfigurer = getBuilder().getConfigurer(LogoutConfigurer.class);if (logoutConfigurer != null && !logoutConfigurer.isCustomLogoutSuccess()) {logoutConfigurer.logoutSuccessUrl(loginPage + "?logout");}
}
下面我们TzWMHjFZKf自定义登录数据提交接口为/formLogin，此时相应的前端action也要修改。
@Override
protected void configure(HttpSecurity http) throws Exception {http.authorizeRequests().antMatchers("/user/add").hasAuthority("p1").antMatchers("/user/query").hasAuthority("p2").antMatchers("/user/**").authenticated().anyRequest().permitAll() // Let other request pass.and().csrf().disable() // turn off csrf, or will be 403 forbidden.formLogin() // Support form and HTTPBasic.loginPage("/login").loginProcessingUrl("/formLogin");
}
<form action="formLogin" method="post"><span>用户名</span><input type="text" name="username" /> <br><span>密码</span><input type="password" name="password" /> <br><input type="submit" value="登录"> </form>
实验-自定义登录数据参数
前面我们自定义了登录页面，在form表单中设置用户名、密码分别为username, password，那为什么这样写呢，可以改成别的嘛？可以倒是可以，但是不能随便改；
如果这里我们把username改为name，再次尝试登录，后端接口将报错：org.springframework.security.authentication.BadCredentialsException编程: Bad credentials。。可是实际项目中我们的用户名密码就是不叫这个名字呢？我们可以进行配置.usernameParameter("name")：
@Override
protected void configure(HttpSecurity http) throws Exception {http.authorizeRequests().antMatchers("/user/add").hasAuthority("p1").antMatchers("/user/query").hasAuthority("p2").antMatchers("/user/**").authenticated().anyRequest().permitAll() // Let other request pass.and().csrf().disable() // turn off csrf, or will be 403 forbidden.formLogin() // Support form and HTTPBasic.loginPage("/login").loginProcessingUrl("/formLogin").usernameParameter("name");
}
<form action="formLogin" method="post"><span>用户名</span><input type="text" name="name" /> <br><span>密码</span><input type="password" name="password" /> <br><input type="submit" value="登录"> </form>
默认的用户名、密码分别为username, password，我们看下SpringSecurity的源码：
public final class FormLoginConfigurer<H extends HttpSecurityBuilder<H>> extends
AbstractAuthenticationFilterConfigurer<H, FormLoginConfigurer<H>, UsernamePasswordAuthenticationFilter> {
/**
* Creates a new instance
* @see HttpSecurity#formLogin()
*/
public FormLoginConfigurer() {
super(new UsernamePasswordAuthenticationFilter(), null);
usernameParameter("username");
passwordParameter("password");
}
}
实验-自定义登录失败、成功处理器
问题：就以上个实验3中的报错信息为例，或当用户名、密码输错后，如何在后台看到错误信息？
@Override
protected void configure(HttpSecurity http) throws Exception {http.authorizeRequests().antMatchers("/user/add").hasAuthority("p1").antMatchers("/user/query").hasAuthority("p2").antMatchers("/user/**").authenticated().anyRequest().permitAll() // Let other request pass.and().csrf().disable() // turn off csrf, or will be 403 forbidden.formLogin() // Support form and HTTPBasic.loginPage("/login").loginProcessingUrl("/formLogin").usernameParameter("name").failureHandler(new AuthenticationFailureHandler(){@Overridepublic void onAuthenticationFailurandroide(HttpServletRequest request, HttpServletResponse response, AuthenticationException exception) throws IOException, ServletException {exception.printStackTrace();request.getRequestDispatcher(request.getRequestURL().toString()).forward(request, response);}});
}

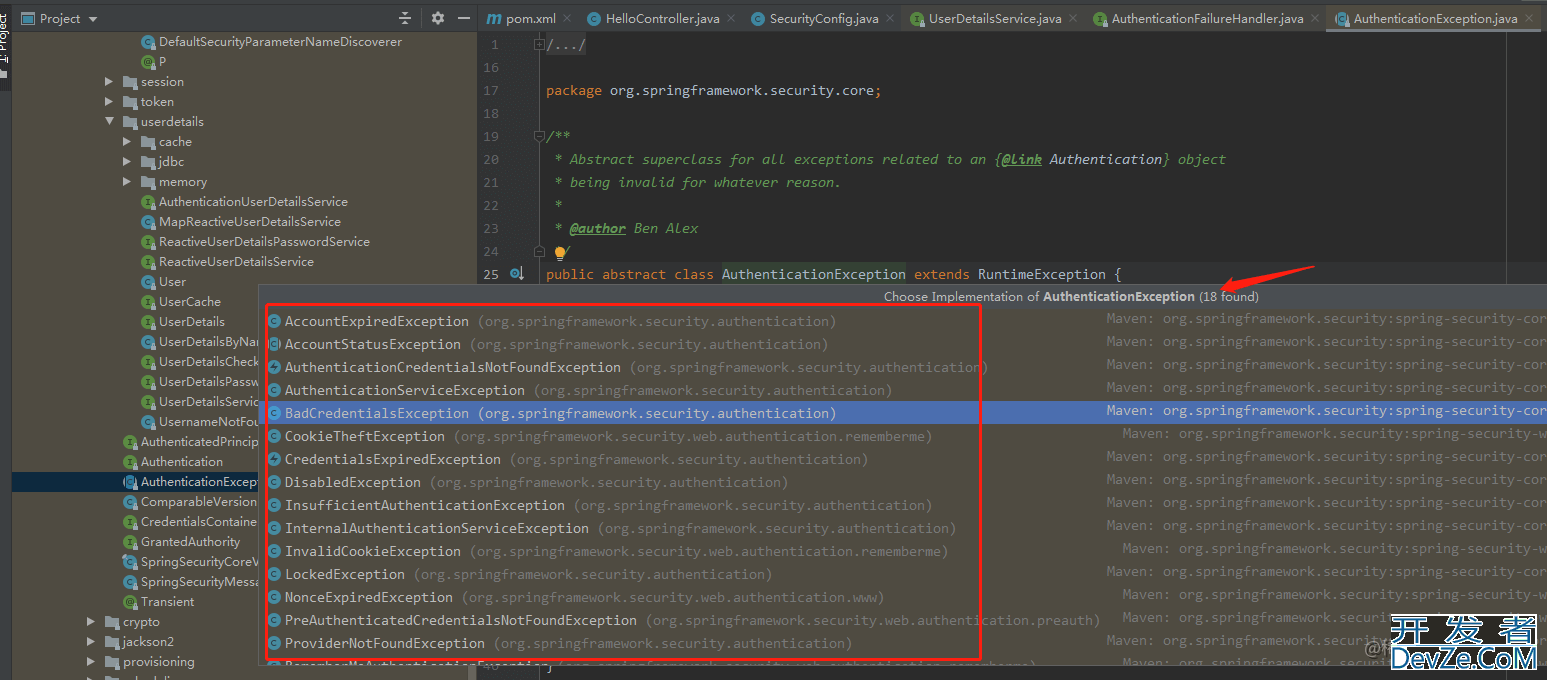

常见的认证异常，这里可以看到AuthenticationException共有18个子类：
上述增加了在认证失败时的处理：输出错误信息。同理，如果想在登录成功时直接进行一些处理（eg: 数据初始化等），可以使用以下配置：
.successHandler(new AuthenticationSuccessHandler() {@Overridepublic void onAuthenticationSuccess(HttpServletRequest request, HttpServletResponse response,Authentication authentication) throws IOException, ServletException {System.out.println("Login Successfully~");// do something here: initial work or forward to different url regarding different roles...request.getRequestDispatcher("").forward(request, response);}
})
实验-自定义登录成功跳转页面
经历千难万险，终于要登录成功了。进来之后要跳转到哪里呢？看你喽~想跳哪里跳哪里。。
@Override
protected void conhttp://www.devze.comfigure(HttpSecurity http) throws Exception {http.authorizeRequests().antMatchers("/user/add").hasAuthority("p1").antMatchers("/user/query").hasAuthority("p2").antMatchers("/user/**").authenticated().anyRequest().permitAll() // Let other request pass.and().csrf().disable() // turn off csrf, or will be 403 forbidden.formLogin() // Support form and HTTPBasic.loginPage("/login").loginProcessingUrl("/formLogin").usernameParameter("name").failureHandler(new AuthenticationFailureHandler(){@Overridepublic void onAuthenticationFailure(HttpServletRequest request, HttpServletResponse response, AuthenticationException exception) throws IOException, ServletException {exception.printStackTrace();request.getRequestDispatcher(request.getRequestURL().toString()).forward(request, response);}}).successForwardUrl("/ok"); // custom login success page, a POST request
}
@Controller
public class LoginController {...@PostMapping(value = "/ok")@ResponseBodypublic String ok() {return "ok";}
}
通过.successForwardUrl("/ok")配置了登录成功之后要跳转的页面路径或接口，同时需要在后端新增/ok接口。
Note:
- 注意这里
successForwardUrl的接口必须为POST接口； - 除了
.successForwardUrl("/ok");，还可以使用.defaultSuccessUrl("/ok");或者.defaultSuccessUrl("/ok", true);第二个参数true表示不管是从哪个地址进来，登录后全部跳转到指定的地址，此时与successForwardUrl效果相同，默认为false - 当然，除了登录成功后的跳转，还有登录失败后的跳转：
failureForwardUrl。
实验-自定义退出接口
默认的退出接口是/logout，可进行配置：
@Override
protected void configure(HttpSecurity http) throws Exception {http.authorizeRequests().antMatchers("/user/add").hasAuthority("p1").antMatchers("/user/query").hasAuthority("p2").antMatchers("/user/**").authenticated().anyRequest().permitAll() // Let other request pass.and().csrf().disable() // turn off csrf, or will be 403 forbidden.formLogin() // Support form and HTTPBasic.loginPage("/login").loginProcessingUrl("/formLogin").usernameParameter("name").failureHandler(new AuthenticationFailureHandler(){@Overridepublic void onAuthenticationFailure(HttpServletRequest request, HttpServletResponse response, AuthenticationException exception) throws IOException, ServletException {exception.printStackTrace();request.getRequestDispatcher(request.getRequestURL().toString()).forward(request, response);}}).successForwardUrl("/ok") // custom login success page, a POST request.and().logout().logoutUrl("/leave");}
上述配置将退出接口改为/leave。在默认的退出过程中，还做了诸如清除认证信息和使Session失效等工作：
publ开发者_C教程ic class SecurityContextLogoutHandler implements LogoutHandler { protected final Log logger = LogFactory.getLog(this.getClass()); private boolean invalidateHttpSession = true; private boolean clearAuthentication = true; // ~ Methods // ========================================== /** * Requires the request to be passed in. * * @param request from which to obtain a HTTP session (cannot be null) * @param response not used (can be <code>null</code>) * @param authentication not used (can be <code>null</code>) */ public void logout(HttpServletRequest request, HttpServletResponse response, Authentication authentication) { Assert.notNull(request, "HttpServletRequest required"); if (invalidateHttpSession) { HttpSession session = request.getSession(false); if (session != null) { logger.debug("Invalidating session: " + session.getId()); session.invalidate(); } } if (clearAuthentication) { SecurityContext context = SecurityContextHolder.getContext(); context.setAuthentication(null); } SecurityContextHolder.clearContext(); } }
