flutter开发技巧自定页面指示器PageIndicator详解

目录
  • 一、来源
  • 二、效果
  • 三、源码实现
    • 1、flutter_swiper_null_safety 使用示例:
    • 2、PageIndicatorWidget 指示器源码:
  • 三、总结

    一、来源

    项目中遇到多个需要自定义轮播图指示器的需求,封装成基础组件方便复用;

    原理是通过 ValueListenableBuilder 实时监听轮播图的当前索引,然后更新指示器组件,达到最终效果;

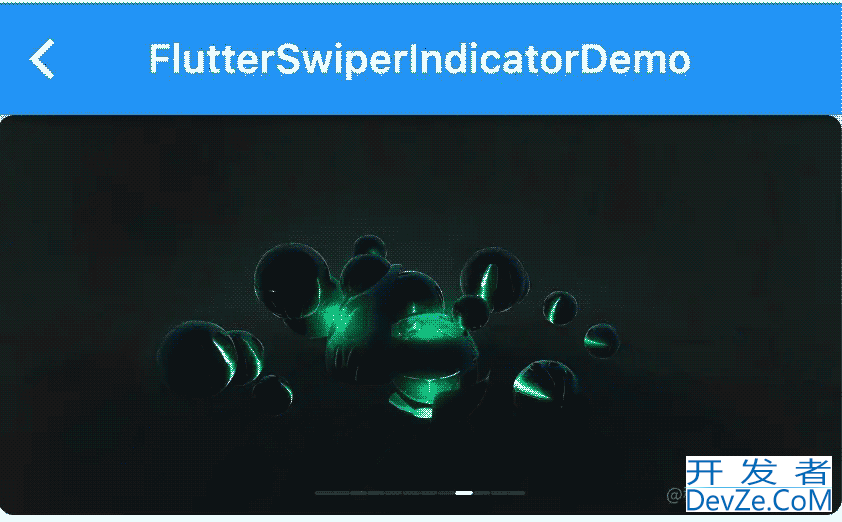

    二、效果

    flutter开发技巧自定页面指示器PageIndicator详解

    三、源码实现

    1、flutter_swiper_null_safety 使用示例:

    import 'package:flutter/material.Dart';
    import 'package:flutter_swiper_null_safety/flutter_swiper_null_safety.dart';
    import 'package:flutter_templet_project/R.dart';
    import 'package:flutter_templet_project/basicWidget/page_indicator_widget.dart';
    www.devze.comimport 'package:flutter_templet_project/extension/buildContext_extension.dart';
    class FlutterSwiperIndicatorDemo extends StatefulWidget {
      FlutterSwiperIndicatorDemo({ Key? key, this.title}) : super(key: key);
      final String? title;
      @override
      _FlutterSwiperIndicatorDemoState createState() => _FlutterSwiperIndicatorDemoState();
    }
    class _FlutterSwiperIndicatorDemoState extends State<FlutterSwiperIndicatorDemo> {
      ValueNotifier<int> currentIndex = ValueNotifier(0);
      BorderRadius borderRadius = BorderRadius.all(Radius.circular(8));
      final items = R.imgUrls;//图片链接数组
      @override
      Widget build(BuildContext context) {
        dynamic arguments = ModalRoute.of(context)!.settings.arguments;
        return Scaffold(
            appBar: AppBar(
              title: Text(widget.title ?? "$widget"),
            ),
            body: _buildSwiper()
        );
      }
      ///创建子项
      _buildItem(context, index) {
        final imgUrl = items[index];
        return InkWell(
          onTap: () => print(index),
          child: Container(
            padding: EdgeInsets.only(bottom: 0), //为了显示阴影
            child: ClipRRect(
              borderRadius: this.borderRadius,
              child: Stack(
                alignment: Alignment.center,
                fit: StackFit.expand,
                children: [
                  FadeInImage(
                    placeholder: AssetImage('images/img_placeholder.png',),
                    image: NetworkImage(imgUrl),
                    fit: BoxFit.cover,
                  ),
                ],
              ),
            ),
          ),
        );
      }
      _buildSwiper() {
        return Container(
          height: 200,
          child: ClipRRect(
              borderRadius: this.borderRadius,
              child: Stack(
                children: [
                  Swiper(
                    itemBuilder: (context, index) => _buildItem(context, index),
                    // indicatorLayout: PageIndicatorLayout.COLOR,
                    autoplay: this.items.length > 1,
                    loop: this.items.length > 1,
                    itemCount: this.items.length,
                    // pagination: this.items.length <= 1 ? null : SwiperPagination(),
                    // control: SwiperControl(),
                    // itemWidth: 200,
                    // viewportFraction: 0.6,
                    onIndexChanged: (index){
                      currentIndex.value = index;
                    }
                  ),
                  // if (this.items.length > 1) buildPageIndicator(),
                  if (this.items.length > 1) PageIndicatorWidget(
                    currentIndex: currentIndex,
                    itemCount: this.items.length,
                    itemSize: Size(c编程客栈ontext.screenSize.width/ 4 / this.items.length, 2),
                    // itemBuilder: (isSelected, itemSize) {
                    //   return Container(
                    //     w开发者_Python教程idth: itemSize.width,
                    //     www.devze.comheight: itemSize.height,
                    //     color: isSelected ? Colors.red : Colors.green,
                    //   );
                    // },
                  )
                ],
              )
          ),
        );
      }


    2、PageIndicatorWidget 指示器源码:

    import 'package:flutter/material.dart';
    typedef PageIndicatorItemWidgetBuilder = Widget Function(bool isSelected, Size itemSize);
    /// 轮播图指示器
    class PageIndicatorWidget extends StatelessWidget {
      PageIndicatorWidget({
        Key? key,
        this.margin = const EdgeInsets.only(bottom: 10),
        required this.currentPage,
        required this.itemCount,
        this.normalColor = const Color(0x25ffffff),
        this.selectedColor = Colors.white,
        this.itemSize = const Size(8, 2),
        this.itemBuilder,
        this.hidesForSinglePage = true
      }) : super(key: key);
      /// 当前页面索引
      ValueNotifier<int> currentPage;
      EdgeInsetsGeometry? margin;
      /// item数量
      int itemCount;
      /// 每个item尺寸(最好用固定宽度除以个数,避免总宽度溢出)
      Size itemSize;
      /// 自定义每个item
      PageIndicatorItemWidgetBuilder? itemBuilder;
      /// 默认颜色
      Color? normalColor;
      /// 选中颜色
      Color? selectedColor;
      /// 单页隐藏
      bool hidesForSinglePage;
      @override
      Widget build(BuildContext context) {
        if (this.hidesForSinglePage && this.itemCount == 1) {
          return SizedBox();
        }
        return buildPageIndicator();
      }
      Widget buildPageIndicator() {
        return Container(
          margin: this.margin,
          child: Align(
            alignment: Alignment.bottomCenter,
            child: ValueListenableBuilder(
              valueListenable: this.currentPage,
              builder: (BuildContext context, dynamic value, Widget? child) {
                return Row(
                  mainAxisSize: MainAxisSize.min,
                  mainAxisAlignment: MainAxisAlignment.start,
                  children: buildPageIndicatorItem(
                    currentIndex: this.currentPage.value,
                    normalColor: this.normalColor,
                    selectedColor: this.selectedColor,
                  ),
                );
              },
            ),
          ),
        );
      }
      List<Widget> buildPageIndicatorItem({
        currentIndex: 0,
        normalColor: const Colopythonr(0x25ffffff),
        selectedColor: Colors.white,
      }) {
        List<Widget> list = List.generate(this.itemCount, (index) {
          return this.itemBuilder != null ? this.itemBuilder!(currentIndex == index, this.itemSize) : ClipRRect(
            borderRadius: BorderRadius.all(Radius.circular(1)),
            child: Container(
              width: this.itemSize.width,
              height: this.itemSize.height,
              color: currentIndex == index ? selectedColor : normalColor,
            ),
          );
        });
        return list;
      }
    }


    三、总结

    此组件封装也秉承最简实现,不超过百行代码。开发工作中,如果我们发现最佳实践,即使它很小,也需要记录下来,常年累月下来机会自然而然拥有一套属于自己的高效的组件库。可以提高我们的开发效率,节约时间,让工作变得轻松。

    以上就是flutter开发技巧自定页面指示器PageIndicator详解的详细内容,更多关于flutter PageIndicator的资料请关注我们其它相编程关文章!
