C++版本基于ros将文件夹中的图像转换为bag包

目录

• 一、前期工作创建工作空间
•  二、创建工作包
• 三、准备编译文件和代码
• 3.1 更换编译文件中的内容
•  3.2 准备主程序
• 四、编译及执行
• 4.1 编译
• 4.2 执行
• 4.3 检测录制的bag包的话题和信息

一、前期工作创建工作空间

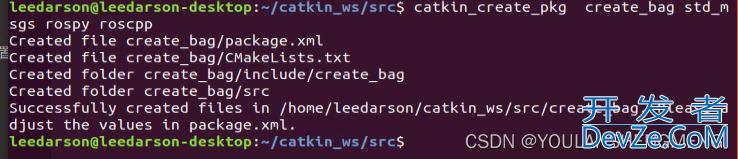

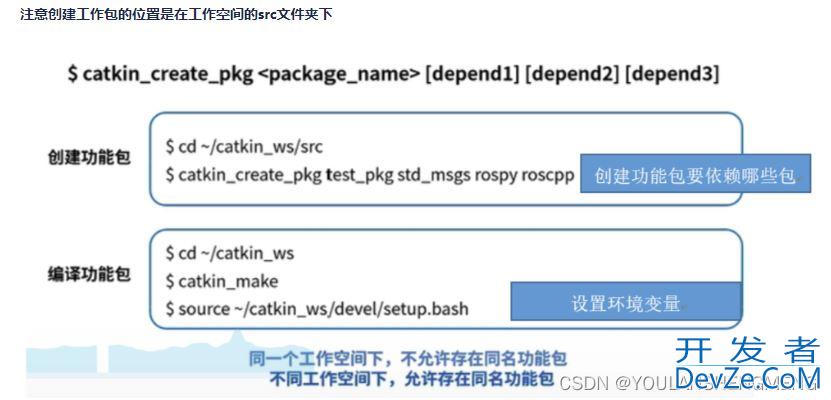

 二、创建工作包

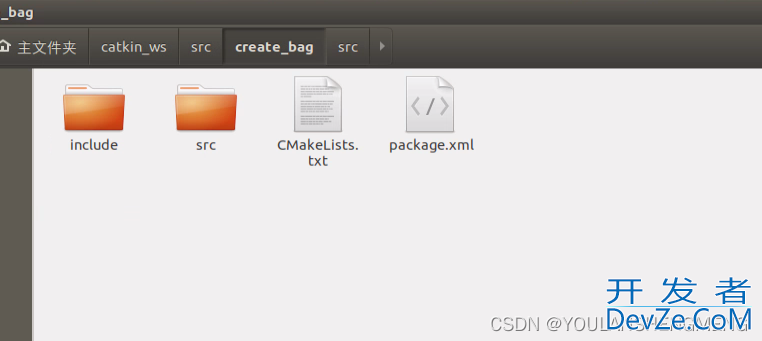

创建完成后，文件夹的格式为：

三、准备编译文件和代码

3.1 更换编译文件中的内容

将上图中的，CMakeLists.txt文件中的内容，替换为下面的内容

cmake_minimum_required(VERSION 3.0.2)
project(create_bag)

## Compile as C++11, supported in ROS Kinetic and newer
# add_compile_options(-std=c++11)

## Find catkin MACros and libraries
## if COMPONENTS list like find_package(catkin REQUIRED COMPONENTS xyz)
## is used, also find other catkin packages
# 寻找OpenCV库
find_package( OpenCV  REQUIRED )
# 添加头文件
include_directories( ${OpenCV_INCLUDE_DIRS} )

find_package(catkin REQUIRED COMPONENTS
  cv_bridge
  rosbag
  roscpp
  rospy
  std_msgs
)

catkin_package(
#  INCLUDE_DIRS include
#  LIBRARIES imgtobag
#  CATKIN_DEPENDS cv_bridge rosbag roscpp rospy std_msgs
#  DEPENDS system_lib
)

###########
## Build ##
###########

## Specify additional locations of header files
## Your package locations should be listed 编程before other locations
include_directories(
# include
  ${catkin_INCLUDE_DIRS}
  ${catkin_INCLUDE_DIRS}
  ${rosbag_INCLUDE_DIRS}
  ${OpenCV_INCLUDE_DIRS}
)

add_executable(node src/torosbag.cpp)
target_link_libraries(node
  ${catkin_LIBRARIES}
  ${PCL_LIBRARIES}
  ${rosbag_LIBRARIES}
  ${OpenCV_LIBS}
)

 3.2 准备主程序

leedarson@leedarson-desktop:~/catkin_ws/src/create_bag/src$ touch torosbag.cpp

创建一个cpp的文件夹，cpp文件中的内容为：

#include <string>
#includpythone <ros/console.h>
#include <rosbag/bag.h>
#include <cv_bridge/cv_bridge.h>
#include <IOStream>
#include <vector>
#include <sys/types.h>
#include <dirent.h>
#include <unistd.h>
#include <opencv2/core/core.hpp>
#include <opencv2/highgui/highgui.hpp>
using namespace std;
using namespace cv;

void GetFileNames(string path,vector<string>& filenames, string con);
void GetFileNamesByGlob(cv::String path,vector<cv::String>& filenames, string con);
bool read_images(string path, vector<string> &image_files);
int main(int argc, char **argv)
{
    //输入文件和输出文件路径
    string base_dir = "/home/leedarson/catkin_ws/src/create_bag/data/";
    string img_dir = base_dir + "img/";
    std::cout<<"image path is"<<img_dir<<std::endl;
    string output_bag=base_dir +"Human2.bag";
    string img_format = ".jpg";//格式
    vector<string> img_names;
    //GetFileNames(img_dir, img_names,".jpg");
    read_images(img_dir, img_names);
    cout<<"图片读取完成"<<endl;

    cout<<"----"<<endl;

    ros::Time::init();
    rosbag::Bag bag;
    bag.open(output_bag, rosbag::bagmode::Write);
    int seq = 0;
    vector<string>::iterator it;
    for(it = img_names.begin(); it != img_names.end();it++)//todo 之后改成图片数量的多少
    {
        string tmp = *it;
        std::cout<<"tmp path is"<<tmp<<std::endl;
        //cout<<tmp<<endl;
        //string strImgFile =  img_dir + tmp + img_format;
        string strImgFile = tmp;
        usleep(200000);//4hz
        ros::Time timhttp://www.devze.comestamp_ros = ros::Time::now();

        // --- for image ---//
        cv::Mat img = cv::imread(strImgFile);
        if (img.empty())
            cout<<"图片为空: "<<strImgFile<<endl;
        cv_bridge::CvImage ros_image;
        sensor_msgs::ImagePtr ros_image_msg;

        ros_image.image = img;
        ros_image.encoding = "bgr8";
        //cout<<"debug_______"<<endl;
        //ros::Time timestamp_ros2 = ros::Time::now();
        ros_image_msg = ros_image.toImageMsg();
        ros_image_msg->header.seq = seq;
        ros_image_msg->header.stamp = timestamp_ros;
        ros_image_msg->header.frame_id = "/image_raw";

        bag.write("/camera/color/image_raw", ros_image_msg->header.stamp, ros_image_msg);
        cout<<"write frame: "<<seq<<endl;
        seq++;
    }

    cout<<"---end---"<<endl;

    return 0;
}

//con:文件格式 form:文件命名形式
void GetFileNames(string path,vector<string>& filenames, string con)
{
    DIR *pDir;
    struct dirent* ptr;
    string filename, format, name, name2;

    if(!(pDir = opendir(path.c_str())))
        return;
    int num=0;
    while((ptr = readdir(pDir))!=0)
    {
        //跳过.和..文件
        if(strcmp(ptr->d_name, ".") == 0 || strcmp(ptr->d_name, "..") == 0)
            continue;
        filename = ptr->d_name;
        format = filename.substr(filename.find("."), filename.length());
       开发者_Go学习 //name = filename.substr(0, filename.find("."));
        name = filename.substr(0, filename.find("."));
        cout<<filename<<"\t"<<name<<"\t"<<format<<endl;

        if(format == con)//也可以添加对文件名的要求
        {
            filenames.push_back(name);

            num++;
        }
    }
    std::cout<<"file size of:"<<filenames.size()<<"****"<<num<<std::endl;
    closedir(pDir);
}

//cv::glob(路径，要放置路径下文件定义的容器，false)
/*find_first_of()和find_last_of()
执行简单的模式匹配，如在字符串中查找单个字符c:函数find_first_of() 查找在字符串中第1个出现的字符c，而函数find_last_of()查找最后一个出现的c。匹配的位置是返回值。如果没有匹配发生，则函数返回-1*/
//复制子字符串substr(所需的子字符串的起始位置,默认值为0 ， 复制的字符数目)返回值：一个子字符串，从其指定的位置开始
//按图片名升序排列
bool read_images(string path, vector<string> &image_files)
{
    //fn存储path目录下所有文件的路径名称，如../iandroidmages/0001.png
	vector<cv::String> fn;
    cv::glob(path, fn, false);
    size_t count_1 = fn.size();
    if (count_1 == 0)
    {
        cout << "file " << path << " not  exits"<<endl;
        return -1;
    }
    //v1用来存储只剩数字的字符串
    vector<string> v1;
    for (int i = 0; i < count_1; ++i)
    {
        //cout << fn[i] << endl;
        //1.获取不带路径的文件名,000001.jpg(获取最后一个/后面的字符串）
        string::size_type iPos = fn[i].find_last_of('/') + 1;
        string filename = fn[i].substr(iPos, fn[i].length() - iPos);
        //cout << filename << endl;
        //2.获取不带后缀的文件名,000001
        string name = filename.substr(0, filename.rfind("."));
        //cout << name << endl;
        v1.push_back(name);
    }
    //把v1升序排列
    sort(v1.begin(), v1.end(),[](string a, string b) {return stoi(a) < stoi(b); });

    string v = ".jpg";
    size_t count_2 = v1.size();
    for(int j = 0; j < count_2; ++j)
    {
        string z = path + v1[j] + v;
    javascript    image_files.push_back(z);//把完整的图片名写回来
    }
	return true;
}

四、编译及执行

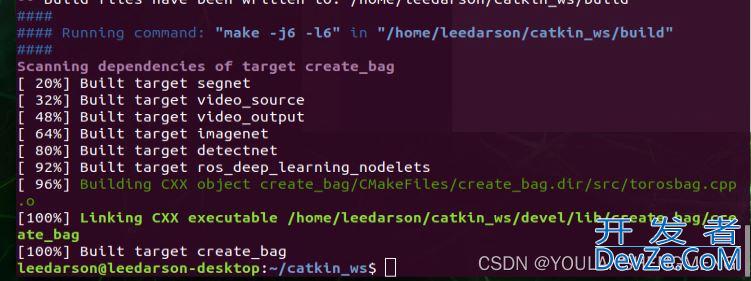

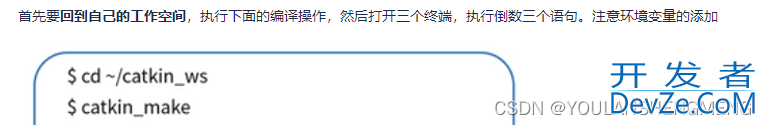

4.1 编译

4.2 执行

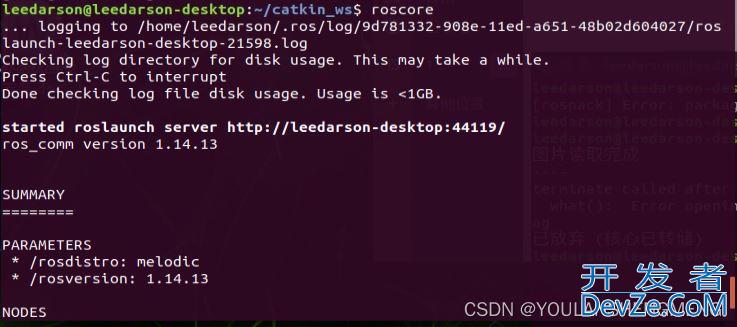

1，首先打开一个终端，输入roscore，启动ros

 2，打开新的终端，进入工作空间，执行以下语句

leedarson@leedarson-desktop:~/catkin_ws$ source devel/setup.bash

leedarson@leedarson-desktop:~/catkin_ws$ rosrun create_bag node

通过以上操作就可以将文件夹中的图像转换为bag包。

4.3 检测录制的bag包的话题和信息

rostopic list

rostopic echo
