Python实现PING命令的示例代码

目录
  • 一、PING简介
  • 二、代码实现
  • 三、结果显示

一、PING简介

PING(Packet Internet Grope),也称因特网包探索器。PING使用ICMP回送(ECHO)请求和回送(ECHO)应答报文,一般用于测试网络连通性,统计往返时间、丢包率等。PING Unix命令格式如下:

ping [ - Rdfnqrv ] [ - c count ] [ - i wait ] [ - l preload ] [ - p pattern ] [ - s packetsize ] host

如果目标主机正在运行并连在网络上,它就会对ICMP ECHO请求报文进行应答。每个ICMP ECHO请求报文包含一个IP和ICMP报文收不,后紧跟一个timeval结构,以及用来填充这个报文的填充字节。

缺省情况下,PING连续发送ICMP ECHO请求报文,直到收到中断信号(Ctrl - C)。PING命令每秒发送一个报文,并且在程序结束是显示一个简要总结。PING命令在程序超时或接收到中断信号时结束。host参数可以是有效的主机名或IP地址。

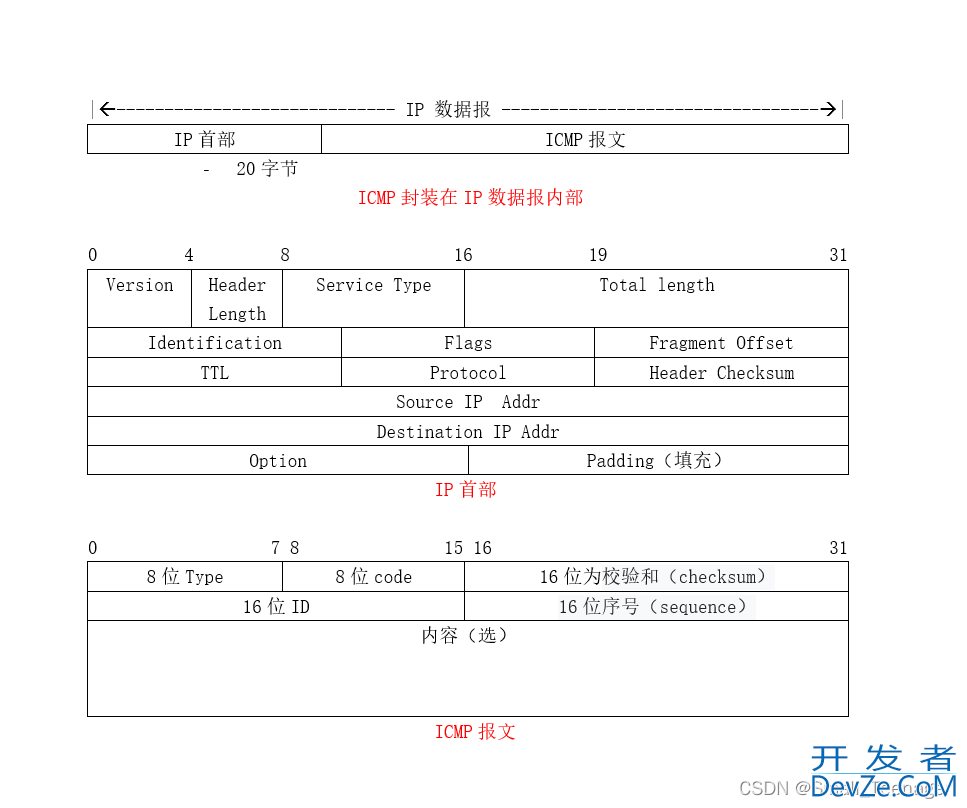

报文结构如下:

Python实现PING命令的示例代码

二、代码实现

# encoding:utf-8
import time
import struct
import socket
import select




def chesksum(data):
    n = len(data)
    m = n % 2
    sum = 0
    for i in range(0, n - m ,2):
        sum += (data[i]) + ((data[i+1]) << 8)#传入data以每两个字节(十六进制)通过ord转十进制,第一字节在低位,第二个字节在高位
    if m:
        sum += (data[-1])
    #将高于16位与低16位相加
    sum = (sum >>开发者_JS培训 16) + (sum & 0xffff)
    sum += (sum >> 16) #如果还有高于16位,将继续与低16位相加
    answer = ~sum & 0xffff
    #  主机字节序转网络字节序列(参考小端序转大端序)
    answer = answer >> 8 | (answer << 8 & 0xff00)
    return answer

def request_ping(data_type,data_code,data_checksum,data_ID,data_Sequence,payload_body):
    #  把字节打包成二进制数据
    icmp_packet = struct.pack('http://www.devze.com>BBHHH32s',data_type,data_code,data_checksum,data_ID,data_Sequence,payload_body)
    icmp_chesksum = chesksum(icmp_packet)  #获取校验和
    #  把校验和传入,再次打包
    icmp_packet = struct.pack('>BBHHH32s',data_type,data_code,icmp_chesksum,data_ID,data_Sequence,payload_body)
    return icmp_packet


def raw_socket(dst_addr,icmp_packet):
    '''
       连接套接字,并将数据发送到套接字
    '''
    #实例化一个socket对象,ipv4,原套接字,分配协议端口
    rawsocket = socket.socket(socket.AF_INET,socket.SOCK_RAW,socket.getprotobyname("icmp"))
    #记录当前请求时间
    send_request_ping_time = time.time()
    #发送数据到网络
    rawsocket.sendto(icmp_packet,(dst_addr,80))
    #返回数据
    return send_request_ping_time,rawsocket,dst_addr


def reply_ping(send_request_ping_time,rawsocket,data_Sequence,timeout = 2):
    while True:
        #开始时间
        started_select = time.time()
        #实例化select对象,可读rawsocket,可写为空,可执行为空,超时时间
        what_ready = select.select([rawsocket], [], [], timeout)
        #等待时间
        wait_for_time = (time.time() - started_select)
        #没有返回可读的内容,判断超时
        if what_ready[0] == []:  # Timeout
            return -1
        #记录接收时间
        time_received = time.time()
        #设置接收的包的字节为1024
        received_packet, addr = rawsocket.recvfrom(1024)
        #获取接收包的icmp头
        #print(icmpHeader)
        icmpHeader = received_packet[20:28]
        #反转编码
        type, code, checksum, packet_id, sequence = struct.unpack(
            ">BBHHH", icmpHeader
        )

        if type == 0 and sequence == data_Sequence:
            return time_received - send_request_ping_time

        #数据包的超时时间判断
        timeout = timeout - wait_for_time
        if timeout <= 0:
            return -1
def dealtime(dst_addr,sumtime,shorttime,longtime,accept,i,time):
    sumtime += time
    print(sumtime)
    if i == 4:
        print("{0}的Ping统计信息:".forandroidmat(dst_addr))
        print("数据包:已发送python={0},接收={1},丢失={2}({3}%丢失),\n往返行程的估计时间(以毫秒为单位):\n\t最短={4}ms,最长={5}ms,平均={6}ms".format(i+1,accept,i+1-accept,(i+1-accept)/(i+1)*100,shorttime,longtime,sumtime))
def ping(host):
    send, accept, lost = 0, 0, 0
    sumtime, shorttime, longtime, avgtime = 0, 1000, 0, 0
    #TODO icmp数据包的构建
    data_type = 8 # ICMP Echo Request
    data_code = 0 # must be zero
    data_checksum = 0 # "...with value 0 substituted for this field..."
    data_ID = 0 #Identifier
    data_Sequence = 1 #Sequence number
    payload_body = b'abcdefghijklmnopqrstuvwabcdefghi' #data

    # 将主机名转ipv4地址格式,返回以ipv4地址格式的字符串,如果主机名称是ipv4地址,则它将保持不变
    dst_addr = socket.gethostbyname(host)
    print("正在 Ping {0} [{1}] 具有 32 字节的数据:".format(host,dst_addr))
    for i in range(0,4):
        send = i + 1
        #请求ping数据包的二进制转换
        icmp_packet = request_ping(data_type,data_code,data_checksum,data_ID,data_Sequence + i,payload_body)
        #连接套接字,并将数据发送到套接字
        send_request_ping_time,rawsocket,addr = raw_socket(dst_addr,icmp_packet)
        #数据包传输时间
    编程    times = reply_ping(send_request_ping_time,rawsocket,data_Sequence + i)
        if times > 0:
            print("来自 {0} 的回复: 字节=32 时间={1}ms".format(addr,int(times*1000)))

            accept += 1
            return_time = int(times * 1000)
            sumtime += return_twww.devze.comime
            if return_time > longtime:
                longtime = return_time
            if return_time < shorttime:
                shorttime = return_time
            time.sleep(0.7)
        else:
            lost += 1
            print("请求超时。")

        if send == 4:
            print("{0}的Ping统计信息:".format(dst_addr))
            print("\t数据包:已发送={0},接收={1},丢失={2}({3}%丢失),\n往返行程的估计时间(以毫秒为单位):\n\t最短={4}ms,最长={5}ms,平均={6}ms".format(
                i + 1, accept, i + 1 - accept, (i + 1 - accept) / (i + 1) * 100, shorttime, longtime, sumtime/send))



if __name__ == "__main__":
    i = input("请输入要ping的主机或域名\n")
    ping(i)

三、结果显示

D:\Miniconda3\python.exe D:/网络协议分析与设计/实验/ping/ping.py

请输入要ping的主机或域名

www.baidu.com

正在 Ping www.baidu.com [14.215.177.39] 具有 32 字节的数据:

来自 14.215.177.39 的回复: 字节=32 时间=34ms

来自 14.215.177.39 的回复: 字节=32 时间=26ms

来自 14.215.177.39 的回复: 字节=32 时间=32ms

来自 14.215.177.39 的回复: 字节=32 时间=28ms

14.215.177.39的Ping统计信息:

    数据包:已发送=4,接收=4,丢失=0(0.0%丢失),

往返行程的估计时间(以毫秒为单位):

    最短=26ms,最长=34ms,平均=30.0ms



Process finished with exit code 0

到此这篇关于Python实现PING命令的示例代码的文章就介绍到这了,更多相关Python PING命令内容请搜索我们以前的文章或继续浏览下面的相关文章希望大家以后多多支持我们!
