SpringBoot集成整合JWT与Shiro流程详解

2022-12-07 10:12 开发作者： leo825...

前言

代码库：https://gitee.com/leo825/springboot-learning-parents.git

之前写过《SpringBoot集成Shiro框架》，最近看了JWT，正好两个整合一下，加深一下理解。

实战演练

代码结构

SpringBoot集成整合JWT与Shiro流程详解

SQL脚本

schema.sql

create table if not exists t_user (
	`id`            int  primary  key not null ,
	`username`      char (50) not null,
	`password`      char(50) not null,
	`role`          char(50) not null,
	`permission`    char(255) not null
) ;

data.sql

insert into t_user(id, username, password, role, permission) values (0,'smith','smith123','user','view');
insert into t_user(id, username, password, role, permission) values (1,'danny','danny123','admin','view,edit')

数据格式如下：

username	password	role	permission
smith	smith123	user	view
danny	danny123	admin	view,edit

pom依赖

<?XML version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
		 xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.example</groupId>
		<artifactId>springboot-learning-parents</artifactId>
		<version>1.0-SNAPSHOT</version>
	</parent>
	<groupId>springboot-demo</groupId>
	<artifactId>springboot-jwt-shiro</artifactId>
	<version>1.0-SNAPSHOT</version>
	<name>springboot-jwt-shiro</name>
	<url>https://gitee.com/leo825/springboot-learning-parents.git</url>
	<description>springboot集成jwt和shiro测试</description>
	<properties>
		<start-class>com.demo.SpringbootJwtShiroApplication</start-class>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<Java.version>1.8</java.version>
		<myBATisplus.version>3.5.1</mybatisplus.version>
		<freemaker.version>2.3.31</freemaker.version>
		<mysql.version>8.0.28</mysql.version>
	</properties>
	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-devtools</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
		</dependency>
		<!-- mybatis-plus 所需依赖  -->
		<dependency>
			<groupId>com.baomidou</groupId>
			<artifactId>mybatis-plus-boot-starter</artifactId>
			<version>${mybatisplus.version}</version>
		</dependency>
		<dependency>
			<groupId>com.baomidou</groupId>
			<artifactId>mybatis-plus-generator</artifactId>
			<version>${mybatisplus.version}</version>
		</dependency>
		<!-- 使用h2内存数据库 -->
		<dependency>
			<groupId>com.h2database</groupId>
			<artifactId>h2</artifactId>
		</dependency>
		<!-- jwt依赖 -->
		<dependency>
			<groupId>com.auth0</groupId>
			<artifactId>java-jwt</artifactId>
			<version>3.8.1</version>
		</dependency>
		<dependency>
			<groupId>com.alibaba</groupId>
			<artifactId>fastjson</artifactId>
			<version>1.2.47</version>
		</dependency>
		<!--引入shrio 选择stater方式-->
		<dependency>
			<groupId>org.apache.shiro</groupId>
			<artifactId>shiro-spring-boot-starter</artifactId>
			<version>1.9.0</version>
		</dependency>
	</dependencies>
	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>
</project>

User

package com.demo.model;
import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.annotation.TableId;
import com.baomidou.mybatisplus.annotation.TableName;
import lombok.Data;
import java.io.Serializable;
/**
 * 用户
 */
@TableName("t_user")
@Data
public class User implements Serializable {
    private static final long serialVersionUID = 1L;
    /**
     * 用户主键
     */
    @TableId(value = "id", type = IdType.AUTO)
    private Integer id;
    /**
     * 用户名
     */
    private String username;
    /**
     * 密码
     */
    private String password;
    /**
     * 角色
     */
    private String role;
    /**
     * 权限
     */
    private String permission;
}

JwtUtil

package com.demo.util;
import com.auth0.jwt.JWT;
import com.auth0.jwt.JWTVerifier;
import com.auth0.jwt.algorithms.Algorithm;
import com.auth0.jwt编程.exceptions.JWTDecodeException;
import com.auth0.jwt.interfaces.DecodedJWT;
import java.util.Date;
/**
 * jwt工具类
 */
public class JwtUtil {
    /**
     * 过期时间5分钟
     */
    private static final long EXPIRE_TIME = 5 * 60 * 1000;
    /**
     * jwt 密钥
     */
    public static final String SECRET = "jwt_secret";
    /**
     * 校验token是否正确
     *
     * @param token  密钥
     * @param secret 用户的密码
     * @return 是否正确
     */
    public static boolean verify(String token, String username, String secret) {
        try {
            Algorithm algorithm = Algorithm.HMAC256(secret);
            JWTVerifier verifier = JWT.require(algorithm)
                    .withClaim("username", username)
                    .build();
            DecodedJWT jwt = verifier.verify(token);
            return true;
        } catch (Exception exception) {
            return false;
        }
    }
    /**
     * 获得token中的信息无需secret解密也能获得
     *
     * @return token中包含的用户名
     */
    public static String getUsername(String token) {
        try {
            DecodedJWT jwt = JWT.decode(token);
            return jwt.getClaim("username").asString();
        } catch (JWTDecodeException e) {
            return null;
        }
    }
    /**
     * 生成签名,5min后过期
     *
     * @param username 用户名
     * @param pwd      用户的密码
     * @return 加密的token
     */
    public static String sign(String username, String pwd) {
        try {
            Date date = new Date(System.currentTimeMillis() + EXPIRE_TIME);
            Algorithm algorithm = Algorithm.HMAC256(pwd);
            // 附带username信息
            return JWT.create()
                    .withClaim("username", username)
                    .withExpiresAt(date)
                    .sign(algorithm);
        } catch (Exception e) {
            return null;
        }
    }
}

UserMapper

package com.demo.mapper;
import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.demo.model.User;
/**
 * 用户表
 */
public interface UserMapper extends BaseMapper<User> {
}

UserService

public interface UserService extends IService<User> {
    User getUser(String username) throws AuthenticationException;
}

UserServiceImpl

package com.demo.service.impl;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.demo.mapper.UserMapper;
import com.demo.model.User;
import com.demo.service.UserService;
import org.springframework.stereotype.Service;
import javax.security.sasl.AuthenticationException;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
@Service
public class UserServiceImpl extends ServiceImpl<UserMapper, User> implements UserService {
    @Override
    public User getUser(String username) throws AuthenticationException {
        Map<String,Object> columnMap = new HashMap<>();
        columnMap.put("username", username);
        List<User> users = baseMapper.selectByMap(columnMap);
        if(users.isEmpty()){
            throw new AuthenticationException("User didn't existed!");
        }
        return users.get(0);
    }
}

JwtToken

package com.demo.token;
import org.apache.shiro.authc.AuthenticationToken;
public class JwtToken implements AuthenticationToken {
    // 密钥
    private String token;
    public JwtToken(String token) {
        this.token = token;
    }
    @Override
    public Object getPrincipal() {
        return token;
    }
    @Override
    public Object getCredentials() {
        return token;
    }
}

MyRealm

package com.demo.realm;
import com.demo.model.User;
import com.demo.service.UserService;
import com.demo.token.JwtToken;
import com.demo.util.JwtUtil;
import lombok.SneakyThrows;
import lombok.extern.slf4j.Slf4j;
import org.apache.shiro.authc.AuthenticationException;
import org.apache.shiro.authc.AuthenticationInfo;
import org.apache.shiro.authc.AuthenticationToken;
import org.apache.shiro.authc.SimpleAuthenticationInfo;
import org.apache.shiro.authz.AuthorizationInfo;
import org.apache.shiro.authz.SimpleAuthorizationInfo;
import org.apache.shiro.realm.AuthorizingRealm;
import org.apache.shiro.subject.PrincipalCollection;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import java.util.Arrays;
import java.util.HashSet;
import java.util.Set;
@Component
@Slf4j
public class MyRealm extends AuthorizingRealm {
    @Autowired
    private UserService userService;
    /**
     * 大坑！，必须重写此方法，不然Shiro会报错
     */
    @Override
    public boolean supports(AuthenticationToken token) {
        return token instanceof JwtToken;
    }
    /**
     * 只有当需要检测用户权限的时候才会调用此方法，例如checkRole,checkPermission之类的
     *
     * @param principals
     * @return
     */
    @SneakyThrows
    @Override
    protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principals) {
        String username = JwtUtil.getUsername(principals.toString());
        User user = userService.getUser(username);
        SimpleAuthorizationInfo simpleAuthorizationInfo = new SimpleAuthorizationInfo();
        simpleAuthorizationInfo.addRole(user.getRole());
        Set<String> permission = new HashSet<>(Arrays.asList(user.getPermission().split(",")));
        simpleAuthorizationInfo.addStringPermissions(permission);
        return simpleAuthorizationInfo;
    }
    /**
     * 默认使用此方法认证用户名正确与否验证，错误抛出异常即可。
     *
     * @param auth
     * @return
     * @throws AuthenticationException
     */
    @SneakyThrows
    @Override
    protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken auth) {
        String token = (String) auth.getCredentials();
        // 解密获得username，用于和数据库进行对比
        String username = JwtUtil.getUsername(token);
        if (username == null) {
            throw new AuthenticationException("token invalid");
        }
        User user = userService.getUser(username);
        if (!JwtUtil.verify(token, username, user.getPassword())) {
            throw new AuthenticationException("Username or password error");
        }
        return new SimpleAuthenticationInfo(token, token, JwtUtil.SECRET);
    }
}

JWTFilter

package com.demo.filter;
import com.demo.token.JwtToken;
import lombok.extern.slf4j.Slf4j;
import org.apache.shiro.web.filter.authc.BasicHttpAuthenticationFilter;
import org.springframework.http.HttpStatus;
import org.springframework.web.bind.annotation.RequestMethod;
import javax.servlet.ServletRequest;
import javax.servlet.ServletResponse;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
/**
 * 代码的执行流程 preHandle -> isAccessAllowed -> isLoginAttempt -> executeLogin
 */
@Slf4j
public class JWTFilter extends BasicHttpAuthenticationFilter {
    /**
     * 判断用户是否想要登入。
     * 检测header里面是否包含Authorization字段即可
     */
    @Override
    protected boolean isLoginAttempt(ServletRequest request, ServletResponse response) {
        HttpServletRequest req = (HttpServletRequest) request;
        String authorization = req.getHeader("Authorization");
        return authorization != null;
    }
    /**
     *
     */
    @Override
    protected boolean executeLogin(ServletRequest request, ServletResponse response) throws Exception {
        HttpServletRequest httpServletRequest = (HttpServletRequest) request;
        String authorization = httpServletRequest.getHeader("Authorization");
        JwtToken token = new JwtToken(authorization);
        // 提交给realm进行登入，如果错误他会抛出异常并被捕获
        getSubject(request, response).login(token);
        // 如果没有抛出异常则代表登入成功，返回true
        return true;
    }
    /**
     * 这里我们详细说明下为什么最终返回的都是true，即允许访问
     * 例如我们提供一个地址 GET /article
     * 登入用户和游客看到的内容是不同的
     * 如果在这里返回了false，请求会被直接拦截，用户看不到任何东西
     * 所以我们在这里返回true，Controller中可以通过 subject.isAuthenticated() 来判断用户是否登入
     * 如果有些资源只有登入用户才能访问，我们只需要在方法上面加上 @RequiresAuthentication 注解即可
     * 但是这样做有一个缺点，就是不能够对GET,POST等请求进行分别过滤鉴权(因为我们重写了官方的方法)，但实际上对应用影响不大
     */
    @Override
    protected boolean isAccessAllowed(ServletRequest request, ServletResponse response, Object mappedValue) {
        if (isLoginAttempt(request, response)) {
            try {
                executeLogin(request, response);
            } catch (Exception e) {
                response401(request, response);
            }
        }
        return true;
    }
    /**
     * 对跨域提供支持
     */
    @Override
    protected boolean preHandle(ServletRequest request, ServletResponse response) throws Exception {
        HttpServletRequest httpServletRequest = (HttpServletRequest) request;
        HttpServletResponse httpServletResponse = (HttpServletResponse) response;
        httpServletResponse.setHeader("Access-control-Allow-Origin", httpServletRequest.getHeader("Origin"));
        httpServletResponse.setHeader("Access-Control-Allow-Methods", "GET,POST,OPTIONS,PUT,DELETE");
        httpServletResponse.setHeader("Access-Control-Allow-Headers", httpServletRequest.getHeader("Access-Control-Request-Headers"));
        // 跨域时会首先发送一个option请求，这里我们给option请求直接返回正常状态
        if (httpServletRequest.getMethod().equals(RequestMethod.OPTIONS.name())) {
            httpServletResponse.setStatus(HttpStatus.OK.value());
            return false;
        }
        return super.preHandle(request, response);
    }
    /**
     * 将非法请求跳转到 /401
     */
    private void response401(ServletRequest req, ServletResponse resp) {
        try {
            HttpServletResponse httpServletResponse = (HttpServletResponse) resp;
            httpServletResponse.sendRedirect("/401");
        } catch (IOException e) {
            log.error(e.getMessage());
        }
    }
}

ShiroConfig

package com.demo.config;
import com.demo.filter.JWTFilter;
import com.demo.realm.MyRealm;
import org.apache.shiro.mgt.DefaultSessionStorageEvaLuator;
import org.apache.shiro.mgt.DefaultSubjectDAO;
import org.apache.shiro.spring.LifecycleBeanPostProcessor;
import org.apache.shiro.spring.security.interceptor.AuthorizationAttributeSourceAdvisor;
import org.apache.shiro.spring.web.ShiroFilterFactoryBean;
import org.apache.shiro.web.mgt.DefaultWebSecurityManager;
import org.springframework.aop.framework.autoproxy.DefauljavascripttAdvisorAutoProxyCreator;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.DependsOn;
import javax.servlet.Filter;
import java.util.HashMap;
import java.util.Map;
@Configuration
public class ShiroConfig {
    @Bean("securityManager")
    public DefaultWebSecurityManager getManager(MyRealm realm) {
        DefaultWebSecurityManager manager = new DefaultWebSecurityManager();
        // 使用自己的realm
        manager.setRealm(realm);
        /*
         * 关闭shiro自带的session，详情见文档
         * http://shiro.apache.org/session-management.html#SessionManagement-StatelessApplications%28Sessionless%29
         */
        DefaultSubjectDAO subjectDAO = new DefaultSubjectDAO();
        DefaultSessionStorageEvaluator defaultSessionStorageEvaluator = new DefaultSessionStorageEvaluator();
        defaultSessionStorageEvaluator.setSessionStorageEnabled(false);
        subjectDAO.setSessionStorageEvaluator(defaultSessionStorageEvaluator);
        manager.setSubjectDAO(subjectDAO);
        return manager;
    }
    @Bean("shiroFilterFactoryBean")
    public ShiroFilterFactoryBewbgJppAyyIan factory(DefaultWebSecurityManager securityManager) {
        ShiroFilterFactoryBean factoryBean = new ShiroFilterFactoryBean();
        // 添加自己的过滤器并且取名为jwt
        Map<String, Filter> filterMap = new HashMap<>();
        filterMap.put("jwt", new JWTFilter());
        factoryBean.setFilters(filterMap);
        factoryBean.setSecurityManager(securityManager);
        factoryBean.setUnauthorizedUrl("/401");
        /*
         * 自定义url规则
         * http://shiro.apache.org/web.html#urls-
         */
        Map<String, String> filterRuleMap = new HashMap<>();
        // 所有请求通过我们自己的JWT Filter
        filterRuleMap.put("/**", "jwt");
        // 访问401和404页面不通过我们的Filter
        filterRuleMap.put("/401", "anon");
        factoryBean.setFilterChainDefinitionMap(filterRuleMap);
        return factoryBean;
    }
    /**
     * 下面的代码是添加注解支持
     */
    @Bean
    @DependsOn("lifecycleBeanPostProcessor")
    public DefaultAdvisorAutoProxyCreator defaultAdvisorAutoProxyCreator() {
        DefaultAdvisorAutoProxyCreator defaultAdvisorAutoProxyCreator = new DefaultAdvisorAutoProxyCreator();
        // 强制使用cglib，防止重复代理和可能引起代理出错的问题
        // https://zhuanlan.zhihu.com/p/29161098
        defaultAdvisorAutoProxyCreator.setProxyTargetClass(true);
        return defaultAdvisorAutoProxyCreator;
    }
    @Bean
    public LifecycleBeanPostProcessor lifecycleBeanPostProcessor() {
        return new LifecycleBeanPostProcessor();
    }
    @Bean
    public AuthorizationAttributeSourceAdvisor authorizationAttributeSourceAdvisor(DefaultWebSecurityManager securityManager) {
        AuthorizatiowbgJppAyyInAttributeSourceAdvisjsor advisor = new AuthorizationAttributeSourceAdvisor();
        advisor.setSecurityManager(securityManager);
        return advisor;
    }
}

TestController

URL	作用
/login	登入
/article	所有人都可以访问，但是用户与游客看到的内容不同
/require_auth	登入的用户才可以进行访问
/require_role	admin的角色用户才可以登入
/require_permission	拥有view和edit权限的用户才可以访问

测试代码如下：

package com.demo.controller;
import com.demo.common.Result;
import com.demo.model.User;
import com.demo.service.UserService;
import com.demo.util.JwtUtil;
import lombok.extern.slf4j.Slf4j;
import org.apache.shiro.SecurityUtils;
import org.apache.shiro.authz.UnauthorizedException;
import org.apache.shiro.authz.annotation.Logical;
import org.apache.shiro.authz.annotation.RequiresAuthentication;
import org.apache.shiro.authz.annotation.RequiresPermissions;
import org.apache.shiro.authz.annotation.RequiresRoles;
import org.apache.shiro.subject.Subject;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpStatus;
import org.springframework.web.bind.annotation.*;
import javax.security.sasl.AuthenticationException;
@Slf4j
@RestController
@RequestMapping("/jwt")
public class TestController {
    @Autowired
    private UserService userService;
    @PostMapping("/login")
    public Result login(@RequestParam("username") String username, @RequestParam("password") String password) throws AuthenticationException {
        User user = userService.getUser(username);
        if (user.getPassword().equals(password)) {
            return new Result(200, "Login success", JwtUtil.s开发者_JAVA学习ign(username, password));
        } else {
            throw new UnauthorizedException();
        }
    }
    @GetMapping("/article")
    public Result article() {
        Subject subject = SecurityUtils.getSubject();
        if (subject.isAuthenticated()) {
            return new Result(200, "You are already logged in", null);
        } else {
            return new Result(200, "You are guest", null);
        }
    }
    @GetMapping("/require_auth")
    @RequiresAuthentication
    public Result requireAuth() {
        return new Result(200, "You are authenticated", null);
    }
    @GetMapping("/require_role")
    @RequiresRoles("admin")
    public Result requireRole() {
        return new Result(200, "You are visiting require_role", null);
    }
    @GetMapping("/require_permission")
    @RequiresPermissions(logical = Logical.AND, value = {"view", "edit"})
    public Result requirePermission() {
        return new Result(200, "You are visiting permission require edit,view", null);
    }
    @RequestMapping(path = "/401")
    @ResponseStatus(HttpStatus.UNAUTHORIZED)
    public Result unauthorized() {
        return new Result(401, "Unauthorized", null);
    }
}

测试

SpringBoot集成整合JWT与Shiro流程详解

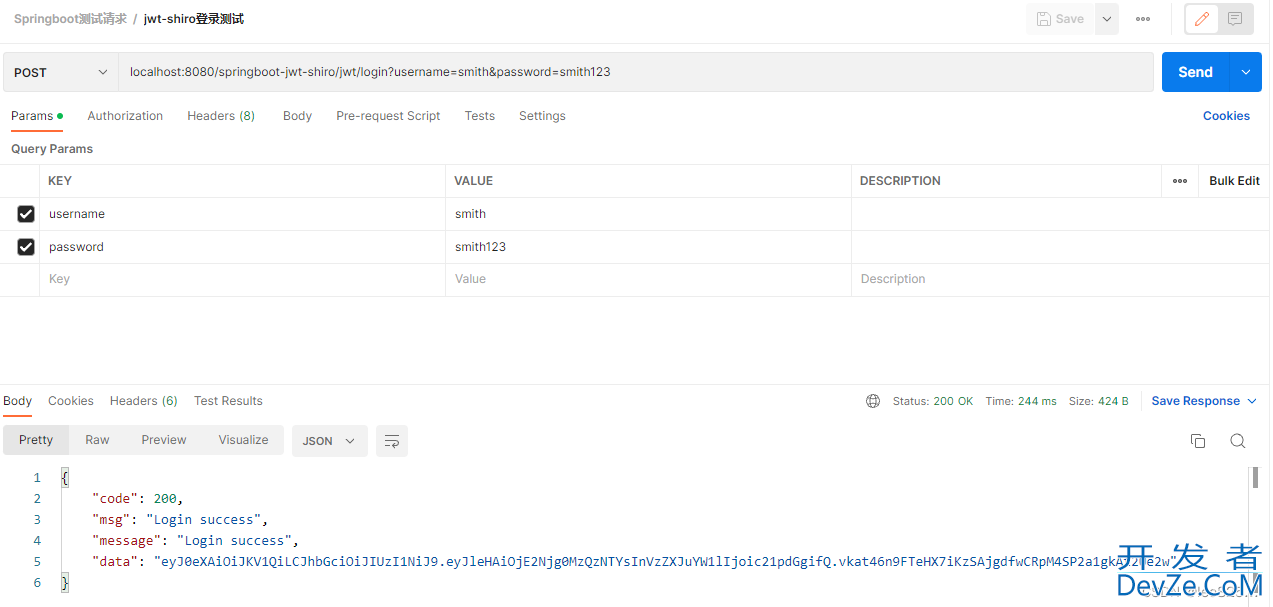

登录成功

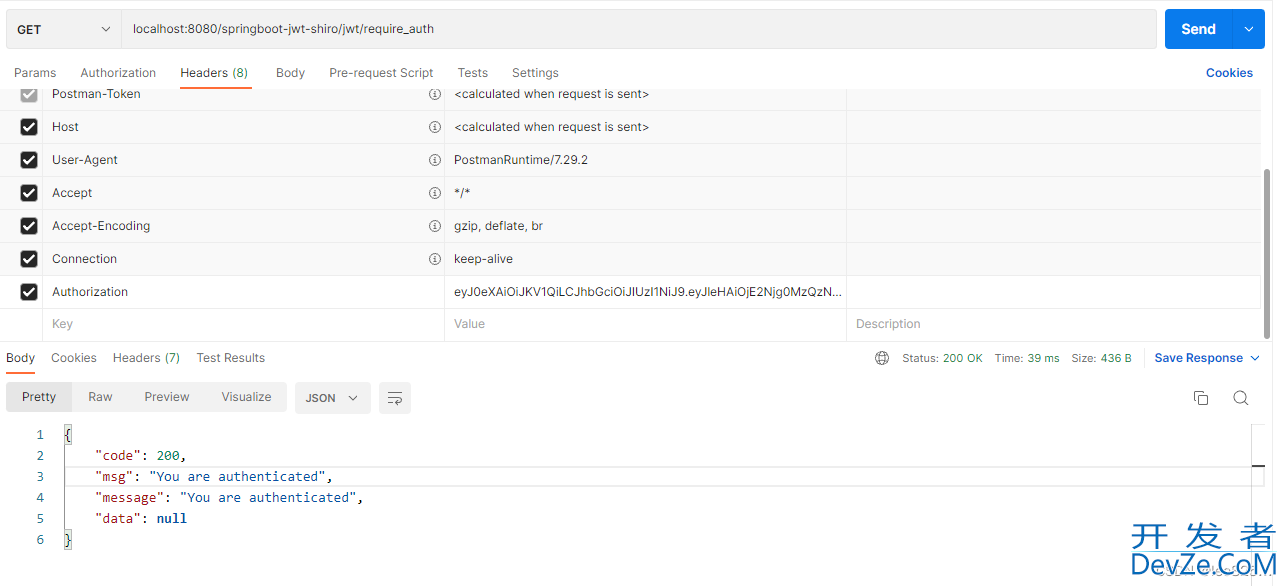

SpringBoot集成整合JWT与Shiro流程详解

到此这篇关于SpringBoot集成整合JWT与Shiro流程详解的文章就介绍到这了,更多相关SpringBoot JWT与Shiro内容请搜索我们以前的文章或继续浏览下面的相关文章希望大家以后多多支持我们！

继续阅读：SpringBootJWT SpringBootShiro SpringBoot集成JWT与Shiro

SpringBoot集成整合JWT与Shiro流程详解

目录

前言

实战演练

代码结构

SQL脚本

pom依赖

User

JwtUtil

UserMapper

UserService

UserServiceImpl

JwtToken

MyRealm

JWTFilter

ShiroConfig

TestController

测试

更多精彩内容

精彩评论

最新开发

Go语言切片(Slice)深度剖析与应用实战

Go log库的使用示例详解

go语言 swagger 查询 json 字段注释的示例代码

Qt QTableWidget 实现行选中及行悬浮高亮效果

C++高精度计时的几种方法总结(测试函数运行时间)

开发排行榜

springboot后端存储富文本内容的思路与步骤(含图片内容)

PyCharm运行python测试,报错“没有发现测试”/“空套件”的解决

return base64.b64encode(b).decode(

基于C语言实现钻石棋游戏的示例代码

Sublime Text 3解决中文乱码问题（实测可用）
