Springboot整合dubbo搭建微服务的实现示例

2025-08-08 10:05 开发作者： lianaozhe

开发前提

由于dubbo的注册中心用的是zookeeper，所以首先需要安装zookeeper。

构建Springboot项目

第一步：选择新建project或者module，在界面中选择maven点击next:

Springboot整合dubbo搭建微服务的实现示例

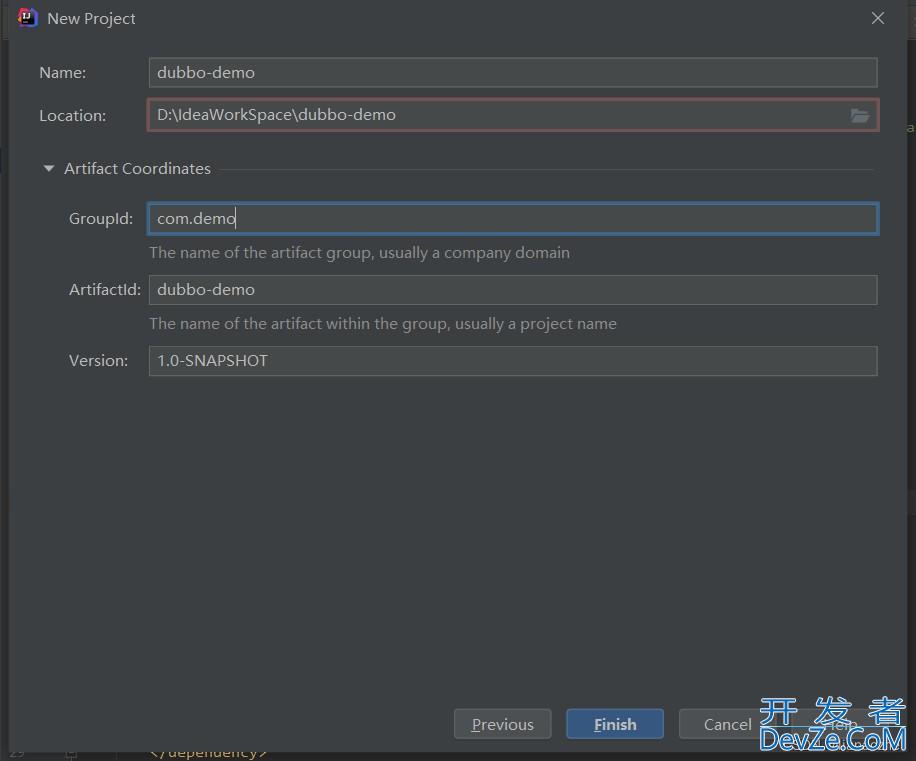

第二步：填上项目的基本信息点击Finish：

Springboot整合dubbo搭建微服务的实现示例

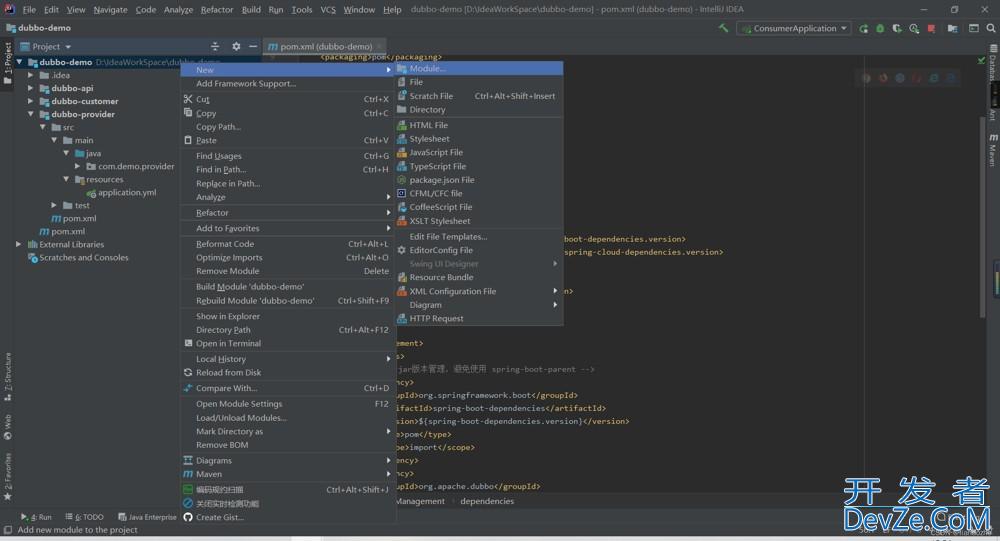

第三步：右击项目new -> Module:

Springboot整合dubbo搭建微服务的实现示例

第四步：在界面中选择maven点击next:

Springboot整合dubbo搭建微服务的实现示例

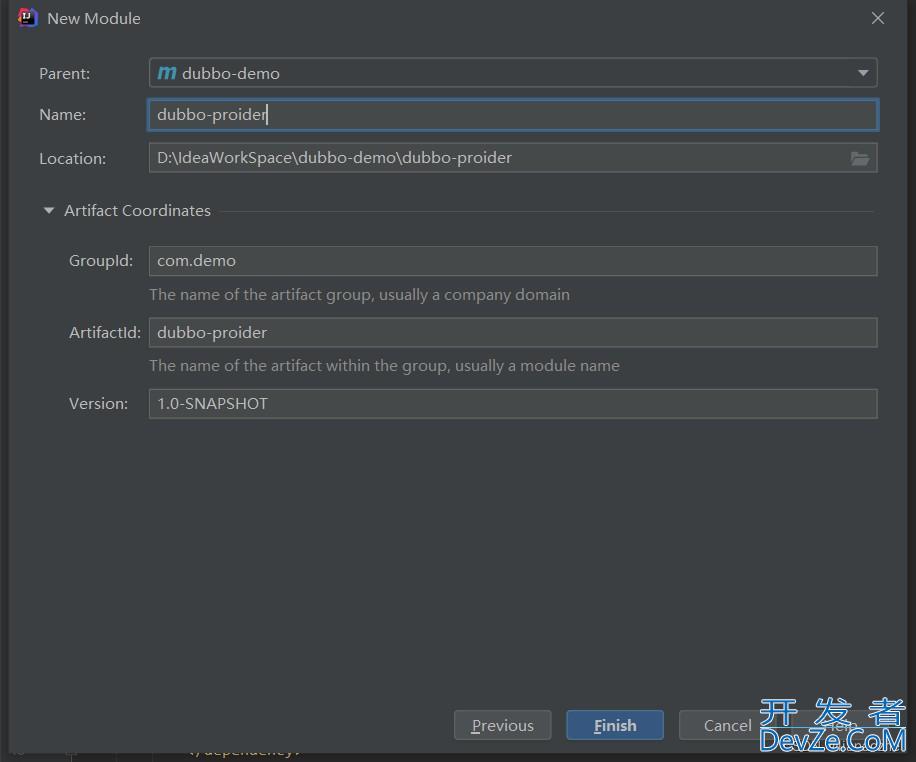

第五步：填上项目的基本信息点击Finish：

Springboot整合dubbo搭建微服务的实现示例

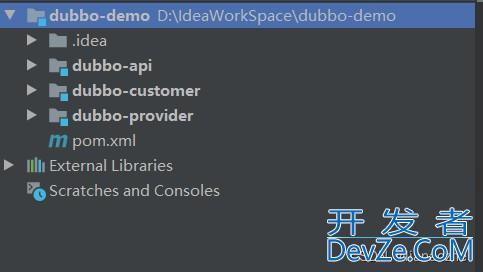

第六步：重复第三，四，五步，分别创建项目需要的dubbo-api,dubbo-provider,dubbo-customer几个模块，如下：

Springboot整合dubbo搭建微服务的实现示例

第七步：导入父工程依赖：

<?XML version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.demo</groupId>
    <artifactId>dubbo-demo</artifactId>
    <packaging>pom</packaging>
    <version>1.0-SNAPSHOT</version>
    <modules>
        <module>dubbo-provider</module>
        <module>dubbo-customer</module>
        <module>dubbo-api</module>
    </modules>

    <properties>
        <Java.version>1.8</java.version>
        <source.level>1.8</source.level>
        <target.level>1.8</target.level>
        <lombok.version>1.18.16</lombok.version>
        <skip_maven_deploy>true</skip_maven_deploy>
        <spring-boot-dependencies.version>2.4.1</spring-boot-dependencies.version>
        <spring-cloud-dependencies.version>Dalston.SR4</spring-cloud-dependencies.version>
        <junit.version>4.12</junit.version>
        <dubbo.version>3.0.2.1</dubbo.version>
      python  <spring-dubbo.version>2.0.0</spring-dubbo.version>
        <lombok.version>1.18.16</lombok.version>
    </properties>

    <dependencyManagement>
        <dependencies>
            <!-- 统一jar版本管理，避免使用 spring-boot-parent -->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>${spring-boot-dependencies.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>org.apache.dubbo</groupId>
                <artifactId>dubbo-bom</artifactId>
                <version>${dubbo.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

            <!--dubbo 和  springboot 整合的包-->
            <dependency>
                <groupId>org.apache.dubbo</groupId>
                <artifactId>dubbo-spring-boot-starter</artifactId>
                <version>${dubbo.version}</version>
            </dependency>

            <dependency>
                <groupId>org.projectlombok</groupId>
                <artifactId>lombok</artifactId>
                <version>${lombok.version}</version>
                <scope>compile</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>


</project>

开发api模块

user实体类：

package com.demo.api.entity;


import lombok.Data;

import java.io.Serializable;

/**
 * @Author: laz
 * @CreateTime: 2022-10-26  10:56
 * @Version: 1.0
 */
@Data
public class User implements Serializable {


    private Long id;

    private String username;

    private String password;

}

创建本次测试的接口：

package com.demo.api.service;

import com.demo.api.entity.User;

public interface IUserService {

    User selectUserById(Long id);
}

开发生产者模块

第一步：导入依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>dubbo-demo</artifactId>
        <groupId>com.demo</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>dubbo-provider</artifactId>
    <dependencies>
        <dependency>
            <groupId>com.demo</groupId>
            <artifactId>dubbo-api</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>

        <!--dubbo 与 spring-boot 整合包-->
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-spring-boot-starter</artifactId>
        </dependency>
        <!--springboot 启动核心包-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <!--springboot rest -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-registry-zookeeper</artifactId>
        </dependency>

        <dependency>
            <groupId>org.myBATis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter<http://www.devze.com;/artifactId>
            <version>1.3.0</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>1.3.1</version>
        </dependency>

        <!--mysql  的驱动-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
    </dependencies>


    <build>
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>false</filtering>
            </resource>
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>**/*.yml</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>false</filtering>
            </resource>
        </resources>
    </build>



</project>

第二步：添加配置

server:
  port: 8081

spring:
  application:
    name: dubbo-samples-privider-springCloud
    #配置数据源信息
  datasource:
    #配置连接数据库的各个信息
    driver-class-name: com.mysql.cj.jdbc.Driver
    #设置字符集
    url: jdbc:mysql://8.142.127.37:3306/test?useSSL=false&useUnicode=true&characterEncoding=utf-8&zeroDateTimeBehavior=convertToNull&transformedBitIsBoolean=true&serverTimezone=GMT%2B8&nullCatalogMeansCurrent=true&allowpublicKeyRetrieval=true
    username: root
    password: 123456


mybatis-plus:
  #配置类型别名所对应的包
  type-aliases-package: com.demo.provider.entity
  #配置SQL输出语句com.winsun.dataclean.mapper
  mapper-locations: com/demo/provider/mapper/*.xml


dubbo:
  application:
    name: ${spring.application.name}
  registry:
    address: zookeeper://43.139.86.193:2181
    timeout: 2000
  protocol:
    name: dubbo
    port: 20890
  # 扫描 @DubboService 注解
  scan:
    base-packages: com.demo.provider.service.impl

第三步：编写启动类

package com.demo.provider;

import org.apache.dubbo.config.spring.context.annotation.EnableDubbo;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

/**
 * @Author: laz
 * @CreateTime: 2022-10-26  11:05
 * @Version: 1.0
 */
@EnableDubbo
@SpringBootApplication
@MapperScan("com.demo.provider.mapper")
public class ProviderApp {

    public static void main(String[] args) {
        SpringApplication.run(ProviderApp.class,args);
        System.out.println("生产者启动完毕");
    }
}

第四步：添加mapper接口

package com.demo.provider.mapper;

import com.demo.api.entity.User;

/**
 * @Author: laz
 * @CreateTime: 2022-10-26  11:01
 * @Version: 1.0
 */
public interface UserMapper {

    User selectUserById(Long id);
}

xml:

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.demo.provider.mapper.UserMapper">
    <select id="selectUserById" resultType="com.demo.api.entity.User">
        select * from user where id = #{id}
    </select>
</mapper>

第五步：实现接口：

package com.demo.provider.service.impl;

import com.demo.api.entity.User;
import com.demo.api.service.IUserService;
import com.demo.provider.mapper.UserMapper;
import lombok.AllArgsConstructor;
import org.apache.dubbo.config.annotation.DubboService;

/**
 * @Author: laz
 * @CreateTime: 2022-10-26  11:00
 * @Version: 1.0
 */
@DubboService
@AllArgsConstructor
public class UserServiceImpl implements IUserService {

    private final UserMapper userMapper;

    public User selectUserById(Long id) {
        User user = userMapper.selectUserById(id);
        return user;
    }
}

第六步：编写controller层接口

 package com.demo.provider.controller;

import com.demo.api.entity.User;
import com.demo.api.service.IUserService;
import lombok.AllArgsConstructor;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @Author: laz
 * @CreateTime: 2022-10-26  11:53
 * @Version: 1.0
 */
@RestController
@RequestMapping("/provider")
@AllArgsConstructor
public class UserController {

    private final IUserService userService;

    @RequestMapping("/selectUserById/{id}")
    public User selectUserById(@PathVariable("id")Long id){
        return userService.selectUserById(id);
    }
}

开发消费者模块

第一步：导入依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>dpythonubbo-demo</artifactId>
        <groupId>com.demo</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>dubbo-customer</artifactId>
    <dependencies>
        <!--dubbo-samples-springcloud-api 项目 依赖-->
        <dependency>
            <groupId>com.demo</groupId>
            <artifactId>dubbo-api</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-registry-zookeeper</artifactId>
        </dependency>
    </dependencies>

</project>

第二步：添加配置

server:
  port: 8082

spring:
  application:
    name: dubbo-samples-consumer-springCloud

dubbo:
  registry:
    address: zookeeper://43.139.86.193:2181
    timeout: 2000
  protocol:
    name: dubbo

第三步：编写启动类：

package com.demo.customer;

import org.apache.dubbo.config.spring.context.annotation.EnableDubbo;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
@EnableDubbo
public class ConsumerApplication {

    public static void main(String[] args) {
        SpringApplication.run(ConsumerApplication.class, args);
        System.out.println("消费者启动完android毕!");
    }
}

第四步：编写调用生产者接口

package com.demo.customer.controller;

import com.demo.api.entity.User;
import com.demo.api.service.IUserService;
import lombok.extern.slf4j.Slf4j;
import org.apache.dubbo.config.annotation.DubboReference;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping("/consumer")
@Slf4j
public class ConsumerUserController {

    @DubboReference( protocol = "dubbo", loadbalance = "random")
    prsifmANcUqbivate IUserService userService;

    @RequestMapping("/selectUserById/{id}")
    public User getUser(@PathVariable("id") Long id) {
        User user = userService.selectUserById(id);
        log.info("response from provider: {}", user);
        return user;
    }
}

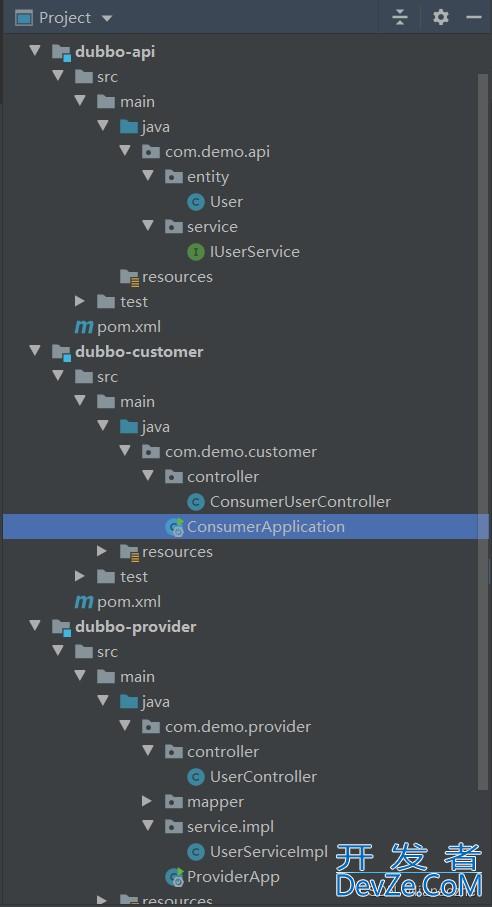

整个项目结构如下：

Springboot整合dubbo搭建微服务的实现示例

测试

分别启动生产者和消费者，在浏览器分别调用以下接口：

http://localhost:8081/provider/selectUserById/1

http://localhost:8082/consumer/selectUserById/1

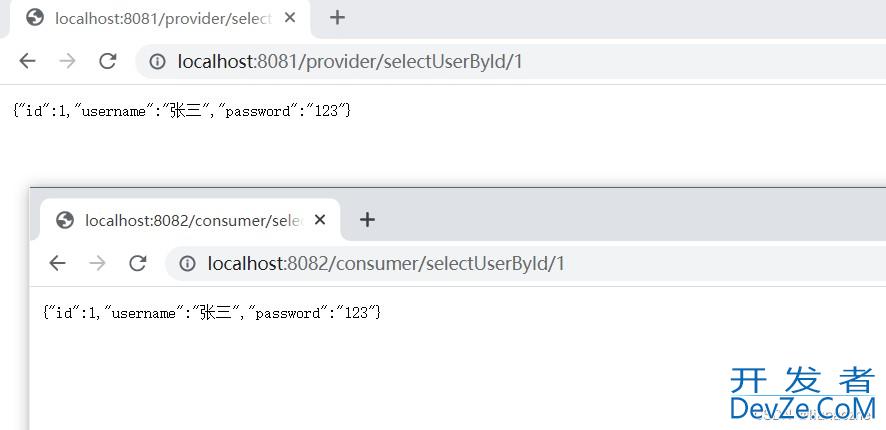

结果：

Springboot整合dubbo搭建微服务的实现示例

到此这篇关于Springboot整合dubbo搭建微服务的实现示例的文章就介绍到这了,更多相关Springboot dubbo微服务内容请搜索编程客栈(www.devze.com)以前的文章或继续浏览下面的相关文章希望大家以后多多支持编程客栈(www.devze.com)！

继续阅读：Springboot dubbo微服务

Springboot整合dubbo搭建微服务的实现示例

目录

开发前提

构建Springboot项目

开发api模块

开发生产者模块

第一步：导入依赖

第二步：添加配置

第三步：编写启动类

第四步：添加mapper接口

第五步：实现接口：

第六步：编写controller层接口

开发消费者模块

第一步：导入依赖

第二步：添加配置

第三步：编写启动类：

第四步：编写调用生产者接口

测试

更多精彩内容

精彩评论

最新开发

SpringBoot 获取请求参数的常用注解及用法

Java中如何正确的停掉线程

Spring Cache 整合 Redis 实现高效缓存的方法

深度解析Java @Serial 注解及常见错误案例

Spring MVC处理HTTP状态码、响应头和异常的完整示例

开发排行榜

springboot后端存储富文本内容的思路与步骤(含图片内容)

PyCharm运行python测试,报错“没有发现测试”/“空套件”的解决

return base64.b64encode(b).decode(

基于C语言实现钻石棋游戏的示例代码

Sublime Text 3解决中文乱码问题（实测可用）
