java性能火焰图的生成实践

目录

• 序言
• 1、准备程序
• 3、展示
• 总结

序言

如果你经常遇到 Java 线上性能问题束手无策，看着线上服务 CPU 飙升一筹莫展，发现内存不断泄露满脸茫然。

别慌，这里有一款低开销、自带火焰图、让你大呼好用的 Java 性能分析工具 - async-profiler。

1、准备程序

[root@localhost ~]# git clone git://github.com/jvm-profiling-tools/async-profiler
[root@localhost async-profiler]# yum -y install gcc+ gcc-c++
[root@localhost async-profiler]# make
[root@localhost ~]# more  Test.java
public class Test {

    public static void maphpin(String[] args) throws Exception {
        Test test = new Test();
        while (true) {
            test.func1();
            test.func2();
            test.func3();
        }
    }

    public void func1() throws Exception { //调用第一个方法，需要100ms
        Thread.sleep(100L);
    }

    public void func2() throws Exception { //调用第二个方法，需要500ms
        Thread.sleep(500L);
    }

    public void func3() throws Exception { //调用第三个方法，需要1500ms
        Thread.sleep(1500L);
    }

}
[root@localhost ~]#
[root@localhost ~]#  javac Test.java
[root@localhost ~]# java Test

生成火焰图数据

root      21765   7152  0 18:29 pts/1    00:00:00 java Test
root      21799  21777  0 18:29 pts/0    00:00:00 grep --color=auto java
[root@localhost ~]# cd async-profiler/
[root@localhost async-profiler]#
[root@localhost async-profiler]# ./profiler.sh -d 60 -o collapsed -f /tmp/test_01.txt  21765
Profiling for 60 seconds
Done
[root@localhost async-profiler]# cd ..
[root@localhost ~]# ls
anaconda-ks.cfg  a.out  async-profiler  FlameGraph  jdk-8u121-linux-x64.tar.gz  perf.data  process.svg  test.c  Test.cwww.devze.comlass  Test.java
[root@localhost ~]# cd  FlameGraph/
[root@localhost FlameGraph]# perl flamegraph.pl --colors=java /tmp/test_01.txt > test_01.svg
[root@localhost FlameGraph]# ls
aix-perf.pl                example-perf-stacks.txt.gz  README.md                  stackcollapse-instruments.pl      stackcollapse-pmc.pl        test
demos                      example-perf.svg            record-test.sh             stackcollapse-java-exceptions.pl  stackcollapse-recursive.pl  test_01.svg
dev                        files.pl                    stackcollapse-aix.pl       stackcollapse-jstack.pl           stackcollapse-sample.awk    test.sh
difffolded.pl              flamegraph.pl               stackcollapse-bpftrhttp://www.devze.comace.pl  stackcollapse-ljp.awk             stackcollapse-stap.pl
docs                       jmaps                       stackcollapse-elfutils.pl  stackcollapse-perf.pl             stackcollapse-vsprof.pl
example-dtrace-stacks.txt  pkgsplit-perf.pl            stackcollapse-gdb.pl       stackcollapse-perf-sched.awk      stackcollapse-vtune.pl
example-dtr编程客栈ace.svg         rangeandroid-perf.pl               stackcollapse-go.pl        stackcollapse.pl                  stackcollapse-xdebug.php
[root@localhost FlameGraph]# sz test_01.svg

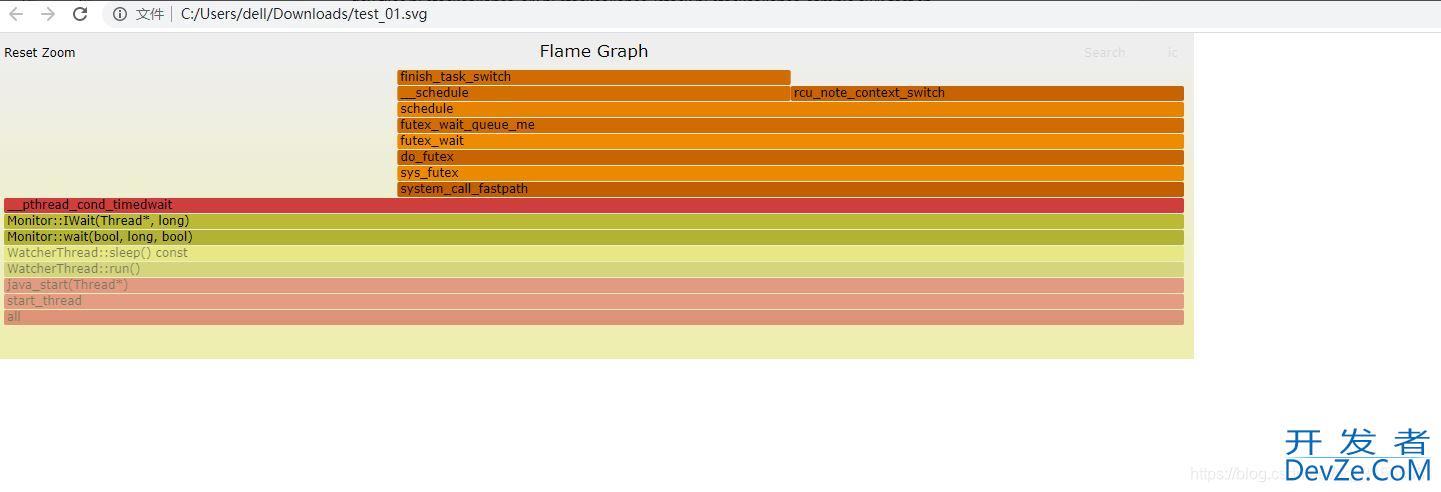

3、展示

总结

以上为个人经验，希望能给大家一个参考，也希望大家多多支持编程客栈(www.devze.com)。
