springboot集成Kaptcha实现图片验证码过程
目录
- springboot：集成Kaptcha实现图片验证码
- 一、导入依赖
- 系统配置文件
- 二、生成验证码
- 1、Kaptcha的配置
- 2、自定义验证码文本生成器
- 3、具体实现
- 三、校验验证码
- 1、controller接口
- 2、自定义前端过滤器
- 3、自定义验证码处理过滤器
- 4、自定义BodyReaderFilter解决读取body错误问题
- 5、注意
- 总结
springboot：集成Kaptcha实现图片验证码
- 系统环境：
- Windows 10
- jdk 1.8
- springboot版本: 2.1.10.RELEASE
一、导入依赖
<dependency>
<groupId>com.github.penggle</groupId>
<artifactId>kaptcha</artifactId>
<version>2.3.2</version>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-data-Redis</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-thymeleaf</artifactId>
</dependency>
系统配置文件
server:
port: 81
spring:
redis:
database: 1
host: 127.0.0.1
port: 6379www.devze.com
password: # 密码（默认为空）
timeout: 6000ms # 连接超时时长（毫秒）
lettuce:
pool:
max-active: 1000 # 连接池最大连接数（使用负值表示没有限制）
max-wait: -1ms # 连接池最大阻塞等待时间（使用负值表示没有限制）
max-idle: 10 # 连接池中的最大空闲连接
min-idle: 5 # 连接池中的最小空闲连接
二、生成验证码
1、Kaptcha的配置
验证码文本生成器：这个需要自己生成并且修改下面的配置文件为你文件的路径
package com.yolo.springboot.kaptcha.config;
import com.google.code.kaptcha.impl.DefaultKaptcha;
import com.google.code.kaptcha.util.Config;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import Java.util.Properties;
/**
* @ClassName CaptchaConfig
* @Description 验证码配置
* @Author hl
* @Date 2022/12/6 9:37
* @Version 1.0
*/
@Configuration
public class CaptchaConfig {
@Bean(name = "captchaProducerMath")
public DefaultKaptcha getKaptchaBeanMath() {
DefaultKaptcha defaultKaptcha = new DefaultKaptcha();
Properties properties = new Properties();
// 是否有边框 默认为true 我们可以自己设置yes，no
properties.setProperty("kaptcha.border", "yes");
// 边框颜色 默认为Color.BLACK
properties.setProperty("kaptcha.border.color", "105,179,90");
// 验证码文本字符颜色 默认为Color.BLACK
properties.setProperty("kaptcha.textproducer.font.color", "blue");
// 验证码图片宽度 默认为200
properties.setProperty("kaptcha.image.width", "160");
// 验证码图片高度 默认为50
properties.setProperty("kaptcha.image.height", "60");
// 验证码文本字符大小 默认为40
properties.setProperty("kaptcha.textproducer.font.size", "35");
// KAPTCHA_SESSION_KEY
properties.setProperty("kaptcha.session.key", "kaptchaCodeMath");
// 验证码文本生成器
properties.setProperty("kaptcha.textproducer.impl", "com.yolo.springboot.kaptcha.config.KaptchaTextCreator");
// 验证码文本字符间距 默认为2
properties.setProperty("kaptcha.textproducer.char.space", "3");
// 验证码文本字符长度 默认为5
properties.setProperty("kaptcha.textproducer.char.length", "6");
// 验证码文本字体样式 默认为new Font("Arial", 1, fontSize), new Font("Courier", 1,
// fontSize)
properties.setProperty("kaptcha.textproducer.font.names", "Arial,Courier");
// 验证码噪点颜色 默认为Color.BLACK
properties.setProperty("kaptcha.noise.color", "white");
// 干扰实现类
properties.setProperty("kaptcha.noise.impl", "com.google.code.kaptcha.impl.NoNoise");
// 图片样式 水纹com.google.code.kaptcha.impl.WaterRipple
// 鱼眼com.google.code.kaptcha.impl.FishEyeGimpy
// 阴影com.google.code.kaptcha.impl.ShadowGimpy
properties.setProperty("kaptcha.obscurificator.impl", "com.google.code.kaptcha.impl.ShadowGimpy");
Config config = new Config(properties);
defaultKaptcha.setConfig(config);
return defaultKaptcha;
}
}
2、自定义验证码文本生成器
package com.yolo.springboot.kaptcha.config;
import com.google.code.kaptcha.text.impl.DefaultTextCreator;
import java.util.Random;
/**
* @ClassName KaptchaTextCreator
* @Description 验证码文本生成器
* @Author hl
* @Date 2022/12/6 10:14
* @Version 1.0
*/
public class KaptchaTextCreator extends DefaultTextCreator {
private static final String[] Number = "0,1,2,3,4,5,6,7,8,9,10".split(",");
@Override
public String getText()
{
int result;
Random random = new Random();
int x = random.nextInt(10);
int y = random.nextInt(10);
StringBuilder suChinese = new StringBuilder();
int randomOperand = (int) Math.round(Math.random() * 2);
if (randomOperand == 0) {
result = x * y;
suChinese.append(Number[x]);
suChinese.append("*");
suChinese.append(Number[y]);
} else if (randomOperand == 1) {
if (!(x == 0) && y % x == 0) {
result = y / x;
suChinese.append(Number[y]);
suChinese.append("/");
suChinese.append(Number[x]);
} else {
result = x + y;
suChinese.append(Number[x]);
suChinese.append("+");
suChinese.append(Number[y]);
}
} else if (randomOperand == 2) {
if (x >= y) {
result = x - y;
suChinese.append(Number[x]);
suChinese.append("-");
suChinese.append(Number[y]);
} else {
result = y - x;
suChinese.append(Number[y]);
suChinese.append("-");
suChinese.append(Number[x]);
}
} else {
result = x + y;
suChinese.append(Number[x]);
suChinese.append("+");
suChinese.append(Number[y]);
}
suChinese.append("=?@").append(result);
return suChinese.toString();
}
}
3、具体实现
package com.yolo.springboot.kaptcha.controller;
import cn.hutool.json.JSONUtil;
import com.google.code.kaptcha.Producer;
import com.hl.springbootcommon.common.HttpResponseTemp;
import com.hl.springbootcommon.common.ResultStat;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.cophpre.StringRedisTemplate;
import org.springframework.http.MediaType;
import org.springframework.util.FastByteArrayOutputStream;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RestController;
import javax.imageio.ImageIO;
import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServletResponse;
import java.awt.image.BufferedImage;
import java.io.IOException;
import java.util.UUID;
import java.util.concurrent.TimeUnit;
/**
* @ClandroidassName CaptchaController
* @Description 验证码
* @Author hl
* @Date 2022/12/6 9:45
* @Version 1.0
*/
@RestController
@Slf4j
public class CaptchaController {
@Autowired
private Producer producer;
@Autowired
private StringRedisTemplate redisTemplate;
public static final String DEFAULT_CODE_KEY = "random_code_";
/**
* @MethodName createCaptcha
* @Description 生成验证码
* @param httpServletResponse 响应流
* @Author hl
* @Date 2022/12/6 10:30
*/

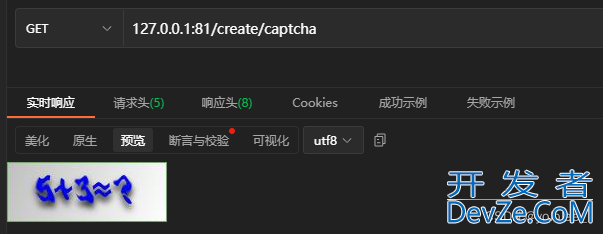

@GetMapping("/create/captcha")
public void createCaptcha(HttpServletResponse httpServletResponse) throws IOException {
// 生成验证码
String capText = producer.createText();
String capStr = capText.substring(0, capText.lastIndexOf("@"));
String result = capText.substring(capText.lastIndexOf("@") + 1);
BufferedImage image = producer.createImage(capStr);
// 保存验证码信息
String randomStr = UUID.randomUUID().toString().replaceAll("-", "");
System.out.println("随机数为:" + randomStr);
redisTemplate.opsForValue().set(DEFAULT_CODE_KEY + randomStr, result, 3600, TimeUnit.SECONDS);
// 转换流信息写出
FastByteArrayOutputStream os = new FastByteArrayOutputStream();
try {
ImageIO.write(image, "jpg", os);
} catch (IOException e) {
log.error("ImageIO write err", e);
httpServletResponse.sendError(HttpServletResponse.SC_NOT_FOUND);
return;
}
// 定义response输出类型为image/jpeg类型，使用response输出流输出图片的byte数组
byte[] bytes = os.toByteArray();
//设置响应头
httpServletResponse.setHeader("Cache-Control", "no-store");
//设置响应头
httpServletResponse.setHeader("randomstr",randomStr);
//设置响应头
httpServletResponse.setHeader("Pragma", "no-cache");
//在代理服务器端防止缓冲
httpServletResponse.setDateHeader("Expires", 0);
//设置响应内容类型
ServletOutputStream responseoutputStream = httpServletResponse.getOutputStream();
responseOutputStream.write(bytes);
responseOutputStream.flush();
responseOutputStream.close();
}
}
三、校验验证码
这里校验验证码，我用了过滤器来实现的，其中遇到了很多问题，下面有我详细的解决方法
1、controller接口

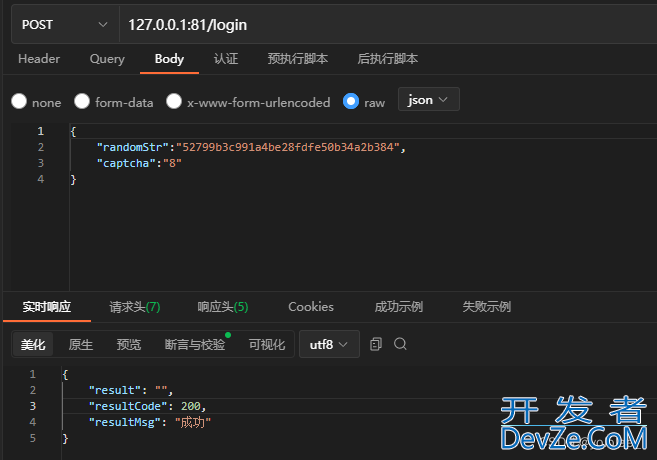

@PostMapping("/login")
public HttpResponseTemp<?> login(@RequestBody LoginDto loginDto){
System.out.println(JSONUtil.toJsonStr(loginDto));
return ResultStat.OK.wrap("","成功");
}
@Data
public class LoginDto {
private String captcha;
private String randomStr;
}
2、自定义前端过滤器
这里是我写了一个简单的前端页面，然后发现这里会有一些前端的文件，所以需要过滤一下
package com.yolo.springboot.kaptcha.filter;
import cn.hutool.core.collection.ListUtil;
import org.apache.commons.lang3.StringUtils;
import org.springframework.web.filter.ShallowEtagHeaderFilter;
import javax.servlet.*;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.util.List;
/**
* @ClassName SuffixFilter
* @Description 前端文件过滤
* @Author hl
* @Date 2022/12/6 12:40
* @Version 1.0
*/
public class FrontFilter extends ShallowEtagHeaderFilter implements Filter {
private static final List<String> suffix = ListUtil.of(".css",".eot",".gif",".ico",".js",".map",".png",".svg",".swf",".ttf",".TTF",".woff",".woff2");
@Override
protected boolean shouldNotFilterAsyncDispatch() {
return false;
}
@Override
protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain)
throws ServletException, IOException {
response.setHeader("Server", "Apache-Coyote/1.1");
response.setHeader("Cache-Control", "max-age=0");
String uri = request.getRequestURI();
if (!StringUtils.isBlank(uri)) {
int index = uri.lastIndexOf(".");
if (index > 0 && suffix.contains(uri.substring(index))) {
response.setHeader("Cache-Control", "max-age=3600");
}
if (uri.startsWith("/lib")) {
response.setHeader("Cache-Control", "max-age=3600, immutable");
}
}
super.doFilterInternal(request, response, filterChain);
}
}
然后需要把我们自定的过滤器加入到spring中让他生效
package com.yolo.springboot.kaptcha.config;
import com.yolo.springboot.kaptcha.filter.FrontFilter;
import com.yolo.springboot.kaptcha.filter.ImgCodeFilter;
import com.yolo.springboot.kaptcha.filter.BodyReaderFilter;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.web.servlet.FilterRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.core.StringRedisTemplate;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
@Configuration
public class FilterConfig {
@Bean
public FilterRegistrationBean<?> frontFilterRegistration() {
FilterRegistrationBean<FrontFilter> registration = new FilterRegistrationBean<>();
// 将过滤器配置到FilterRegistrationBean对象中
registration.setFilter(new FrontFilter());
// 给过滤器取名
registration.setName("frontFilter");
// 设置过滤器优先级，该值越小越优先被执行
registration.setOrder(0);
List<String> urlPatterns = new ArrayList<>();
urlPatterns.add("/*");
// 设置urlPatterns参数
registration.setUrlPatterns(urlPatterns);
return registration;
}
}
这里我给他设置的拦截全部请求，并且优先级是第一位的
3、自定义验证码处理过滤器
package com.yolo.springboot.kaptcha.filter;
import com.alibaba.fastjson.JSONObject;
import lombok.AllArgsConstructor;
import lombok.SneakyThrows;
import org.apache.commons.lang3.StringUtils;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.http.HttpStatus;
import org.springframework.stereotype.Component;
import javax.servlet.*;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.util.stream.Collectors;
/**
* @ClassName ImgCodeFilter
* @Description 验证码处理
* @Author hl
* @Date 2022/12/6 10:35
* @Version 1.0
*/
@AllArgsConstructor
public class ImgCodeFilter implements Filter {
private final StringRedisTemplate redisTemplate;
private final static String AUTH_URL = "/login";
public static final String DEFAULT_CODE_KEY = "random_code_";
/**
* filter对象只会创建一次，init方法也只会执行一次。
*/
@Override
public void init(FilterConfig filterConfig) throws ServletException {
Filter.super.init(filterConfig);
}
/**
* 主要的业务代码编写方法
*/
@Override
public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {
//只有转换为HttpServletRequest 对象才可以获取路径参数
HttpServletRequest request = (HttpServletRequest) servletRequest;
String requestURI = request.getRequestURI();
if (!AUTH_URL.equalsIgnoreCase(requestURI)){
//放行
filterChain.doFilter(servletRequest, servletResponse);
}
try {
String bodyStr = resolveBodyFromRequest(request);
JSONObject bodyJson=JSONObject.parseObject(bodyStr);
String code = (String) bodyJson.get("captcha");
String randomStr = (String) bodyJson.get("randomStr");
// 校验验证码
checkCode(code, randomStr);
} catch (Exception e) {
HttpServletResponse response = (HttpServletResponse) servletResponse;
response.setStatus(HttpStatus.INTERNAL_SERVER_ERROR.value());
response.setHeader("Content-Type", "application/json;charset=UTF-8");
response.sendError(HttpStatus.UNAUTHORIZED.value(),"验证码认证失败或者过期");
}
filterChain.doFilter(servletRequest, servletResponse);
}
/**
* 检查code
*/
@SneakyThrows
private void checkCode(String code, String randomStr) {
if (StringUtils.isBlank(code)) {
throw new RuntimeException("验证码不能为空");
}
if (StringUtils.isBlank(randomStr)) {
throw new RuntimeException("验证码不合法");
}
String key = DEFAULT_CODE_KEY + randomStr;
String result = redisTemplate.opsForValue().get(key);
redisTemplate.delete(key);
if (!code.equalsIgnoreCase(result)) {
throw new RuntimeException("验证码不合法");
}
}
/**
* @MethodName resolveBodyFromRequest
* @Description 不能和@Requestbody搭配使用
* 原因: getInputStream() has already been called for this request,流不能读取第二次,@Requestbody已经读取过一次了
* @param request 请求流
* 解决方案: 重写HttpServletRequestWrapper类,将HttpServletRequest的数据读到wrapper的缓存中去(用 byte[] 存储),再次读取时读缓存就可以了
* 当接口涉及到上传下载时,会有一些异常问题,最好在过滤器中排除这些路径
* @return: java.lang.String
* @Author hl
* @Date 2022/12/6 15:18
*/
private String resolveBodyFromRequest(HttpServletRequest request){
String bodyStr = null;
// 获取请求体
if ("POST".equalsIgnoreCase(request.getMethod())){
try {
bodyStr = request.getReader().lines().collect(Collectors.joining(System.lineSeparator()));
} catch (IOException e) {
throw new RuntimeException(e);
}
}
return bodyStr;
}
/**
* 在销毁Filter时自动调用。
*/
@Override
public void destroy() {
Filter.super.destroy();
}
}
加入到配置中
这里校验需要用到redis，用构造方法给他注入
@Autowired
private StringRedisTemplate redisTemplate;
@Bean
public FilterRegistrationBean<?> imgCodeFilterRegistration() {
FilterRegistrationBean<ImgCodeFilter> registration = new FilterRegistrationBean<>();
// 将过滤器配置到FilterRegistrationBean对象中
registration.setFilter(new ImgCodeFilter(redisTemplate));
// 给过滤器取名
registration.setName("imgCodeFilter");
// 设置过滤器优先级，该值越小越优先被执行
registration.setOrder(2);
List<String> urlPatterns = new ArrayList<>();
urlPatterns.add("/login");
// 设置urlPatterns参数
registration.setUrlPatterns(urlPatterns);
return registration;
}
遇到的问题及解决思路
问题：流不能多次被调用
ERROR m.e.handler.GlobalExceptionHandler - getInputStream() has already been called for this request
java.lang.IllegalStateException: getInputStream() has already been called for this request at org.apache.catalina.connector.Request.getReader(Request.java:1212)&nbswww.devze.comp; at org.apache.catalina.connector.RequestFacade.getReader(RequestFacade.java:504)
根据报错信息分析简单来说，就是getInputStream()已经被调用了，不能再次调用。可是我看代码上，我也没调用。经过一番检索，原来@RequestBody注解配置后，默认会使用流来读取数据
具体原因：
- 默认配置时，getInputStream()和getReader()一起使用会报错，使用两遍getInputStream()，第二遍会为空
- 当存在@RequestBody等注解时，springMVC已读取过一遍流，默认单独使用getInputStream()或getReader()都为空。
实测，不加@RequestBody注解，可以如期获得请求中的json参数，但是又不得不加@RequestBody注解。这样就需要新的思路
解决思路：
写filter继承HttpServletRequestWrapper，缓存InputStream，覆盖getInputStream()和getReader()方法，使用ByteArrayInputStream is = new ByteArrayInputStream(body.getBytes());读取InputStream。下面自定义BodyReaderFilter和BodyReaderWrapper就是具体解决方法
4、自定义BodyReaderFilter解决读取body错误问题
BodyReaderWrapper
package com.yolo.springboot.kaptcha.filter;
import org.springframework.util.StreamUtils;
import javax.servlet.ReadListener;
import javax.servlet.ServletInputStream;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletRequestWrapper;
import java.io.BufferedReader;
import java.io.ByteArrayInputStream;
import java.io.IOException;
import java.io.InputStreamReader;
import java.nio.charset.StandardCharsets;
/**
* 自定义 BodyReaderWrapper
* 问题原因：在controller中我们通过@RequestBody注解来获取前端传过来的json数据，这里已经使用了一次request来获取body中的值。再次通过request获取body中的值，就会报错
* 使用场景：通过request能获取到一次body中的值，有时候我们需要多次获取body中的值的需求，因此需要对流再次封装再次传递
*/
public class BodyReaderWrapper extends HttpServletRequestWrapper {
private byte[] body;
public BodyReaderWrapper(HttpServletRequest request) throws IOException {
super(request);
//保存一份InputStream，将其转换为字节数组
body = StreamUtils.copyToByteArray(request.getInputStream());
}
//转换成String
public String getBodyString(){
return new String(body,StandardCharsets.UTF_8);
}
@Override
public BufferedReader getReader() {
return new BufferedReader(new InputStreamReader(getInputStream()));
}
//把保存好的InputStream，传下去
@Override
public ServletInputStream getInputStream() {
final ByteArrayInputStream bais = new ByteArrayInputStream(body);
return new ServletInputStream() {
@Override
public int read() {
return bais.read();
}
@Override
public boolean isFinished() {
return false;
}
@Override
public boolean isReady() {
return false;
}
@Override
public void setReadListener(ReadListener readListener) {
}
};
}
public void setInputStream(byte[] body) {
this.body = body;
}
}
BodyReaderFilter
package com.yolo.springboot.kaptcha.filter;
import cn.hutool.core.collection.CollUtil;
import cn.hutool.core.util.StrUtil;
import org.apache.commons.lang3.StringUtils;
import javax.servlet.*;
import javax.servlet.http.HttpServletRequest;
import java.io.IOException;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;
/**
* @ClassName RequestFilter
* @Description 自定义BodyReaderFilter解决读取controller中使用@Requestbody重复读取流错误问题
* @Author hl
* @Date 2022/12/6 15:44
* @Version 1.0
*/
public class BodyReaderFilter implements Filter {
private List<String> noFilterUrls;
@Override
public void init(FilterConfig filterConfig){
// 从过滤器配置中获取initParams参数
String noFilterUrl = filterConfig.getInitParameter("noFilterUrl");
// 将排除的URL放入成员变量noFilterUrls中
if (StringUtils.isNotBlank(noFilterUrl)) {
noFilterUrls = new ArrayList<>(Arrays.asList(noFilterUrl.split(",")));
}
}
@Override
public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain chain) throws IOException, ServletException {
ServletRequest requestWrapper = null;
String requestURI = null;
if (servletRequest instanceof HttpServletRequest) {
//获取请求中的流如何，将取出来的字符串，再次转换成流，然后把它放入到新request对象中。
requestWrapper = new BodyReaderWrapper((HttpServletRequest) servletRequest);
requestURI = ((HttpServletRequest) servletRequest).getRequestURI();
}
//如果请求是需要排除的，直接放行，例如上传文件
if ((CollUtil.isNotEmpty(noFilterUrls) && StrUtil.isNotBlank(requestURI) && noFilterUrls.contains(requestURI)) || requestWrapper == null){
chain.doFilter(servletRequest, servletResponse);
}else {
// 在chain.doFiler方法中传递新的request对象
chain.doFilter(requestWrapper, servletResponse);
}
}
@Override
public void d编程estroy() {
Filter.super.destroy();
}
}
加入到配置中
这里需要注意，拦截的是所有请求，上传文件的时候需要排除，上传文件的路径
@Bean
public FilterRegistrationBean<?> bodyReaderFilterRegistration() {
FilterRegistrationBean<BodyReaderFilter> registration = new FilterRegistrationBean<>();
// 将过滤器配置到FilterRegistrationBean对象中
registration.setFilter(new BodyReaderFilter());
// 给过滤器取名
registration.setName("bodyReaderFilter");
// 设置过滤器优先级，该值越小越优先被执行
registration.setOrder(1);
List<String> urlPatterns = new ArrayList<>();
//这里需要填写排除上传文件的接口
Map<String, String> paramMap = new HashMap<>();
paramMap.put("noFilterUrl", "/test");
// 设置initParams参数
registration.setInitParameters(paramMap);
urlPatterns.add("/*");
// 设置urlPatterns参数
registration.setUrlPatterns(urlPatterns);
return registration;
}
测试成功：这里我原本用的form-data传参，然后一直获取到body为空，用这种方法是需要在raw中进行填写的
获取form表单的数据
//方式一：getParameterMap()，获得请求参数map
Map<String,String[]> map= request.getParameterMap(); //key 参数名称 value:具体值
//方式二：getParameterNames()：获取所有参数名称
Enumeration a = request.getParameterNames();
5、注意
自定义的过滤器不要交给spring管理，也就是说不要添加@Component注解，不然每一个请求都会进行过滤
总结
以上为个人经验，希望能给大家一个参考，也希望大家多多支持编程客栈(www.devze.com)。
加载中,请稍侯......
精彩评论
