需求

为了适配现有日志平台，Java项目应用日志需要添加自定义字段：

日志关键字段：

app：应用名称
host：主机IP
env：环境（DEV、UAT、GRAY、PRO）
namespace：命名空间（默认main，多版本用到）
message：日志内容
logCategory：日志分类（HttpServer、HttpClient、DB、Job）
level：日志等级（Debug、Info、Warn、Error、Fatal）
error：错误明细，可以为错误堆栈信息
createdOn：写日志时间，毫秒时间戳，比如1725961448565

格式需要改编成json

{“app”:“formula”,“namespace”:“main”,“host”:“127.0.0.1”,“env”:“DEV”,“createdOn”:“2025-04-23T13:47:08.726+08:00”,“level”:“INFO”,“message”:“(♥◠‿◠)ﾉﾞ启动成功 ლ(`ლ)ﾞ”}

Starter 项目目录结构

logback-starter/
│
├── src
│ ├── main
│ │ ├── java
│ │ │ └── com
│ │ │ └── lf
│ │ │ └── logbackstarter
│ │ │ ├── config
│ │ │ │ ├── MDCInterceptor.java
│ │ │ │ ├── LogInitializer.java
│ │ │ │ └── LogbackInterceptorAutoConfiguration.java
│ │ │ │ └── LogbackProperties
│ │ │ └── LogbackAutoConfiguration.java
│ │ └── Resources
│ │ │ └── logback.xml
│ │ │ └── META-INF
│ │ │ └── spring.factories
└── pom.xml

pom.xml 配置

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.kayou</groupId>
  <artifactId>java-logs-starter</artifactId>
  <version>1.0-SNAPSHOT</version>

  <name>java-logs-starter</name>
  <!-- FIXME change it to the project's website -->
  <url>http://www.example.com</url>

  <properties>
    <spring-boot.version>2.6.3</spring-boot.version>
  </properties>

  <!-- 只声明依赖，不引入依赖 -->
  <dependencyManagement>
    <dependencies>
      <!-- 声明springBoot版本 -->
      <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-dependencies</artifactId>
        <version>${spring-boot.version}</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
    </dependencies>
  </dependencyManagement>

  <dependencies>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-autoconfigure</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-logging</artifactId>
    </dependency>
    <dependency>
      <groupId>net.logstash.logback</groupId>
      <artifactId>logstash-logback-encoder</artifactId>
      <version>6.6</version>
    </dependency>
    <!-- Logback Classic -->
    <dependency>
      <groupId>ch.qos.logback</groupId>
      <artifactId>logback-classic</artifactId>
    </dependency>
  </dependencies>

  <build>
    <plugins>
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
        <version>2.6.3</version>
        <!--                <configuration>-->
        <!--                </configuration>-->
        <!--                <executions>-->
        <!--                    <execution>-->
        <!--                        <goals>-->
        <!--                            <goal>repackage</goal>-->
   python     <!--                        </goals>-->
        <!--                    </execution>-->
        <!--                </executions>-->
      </plugin>
      <plugin>
        <groupId>org.apache.maven.plugins</groupId>
        <artifactId>maven-compiler-plugin</artifactId>
        <configuration>
          <source>8</source>
          <target>8</target>
        </configuration>
      </plugin>
    </plugins>
  </build>

</project>

LogInitializer实现

import org.slf4j.MDC;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.annotation.Order;
import org.springframework.stereotype.Component;

import javax.annotation.PostConstruct;
import java.net.InetAddress;
import java.net.UnknownHostException;

@Configuration
@Order
public class LogInitializer {

    private final LogbackProperties properties;

    public LogInitializer(LogbackProperties properties) {
        this.properties = properties;
    }

    @PostConstruct
    public void init() {
        MDC.put("app", properties.getApp());
        MDC.put("env", properties.getEnv());
        MDC.put("namespace", properties.getNamespace());
        MDC.put("host", resolveLocalHostIp());
    }

    private String resolveLocalHostIp() {

        // 获取 linux 系统下的主机名/IP
        InetAddress inetAddress = null;
        try {
            inetAddress = InetAddress.getLocalHost();
        } catch (UnknownHostException e) {

            return "unknown";
        }
        return inetAddress.getHostAddress();
    }
}

MDCInterceptor 实现

MDCInterceptor 用于在每个请求的生命周期中设置 MDC。

package com.lf;

import org.slf4j.MDC;
import org.springframework.web.servlet.HandlerInterceptor;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

public class MDCInterceptor implements HandlerInterceptor {

    private final LogbackProperties properties;

    public MDCInterceptor(LogbackProperties properties) {
        this.properties = properties;
    }

    @Override
    public boolean preHandle(javascriptHttpServletRequest request, HttpServletResponse response, Object handler) {
        MDC.put("app", properties.getApp());
        MDC.put("env", properties.getEnv());
        MDC.put("namespace", properties.getNamespace());
        MDC.put("host", properties.getHost());
        return true;
    }
}

LogbackInterceptorAutoConfiguration实现

@Configuration
public class LogbackInterceptorAutoConfiguration {

    @Bean
    @ConditionalOnMissingBean(MDCInterceptor.class)
    public MDCInterceptor mdcInterceptor(LogbackProperties properties) {
        return new MDCInterceptor(properties);
    }

    @Bean
    public WebMvcConfigurer logbackWebMvcConfigurer(MDCInterceptor mdcInterceptor) {
        return new WebMvcConfigurer() {
            @Override
            public void addInterceptors(InterceptorRegistry registry) {
                registry.addInterceptor(mdcInterceptor).addPathPatterns("/**");
            }
        };
    }
}

LogbackProperties

@ConfigurationProperties(prefix = "log.context")
public class LogbackProperties {
    private String app = "default-app";
    private String env = "default-env";
    private String namespace = "default-namespace";
    private String host = "";

    // Getter & Setter

    public String getApp() {
        return app;
    }

    public void setApp(String app) {
        this.app = app;
    }

    public String getEnv() {
        return env;
    }

    public void setEnv(String env) {
        this.env = env;
    }

    public String getNamespace() {
        return namespace;
    }

    public void setNamespace(String namespace) {
        this.namespace = namespace;
    }

    public String getHost() {
        if (host != null && !host.isEmpty()) {
            return host;
        }
        return resolveLocalHostIp();
    }

    public void setHost(String host) {
        this.host = host;
    }

    private String resolveLocalHostIp() {

        // 获取 Linux 系统下的主机名/IP
        InetAddress inetAddress = null;
        try {
            inetAddress = InetAddress.getLocalHost();
        } catch (UnknownHostException e) {

            return "unknown";
        }
        return inetAddress.getHostAddress();

    }
}

LogbackAutoConfiguration

@Configuration
@EnableConfigurationProperties(LogbackProperties.class)
public class LogbackAutoConfiguration {
}

resource

logback.xml

<included>

    <property name="LOG_PATH" value="/home/logs"/>

    <!-- 控制台输出 -->
    <appender name="console" class="ch.qos.logback.core.ConsoleAppender">
        <encoder class="net.logstash.logback.encoder.LoggingEventCompositeJsonEncoder">
            <providers>
                <mdc>
                    <includeMdcKeyName>app</includeMdcKeyName>
                    <includeMdcKeyName>env</includeMdcKeyName>
                    <includeMdcKeyName>namespace</includeMdcKeyName>
                    <includeMdcKeyName>host</includeMdcKeyName>
                    <includeMdcKeyName>createdOn</includeMdcKeyName>
                </mdc>

                <timestamp>
                    <fieldName>timestamp</fieldName>
                    <pattern>Unix_MILLIS</pattern>
                    <timeZone>Asia/Shanghai</timeZone>
                </timestamp>

                <logLevel fieldName="level"/>
                <message fieldName="message"/>
                <stackTrace fieldName="stack_trace"/>
            </providers>
        </encoder>
    </appender>

    <!-- 文件输出 -->
    <appender name="jsonLog" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <file>${LOG_PATH}/${APP_NAME}.log</file>
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <fileNamePattern>${LOG_PATH}/${APP_NAME}.%d{yyyy-MM-dd}.log</fileNamePattern>
            <maxHistory>15</maxHistory>
        </rollingPolicy>
        <encoder class="net.logstash.logback.encoder.LoggingEventCompositeJsonEncoder">
            <providers>
                <mdc>
                    <includeMdcKeyName>app</includeMdcKeyName>
                    <includeMdcKeyName>env</includeMdcKeyName>
                    <includeMdcKeyName>namespace</includeMdcKeyName>
                    <includeMdcKeyName>host</includeMdcKeyName>
                    <includeMdcKeyName>createdOn</includeMdcKeyName>
                </mdc>
                <!-- 显式指定毫秒时间戳的类 -->
                <timestamp>
                    <fieldName>timestamp</fieldName>
                    <pattern>UNIX_MILLIS</pattern>
                    <timeZone>Asia/Shanghai</timeZone>
                </timestamp>

                <logLevel fieldName="level"/>
                <message fieldName="message"/>
                <stackTrace fieldName="stack_trace"/>
            </providers>
        </encoder>
    </appender>

    <root level="INFO">
        <appender-ref ref="console"/>
        <appender-ref ref="jsonLog"/>
    </root>

</included>

META-INF

spring.factories

org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
  com.lf.LogbackAutoConfiguration,\
  com.lf.LogbackInterceptorAutoConfiguration,\
  com.lf.LogInitializer

使用starter

引用starter

在其他项目中添加依赖：（需要install本地仓库或deploy远程仓库）

<dependency>
    <groupId>com.kayou</groupId>
    <artifactId>java-logs-starter</artifactId>
    <version>1.0-SNAPSHOT</version>
</dependency>

在resource中添加日志文件logback.xml

<configuration scan="true">
    <!-- 添加自动意logback配置 -->
    <property name="APP_NAME" value="java-demo"/>
    <!-- 引入公共的logback配置 -->
    <include resource="logback-default.xml"/>

</configuration>

启动日志效果

{"app":"java-demo","namespace":"default-namespace","host":"10.2.3.130","env":"dev","createdOn":"2025-04-23T14:41:57.981+08:00","level":"INFO","message":"Exposing 13 endpoint(s) beneath base path '/actuator'"}
{"app":"java-demo","namespace":"default-namespace","host":"10.2.3.130","env":"dev","createdOn":"2025-04-23T14:41:58.014+08:00","level":"INFO","message":"Tomcat started on port(s): 8090 (http) with context path ''"}
{"app":"java-demo","namespace":"default-namespace","host":"10.2.3.130","env":"dev","createdOn":"2025-04-23T14:41:58.125+08:00","level":"INFO","message":"Started Application in 4.303 seconds (JVM running for 5.293)"}

自定义Provider实现日志自定义字段格式

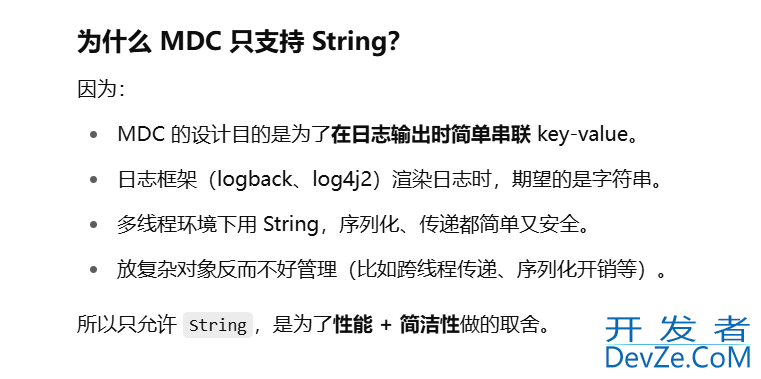

平台日志需要日志level 为首字母大写，时间createdOn 需要为时间戳，并且为Long数字, logback原生 mdc支持String 不支持其他类型

如何自定义一个log适配器starter

定义Provider

import ch.qos.logback.classic.spi.ILoggingEvent;
import com.fasterxml.jackson.core.JsonGenerator;
import net.logstash.logback.composite.AbstractJsonProvider;
import org.springframework.context.annotation.Configuration;

import java.io.IOException;
import java.util.Map;
import java.util.HashSet;
import java.util.Set;

@Configuration
public class MdcTypeAwareProvider extends AbstractJsonProvider<ILoggingEvent> {

    private final Set<String> longFields = new HashSet<>();

    public MdcTypeAwareProvider() {
        longFields.add("createdOn"); // 指定需要转成 Long 类型的字段
    }

    @Override
    public void writeTo(JsonGenerator generator, ILoggingEvent event) throws IOException {
        Map<String, String> mdcProperties = event.getMDCPropertyMap();
        if (mdcProperties == null || mdcProperties.isEmpty()) {
            return;
        }
        for (Map.Entry<String, String> entry : mdcProperties.entrySet()) {
            String key = entry.getKey();
            String value = entry.getValue();
            // 处理 level 字段，将首字母大写
            if ("level".equalsIgnoreCase(key)) {
                value = value.substring(0, 1).toUpperCase() + value.substring(1).toLowerCase();
            }
            if (longFields.contains(key)) {
                try {
                    generator.writeNumberField(key, Long.parseLong(value));
                } catch (NumberFormatException e) {
                    generator.writeStringField(key, value); // fallback
                }
            } else {
                generator.writeStringField(key, value);
            }
        }
        // 将 level 作为日志的一个字段来写入
        String level = event.getLevel().toString();
        level = level.substring(0, 1).toUpperCase() + level.substring(1).toLowerCase();  // 首字母大写
        generator.writeStringField("level", level);
    }


}

spring.factories添加注入类

org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
  com.kayou.LogbackAutoConfiguration,\
  com.kayou.LogbackInterceptorAutoConfiguration,\
  com.kayou.LogInitializer,\
  com.kayou.MdcTypeAwareProvider

resource logback.xml 改造

去除引用的mdc，新增自定义mdcwww.devze.com provider

 <!-- 控制台输出 -->
    <appender name="console" class="ch.qos.logback.core.ConsoleAppender">
        <encoder class="net.logstash.logback.encoder.LoggingEventCompositeJsonEncoder">
            <providers>

                <provider class="com.kayou.MdcTypeAwareProvider"/>
                <!-- 显式指定毫秒时间戳的类 -->
                <timestamp>
                    <fieldName>createdTime</www.devze.comfieldName>
                    <pattern>yyyy-MM-dd HH:mm:ss.SSS</pattern>
                    <timeZone>Asia/Shanghai</timeZone>
mrGjsMrWE                </timestamp>
                <message fieldName="message"/>
                <stackTrace fieldName="stack_trace"/>
            </providers>
        </encoder>
    </appender>

    <!-- 文件输出 -->
    <appender name="jsonLog" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <file>${LOG_PATH}/${APP_NAME}.log</file>
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <fileNamePattern>${LOG_PATH}/${APP_NAME}.%d{yyyy-MM-dd}.log</fileNamePattern>
            <maxHistory>15</maxHistory>
        </rollingPolicy>
        <encoder class="net.logstash.logback.encoder.LoggingEventCompositeJsonEncoder">
            <providers>
                <provider class="com.kayou.MdcTypeAwareProvider"/>
                <timestamp>
                    <fieldName>createdTime</fieldName>
                    <pattern>yyyy-MM-dd HH:mm:ss.SSS</pattern>
                    <timeZone>Asia/Shanghai</timeZone>
                </timestamp>
                <message fieldName="message"/>
                <stackTrace fieldName="stack_trace"/>
            </providers>

        </encoder>
    </appender>

启动日志输出结果

{“app”:“java-demo”,“namespace”:“default-namespace”,“host”:“10.2.3.130”,“env”:“dev”,“createdOn”:1745820638113,“level”:“Info”,“createdTime”:“2025-04-28 14:10:38.596”,“message”:“(♥◠‿◠)ﾉﾞ启动成功 ლ(`ლ)ﾞ”}

优化异步线程日志切不到的问题

如过在web请求处理中，使用了异步线程，web线程就直接返回了。后续子线程是不会被intercetor切到的。改成日志格式不匹配

在MdcTypeAwareProvider 去填充这些字段就可以了

@Configuration
public class LogbackPropertiesHolder {

    private static LogbackProperties properties;

    public LogbackPropertiesHolder(LogbackProperties properties) {
        LogbackPropertiesHolder.properties = properties;
    }

    public static LogbackProperties getProperties() {
        return properties;
    }
}

@Configuration
public class MdcTypeAwareProvider extends AbstractJsonProvider<ILoggingEvent> {

    private final Set<String> longFields = new HashSet<>();

    public MdcTypeAwareProvider() {
        longFields.add("createdOn");
    }

    @Override
    public void writeTo(JsonGenerator generator, ILoggingEvent event) throws IOException {
        Map<String, String> mdcProperties = event.getMDCPropertyMap();
        LogbackProperties properties = LogbackPropertiesHolder.getProperties();

        ensureMdcProperty(mdcProperties, "app", properties.getApp());
        ensureMdcProperty(mdcProperties, "env", properties.getEnv());
        ensureMdcProperty(mdcProperties, "namespace", properties.getNamespace());
        ensureMdcProperty(mdcProperties, "host", resolveLocalHostIp());
        ensureMdcProperty(mdcProperties, "createdOn", String.valueOf(System.currentTimeMillis()));

        for (Map.Entry<String, String> entry : mdcProperties.entrySet()) {
            String key = entry.getKey();
            String value = entry.getValue();

            if (longFields.contains(key)) {
                try {
                    generator.writeNumberField(key, Long.parseLong(value));
                } catch (NumberFormatException e) {
                    generator.writeStringField(key, value);
                }
            } else {
                generator.writeStringField(key, value);
            }
        }

        String level = event.getLevel().toString();
        generator.writeStringField("level", level.substring(0, 1).toUpperCase() + level.substring(1).toLowerCase());
    }

    private void ensureMdcProperty(Map<String, String> mdcProperties, String key, String defaultValue) {
        if (!mdcProperties.containsKey(key)) {
            MDC.put(key, defaultValue);
        }
    }

    private String resolveLocalHostIp() {
        try {
            return InetAddress.getLocalHost().getHostAddress();
        } catch (UnknownHostException e) {
            return "127.0.0.1";
        }
    }
}

总结

以上为个人经验，希望能给大家一个参考，也希望大家多多支持编程客栈(www.devze.com)。

继续阅读：log适配器starter 自定义log适配器starter 自定义一个log适配器

如何自定义一个log适配器starter

目录

需求

Starter 项目目录结构

pom.xml 配置

LogInitializer实现

MDCInterceptor 实现

LogbackInterceptorAutoConfiguration实现

LogbackProperties

LogbackAutoConfiguration

resource

使用starter

引用starter

在resource中添加日志文件logback.xml

启动日志效果

自定义Provider实现日志自定义字段格式

定义Provider

spring.factories添加注入类

resource logback.xml 改造

启动日志输出结果

优化异步线程日志切不到的问题

总结

更多精彩内容

精彩评论

最新开发

通过C#实现给Word文档添加文字和图片水印

C#日志存储优化的五种方法

Java中的RecursiveTask从原理到实践全面解析

JAVA音频处理依赖库示例操作大全(从格式转换到音频拼接)

Java工具类Hutool、Guava与Apache Commons的区别详解

开发排行榜

springboot后端存储富文本内容的思路与步骤(含图片内容)

PyCharm运行python测试,报错“没有发现测试”/“空套件”的解决

return base64.b64encode(b).decode(

基于C语言实现钻石棋游戏的示例代码

Sublime Text 3解决中文乱码问题（实测可用）
