SpringBoot+MyBatis-Plus进行分页查询与优化

目录

• 适用场景
• 技术栈
• 实现思路
• 直接上代码
• 注意事项

适用场景

数据量较大的单表分页查询

较复杂的多表关联查询，包含group by等无法进行count优化较耗时的分页查询

技术栈

核心框架：Spring Boot + MyBATis-Plus

异步编程：JDK 8+ 的 CompletableFuture

数据库：mysql 8.0

线程池：自定义线程池管理并行任务（如 ThreadPoolTaskExecutor）

实现思路

解决传统分页查询中 串行执行 COUNT 与数据查询 的性能瓶颈，通过 并行化 减少总耗时，同时兼容复杂查询场景（如多表关联、DISTINCT 等）

兼容mybatisPlus分页参数，复用 IPage 接口定义分页参数（当前页、每页条数），

借鉴 MyBatis-Plus 的 PaginationInnerInterceptor，通过实现 MyBatis 的 Interceptor 接口，拦截 Executor#query 方法，动态修改 SQL，

sql优化适配：COUNT 优化：自动移除 ORDER BY，保留 GROUP BY 和 DISTINCT（需包裹子查询），数据查询：保留完整 SQL 逻辑，仅追加 LIMIT 和 OFFSET。

直接上代码

使用简单

调用查询方法前赋值page对象属性total大于0数值则可进入自定义分页查询方案。

//示例代码
Page<User> page = new Page<>(1,10);
page.setTotal(1L);

线程池配置

@Configuration
public class ThreadPoolTaskExecutorConfig {

    public static final Integer CORE_POOL_SIZE = 20;
    public static final Integer MAX_POOL_SIZE = 40;
    public static final Integer QUEUE_CAPACITY = 200;
    public static final Integer KEEP_ALIVE_SECONDS = 60;

    @Bean("threadPoolTaskExecutor")
    public ThreadPoolTaskExecutor getThreadPoolTaskExecutor() {
        ThreadPoolTaskExecutor threadPoolTaskExecutor = new ThreadPoolTaskExecutor();
        //核心线程数
        threadPoolTaskExecutor.setCorePoolSize(CORE_POOL_www.devze.comSIZE);
        //线程池最大线程数
        threadPoolTaskExecutor.setMaxPoolSize(MAX_POOL_SIZE);
        //队列容量
        threadPoolTaskExecutor.setQueueCapacity(QUEUE_CAPACITY);
        //线程空闲存活时间
        threadPoolTaskExecutor.setKeepAliveSeconds(KEEP_ALIVE_SECONDS);
        //线程前缀
        threadPoolTaskExecutor.setThreadNamePrefix("commonTask-");
        //拒绝策略
        threadPoolTaskExecutor.setRejectedExecutionHandler(new ThreadPoolExecutor.CallerRunsPolicy());
        //线程池初始化
        threadPoolTaskExecutor.initialize();

        return threadPoolTaskExecutor;
    }

    @androidBean("countAsyncThreadPool")
    public ThreadPoolTaskExecutor getCountAsyncThreadPool() {
        ThreadPoolTaskExecutor threadPoolTaskExecutor = new ThreadPoolTaskExecutor();
        //核心线程数，根据负载动态调整
        threadPoolTaskExecutor.setCorePoolSize(6);
        //线程池最大线程数，根据负载动态调整
        threadPoolTaskExecutor.setMaxPoolSize(12);
        //队列容量  队列容量不宜过多，根据负载动态调整
        threadPoolTaskExecutor.setQueueCapacity(2);
        //线程空闲存活时间
        threadPoolTaskExecutor.setKeepAliveSeconds(KEEP_ALIVE_SECONDS);
        //线程前缀
        threadPoolTaskExecutor.setThreadNamePrefix("countAsync-");
        //拒绝策略  队列满时由调用者主线程执行
        threadPoolTaskExecutor.setRejectedExecutionHandler(new ThreadPoolExecutor.CallerRunsPolicy());
        //线程池初始化
        threadPoolTaskExecutor.initialize();

        return threadPoolTaskExecutor;
    }
}

mybatis-plus配置类

@Configuration
@MapperScan("com.xxx.mapper")
public class MybatisPlusConfig {

    @Resource
    ThreadPoolTaskExecutor countAsyncThreadPool;
    @Resource
    ApplicationContext applicationContext;

    @Bean
    public MybatisPlusInterceptor mybatisPlusInterceptor() {
        MybatisPlusInterceptor interceptor = new MybatisPlusInterceptor();
        interceptor.addInnerInterceptor(new PaginationInnerInterceptor(DbType.MYSQL));
        return interceptor;
    }


    @Bean
    www.devze.compublic PageParallelQueryInterceptor pageParallelQueryInterceptor() {
        PageParallelQueryInterceptor pageParallelQueryInterceptor = new PageParallelQueryInterceptor();
        pageParallelQueryInterceptor.setCountAsyncThreadPool(countAsyncThreadPool);
        pageParallelQueryInterceptor.setApplicationContext(applicationContext);
        return pageParallelQueryInterceptor;
    }
}

自定义mybatis拦截器

package com.example.dlock_demo.interceptor;

import com.baomidou.mybatisplus.core.toolkit.CollectionUtils;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import lombok.extern.slf4j.Slf4j;
import net.sf.jsqlparser.JSQLParserException;
import net.sf.jsqlparser.expression.Expression;
import net.sf.jsqlparser.parser.CCJSqlParserUtil;
import net.sf.jsqlparser.statement.select.*;
import org.apache.ibatis.builder.StaticSqlSource;
import org.apache.ibatis.cache.CacheKey;
import org.apache.ibatis.executor.Executor;
import org.apache.ibatis.mapping.BoundSql;
import org.apache.ibatis.mapping.MappedStatement;
import org.apache.ibatis.mapping.ResultMap;
import org.apache.ibatis.plugin.Interceptor;
import org.apache.ibatis.plugin.Intercepts;
import org.apache.ibatis.plugin.Invocation;
import org.apache.ibatis.plugin.Signature;
import org.apache.ibatis.session.*;
import org.springframework.context.ApplicationContext;
import org.springframework.scheduling.concurrent.ThreadPoolTaskExecutor;

import Java.lang.reflect.Field;
import java.lang.reflect.Method;
import java.sql.SQLException;
import java.util.*;
import java.util.concurrent.CompletableFuture;
import java.util.concurrent.CompletionException;
import java.util.concurrent.ConcurrentHashMap;


/**
 * Mybatis-分页并行查询拦截器
 *
 * @author shf
 */
@Intercepts({
        @Signature(type = Executor.class, method = "query",
                args = {MappedStatement.class, Object.class, RowBounds.class, ResultHandler.class}),
        @Signature(type = Executor.class, method = "query",
                args = {MappedStatement.class, Object.class, RowBounds.class, ResultHandler.class, CacheKey.class, BoundSql.class})
})
@Slf4j
public class PageParallelQueryInterceptor implements Interceptor {
    /**
     * 用于数据库并行查询线程池
     */
    private ThreadPoolTaskExecutor countAsyncThreadPool;
    /**
     * 容器上下文
     */
    private ApplicationContext applicationContext;

    private static final String LONG_RESULT_MAP_ID = "twoPhase-Long-ResultMap";
    private static final Map<String, MappedStatement> twoPhaseMsCache = new ConcurrentHashMap();

    public void setCountAsyncThreadPool(ThreadPoolTaskExecutor countAsyncThreadPool) {
        this.countAsyncThreadPool = countAsyncThreadPool;
    }

    public void setApplicationContext(ApplicationContext applicationContext) {
        this.applicationContext = applicationContext;
    }

    @Override
    public Object intercept(Invocation invocation) throws Throwable {
        Object[] args = invocation.getArgs();
        MappedStatement ms = (MappedStatement) args[0];
        Object parameter = args[1];

        //获取分页参数
        Page<?> page = getPageParameter(parameter);
        if (page == null || page.getSize() <= 0 || !page.searchCount() || page.getTotal() == 0) {
            return invocation.proceed();
        }
        //获取Mapper方法(注解形式 需利用反射且只能应用在mapper接口层，不推荐使用)
        /*Method method = getMapperMethod(ms);
        if (method == null || !method.isAnnotationPresent(PageParallelQuery.class)) {
            return invocation.proceed();
        }*/

        BoundSql boundSql = ms.getBoundSql(parameter);
        String originalSql = boundSql.getSql();
        //禁用mybatis plus PaginationInnerInterceptor count查询
        page.setSearchCount(false);
        page.setTotal(0);
        args[2] = RowBounds.DEFAULT;
        CompletableFuture<Long> countFuture = resolveCountCompletableFuture(invocation, originalSql);
        //limit查询
        long startTime = System.currentTimeMillis();
        Object proceed = invocation.proceed();
        log.info("原SQL数据查询-耗时={}", System.currentTimeMillis() - startTime);
        page.setTotal(countFuture.get());

        return proceed;
    }

    private CompletableFuture<Long> resolveCountCompletableFuture(Invocation invocation, String originalSql) {
        return CompletableFuture.supplyAsync(() -> {
            try {
                //查询总条数
                long startTime = System.currentTimeMillis();
                long total = executeCountQuery(originalSql, invocation);
                log.info("分页并行查询COUNT总条数[{}]-耗时={}", total, System.currentTimeMillis() - startTime);
                return total;
            } catch (Throwable e) {
                log.error("page parallel query exception:", e);
                throw new CompletionException(e);
            }
        }, countAsyncThreadPool).exceptionally(throwable -> {
            log.error("page parallel query exception:", throwable);
            return 0L;
        });
    }

    private CompletableFuture<Object> resolveOriginalProceedCompletableFuture(Invocation invocation) {
        return CompletableFuture.supplyAsync(() -> {
            try {
                long startTime = System.currentTimeMillis();
                Object proceed = invocation.proceed();
                log.info("原SQL数据查询-耗时={}", System.currentTimeMillis() - startTime);
                return proceed;
            } catch (Throwable e) {
                throw new CompletionException(e);
            }
        }, countAsyncThreadPool).exceptionally(throwable -> {
            log.error("page parallel query original proceed exception:", throwable);
            return null;
        });
    }

    /**
     * 执行count查询
     */
    private long executeCountQuery(String originalSql, Invocation invocation)
            throws JSQLParserException, SQLException {

        //解析并修改SQL为count查询
        Select countSelect = (Select) CCJSqlParserUtil.parse(originalSql);
        PlainSelect plainSelect = (PlainSelect) countSelect.getSelectBody();

        //修改select为count(*)
        /*plainSelect.setSelectItems(Collections.singletonList(
                new SelectExpressionItem(new Function("COUNT", new Column("*")))
        );*/
        // 移除排序和分页
        Distinct distinct = plainSelect.getDistinct();
        GroupByElement groupBy = plainSelect.getGroupBy();
        String countSql = "";
        if (groupBy == null && distinct == null) {
            Expression countFuncExpression = CCJSqlParserUtil.parseExpression("COUNT(*)");
            plainSelect.setSelectItems(Collections.singletonList(
                    new SelectExpressionItem(countFuncExpression)));
            plainSelect.setOrderByElements(null);
            countSql = plainSelect.toString();
        } else if (groupBy != null) {
            plainSelect.setLimit(null);
            plainSelect.setOffset(null);
            countSql = "SELECT COUNT(*) FROM (" + plainSelect + ") TOTAL";
        } else {
            plainSelect.setOrderByElements(null);
            plainSelect.setLimit(null);
            plainSelect.setOffset(null);
            countSql = "SELECT COUNT(*) FROM (" + plainSelect + ") TOTAL";
        }
        //执行count查询
        return doCountQuery(invocation, countSql);
    }

    /**
     * 执行修改后的COUNT(*)-SQL查询
     */
    @SuppressWarnings("unchecked")
    private Long doCountQuery(Invocation invocation, String modifiedSql) {
        //Executor executor = (Executor) invocation.getTarget();
        //创建新会话（自动获取新连接）
        Executor executor;
        SqlSessionFactory sqlSessionFactory = applicationContext.getBean(SqlSessionFactory.class);
        try (SqlSession sqlSession = sqlSessionFactory.openSession(ExecutorType.SIMPLE)) {
            //com.alibaba.druid.pool.DruidPooledConnection
            System.out.println("新会话Connection class: " + sqlSession.getConnection().getClass().getName());
            Field executorField = sqlSession.getClass().getDeclaredField("executor");
            executorField.setAccessible(true);
            executor = (Executor) executorField.get(sqlSession);

            Object[] args = invocation.getArgs();
            MappedStatement originalMs = (MappedStatement) args[0];
            Object parameter = args[1];
            //创建新的查询参数
            Map<String, Object> newparameter = new HashMap<>();
            if (parameter instanceof Map) {
                // 复制原始参数但移除分页参数
                Map<?, ?> originalParams = (Map<?, ?>) parameter;
                originalParams.forEach((k, v) -> {
                    if (!(v instanceof Page)) {
                        newParameter.put(k.toString(), v);编程客栈
                    }
                });
            }
            //创建新的BoundSql
            BoundSql originalBoundSql = originalMs.getBoundSql(newParameter);
            BoundSql newBoundSql = new BoundSql(originalMs.getConfiguration(), modifiedSql, originalBoundSql.getParameterMappings(), newParameter);
            //复制原始参数值
            originalBoundSql.getParameterMappings().forEach(mapping -> {
                String prop = mapping.getProperty();
                if (mapping.getJavaType().isInstance(newParameter)) {
                    newBoundSql.setAdditionalParameter(prop, newParameter);
                } else if (newParameter instanceof Map) {
                    Object value = ((Map<?, ?>) newParameter).get(prop);
                    newBoundSql.setAdditionalParameter(prop, value);
                }
            });
            //创建新的BoundSql
            /*BoundSql originalBoundSql = originalMs.getBoundSql(parameter);
            BoundSql newBoundSql = new BoundSql(originalMs.getConfiguration(), modifiedSql,
                    originalBoundSql.getParameterMappings(), parameter);*/
            Configuration configuration = originalMs.getConfiguration();
            //创建临时ResultMap
            ResultMap resultMap = new ResultMap.Builder(
                    configuration,
                    LONG_RESULT_MAP_ID,
                    //强制指定结果类型
                    Long.class,
                    //自动映射列到简单类型
                    Collections.emptyList()
            ).build();
            if (!configuration.hasResultMap(LONG_RESULT_MAP_ID)) {
                configuration.addResultMap(resultMap);
            }

            String countMsId = originalMs.getId() + "_countMsId";
            MappedStatement mappedStatement = twoPhaseMsCache.computeIfAbsent(countMsId, (key) ->
                    this.getNewMappedStatement(modifiedSql, originalMs, newBoundSql, resultMap, countMsId));
            //执行查询
            List<Object> result = executor.query(mappedStatement, newParameter, RowBounds.DEFAULT, (ResultHandler<?>) args[3]);
            long total = 0L;
            if (CollectionUtils.isNotEmpty(result)) {
                Object o = result.get(0);
                if (o != null) {
                    total = Long.parseLong(o.toString());
                }
            }
            return total;
        } catch (Throwable e) {
            log.error("分页并行查询-executeCountQuery异常:", e);
        }
        return 0L;
    }

    private MappedStatement getNewMappedStatement(String modifiedSql, MappedStatement originalMs, BoundSql newBoundSql,
                                                  ResultMap resultMap, String msId) {
        //创建新的MappedStatement
        MappedStatement.Builder builder = new MappedStatement.Builder(
                originalMs.getConfiguration(),
                msId,
                new StaticSqlSource(originalMs.getConfiguration(), modifiedSql, newBoundSql.getParameterMappings()),
                originalMs.getSqlCommandType()
        );
        //复制重要属性
        builder.resource(originalMs.getResource())
                .fetchSize(originalMs.getFetchSize())
                .timeout(originalMs.getTimeout())
                .statementType(originalMs.getStatementType())
                .keyGenerator(originalMs.getKeyGenerator())
                .keyProperty(originalMs.getKeyProperties() == null ? null : String.join(",", originalMs.getKeyProperties()))
                .resultMaps(resultMap == null ? originalMs.getResultMaps() : Collections.singletonList(resultMap))
                .parameterMap(originalMs.getParameterMap())
                .resultSetType(originalMs.getResultSetType())
                .cache(originalMs.getCache())
                .flushCacheRequired(originalMs.isFlushCacheRequired())
                .useCache(originalMs.isUseCache());
        return builder.build();
    }

    /**
     * 获取分页参数
     */
    private Page<?> getPageParameter(Object parameter) {
        if (parameter instanceof Map) {
            Map<?, ?> paramMap = (Map<?, ?>) parameter;
            return (Page<?>) paramMap.values().stream()
                    .filter(p -> p instanceof Page)
                    .findFirst()
                    .orElse(null);
        }
        return parameter instanceof Page ? (Page<?>) parameter : null;
    }

    /**
     * 获取Mapper方法
     */
    private Method getMapperMethod(MappedStatement ms) {
        try {
            String methodName = ms.getId().substring(ms.getId().lastIndexOf(".") + 1);
            Class<?> mapperClass = Class.forName(ms.getId().substring(0, ms.getId().lastIndexOf(".")));
            return Arrays.stream(mapperClass.getMethods())
                    .filter(m -> m.getName().equals(methodName))
                    .findFirst()
                    .orElse(null);
        } catch (ClassNotFoundException e) {
            return null;
        }
    }
}

注意事项

有人可能会担心并行查询，在高并发场景可能会导致count查询与limit数据查询不一致，但其实只要没有锁，只要是分开的两条sql查询，原mybatisplus分页插件也一样面临这个问题。

count优化没有进行join语句判断优化，相当于主动关闭了page.setOptimizeJoinOfCountSql(false);在一对多等场景可能会造成count查询有误，Mybatisplus官网也有相关提示，所以这里干脆舍弃了。

mybatisplus版本不同，可能会导致JsqlParser所使用的api有所不同，需要自己对应版本修改下。本篇版本使用的3.5.1

关于线程池的线程数设置顺便提一下：

网上流行一个说法：

1. CPU 密集型任务

特点：任务主要消耗 CPU 资源（如复杂计算、图像处理）。

线程数建议：

• 核心线程数：CPU 核心数 + 1（或等于CPU核心数，避免上下文切换过多）。
• 最大线程数：与核心线程数相同（防止过多线程竞争 CPU）。

2. I/O 密集型任务

特点：任务涉及大量等待（如网络请求、数据库读写）。

线程数建议：

• 核心线程数：2 * CPU 核心数（确保正常负载下的高效处理）。
• 最大线程数：根据系统资源调整（用于应对突发高并发）。

其实这个说法来源于一个经验公式推导而来：

threads = CPU核心数 * (1 + 平均等待时间 / 平均计算时间)

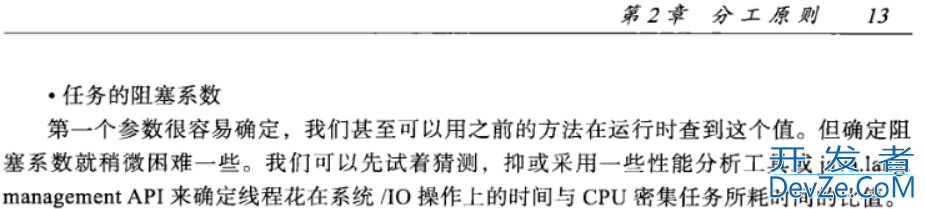

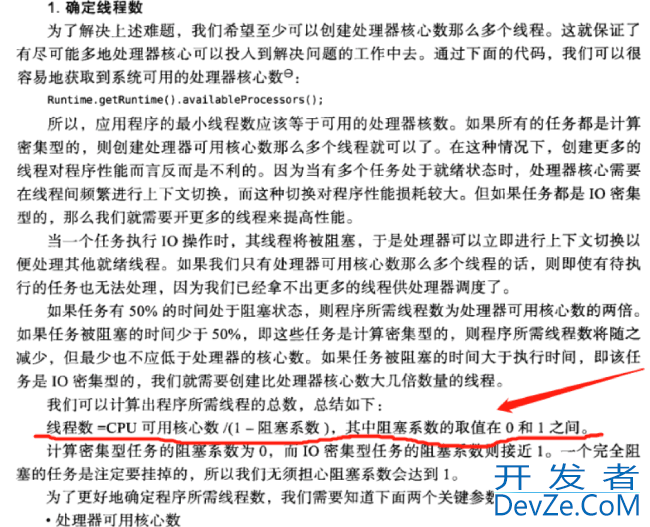

《Java 虚拟机并发编程》中介绍

另一篇：《Java Concurrency in Practice》即《java并发编程实践》，给出的线程池大小的估算公式：

Nthreads=Ncpu*Ucpu*(1+w/c)，其中 Ncpu=CPU核心数，Ucpu=cpu使用率，0~1；W/C=等待时间与计算时间的比率

仔细推导两个公式，其实类似，在cpu使用率达100%时，其实结论是一致的，这时候计算线程数的公式就成了，Nthreads=Ncpu*100%*(1+w/c) =Ncpu*(1+w/c)。

那么在实践应用中计算的公式就出来了，【以下推算，不考虑内存消耗等方面】，如下：

1、针对IO密集型，阻塞耗时w一般都是计算耗时几倍c，假设阻塞耗时=计算耗时的情况下，Nthreads=Ncpu*(1+1)=2Ncpu,所以http://www.devze.com这种情况下，建议考虑2倍的CPU核心数做为线程数

2、对于计算密集型，阻塞耗时趋于0，即w/c趋于0，公式Nthreads = Ncpu。

实际应用时要考虑同时设置了几个隔离线程池，另外tomcat自带的线程池也会共享宿主机公共资源。

以上就是SpringBoot+MyBatis-Plus进行分页查询与优化的详细内容，更多关于SpringBoot MyBatis-Plus分页查询的资料请关注编程客栈(www.devze.com)其它相关文章！
