jenkins如何通过pipeline部署springboot项目

2024-09-25 10:50 开发作者：海光之蓝

jenkins通过pipeline部署springboot项目

部署方案

1、springboot项目不保存部署的pipeline或dockerfile构建脚本等与部署相关的问文件，业务项目只需关心业务，能够正常构建为jar包即可

2、新建一个代码仓库，用于保存项目需要构建的Jenkinsfile

3、jenkins配置pipeline地址，从仓库拉取要构建的项目进行构建和部署

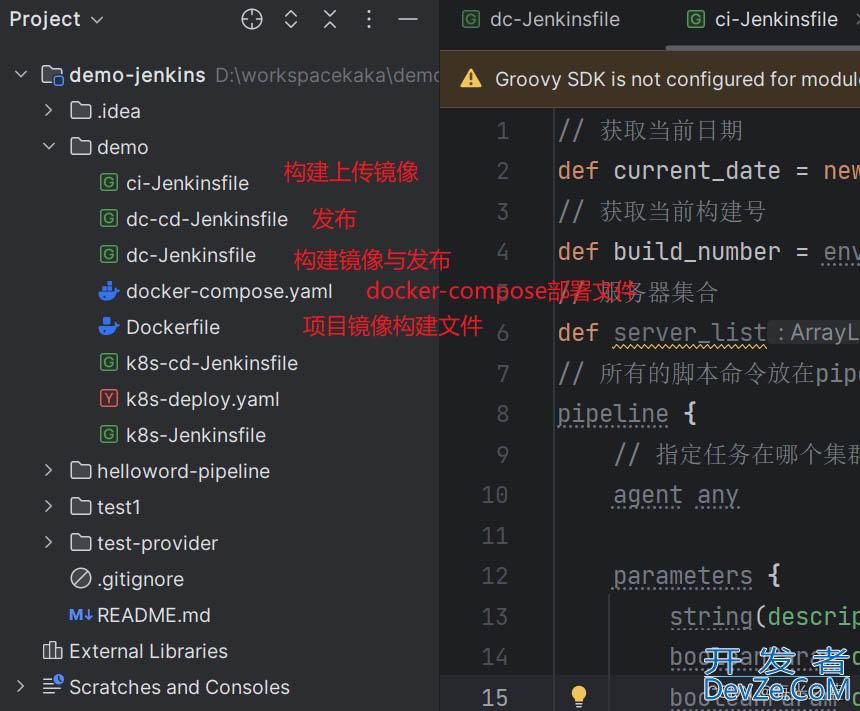

构建文件仓库示例结构如下：

jenkins如何通过pipeline部署springboot项目

4、jenkins配置

jenkins如何通过pipeline部署springboot项目

5、springboot项目镜像构建文件

# 指定基础镜像，这是分阶段构建的前期阶段
FROM eclipse-temurin:21-jre-alpine as builder

# 设定时区、中文
ENV TZ=Asia/Shanghai
# 安装chrony包
RUN apk add --no-cache chrony

# 配置chrony
RUN echo "server 0.pool.ntp.org iburst" >> /etc/chrony/chrony.conf
RUN echo "server 1.pool.ntp.org iburst" >> /etc/chrony/chrony.conf
RUN echo "server 2.pool.ntp.org iburst" >> /etc/chrony/chrony.conf
RUN echo "server 3.pool.ntp.org iburst" >> /etc/chrony/chrony.conf

# 执行工作目录
WORKDIR application
# 配置参数
ARG JAR_FILE=target/*.jar
# 将编译构建得到的jar文件复制到镜像空间中
COPY ${JAR_FILE} application.jar
# 通过工具spring-boot-jarmode-layertools从application.jar中提取拆分后的构建结果
RUN Java -Djarmode=layertools -jar application.jar extract
# 启动chronyd服务
CMD ["chronyd"]

# 正式构建镜像
FROM builder
WORKDIR application
# 前一阶段从jar中提取除了多个文件，这里分别执行COPY命令复制到镜像空间中，每次COPY都是一个layer
COPY --from=builder application/dependencies/ ./
COPY --from=builder application/spring-boot-loader/ ./
COPY --from=builder application/snapshot-dependencies/ ./
COPY --from=builder application/application/ ./
# ENTRYPOINT  ["java", "org.springframework.boot.loader.JarLauncher"]
# 分层构建传递参数写法
ENTRYPOINT  ["sh","-c","java  $JAVA_OPTS org.springframework.boot.loader.JarLauncher $PARAMS"]

# 新新
# 例如： docker run -d -p 21991:2199 --name demo3 -e JAVA_OPTS="-Xmx128m"  -e PARAMS="--spring.application.name=test-demo" docker-demo:1.3
#镜像放在最后，所传的java参数和覆盖配置文件参数写在docker镜像之前不然会导致传递失败

基础镜像可选择：

eclipse-temurin:21-jre-alpine
eclipse-temurin:21-jdk-alpine
openjdk:21
openjdk:21-slim
# 基于dibian构建
 bitnami/minideb
 Debian:bullseye-slim

jenkins如何通过pipeline部署springboot项目

6、demo项目docker-compose.yml文件

services:
  demo:
    #  启动时传入镜像tag示例：BUILD_TAG=20240406-57 docker-compose up -d
    image: registry.cn-guangzhou.aliyuncs.com/lyr-test/demo:${BUILD_TAG}
    container_name: demo
    restart: always
    networkjs_mode: host
    deploy:
      resources:
        limits:
          cpus: '1.00'
          memory: 1G
        reservations:
          cpus: '0.10'
          memory: 256M
    environment:
      - JAVA_OPTS= -XX:+UseContainerSupport -XX:InitialRAMPercentage=75.0 -XX:MaxRAMPercentage=75.0 -XX:MinRAMPercentage=75.0
      # 当network_mode使用hots模式时，端口号设置不生效
      - PARAMS = --server.port=8080

7、Jenkinsfile构建文件

// 获取当前日期
def current_date = new Date().format('yyyyMMdd')
// 获取当前构建号
def build_number = env.BUILD_NUMBER.toInteger()
// 服务器集合
def server_list = []
// 所有的脚本命令放在pipeline中
pipeline {
    // 指定任务在哪个集群节点中执行，any表示任意节点
    agent any

    parameters {
        string(description: '代码分支', name: 'CODE_BRANCH_PARAM', defaultValue: 'master', trim: true)
        // 这在Jenkins的凭据里设置的待部署服务器的名称就是服务器的ip;用docker-compose部署一般只会部署几台服务器，如果量大，建议上k8s
        booleanParam defaultValue: true, description: '10.0.24.8', name: 'SERVER_1'
        booleanParam description: '10.0.24.3', name: 'SERVER_2'
    }

    tools {
        git 'Default'
    }

    // 声明全局变量，方便后面修改使用
    environment {
        GIT_CONFIG_BRANCH = "master"
        GIT_CONFIG_ADDRESS = "https://*******/demo-jenkins.git"
        CODE_ADDRESS = "https://********/demo.git"
        // jenkins中创建的代码仓库密钥id
        CREDENTIALS_ID = 'git-credentials-id'
        IMG_REPO_CREDENTIALS_ID = 'img-repo-credentials-id'
        IMG_REPO = "registry.cn-guangzhou.aliyuncs.com"
        REPO_NAMESPACE = 'lyr-test'
        DEFAULT_BUILD_TAG = "${current_date}-${build_number}"
    }

    stages {
        stage('环境检测') {
            steps {
                // 构建环境检测
                sh '''
                     cat /proc/version
                     free -m
                     df -h
                     docker -v
                     git -v
                     mvn -v
                     java -version
                   '''
                echo '环境检测完成'
            }
        }
        stage('拉取配置文件') {
            steps {
                echo "拉取配置文件代码分支:${GIT_CONFIG_BRANCH}"
                sh "pwd"
                dir('/var/jenkins编程客栈_home/workspace/pipeline/') {
                    sh "pwd"
                    echo "${CREDENTIALS_ID}"
                    checkout scmGit(branches: [[name: "${GIT_CONFIG_BRANCH}"]], extensions: [], userRemoteConfigs: [[credentialsId: "${CREDENTIALSphp_ID}", url: "${GIT_CONFIG_ADDRESS}"]])
                }
                sh "pwd"
            }
        }
        stage('拉取代码') {
            steps {
                echo pwd
                // BRANCH为构建分支参数
                git branch: "${CODE_BRANCH_PARAM}", credentialsId: "${CREDENTIALS_ID}", url: "${CODE_ADDRESS}"
            }
        }
        stage('maven构建') {
            steps {
                echo pwd
                sh """
                  mvn clean package -U -Dmaven.test.skip=true
                """
            }
        }
        stage('生成镜像') {
            steps {
                echo pwd
                // JOB_NAME为项目名变量（内置的环境变量） TAG为设置的变量标签
                sh '''
                 cp /var/jenkins_home/workspace/pipeline/${JOB_NAME}/Dockerfile /var/jenkins_home/workspace/${JOB_NAME}
                '''
                script {
                    echo "当前镜像tag:${DEFAULT_BUILD_TAG}"
                    sh "docker build -f Dockerfile  -t ${IMG_REPO}/${REPO_NAMESPACE}/${JOB_NAME}:${DEFAULT_BUILD_TAG} ."
                }
            }
        }
        stage('推送镜像') {
            steps {
                withCredentials([usernamePassword(credentialsId: 'img-repo-credentials-id', passwordVariable: 'IMG_PWD', usernameVariable: 'IMG_USER')]) {
                    sh '''
               	       echo "${IMG_PWD}" | docker login --username ${IMG_USER} --password-stdin ${IMG_REPO}
                       docker image prune -f
                       docker push ${IMG_REPO}/${REPO_NAMESPACE}/${JOB_NAME}:${DEFAULT_BUILD_TAG}
                    '''
                }
            }

        }
        stage('清理') {
            steps {
                sh '''
               	# 退出镜像仓库
               # docker logout ${IMG_REPO}
                # 清理前镜像
               # docker images
                # 删除指定镜像
               # docker rmi ${IMG_REPO}/${REPO_NAMESPACE}/${JOB_NAME}:${PRE_BUILD_TAG}
                # 命令删除，删除最早一个
               # docker images | grep "demo" | sort -r | tail -n 1 | awk '{print $3}'  | xargs docker rmi
                # 清理后镜像
                docker images
                '''
            }
        }
        stage('部署至服务器') {
            steps {
                script {
                    script {
                        echo "SERVER_1:" + SERVER_1
                        if (SERVER_1=="true") {
                            server_list.add('10.0.24.8')
                        }
                        echo "SERVER_2:" + SERVER_2
                        if (SERVER_2=="true") {
                            server_list.add('10.0.24.3')
                        }
                        for (server_ip in server_list) {
                            echo "当前部署的服务器id:${server_ip}"
                            withCredentials([usernamePassword(credentialsId: server_ip, passwordVariable: 'SERVER_PWD', usernameVariable: 'SERVER_USER')]) {
                                node {
                                    def remote = [:]
                                    remote.name = "deploy"
                                    remote.host = server_ip
                                    remote.user = "${SERVER_USER}"
                                    remote.password = "${SERVER_PWD}"
                                    remote.allowAnyHosts = true
                                    stage('远程ssh部署') {
                                        echo "当前远程ssh部署的项目名:${JOB_NAME}"
                                        sshCommand remote: remote, command: "mkdir -p /data/${JOB_NAME}"
                                        sshPut remote: remote, from: """/var/jenkins_home/workspace/pipeline/${JOB_NAME}/docker-compose.yaml""", into: """/data/${JOB_NAME}"""
                                        sshCommand remote: remote, command: """
                                            cd /data/${JOB_NAME}/
                                            BUILD_TAG=${DEFAULT_BUILD_TAG} docker-compose up -d
                                            docker-compose ps
                                        """
                                        echo "ssh部署脚本执行完成"
                                    }
                                }
                            }
                        }
                    }
                }
            }
        }
    }

    // 通知内容
    post {
        success {
            //成功通知
            echo "成功通知"

        }
        failure {
            // 失败通知
            echo "失败通知"
        }
    }
}

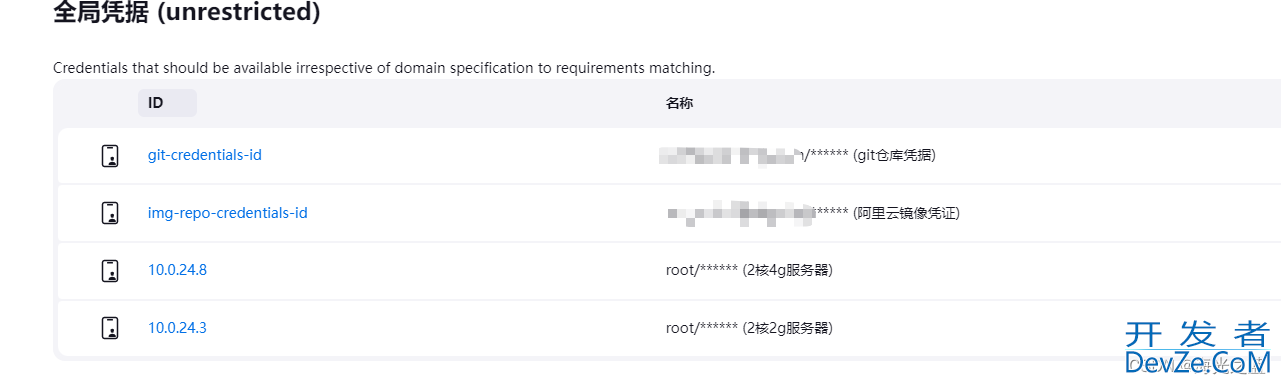

8、jenkins中配置Jenkinsfile中使用到的代码仓库凭据，镜像仓库凭据和服务器密码凭据

jenkins如何通过pipeline部署springboot项目

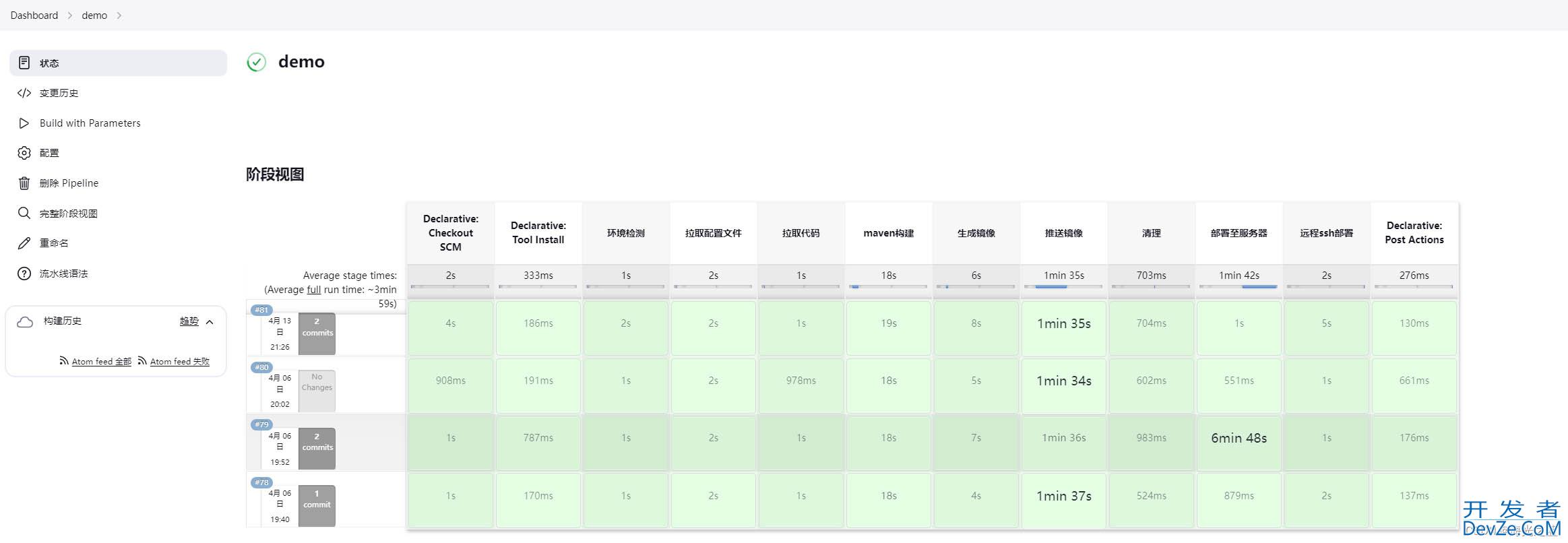

9、配置完成后，点击构建就行

jenkins如何通过pipeline部署springboot项目

10、当首次部署到新服务器时，需要登录镜像仓库，可以手动登录，也可以在jenkins中进行配置，每次发布都要登录，不然会拉取镜像错误

// 服务器集合
def server_list = []
// 所有的脚本命令放在pipeline中
pipeline {
    // 指定任务在哪个集群节点中执行，any表示任意节点
    agent any

    parameters {
        choice(description: '服务名', name: 'SERVICE_NAME', choices: ["demo"])
        string(description: '镜像tag', name: 'BUILD_TAG_PARAM', defaultValue: '20240405-01', trim: true)
        booleanParam defaultValue: true, description: '10.0.24.8', name: 'SERVER_1'
        booleanParam description: '10.0.24.3', name: 'SERVER_2'
    }

    tools {
        git 'Default'
    }

    // 声明全局变量，方便后面修改使用
    environment {
        GIT_CONFIG_BRANCH = "master"
        GIT_CONFIG_ADDRESS = "https://******/demo-jenkins.git"
        // jenkins中创建的代码仓库密钥id
        CREDENTIALS_ID = 'git-credentials-id'
        IMG_REPO_CREDENTIALS_ID = 'img-repo-credentials-id'
        IMG_REPO = "registry.cn-guangzhou.aliyuncs.com"
        REPO_NAMESPACE = 'lyr-test'
    }

    stages {
      android  stage('环境检测') {
            steps {
                // 构建环境检测
                sh '''
                     cat /proc/version
                     free -m
                     df -h
                     docker -v
                     git -v
                     mvn -v
                     java -version
                   '''
                echo '环境检测完成'
            }
        }
        stage('拉取配置文件') {
            steps {
                echo "拉取配置文件代码分支:${GIT_CONFIG_BRANCH}"
                sh "pwd"
                dir('/var/jenkins_home/workspace/pipeline/') {
                    sh "pwd"
                    echo "${CREDENTIALS_ID}"
                    checkout scmGit(branches: [[name: "${GIT_CONFIG_BRANCH}"]], extensions: [], userRemoteConfigs: [[credentialsId: "${CREDENTIALS_ID}", url: "${GIT_CONFIG_ADDRESS}"]])
                }
                sh "pwd"
            }
        }
        stage('登录镜像') {
            steps {
                withCredentials([usernamePassword(credentialsId: 'img-repo-credentials-id', passwordVariable: 'IMG_PWD', usernameVariable: 'IMG_USER')]) {
                    script {
                        echo "SERVER_1:" + SERVER_1
                        if (SERVER_1=="true") {
                            server_list.add('10.0.24.8')
                        }
                        echo "SERVER_2:" + SERVER_2
                        if (SERVER_2=="true") {
                            server_list.add('10.0.24.3')
                        }
                        for (server_ip in server_list) {
                            echo "当前部署的服务器id:${server_ip}"
                            withCredentials([usernamePassword(credentialsId: server_ip, passwordVariable: 'SERVER_PWD', usernameVariable: 'SERVER_USER')]) {
                                node {
                                    def remote = [:]
                                    remote.name = "deploy"
                                    remote.host = server_ip
                                    remote.user = "${SERVER_USER}"
                                    remote.password = "${SERVER_PWD}"
                                    remote.allowAnyHosts = true
                                    stage('远程ssh部署') {
                                        echo "当前远程ssh登录的服务器ip:${server_ip}"
                                        sshCommand remote: remote, command: """
                                            echo "${IMG_PWD}" | docker login --username ${IMG_USER} --password-stdin ${IMG_REPO}
                                        """
                                        echo "镜像ssh部署脚本执行完成"
                                    }
                                }
                            }
                        }
                    }
                }
            }
        }
        stage('部署至服务器') {
            steps {
                script {
                    script {
                        echo "SERVER_1:" + SERVER_1
                        if (SERVER_1=="true") {
                            server_list.add('10.0.24.8')
                        }
                        echo "SERVER_2:" + SERVER_2
                        if (SERVER_2=="true") {
                            server_list.add('10.0.24.3')
                        }
                        for (server_ip in server_list) {
                            echo "当前部署的服务器id:${server_ip}"
                            withCredentials([usernamePassword(credentialsId: server_ip, passwordVariable: 'SERVER_PWD', usernameVariable: 'SERVER_USER')]) {
                                node {
                                    def remote = [:]
                                    remote.name = "deploy"
                                    remote.host = server_ip
                                    remote.user = "${SERVER_USER}"
                                    remote.password = "${SERVER_PWD}"
                                    remote.allowAnyHosts = true
                                    stage('远程ssh部署') {
                                        echo "当前远程ssh部署的项目名:${SERVICE_NAME}"
                                        sshCommand remote: remote, command: "mkdir -p /data/${SERVICE_NAME}"
                                        sshPut remote: remote, from: """/var/jenkins_home/workspace/pipeline/${SERVICE_NAME}/docker-compose.yaml""", into: """/data/${SERVICE_NAME}"""
                                        sshCommand remote: remote, command: """
                                            cd /data/${SERVICE_NAME}/
                                            BUILD_TAG=${BUILD_TAG_PARAM} docker-compose up -d
                                            docker-compose ps
                                        """
                                 编程客栈       echo "ssh部署脚本执行完成"
                                    }
                                }
                            }
                        }
                    }
                }
            }
        }
    }

    // 通知内容
    post {
        success {
            //成功通知
            echo "成功通知"

        }
        failure {
            // 失败通知
            echo "失败通知"
        }
    }
}

总结

以上为个人经验，希望能给大家一个参考，也希望大家多多支持编程客栈(www.devze.com)。
