Android如何使用Flow封装一个FlowBus工具类

2024-09-25 10:10 开发作者：淡淡的香烟

Android中使用Flow封装一个FlowBus工具类

做过Android的同学应该都使用过EvenutBus、Rxbus、LiveDataBus、LiveData等，这些第三方不仅要导入依赖包，而且还要注册和取消注册，使用起来非常麻烦，稍不注意就导致内存泄漏，自从接触了Flow、SharedFlow之后感觉使用起来方便多了，于是产生了一个封装通用事件工具类的想法,直接上代码.

1.FlowBus:

/**
 * @auth: njb
 * @date: 2024/7/18 10:17
 * @desc: 基于Flow封装的FlowBus
 */
object FlowBus {
    private const val TAG = "FlowBus"
    private val busMap = mutableMapOf<String, FlowEventBus<*>>()
    private val busStickMap = mutableMapOf<String, FlowStickEventBus<*>>()
    @Synchronized
    fun <T> with(key: String): FlowEventBus<T> {
        var flowEventBus = busMap[key]
        if (flowEventBus == null) {
            flowEventBus = FlowEventBus<T>(key)
            busMap[key] = flowEventBus
        }
        return flowEvjavascriptentBus as FlowEventBus<T>
    }
    @Synchronized
    fun <T> withStick(key: String): FlowStickEventBus<T> {
        var stickEventBus = busStickMap[key]
        if (stickEventBus == null) {
            stickEventBus = FlowStickEventBus<T>(key)
            busStickMap[key] = stickEventBus
        }
        return stickEventBus as FlowStickEventBus<T>
    }
    open class FlowEventBus<T>(private val key: String) : DefaultLifecycleObserver {
        //私有对象用于发送消息
        private val _events: MutableSharedFlow<T> by lazy {
            obtainEvent()
        }
        //暴露的公有对象用于接收消息
        private val events = _events.asSharedFlow()
        open fun obtainEvent(): MutableSharedFlow<T> =
            MutableSharedFlow(0, 1, BufferOverflow.DROP_OLDEST)
        //在主线程中接收数据
        fun register(lifecycleOwner: LifecycleOwner,action: (t: T) -> Unit){
            lifecycleOwner.lifecycleScope.launch {
                events.collect {
                    try {
                        action(it)
                    }catch (e:Exception){
                        e.printStackTrace()
                        Log.e(TAG, "FlowBus - Error:$e")
                    }
                }
            }
        }
        //在协程中接收数据
        fun register(scope: CoroutineScope,action: (t: T) -> Unit){
            scope.launch {
                events.collect{
                    try {
                       action(it)
                    }catch (e:Exception){
                        e.printStackTrace()
                        Log.e(TAG, "FlowBus - Error:$e")
                    }
                }
            }
        }
        //在协程中发送数据
        suspend fun post(event: T){
            _events.emit(event)
        }
        //在主线程中发送数据
        fun post(scope: CoroutineScope,event: T){
            scope.launch {
                _events.emit(event)
            }
        }
        override fun onDestroy(owner: LifecycleOwner) {
            super.onDestroy(owner)
            Log.w(TAG, "FlowBus ==== 自动onDestroy")
            val subscriptCount = _events.subscriptionCount.value
            if (subscriptCount <= 0)
                busMap.remove(key)
        }
        // 手动调用的销毁方法，用于Service、广播等
        fun destroy() {
            Log.w(TAG, "FlowBus ==== 手动销毁")
            val subscriptionCount = _events.subscriptionCount.value
            if (subscriptionCount <= 0) {
                busMap.remove(key)
            }
        }
    }
    class FlowStickEventBus<T>(key: String) : FlowEventBus<T>(key) {
        override fun obtainEvent(): MutableSharedFlow<T> =
            MutableSharedFlow(1, 1, BufferOverflow.DROP_OLDEST)
    }
}

2.在Activity中的使用：

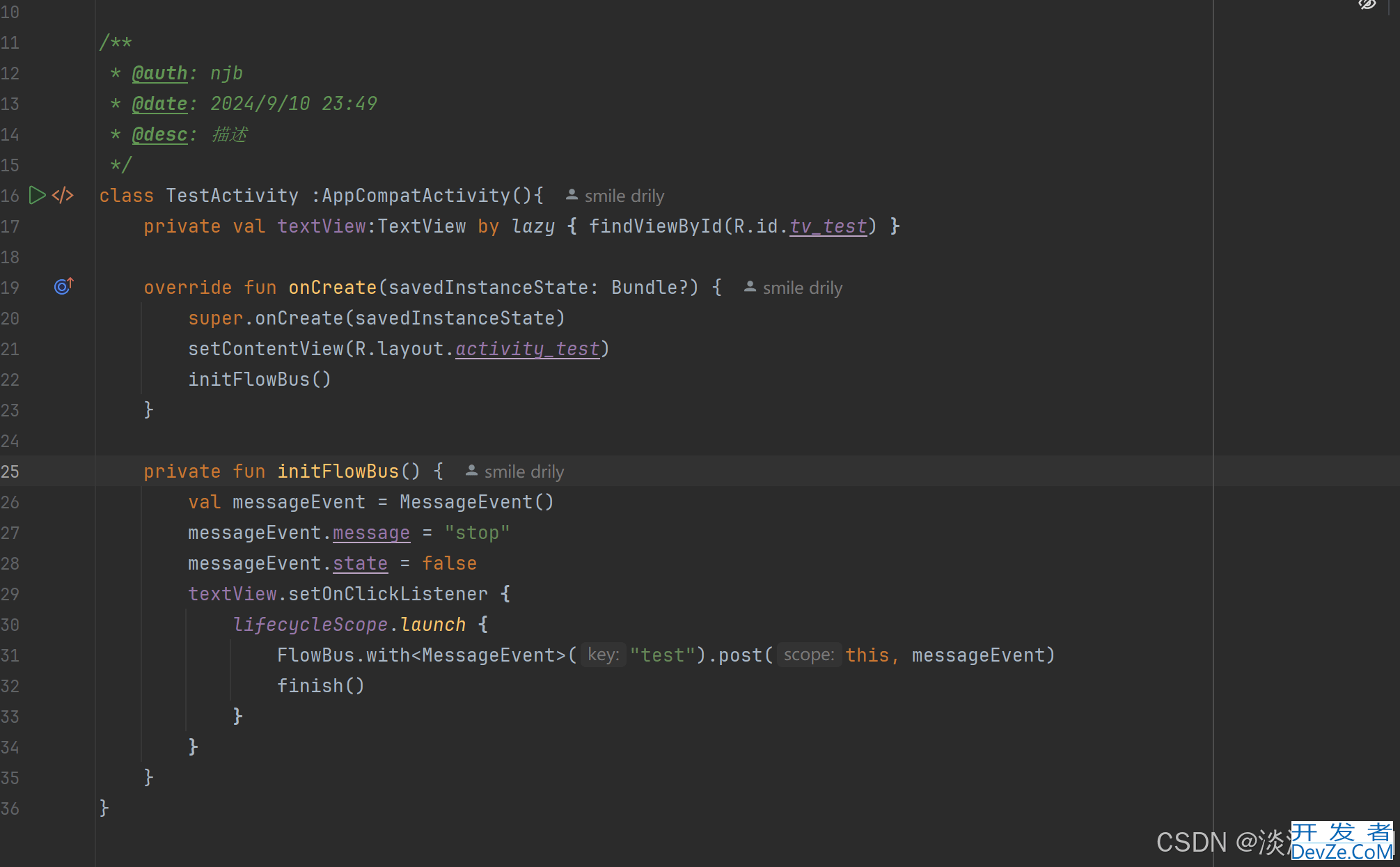

2.1传递参数给主界面Activity:

/**
 * @auth: njb
 * @date: 2024/9/10 23:49
 * @desc: 描述
 */
class TestActivity :AppCompatActivity(){
    private val textView:TextView by lazy { findViewById(R.id.tv_test) }
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_test)
        initFlowBus()
    }
    private fun initFlowBus() {
        val messageEvent = MessageEvent()
        messageEvent.message = "stop"
        messageEvent.state = false
        textView.setOnClickListener {
            lifecycleScope.launch {
                FlowBus.with<MessageEvent>("test").post(this, messageEvent)
                finish()
            }
        }
    }
}

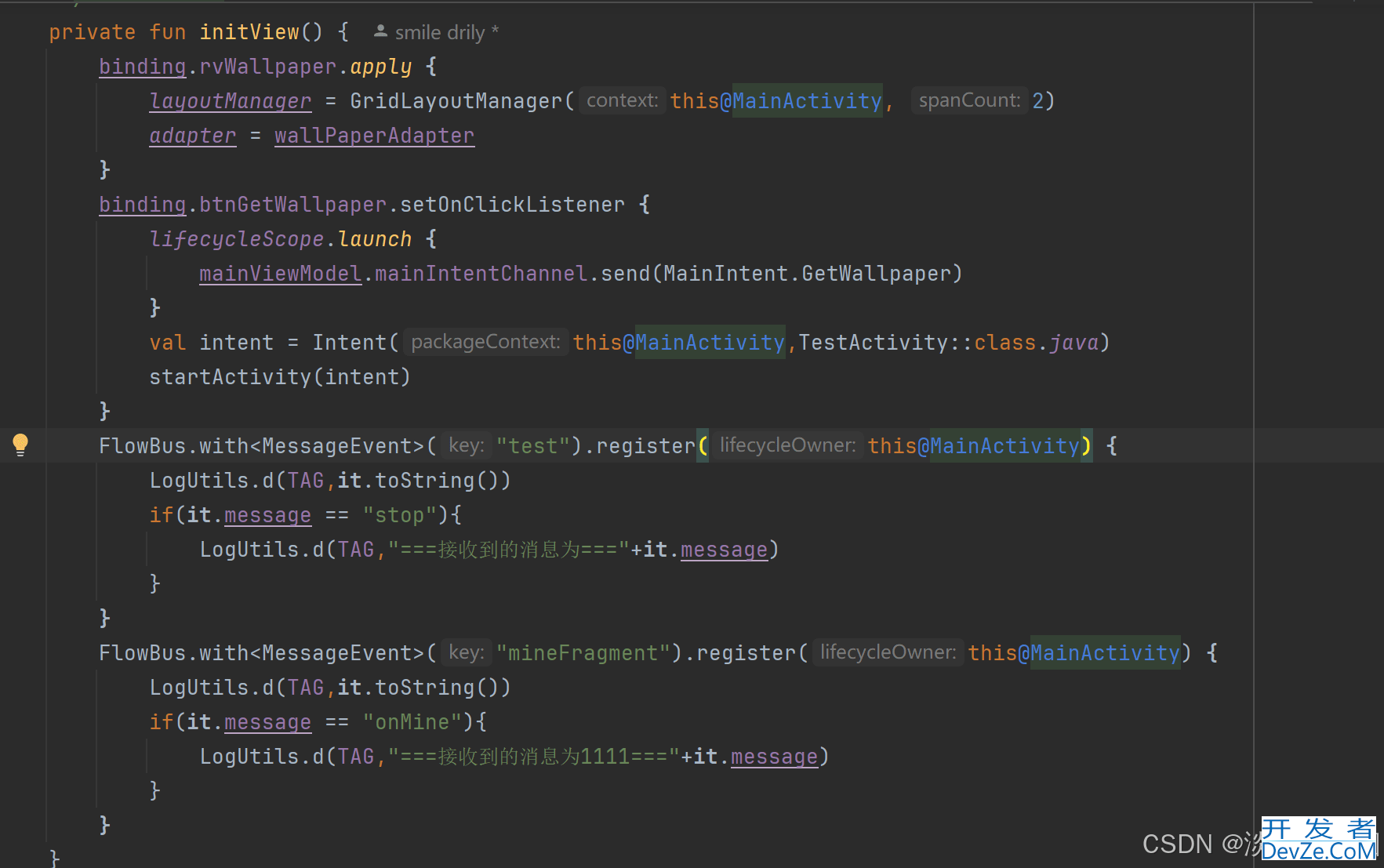

2.2 MainActivity接收：

/**
 * 初始化
 */
private fun initView() {
    binding.rvWallpaper.apply {
        layoutManager = GridLayoutManager(this@MainActivity, 2)
        adapter = wallPaperAdapter
    }
    binding.btnGetWallpaper.setOnClickListener {
        lifecycleScope.launch {
            mainViewModel.mainIntentChannel.send(MainIntent.GetWallpaper)
        }
        val intent = Intent(this@MainActivity,TestActivity::class.Java)
        startActivity(intent)
    }
    FlowBus.with<MessageEvent>("test").register(this@MainActivity) {
        LogUtils.d(TAG,it.toString())
        if(it.message == "stop"){
            LogUtils.d(TAG,"===接收到的消息为==="+it.message)
        }
    }
    FlowBus.with<MessageEvent>("mineFragment").register(this@MainActivity) {
        LogUtils.d(TAG,it.toString())
        if(it.message == "onMine"){
            LogUtils.d(TAG,"===接收到的消息为1111==="+it.message)
        }
    }
}

3.在Fragment中的使用：

3.1 发送数据

package com.cloud.flowbusdemo.fragment
import android.os.www.devze.comBundle
import android.util.Log
import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup
import androidx.fragment.app.Fragment
import androidx.lifecycle.lifecycleScope
import com.cloud.flowbusdemo.databinding.FragmentMineBinding
import com.cloud.flowbusdemo.flow.FlowBus
import com.cloud.flowbusdemo.model.MessageEvent
import kotlinx.coroutines.launch
private const val ARG_PARAM_NAME = "name"
private const val ARG_PARAM_AGE = "age"
/**
 * @auth: njb
 * @date: 2024/9/17 19:43
 * @desc: 描述
 */
class MineFragment :Fragment(){
    private lateinit var binding: FragmentMineBinding
    private val TAG = "MineFragment"
    private var name: String? = null
    private var age: Int? = null
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        arguments?.let {
            name = it.getString(ARG_PARAM_NAME)
            age = it.getInt(ARG_PARAM_AGE)
        }
        Log.i(TAG, "MainFjsragment 传递到 MineFragment 的参数为 name = $name , age = $age")
        Log.d(TAG, "姓名:" + name + "年龄:" + age)
    }
    override fun onCreateView(
        inflater: LayoutInflater,
        container: ViewGroup?,
        savedInstanceState: Bundle?
    ): View {
        binding = FragmentMineBinding.inflate(layoutInflater)
        initView()
        return binding.root
    }
    private fun initView() {
        val messageEvent = MessageEvent()
        messageEvent.message = "onMine"
        messageEvent.state = false
        binding.let {
            it.tvTitle.text = name
            it.tvAge.text  = age.toString()
            it.tvTitle.setOnClickListener {
                lifecycleScope.launch {
                    FlowBus.with<MessageEvent>("mineFragment").post(this, messageEvent)
                }
            }
        }
    }
}

Android如何使用Flow封装一个FlowBus工具类

3.2 接收数据：

private fun initView() {
    binding.rvWallpaper.apply {
        layoutManager = GridLayoutManager(this@MainActivity, 2)
        adapter = wallPaperAdapter
    }
    binding.btnGetWallpaper.setOnClickListener {
        lifecycleScope.launch {
            mainViewModel.mainIntentChannel.send(MainIntent.GetWallpaper)
        }
        val intent = Intent(this@MainActivity,TestActivity::class.java)
        startActivity(intent)
    }
    FlowBus.with<MessageEvent>("test").register(this@MainActivity) {
        LogUtils.d(TAGhttp://www.devze.com,it.toString())
        if(it.message == "stop"){
            LogUtils.d(TAG,"===接收到的消息为==="+it.message)
        }
    }
    FlowBus.with<MessageEvent>("mineFragment").register(this@MainActivity) {
        LogUtils.d(TAG,it.toString())
        if(it.message == "onMine"){
            LogUtils.d(TAG,"===接收到的消息为1111==="+it.message)
        }
    }
}

Android如何使用Flow封装一个FlowBus工具类

4.在Service中的使用：

4.1发送数据：

private fun initService() {
    val intent = Intent(this@MainActivity, FlowBusTestService::class.java)
    intent.putExtra("sockUrl","")
    startService(intent)
}

4.2接收数据：

/**
 * @auth: njb
 * @date: 2024/9/22 23:32
 * @desc: 描述
 */
class FlowBusTestService:Service() {
    private var sock5Url:String ?= null
    private val TAG = "FlowBusTestService"
    override fun onBind(intent: Intent?): IBinder? {
        return null
    }
    override fun onStartCommand(intent: Intent?, flags: Int, startId: Int): Int {
        intent?.let {
            this.sock5Url = intent.getStringExtra("sockUrl")
            LogUtils.d(TAG,"====收到的ip为==="+this.sock5Url)
        }
        return if (intent?.action == Constants.ACTION_DISCONNECT) {
            disconnect()
            START_NOT_STICKY
        } else {
            connect()
            START_STICKY
        }
    }
    private fun connect() {
    }
    private fun disconnect() {
    }
}

5.在Websock中的使用：

5.1发送数据：

private fun connectWebSocket() {
    LogUtils.e(TAG, "===connectUrl===$currentWebSocketUrl")
    try {
        if (mWebSocketManager == null) {
            return
        }
        mWebSocketManager?.addListener(object : SocketListener {
            override fun onConnected() {
                LogUtils.e(TAG, "===连接成功====")
                val messageEvent = MessageEvent()
                messageEvent.message = "socket连接成功"
                FloatWindowManager.log("socket连接成功")
                CoroutineScope(Dispatchers.Main).launch{
                    FlowBus.with<MessageEvent>("onConnected").post(this,messageEvent)
                }
            }
            override fun onConnectFailed(throwable: Throwable) {
                LogUtils.e(TAG, "===连接失败====")
                val messageEvent = MessageEvent()
                messageEvent.message = "socket连接失败:$currentWebSocketUrl"
                FloatWindowManager.log("socket连接失败")
            }
            override fun onDisconnect() {
                LogUtils.e(TAG, "===断开连接====")
                val messageEvent = MessageEvent()
                messageEvent.message = "socket断开连接"
                FloatWindowManager.log("socket断开连接")
            }
            override fun onSendDataError(errorResponse: ErrorResponse) {
                LogUtils.e(TAG + "===发送数据失败====" + errorResponse.description)
                val messageEvent = MessageEvent()
                messageEvent.message = "发送数据失败--->" + errorResponse.description
                FloatWindowManager.log("发送数据失败")
            }
            override fun <T> onMessage(msg: String, t: T) {
                LogUtils.e(TAG,"===接收到消息 String===$msg")
                val messageEvent = MessageEvent()
                messageEvent.message = msg
                FloatWindowManager.log("===接收到消息===$msg")
                taskManager?.onHandleMsg(msg)
            }
            override fun <T> onMessage(bytes: ByteBuffer, t: T) {
                LogUtils.e(TAG, "===接收到消息byteBuffer===="+GsonUtils.tojson(bytes))
                val rBuffer = ByteBuffer.allocate(1024)
                val charset = Charset.forName("UTF-8")
                try {
                    val receiveText =
                        charset.newDecoder().decode(rBuffer.asReadOnlyBuffer()).toString()
                    LogUtils.e(TAG, "===接收到消息byteBuffer====$receiveText")
                    val messageEvent = MessageEvent()
                    messageEvent.message = receiveText
                   // FloatWindowManager.log("===收到消息 byte===$receiveText")
                } catch (e: CharacterCodingException) {
                    throw RuntimeException(e)
                }
            }
            override fun onPing(pingData: Framedata) {
                LogUtils.e(TAG, "===心跳onPing===$pingData")
            }
            override fun onPong(framedata: Framedata) {
                LogUtils.e(TAG, "===心跳onPong===$framedata")
                val messageEvent = MessageEvent()
                messageEvent.message = format.format(Date()) + "  | 心跳onPong->"
                FloatWindowManager.log("===心跳onPong===${format.format(Date())}${"->"}$currentWebSocketUrl")
            }
        })
        mWebSocketManager?.start()
    } catch (e: Exception) {
        e.printStackTrace()
    }
}

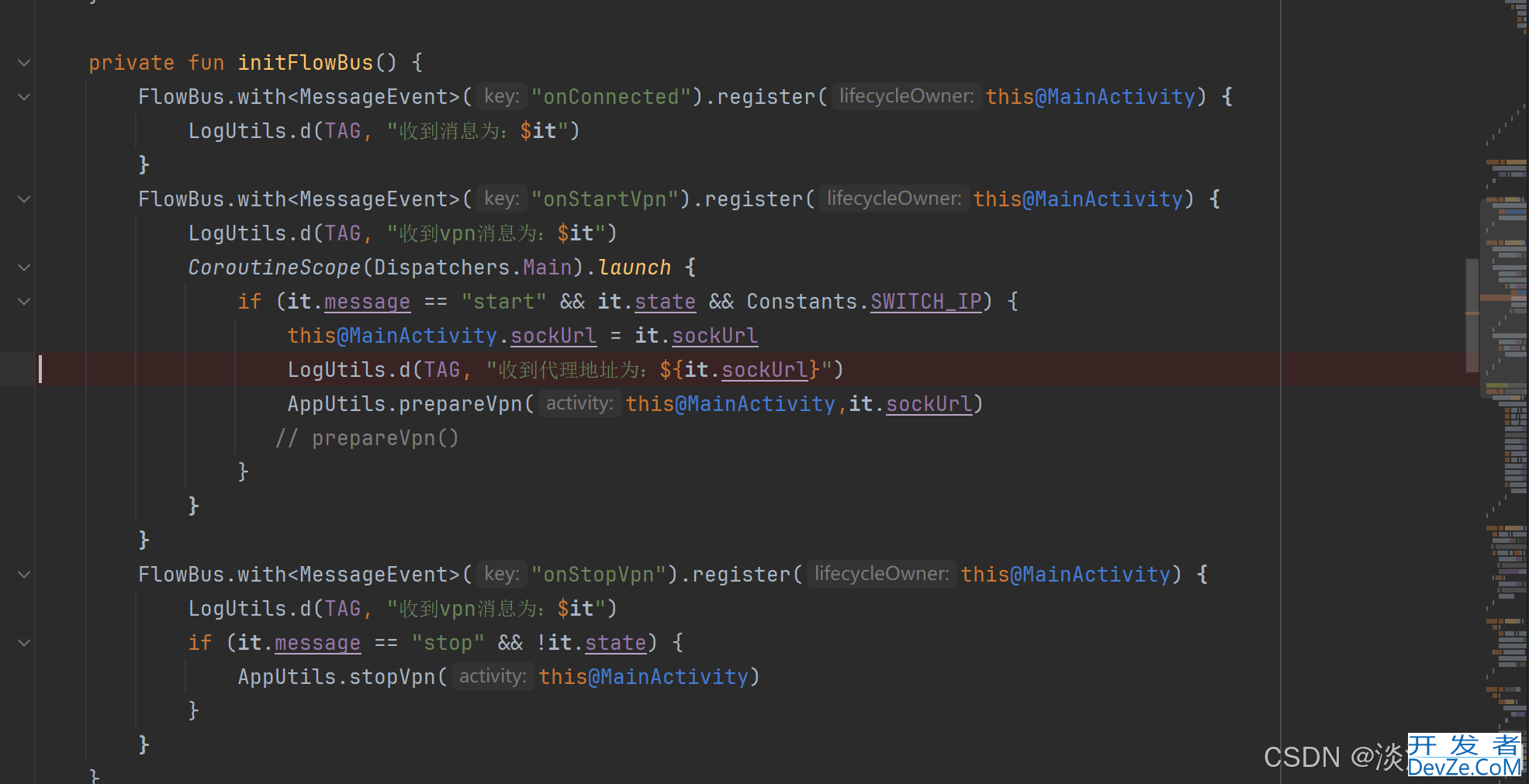

5.2接收数据：

private fun initFlowBus() {
    FlowBus.with<MessageEvent>("onConnected").register(this@MainActivity) {
        LogUtils.d(TAG, "收到消息为：$it")
    }
    FlowBus.with<MessageEvent>("onStartVpn").register(this@MainActivity) {
        LogUtils.d(TAG, "收到vpn消息为：$it")
        CoroutineScope(Dispatchers.Main).launch {
            if (it.message == "start" && it.state && Constants.SWITCH_IP) {
                this@MainActivity.sockUrl = it.sockUrl
                LogUtils.d(TAG, "收到代理地址为：${it.sockUrl}")
                AppUtils.prepareVpn(this@MainActivity,it.sockUrl)
               // prepareVpn()
            }
        }
    }
    FlowBus.with<MessageEvent>("onStopVpn").register(this@MainActivity) {
        LogUtils.d(TAG, "收到vpn消息为：$it")
        if (it.message == "stop" && !it.state) {
            AppUtils.stopVpn(this@MainActivity)
        }
    }
}

Android如何使用Flow封装一个FlowBus工具类

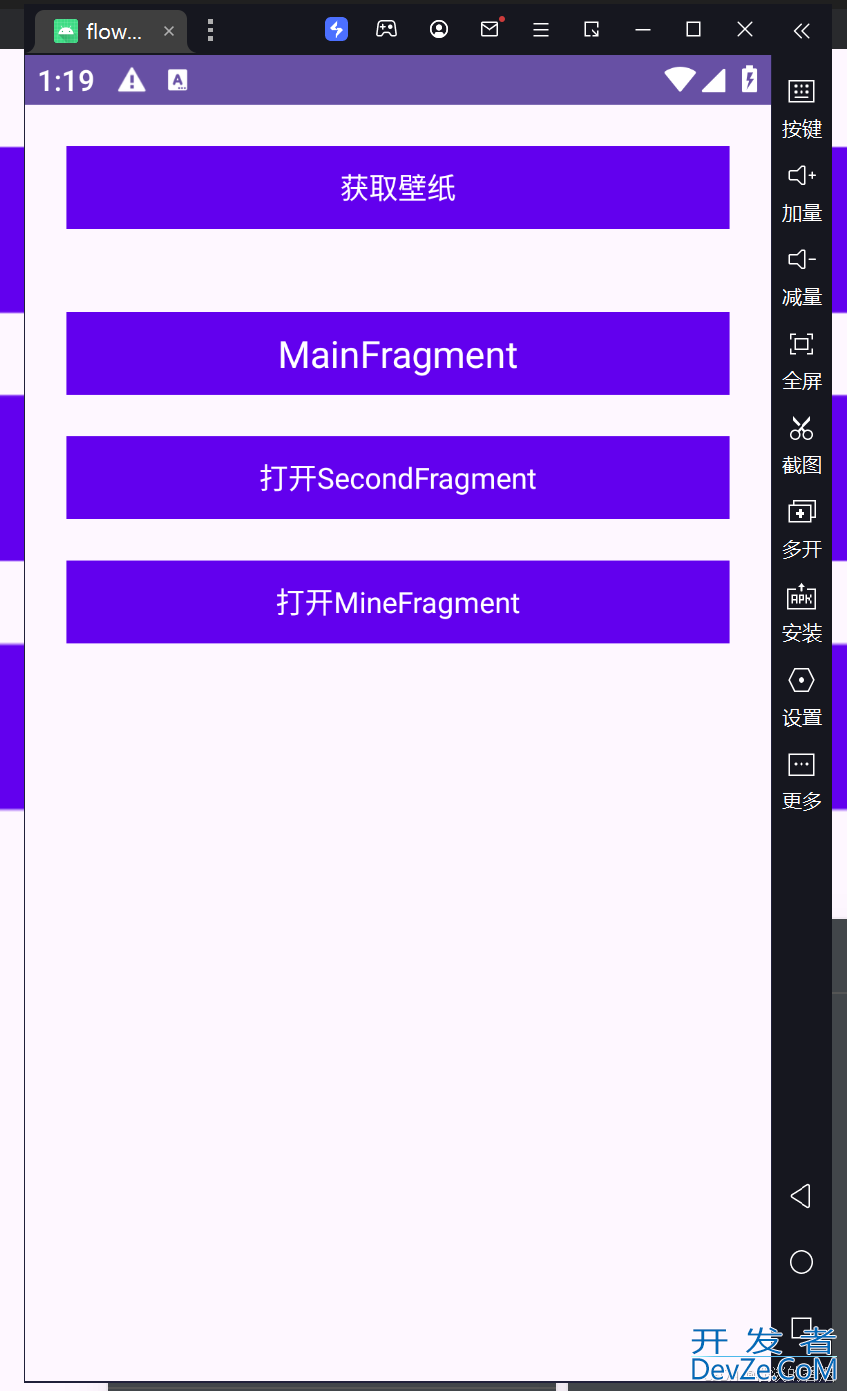

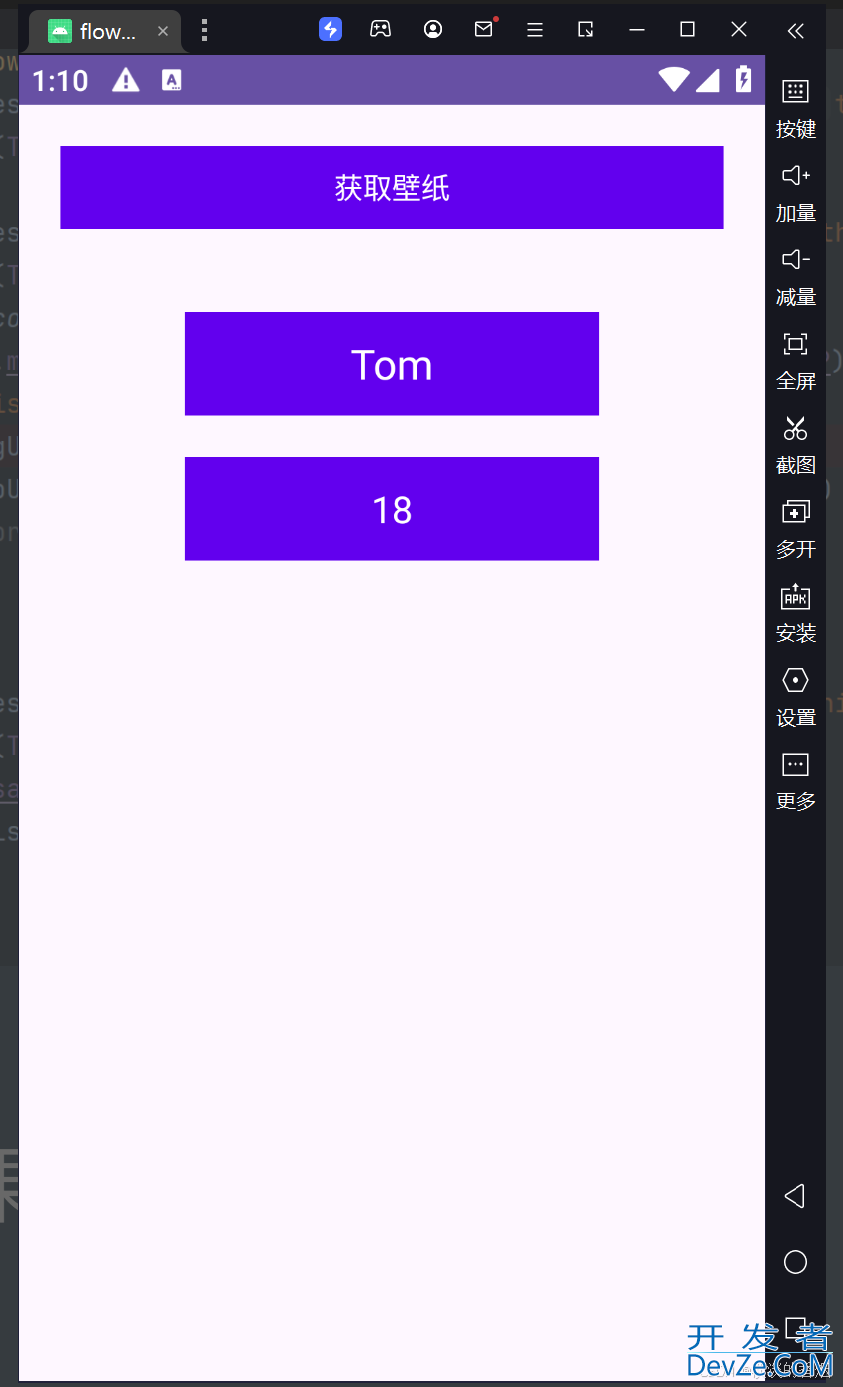

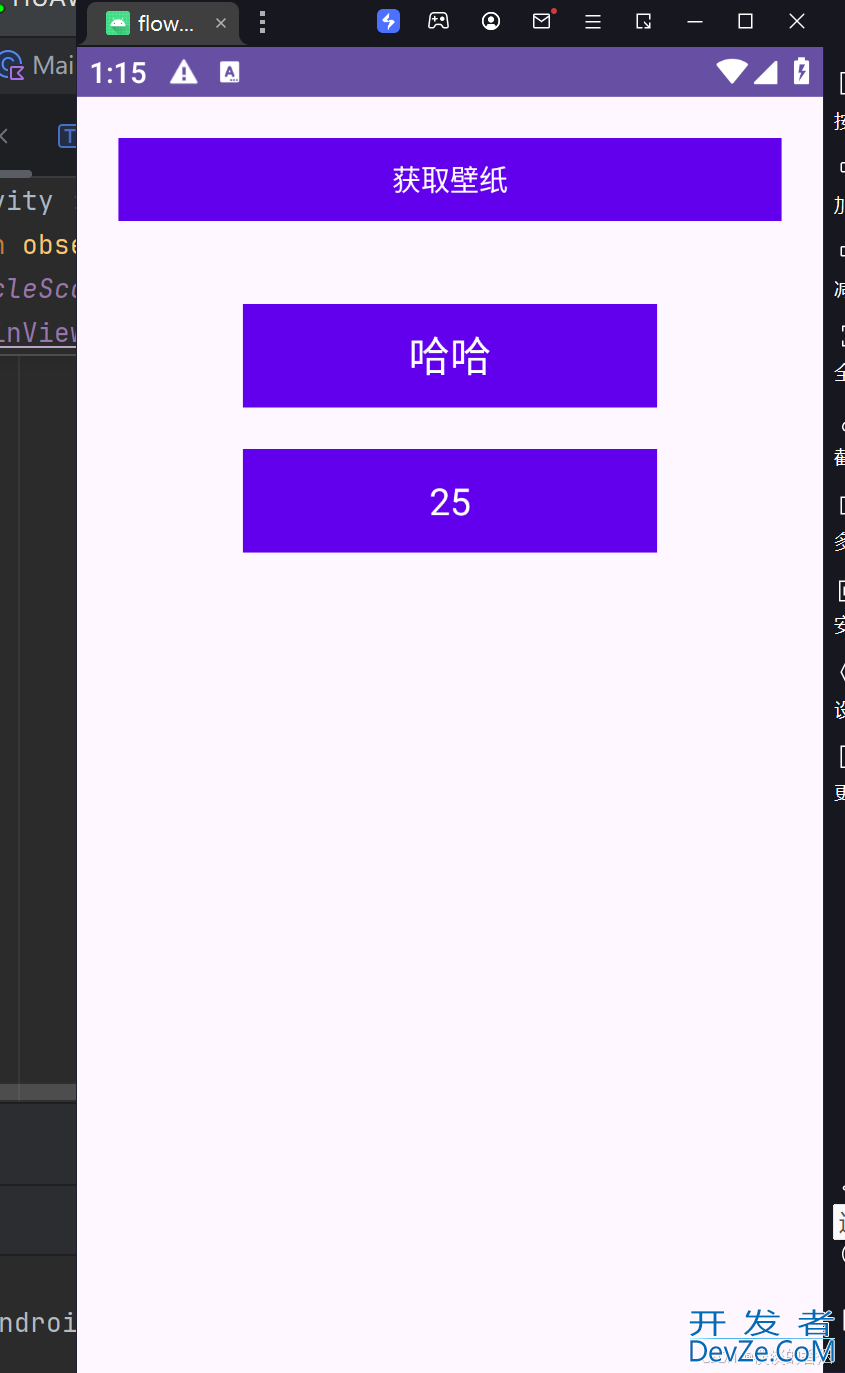

6.实现的效果如下：

Android如何使用Flow封装一个FlowBus工具类

7.项目demo源码如下：

https://gitee.com/jackning_admin/flowbus-demo
