        前言

        最近在开发Qt的http服务器功能,研究比较了一番,选择了QtWebApp方案,相对其他开源库,比较推荐使用该方案,功能齐全,简单易用,如果赶项目的话,极力推荐。

        下面介绍一下Qt集成QtWebApp步骤:

        一、Qt集成QtWebApp步骤:

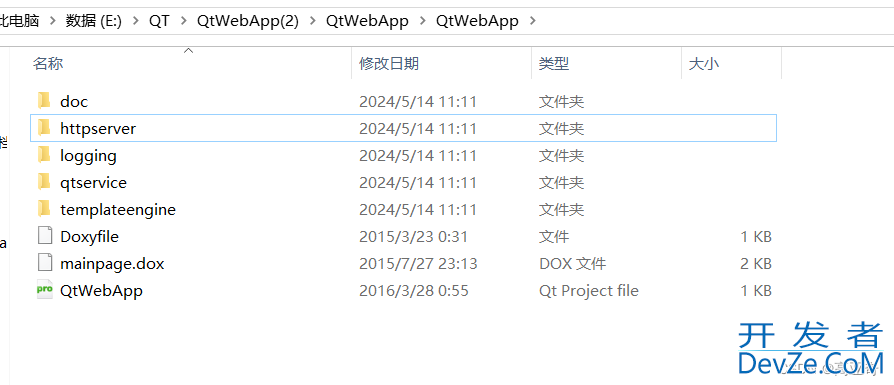

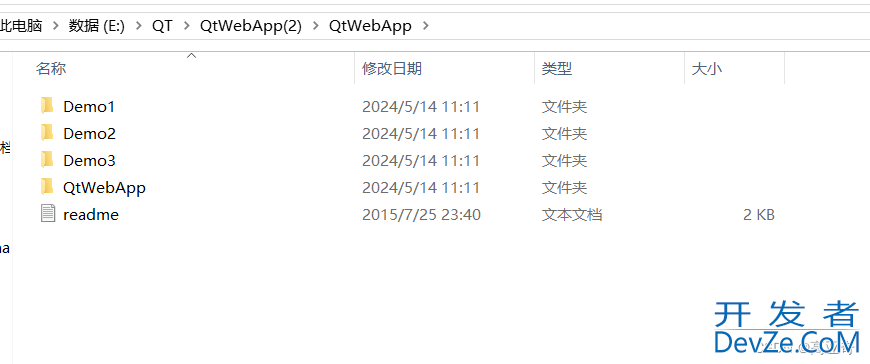

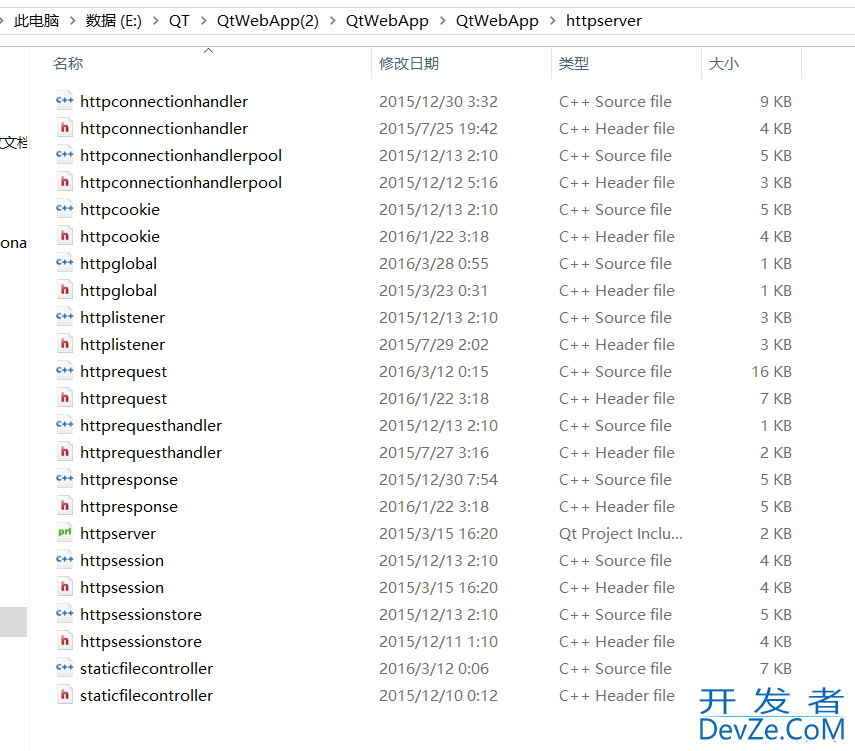

        1、下载QtWebApp源码:KingJamesGyq/QtWebApp把源码拉下来到本地,将httpsever目录整个移植到自己的项目工程下。

        在Qt中使用QtWebApp搭建HTTP服务器的详细步骤

        在Qt中使用QtWebApp搭建HTTP服务器的详细步骤

        在Qt中使用QtWebApp搭建HTTP服务器的详细步骤

        2、在pro文件包含httpserver

        include ($$PWD/httpserver/httpserver.pri)


        这样就完成集成源码了,剩下的就是根据你自己的业务需求去开发了,细节可以参考Demo1和Demo2。

        二、在Qt中使用QtWebApp搭建HTTP服务器

        第一步 下载QtWebApp导入工程中

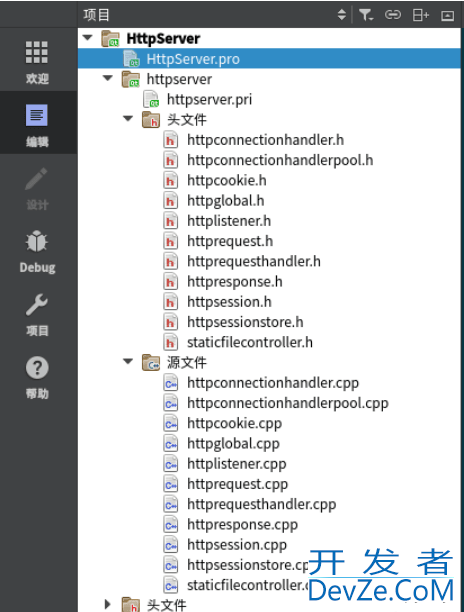

        工程示例:

        在Qt中使用QtWebApp搭建HTTP服务器的详细步骤

        第二步 编写配置文件WebApp.ini

        host=192.168.255.128	;服务ip地址
        port=8080				;端口号
        minThreads=4			;4个线程始终保持运行状态
        maxThreads=100			;并发工作线程的最大数量
        cleanupInterval=60000
        readTimeout=60000
        maxRequestSize=16000
        maxMultiPartSize=10000000


        第三步 加载配置文件,创建HTTP侦听器对象

        main.cpp

        #include "httplistener.h"
        #include "httprequesthandler.h"
        #include "RequestMapper.h" //自定义类请求映射器类

            QSettings* listenerSettings=
                    new QSettings(QCoreApplication::applicationDirPath()+"/WebApp.ini",QSettings::IniFormat);
            new stefanfrings::HttpListener(listenerSettings, new RequestMapper());


        第四步 自定义类请求映射器类

        RequestMapper.h

        #ifndef REQUESTMAPPER_H
        #define REQUESTMAPPER_H
        #include "httprequesthandler.h"
        using namespace stefanfrings;

        #include "HelloController.h"

        class RequestMapper:public HttpRequestHandler
        {
        public:
            RequestMapper();
            void service(HttpRequest& request, HttpResponse& response);


        private:
            HelloController m_helloController;

        };

        #endif // REQUESTMAPPER_H


        RequestMapper.cpp

        #include "RequestMapper.h"
        #include "json.hpp"
        #include <string>
        using namespace std;
        using namespace nlohmann;
        RequestMapper::RequestMapper()
        {

        }

        void RequestMapper::service(HttpRequest &request, HttpResponse &response)
        {
            QByteArray path=request.getPath();
            QByteArray method = request.getMethod();
            QByteArray nm = request.getParameter("nm");
            qDebug() << "RequestMapper: path=" << path.data();
            qDebug() << "RequestMapper: method=" << method.data();
             qDebug() << "RequestMapper: nm=" << nm.data();

            if ( path=="/hello") {
                m_helloController.service(request,response);
            }


        }


        第五步 自定义业务请求处理类

        HelloController .h

        #ifndef HELLOCONTROLLER_H
        #define HELLOCONTROLLER_H

        #include <QObject>
        #include "httprequesthandler.h"
        using namespace stefanfrings;
        #include "json.hpp"
        using namespace nlohmann;
        #include <string>
        using namespace std;
        class HelloController : public QObject
        {
            Q_OBJECT
        public:
            explicit HelloController(QObject *parent = 0);
            void service(HttpRequest& request, HttpResponse& response);

        signals:

        public slots:
        };

        #endif // HELLOCONTROLLER_H


        HelloController.cpp

        #include "HelloController.h"

        HelloController::HelloController(QObject *parent) : QObject(parent)
        {

        }

        void HelloController::service(HttpRequest &request, HttpResponse &response)
        {

           QByteArray body = request.getBody();
           qDebug() << body;

            json res;
            res["code"] = 200;
            res["mesage"] = "success";

            string str = res.dump(4);
            //    response.setStatus(404);
            response.write(str.c_str());
        }


        第六步 测试

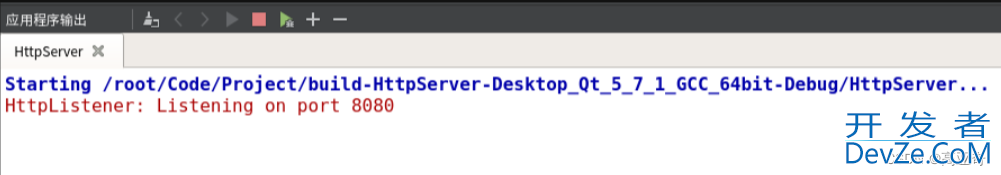

        服务运行示例

        在Qt中使用QtWebApp搭建HTTP服务器的详细步骤

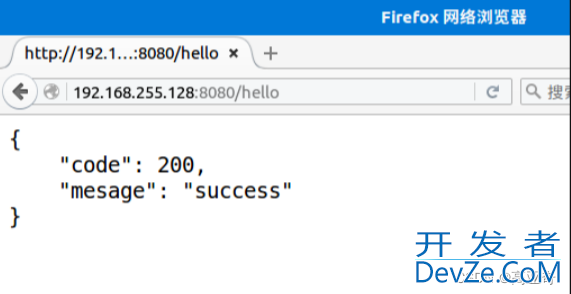

        浏览器发请求示例

        在Qt中使用QtWebApp搭建HTTP服务器的详细步骤

        另外:其他的映射和控制器写法:

        requestmapper.h
        #ifndef REQUESTMAPPER_H
        #define REQUESTMAPPER_H

        #include "QtWebApp/httpserver/httprequesthandler.h"

        using namespace stefanfrings;

        /*
          The request mapper dispatches incoming HTTP requests to controller classes
          depending on the requested path.
        */

        class RequestMapper : public HttpRequestHandler {
            Q_OBJECT
            Q_DISABLE_COPY(RequestMapper)
        public:

            /*
              Constructor.
              @param parent Parent object
            */
            RequestMapper(QObject* parent=0);

            /*
              Destructor.
            */
            ~RequestMapper();

            /*
              Dispatch incoming HTTP requests to different controllers depending on the URL.
              @param request The received HTTP request
              @param response Must be used to return the response
            */
            void service(HttpRequest& request, HttpResponse& response);

            // 拦截未授权操作
            bool preHandle(HttpRequest& request, HttpResponse& response);

        };

        #endif // REQUESTMAPPER_H


        requestmapper.cpp

        #include "requestmapper.h"
        #include "global.h"
        #include "controller/logincontroller.h"
        #include "controller/funcvercodecontroller.h"
        #include "controller/sysmsgcontroller.h"
        #include "controller/sysusercontroller.h"
        #include "controller/commoncontroller.h"
        #include "controller/sysmenucontroller.h"
        #include "controller/sysdiccontroller.h"
        #include "controller/sysrolecontroller.h"
        #include "controller/sysdeptcontroller.h"
        #include "controller/syslogcontroller.h"
        #include "controller/funcmonitorcontroller.h"
        #include "controller/sysusermsgcontroller.h"
        #include "controller/funcsmscontroller.h"
        #include "controller/funcemailcontroller.h"
        #include "controller/funcloadcontroller.h"
        #include "controller/funcexportcontroller.h"
        #include<qthread.h>

        RequestMapper::RequestMapper(QObject* parent)
            :HttpRequestHandler(parent)
        {
            qDebug("RequestMapper: created");
            qDebug()<<".................RequestMapper created......................currentThreadId():"<<QThread::currentThreadId();
        }


        RequestMapper::~RequestMapper()
        {
            qDebug("RequestMapper: deleted");
        }


        void RequestMapper::service(HttpRequest& request, HttpResponse& response)
        {


            qDebug()<<"..............RequestMapper::service..................currentThreadId():"<<QThread::currentThreadId();

            QByteArray path = request.getPath().toLower();
            QString tmp = QString(path);
            qDebug("RequestMapper::service e");


            //实现跨域访问,js 调用API 提供了支持。
            response.setHeader("Connection", "keep-alive");
            auto origin = request.getHeader("Origin");
            response.setHeader("Access-Control-Allow-Origin", origin);
            response.setHeader("Access-Control-Allow-Methods", "POST,GET,OPTIONS");
            response.setHeader("Access-Control-Allow-Headers", "X-PINGOTHER,Content-Type,x-token,access_token");
            response.setHeader("Access-Control-Max-Age", "86400");
            response.setHeader("Vary", "Accept-Encoding,Origin");
            response.setHeader("Keep-Alive", "timeout=2,max=99");
            response.setHeader("Access-Control-Allow-Credentials", "true");
            //set api header
            response.setHeader("Content-Type", "application/json; charset=utf-8");
            //response.setHeader("Access-Control-Allow-Origin", "*"); // also important , if not set , the html application wont run.
            if (request.getMethod() == "OPTIONS")
            {
                response.setStatus(200,"OK");
                qDebug("RequestMapper: finished request");
                // Clear the log buffer

                return;
            }

            //拦截部分,做token校验
            if (path.startsWith("/func")
                    || path.startsWith("/sys")
                    || path.startsWith("/monitor/"))
            {
                if(!preHandle(request, response))
                    return;
            }

            if (path.startsWith("/login") || path.startsWith("/logout"))
            {
                LoginController().service(request, response);
            }
            else if (path.startsWith("/vercode"))
            {
                FuncVercodeController().service(request, response);
            }
            else if (path.startsWith("/func/message/user/"))
            {
                SysUserMsgController().service(request, response);
            }
            else if (path.startsWith("/func/message/sys/"))
            {
                SysMsgController().service(request, response);
            }
            else if (path.startsWith("/sys/user/"))
            {
                SysUserController().service(request, response);
            }
            else if (path.startsWith("/sys/menu/"))
            {
                SysMenuController().service(request, response);
            }
            else if (path.startsWith("/sys/dic/"))
            {
                SysDicController().service(request, response);
            }
            else if (path.startsWith("/sys/role/"))
            {
                SysRoleController().service(request, response);
            }
            else if (path.startsWith("/sys/dept/"))
            {
                SysDeptController().service(request, response);
            }
            else if (path.startsWith("/sys/log/"))
            {
                SysLogController().service(request, response);
            }
            else if (path.startsWith("/func/sms/"))
            {
                FuncSmsController().service(request, response);
            }
            else if (path.startsWith("/sys/email/"))
            {
                FuncEmailController().service(request, response);
            }
            else if (path.startsWith("/func/upload/"))
            {
                FuncLoadController().service(request, response);
            }
            else if (path.startsWith("/func/export/"))
            {
                FuncExportController().service(request, response);
            }
            else if (path.startsWith("/monitor"))
            {
                FuncMonitorController().service(request, response);
            }
            else if (path.startsWith("/common"))
            {
                CommonController().service(request, response);
            }
            else
            {
                staticFileController->service(request, response);
            }


            qDebug("RequestMapper: finished request");

            // Clear the log buffer
            if (logger)
            {
            //   logger->clear();
            }
        }

        // 拦截未授权操作
        bool RequestMapper::preHandle(HttpRequest& request, HttpResponse& response)
        {
            // token校验不通过,返回1001
            ResultJson result(1001, false, QStringLiteral("token已失效"));
            QString accessToken = request.getHeader("access_token");
            if(accessToken == NULL || accessToken.isEmpty())
                accessToken = request.getParameter("access_token");

            if(accessToken == NULL || accessToken.isEmpty())
            {
                result.failedMsg(QStringLiteral("找不到token"));
                ResponseUtil::replyJson(response, result);
                //staticFileController->service(request, response);
                return false;
            }

            //根据token登录
            QString username = JwtUtil::getUsername(accessToken);
            if(username == NULL || username.isEmpty())
            {
                ResponseUtil::replyJson(response, result);
                //staticFileController->service(request, response);
                return false;
            }

            //判断token是否有效
            QString token_key = username + "_token";
            QString saveToken = CacheApi::instance()->get(token_key);
            if(saveToken != accessToken)
            {
                ResponseUtil::replyJson(response, result);
                //staticFileController->service(request, response);
                return false;
            }

            //刷新token
            CacheApi::instance()->insert(token_key, accessToken, JwtUtil::EXPIRED_TIME);

            return true;
        }

        logincontroller.h
        #ifndef LOGINCONTROLLER_H
        #define LOGINCONTROLLER_H

        #iandroidnclude "global.h"
        #include <QMap>

        using namespace stefanfrings;

        class LoginController: public HttpRequestHandler {
            Q_OBJECT
            Q_DISABLE_COPY(LoginController)

        public:
            LoginController();

            void service(HttpRequest& request, HttpResponse& response);
            void   login(HttpRequest& request, HttpResponse& response); //登录
            void  logout(HttpRequest& request, HttpResponse& response); //退出
        private:
            SqlHelper* m_pHelper;

            typedef void (LoginController::*pServFunc)(HttpRequest& request, HttpResponse& response);

            QMap<QString, pServFunc> m_mapFunc;


        };

        #endif // LOGINCONTROLLER_H

        logincontroller.cpp
        #include "logincontroller.h"
        #include <QCryptographicHash>
        #include <qthread.h>

        LoginController::LoginController()
        {

            qDebug()<<"....................LoginController........................currentThreadId():"<<QThread::currentThreadId();

        //    m_pHelper = SqlHelper::instance();
            m_pHelper = new SqlHelper();
            m_pHelper->initDB("QtWebAdmin.db");

            m_mapFunc.insert("/login",   &LoginController::login);      //登录
            m_mapFunc.insert("/logout",  &LoginController::logout);     //登出
        }

        void LoginController::service(HttpRequest& request, HttpResponse& response)
        {

            qDebug()<<"...................LoginController::service........................currentThreadId():"<<QThread::currentThreadId();


            QByteArray path = request.getPath().toLower();
            if(m_mapFunc.contains(path))
            {
                pServFunc func = m_mapFunc.value(path);
                (this->*func)(request, response);
            }
        }


        void LoginController::login(HttpRequest& request, HttpResponse& response)
        {
            qDebug()<<"..................LoginController::login...................currentThreadId():"<<QThread::currentThreadId();

            ResultJson ret(0, true, QStringLiteral("登入成功"));

            QString body = request.getBody();
            QString username = request.getParameter("username");
            QString password = request.getParameter("password");
            QString vercode = request.getParameter("vercode");
            QString access_token = request.getParameter("access_token");

            QString codeid = request.getParameter("codeid");

            HttpSession session = sessionStore->getSession(request, response, true);

            if(username.isEmpty())
            {
                ret.failedMsg(QStringLiteral("用户名为空"));
                response.write(ret.toString().toLocal8Bit());
                return;
            }
            if(password.isEmpty())
            {
                ret.failedMsg(QStringLiteral("密码为空"));
                response.write(ret.toString().toLocal8Bit());
                return;
            }
            if(vercode.isEmpty())
            {
                ret.failedMsg(QStringLiteral("验证码为空"));
                response.write(ret.toString().toLocal8Bit());
                return;
            }

            //
        //    if(!session.contains("vercode"))
        //    {
        //        ret.failedMsg(QStringLiteral("未找到验证码"));
        //        response.write(ret.toString().toLocal8Bit());
        //        return;
        //    }

            //跨域情况下,以网页请求时附带UUID,作为验证码标志
            QString sessionCode = CacheApi::instance()->get(codeid + "_vercode");
            if(sessionCode.isNull())
            {
                ret.failedMsg(QStringLiteral("未找到验证码或验证码已过期"));
                response.write(ret.toString().toLocal8Bit());
                return;
            }


            //QString sessionCode = session.get("vercode").toString();
            if(sessionCode.toLower() != vercode.toLower())
            {
                ret.failedMsg(QStringLiteral("验证码不匹配"));
                response.write(ret.toString().toLocal8Bit());
                return;
            }

            //................检查密码
            SysUser loginUser;
            if(!m_pHelper-javascript>selectUserByName(loginUser, username))
            {
                ret.failedMsg(QStringLiteral("未找到用户或密码不正确!"));
                response.write(ret.toString().toLocal8Bit());
                return;
            }

            Sys编程Log log("system", SysLog::LOGIN, QStringLiteral("用户登录"),
                        username,
                       QString(__FILE__),
                       QString(__FUNCTION__),
                        GlobalFunc::JsonToString(request.getParameterJson()),
                        request.getPeerAddress().toString(),
                        request.getHeader("User-Agent"),
                        QStringLiteral("用户成功登录"));

            QString pwdAndSalt = password + loginUser.getSalt();
            QString md5Pwd = QString(QCryptographicHash::hash(pwdAndSalt.toLocal8Bit(), QCryptographicHash::Md5).toHex());
            if(md5Pwd != loginUser.getPassword())
            {
                ret.failedMsg(QStringLiteral("密码不正确!"));
                response.write(ret.toString().toLocal8Bit());

                log.setMemo(QStringLiteral("密码不正确!"));
                m_pHelper->insertEntity(&log);
                return;
            }

            //JWT获取,并存入缓存
            QString accessToken = JwtUtil::sign(username, password);
            CacheApi::instance()->insert(username + "_token", accessToken, JwtUtil::EXPIRED_TIME);

            //session保存账户名和登录时间
            session.set("username", username);
            session.set("logintime", QTime::currentTime());

            //返回token
        编程客栈    ret.setData("access_token", accessToken);
            ResponseUtil::replyJson(response, ret);

            m_pHelper->insertEntity(&log);
        }

        // /logout?access_token=?
        void LoginController::logout(HttpRequest& request, HttpResponse& response)
        {
            QString access_token = request.getParameter("access_token");
            QString username = JwtUtil::getUsername(access_token);
            CacheApi::instance()->remove(username + "_token");

            QJsonObject objParam = request.getParameterJson();
            objParam.insert("access_token", "?");
        //    ResponseUtil::replyJson(response, ResultJson(0, true, QStringLiteral("操作成功")));
            SysLog log("system", SysLog::LOGOUT, QStringLiteral("用户退出"),
                        username,
                        QString(__FILE__),
                        QString(__FUNCTION__),
                        GlobalFunc::JsonToString(objParam),
                        request.getPeerAddress().toString()php,
                        request.getHeader("User-Agent"),
                        QStringLiteral("用户退出成功"));
            m_pHelper->insertEntity(&log);
        }

        总结

        到此这篇关于在Qt中使用QtWebApp搭建HTTP服务器的文章就介绍到这了,更多相关Qt QtWebApp搭建HTTP服务器内容请搜索编程客栈(www.devze.com)以前的文章或继续浏览下面的相关文章希望大家以后多多支持编程客栈(www.devze.com)!

        0

        上一篇:

        下一篇:

        精彩评论

        暂无评论...
        验证码 换一张
        取 消

        最新开发

        开发排行榜
