基于WPF实现瀑布流控件

wpF 实现瀑布流控件

框架支持.NET4 至 .NET8；

Visual Studio 2022;

需求详见 ISSUE

实现代码

1）新增 WaterfallPanel.cs 代码如下:

• WaterfallPanel 的自定义控件，继承自 VirtualizingPanel。
• WaterfallPanel 控件实现了瀑布流布局，即将多个子元素按照一定规则排列在面板中。该控件具有 Columns 和 Spacing 两个依赖属性，分别表示列数和每个子控件之间的间距。
• MeasureOverride用于测量和排列子控件。在 WaterfallPanel 的 MeasureOverride 方法中，先清除了列高的记录，然后计算出每一列的高度并保存在一个 List 中。接着，遍历所有子控件，将它们测量并按规则排列在面板中，同时更新列高和面板的大小。
• AddChild 方法向面板中添加子控件。

using System;
using System.Collections.Generic;
using System.Linq;
using System.Windows.Controls;
using System.Windows;

namespace WPFDevelopers.Controls
{
    public class WaterfallPanel : VirtualizingPanel
    {
        private List<double> columnHeights = new List<double>();
        protected override Size MeasureOverride(Size availableSize)
        {
            columnHeights.Clear();
            var panelDesiredSize = new Size(0, 0);
            columnHeights = new double[Columns].ToList();
            double currentX = 0;
            var width = availableSize.Width / Columns - (Columns * Spacing);
            for (int i = 0; i < InternalChildren.Count; i++)
            {
                var child = InternalChildren[i] as FrameworkElement;
                if (child == null)
                    continue;
                child.Measure(availableSize);
                child.Width = width;
                int columnIndex = i % Columns;
                double x = columnIndex != 0 ? currentX + Spacing : 0;
                double y = columnHeights[columnIndex];
                if (i >= Columns)
                    y = y + Spacing;
                var size = new Size(width, child.DesiredSize.Height);
                child.Arrange(new Rect(new Point(x, y), size));
                panelDesiredSize.Width = Math.Max(panelDesiredSize.Width, x + child.DesiredSize.Width);
                panelDesiredSize.Height = Math.Max(panelDesiredSize.Height, y + child.DesiredSize.Height);
                currentX = x + size.Width;
                if (currentX >= Width)
                    currentX = 0;
                columnHeights[columnIndex] += child.DesiredSize.Height + (i >= Columns ? Spacing : 0);
            }
            return panelDesiredSize;
        }

        public void AddChild(UIElement element)
        {
            Children.Add(element);
        }

        public int Columns
        {
            get { return (int)GetValue(ColumnsProperty); }
            set { SetValue(ColumnsProperty, value); }
        }

        public static readonly DependencyProperty ColumnsProperty =
            DependencyProperty.Register("Columns", typeof(int), typeof(WaterfallPanel), new PropertyMetadata(3));

        public double Spacing
        {
            get { return (double)GetValue(SpacingProperty); }
            set { SetValue(SpacingProperty, value); }
        }

        public static readonly DependencyProperty SpacingProperty =
            DependencyProperty.Register("Spacing", typeof(double), typeof(WaterfallPanel), new PropertyMetadata(5.0));
    }
}

2）示例（一）代码WaterfallPanelExample.xaml如下:

  <ScrollViewer>
      <wd:WaterfallPanel Width="750">
          <wd:WaterfallPanel.Resources>
              <Style TargetType="Border">
                  <Setter Property="CornerRadius" Value="10" />
                  <Setter Property="BorderBrush" Value="LightGray" />
                  <Setter Property="BorderThickness" Value="1" />
              </Style>
              <Style TargetType="ImageBrush">
                  <Setter Property="Stretch" Value="Fill" />
              </Style>
              <Style TargetType="Textblock">
                  <Setter Property="Margin" Value="4,10" />
                  <Setter Property="Foreground" Value="White" />
              </Style>
              <Style x:Key="BorderContent" TargetType="Border">
                  <Setter Property="Height" Value="40" />
                  <Setter Property="CornerRadius" Value="10,10,0,0" />
                  <Setter Property="VerticalAlignment" Value="Top" />
                  <Setter Property="Background">
                      <Setter.Value>
                          <LinearGradientBrush Opacity=".3" StartPoint="0,.5" EndPoint="0,1">
                              <GradientStop Offset="0" Color="DimGray" />
                              <GradientStop Offset="0.9" Color="Gray" />
                              <GradientStop Offset="1" Color="Transparent" />
                          </LinearGradientBrush>
                      </Setter.Value>
                  </Setter>
              </Style>
          </wd:WaterfallPanel.Resources>
          <Border Height="340">
              <Border.Background>
                  <ImageBrush ImageSource="http://tse2-mm.cn.bing.net/th/id/OIP-C.WVAYTzW5VMZgAErg-y6EgwAAAA" />
              </Border.Background>
              <Border Style="{StaticResource BorderContent}">
                  <TextBlock Text="WVAYTzW5VMZgAErg" />
              </Border>
          </Border>
          <Border Height="300">
              <Border.Background>
                  <ImageBrush ImageSource="http://tse1-mm.cn.bing.net/th/id/OIP-C.e51iwDiqzatju6Bf50lJ2QHaMW" />
              </Border.Background>
              <Border Style="{StaticResource BorderContent}">
                  <TextBlock Text="e51iwDiqzatju6Bf50lJ2QHaMW" />
              </Border>
          </Border>
          <Border Height="280">
              <Border.Background>
                  <ImageBrush ImageSource="http://tse1-mm.cn.bing.net/th/id/OIP-C.DB2fWdfqfr8w3sP7wiboHgHaNK" />
              </Bordjavascripter.Background>
              <Border Style="{StaticResource BorderContent}">
                  <TextBlock Text="dB2fWdfqfr8w3sP7wiboHgHaNK" />
              </Border>
          </Border>
          <Border Height="350">
              <Border.Background>
                  <ImageBrush ImageSource="http://tse4-mm.cn.bing.net/th/id/OIP-C.IzGLt2NgGhakuvbk008FOwHaK9" />
              </Border.Background>
              <Border Style="{StaticResource BorderContent}">
                  <TextBlock Text="IzGLt2NgGhakuvbk008FOwHaK9" />
              </Border>
          </Border>
          <Border Height="400">
              <Border.Background>
                  <ImageBrush ImageSource="http://pic4.zhimg.com/v2-6233e57a364dcb3b6c5f066f8b30dab4_r.jpg" />
              </Border.Background>
              <Border Style="{StaticResource BorderContent}">
                  <TextBlock Text="6233e57a364dcb3b6c5f066f8b30dab4_r" />
              </Border>
          </Border>
          <Border Height="240">
              <Border.Background>
                  <ImageBrush ImageSource="http://tse1-mm.cn.bing.net/th/id/OIP-C.ivs2k5Q7Zx7WRZVuSDUJqQHaJ4" />
              </Border.Background>
              <Border Style="{StaticResource BorderContent}">
                  <TextBlock Text="ivs2k5Q7Zx7WRZVuSDUJqQHaJ4" />
              </Border>
          </Border>
          <Border Height="290">
              <Border.Background>
                  <ImageBrush ImageSource="http://tse3-mm.cn.bing.net/th/id/OIP-C.sTVQljOS9ntgkUyvDXk68AHaKe" />
              </Border.Background>
              <Border Style="{StaticResource BorderContent}">
                  <TextBlock Text="sTVQljOS9ntgkUyvDXk68AHaKe" />
              </Border>
          </Border>
          <Border Height="207">
              <Border.Backgrouandroidnd>
                  <ImageBrush ImageSource="http://tse2-mm.cn.bing.net/th/id/OIP-C.caVFPs_YGiHH-7vOpQ7GqwHaHY" />
              </Border.Background>
              <Border Style="{StaticResource BorderContent}">
                  <TextBlock Text="7vOpQ7GqwHaHY" />
              </Border>
          </Border>
          <Border Height="200">
              <Border.Background>
                  <ImageBrush ImageSource="http://tse2-mm.cn.bing.net/th/id/OIP-C.T_Zi1o-AYSCp4c00D_zCVAHaHa" />
              </Border.Background>
              <Border Style="{StaticResource BorderContent}">
                  <TextBlock Text="AYSCp4c00D_zCVAHaHa" />
              </Border>
          </Border>
          <Border Height="220">
              <Border.Background>
                  <ImageBrush ImageSource="http://tse2-mm.cn.bing.net/th/id/OIP-C.-EGv7Ycl5Zu46_YIGjNuDgHaH4" />
              </Border.Background>
              <Border Style="{StaticResource BorderContent}">
                  <TextBlock Text="EGv7Ycl5Zu46_YIGjNuDgHaH4" />
              </Border>
          </Border>
          <Border Height="200">
    编程客栈          <Border.Background>
                  <ImageBrush ImageSource="http://tse4-mm.cn.bing.net/th/id/OIP-C.TQ1f0BMQ7Bo7PuRKnCJAMAHaHa" />
              </Border.Background>
              <Border Style="{StaticResource BorderChttp://www.devze.comontent}">
                  <TextBlock Text="TQ1f0BMQ7Bo7PuRKnCJAMAHaHa" />
              </Border>
          </Border>
          <Border Height="450">
              <B编程客栈order.Background>
                  <ImageBrush ImageSource="http://img.zcool.cn/community/01493f5d11d9cca801205e4b24e764.jpg" />
              </Border.Background>
              <Border Style="{StaticResource BorderContent}">
                  <TextBlock Text="01493f5d11d9cca801205e4b24e764" />
              </Border>
          </Border>
      </wd:WaterfallPanel>
  </ScrollViewer>

3）示例（二）后台添加代码WaterfallPanelExample.xaml.cs 如下:

var ran = new Random();
for (int i = 0; i < 1000; i++)
{
    var btn = new Button { Content = i.ToString(), Height = (double)ran.Next(100, 1000) };
    MyWaterfallPanel.AddChild(btn);
}

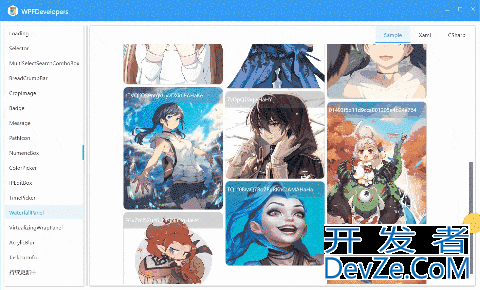

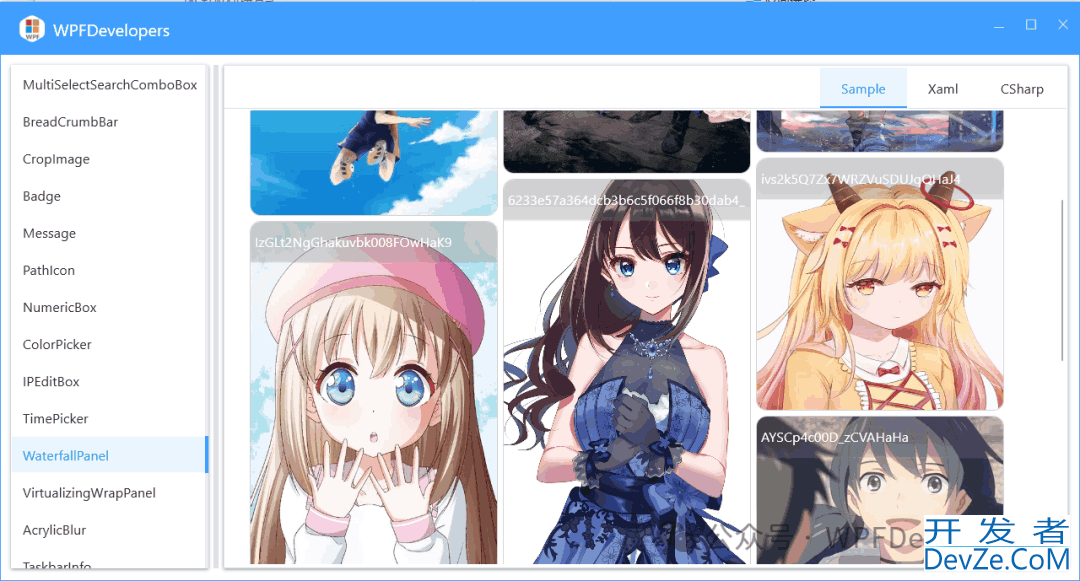

效果图
