Android Bugreport实现原理深入分析
目录
- Bugreport介绍
- Bugreport使用方式
- Bugrepot成果物的命名方式
- bugreport的实现
Bugreport介绍
android Bugreport是一个用于记录和收集 Android设备上系统信息、日志和调试信息的工具。
系统发生某些问题时，可以通过bugreport把系统当前时刻点（运行BugRepot的时刻）的系统相关的状态和信息都抓到一个zip中。
通过bugreport可以帮忙开发人员分析和解决问题。
Bugreport其实就是一系列的信息的汇总，包括日志、内存状态、进程信息、崩溃信息、服务状态等等。用一个大而近乎全的现场，来帮忙更好的分析问题。
并非所有问题，都需要用Bugreport抓取一份大而全的现场。可以根据经验考虑选用bugreport或者其他工具。
Bugreport收集的信息一般包括：
- 设备软硬件信息
- 系统日志
- 系统运行状态，如cpu、内存、网络状态等。
- 程序崩溃信息，如anr、墓碑等。
Bugreport使用方式
adb方式
adb bugreport
console方式
bugreportz -p
执行成功后，会在/data/user_de/0/com.android.shell/files/bugrepo编程客栈rts/下成一个生成一个 bugreport-*.zip的文件。
Bugrepot成果物的命名方式
文件命名形式为：
bugreport-[device_name]-[build_id]-[localtime].zip
device_name:属性ro.product.name，默认为UNKONW_DEVICE
build_id：属性ro.build.id的值，默认为UNKOWN_BUILD
localtime: 抓取bugreport时的本地时间
例如：
bugreport-arm-123.123-2024-02-28-19-18-14.zip
device_name:arm
build_id:123.123
localtime:2024-02-28-19-18-14

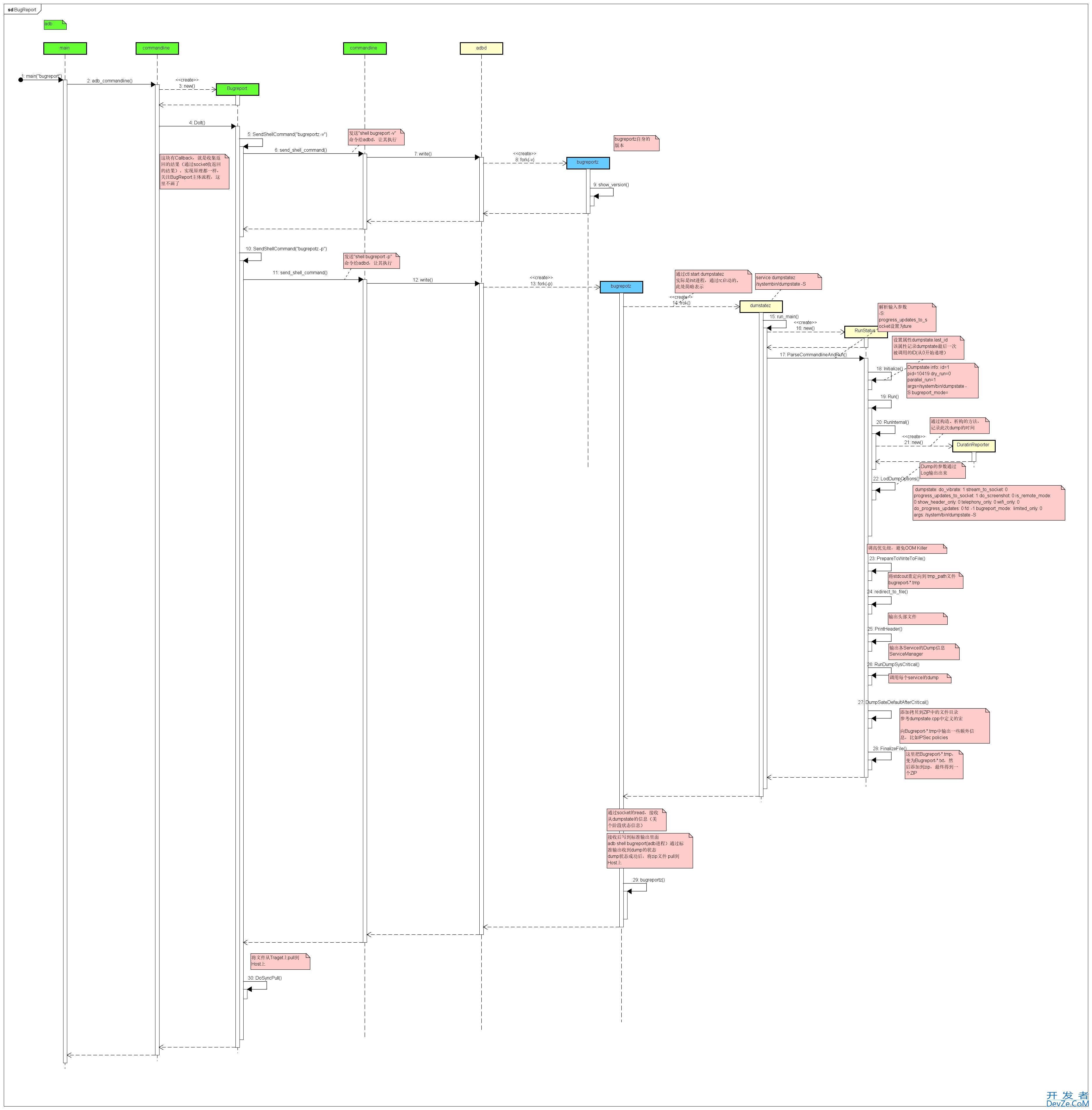

bugreport的实现
adb bugreport会调用adbd，让adbd执行bugreportz -p的shell命令。bugreportz 调用dumpstate -S，该命令会生成一个*.zip的bugreport文件。
生成后，bugreportz会将生成的通知通过STDOUT_FILENO，告知adb。adb收到这个通知后，将对应的文件pull到Host上。
adb bugreport到adbd执行bugrepotz -p
adb bugrepojavascriptrt执行(Host端），解析参数"bugreport"。
// packages/modules/adb/client/main.cpp
int main(int argc, char* argv[], char* envp[]) {
__adb_argv = const_cast<const char**>(argv);
__adb_envp = const_cast<const char**>(envp);
adb_trace_init(argv);
return adb_commandline(argc - 1, const_cast<const char**>(argv + 1));
}
// packages/modules/adb/client/commandline.cpp
int adb_commandline(int argc, const char** argv) {
// 省略
/* adb_connect() commands */
if (!strcmp(argv[0], "devices")) {
// 省略
} else if (!strcmp(argv[0], "bugreport")) {
Bugreport bugreport;
return bugreport.DoIt(argc, argv);
} else if (!strcmp(argv[0], "forward") || !strcmp(argv[0], "reverse")) {
// 省略
}
Bugreport类（Adb模块）DoIt函数向Adbd发送“bugreportz -v"和”bugreportz -p“命令。执行bugreportz -v，获取bugreportz的版本，一方面是执行版本差异的流程，另一方面也是作为Test，测试bugreportz是否可以执行。
int Bugreport::DoIt(int argc, const char** argv) {
if (argc > 2) error_exit("usage: adb bugreport [[PATH] | [--stream]]");
// Gets bugreportz version.
std::string bugz_stdout, bugz_stderr;
DefaultStandardStreamsCallback version_callback(&bugz_stdout, &bugz_stderr);
int status = SendShellCommand("bugreportz -v", false, &version_callback);
std::string bugz_version = android::base::Trim(bugz_stderr);
std::string bugz_output = android::base::Trim(bugz_stdout);
int bugz_ver_major = 0, bugz_ver_minor = 0;
if (status != 0 || bugz_version.empty()) {
D("'bugreportz' -v results: status=%d, stdout='%s', stderr='%s'", status,
bugz_output.c_str(), bugz_version.c_str());
if (argc == 1) {
// Device does not support bugreportz: if called as 'adb bugreport', just falls out to
// the flat-file version.
fprintf(stderr,
"Failed to get bugreportz version, which is only available on devices "
"running Android 7.0 or later.\nTrying a plain-text bug report instead.\n");
return SendShellCommand("bugreport", false);
}
// But if user explicitly asked for a zipped bug report, fails instead (otherwise calling
// 'bugreport' would generate a lot of output the user might not be prepared to handle).
fprintf(stderr,
"Failed to get bugreportz version: 'bugreportz -v' returned '%s' (code %d).\n"
"If the device does not run Android 7.0 or above, try this instead:\n"
"\tadb bugreport > bugreport.txt\n",
bugz_output.c_str(), status);
return status != 0 ? status : -1;
}
std::sscanf(bugz_version.c_str(), "%d.%d", &bugz_ver_major, &bugz_ver_minor);
std::string dest_file, dest_dir;
if (argc == 1) {
// No args - use current directory
if (!getcwd(&dest_dir)) {
perror("adb: getcwd failed");
return 1;
}
} else if (!strcmp(argv[1], "--stream")) {
if (bugz_ver_major == 1 && bugz_ver_minor < 2) {
fprintf(stderr,
"Failed to stream bugreport: bugreportz does not support stream.\n");
} else {
return SendShellCommand("bugreportz -s", false);
}
} else {
// Check whether argument is a directory or file
if (directory_exists(argv[1])) {
dest_dir = argv[1];
} else {
dest_file = argv[1];
}
}
if (dest_file.empty()) {
// Uses a default value until device provides the proper name
dest_file = "bugreport.zip";
} else {
if (!android::base::EndsWithIgnoreCase(dest_file, ".zip")) {
www.devze.com dest_file += ".zip";
}
}
bool show_progress = true;
std::string bugz_command = "bugreportz -p";
if (bugz_version == "1.0") {
// 1.0 does not support progress notifications, so print a disclaimer
// message instead.
fprintf(stderr,
"Bugreport is in progress and it could take minutes to complete.\n"
"Please be patient and do not cancel or disconnect your device "
"until it completes.\n");
show_progress = false;
bugz_command = "bugreportz";
}
BugreportStandardStreamsCallback bugz_callback(dest_dir, dest_file, show_progress, this);
return SendShellCommand(bugz_command, false, &bugz_callback);
}
adbd执行bugrepotz -p
此部分省略。就是adbd执行下面两个命令：shell bugreportz -v 和 bugreportz -p
不是主要关注点，想了了解的自行阅读源码即可。
bugreportz -p执行并调用dumpstate -S
通过bugreportz -p，收集系统当前时刻点的各种信息（信息参考上面的内容）。bugreportz -v比较简单，仅为输出一下bugreportz的版本。
// frameworks/native/cmds/bugreportz/main.cpp
static constexpr char VERSION[] = "1.2";
static void show_usage() {
fprintf(stderr,
"usage: bugreportz [-hpsv]\n"
" -h: to display this help message\n"
" -p: display progress\n"
" -s: stream content to standard output\n"
" -v: to display the version\n"
" or no arguments to generate a zipped bugreport\n");
}
static void show_version() {
fprintf(stderr, "%s\n", VERSION);
}
int main(int argc, char* argv[]) {
bool show_progress = false;
bool stream_data = false;
if (argc > 1) {
/* parse arguments */
int c;
while ((c = getopt(argc, argv, "hpsv")) != -1) {
switch (c) {
case 'h':
show_usage();
return EXIT_SUCCESS;
case 'p':
show_progress = true;
break;
case 's':
stream_data = true;
break;
case 'v':
show_version();
return EXIT_SUCCESS;
default:
show_usage();
return EXIT_FAILURE;
}
}
}
// We don't support any non-option arguments.
if (optind != argc) {
show_usage();
return EXIT_FAILURE;
}
// TODO: code below was copy-and-pasted from bugreport.cpp (except by the
// timeout value);
// should be reused instead.
// Start thttp://www.devze.comhe dumpstatez service.
if (stream_data) {
property_set("ctl.start", "dumpstate");
} else {
// 调用dumpstatez
property_set("ctl.start", "dumpstatez");
}
// Socket will not be available until service starts.
int s = -1;
for (int i = 0; i < 20; i++) {
// 接连dumpstatez的socket（接收状态信息）
s = socket_local_client("dumpstate", ANDROID_SOCKET_NAMESPACE_RESERVED, SOCK_STREAM);
if (s >= 0) break;
// Try again in 1 second.
sleep(1);
}
if (s == -1) {
printf("FAIL:Failed to connect to dumpstatez service: %s\n", strerror(errno));
return EXIT_FAILURE;
}
// Set a timeout so that if nothing is read in 10 minutes, we'll stop
// reading and quit. No timeout in dumpstate is longer than 60 seconds,
// so this gives lots of leeway in case of unforeseen time outs.
struct timeval tv;
tv.tv_sec = 10 * 60;
tv.tv_usec = 0;
if (setsockopt(s, SOL_SOCKET, SO_RCVTIMEO, &tv, sizeof(tv)) == -1) {
fprintf(stderr,
"WARNING: Cannot set socket timeout, bugreportz might hang indefinitely: %s\n",
strerror(errno));
}
int ret;
if (stream_data) {
ret = bugreportz_stream(s);
} else {
// 走这里，show_progress为True
ret = bugreportz(s, show_progress);
}
if (close(s) == -1) {
fprintf(stderr, "WARNING: error closing socket: %s\n", strerror(errno));
ret = EXIT_FAILURE;
}
return ret;
}
bugreportz函数中，接收dumpstatez（通过socket）返回的状态信息，并将其写到标准输出中。adb会通过标准输出，了解到命令执行的状态。为啥dumpstatez不将状态信息直接写到标准输出中？因为dumpstatez将标准输出重定向到文件了。
static constexpr char BEGIN_PREFIX[] = "BEGIN:";
static constexpr char PROGRESS_PREFIX[] = "PROGRESS:";
static void write_line(const std::string& line, bool show_progress) { if (line.empty()) return;
// When not invoked with the -p option, it must skip BEGIN and PROGRESS lines otherwise it// will break adb (which is expecting either OK or FAIL).if (!show_progress && (android::base::StartsWith(line, PROGRESS_PREFIX) ||
android::base::StartsWith(line, BEGIN_PREFIX)))
return;
android::base::WriteStringToFd(line, STDOUT_FILENO);
}
int bugreportz(int s, bool show_progress) { std::string line;
while (1) {
char buffer[65536];
ssize_t bytes_read = TEMP_FAILURE_RETRY(read(s, buffer, sizeof(buffer)));
if (bytes_read == 0) {
break;
} else if (bytes_read == -1) {
// EAGAIN really means time out, so change the errno.if (errno == EAGAIN) {
errno = ETIMEDOUT;
}
printf("FAIL:Bugreport read terminated abnormally (%s)\n", strerror(errno));
return EXIT_FAILURE;
}
// Writes line by line.for (int i = 0; i < bytes_read; i++) {
char c = buffer[i];
line.append(1, c);
if (c == '\n') {
write_line(line, show_progress);
line.clear();
}
}
}
// Process final line, in case it didn't finish with newlinewrite_line(line, show_progress);
return EXIT_SUCCESS;
}
上面代码中通过 “ctl.start”, "dumpstatez"执行了dumpstatez。查看dumpstatez对应的rc文件。其对应/system/bin/dumpstate -S（注意为大写S)
service dumpstatez /system/bin/dumpstate -S
socket dumpstate stream 0660 shell log class main disabled oneshot
dumpstate -S生成Bugreport对应的zip文件
dumpstate -s命令执行
// frameworks/native/cmds/dumpstate/main.cpp
int main(int argc, char* argv[]) {
if (ShouldStartServiceAndwait(argc, argv)) {
int ret;
if ((ret = android::os::DumpstateService::Start()) != android::OK) {
MYLOGE("Unable to start 'dumpstate' service: %d", ret);
exit(1);
}
MYLOGI("'dumpstate' service started and will wait for a call to startBugreport()");
// Waits forever for an incoming connection.
// TODO(b/111441001): should this time out?
android::IPCThreadState::self()->joinThreadPool();
return 0;
} else {
return run_main(argc, argv);
}
}
// frameworks/native/cmds/dumpstate/dumpstate.cpp
/* Main entry point for dumpstate binary. */
int run_main(int argc, char* argv[]) {
Dumpstate::RunStatus status = ds.ParseCommandlineAndRun(argc, argv);
switch (status) {
case Dumpstate::RunStatus::OK:
exit(0);
case Dumpstate::RunStatus::HELP:
ShowUsage();
exit(0);
case Dumpstate::RunStatus::INVALID_INPUT:
fprintf(stderr, "Invalid combination of args\n");
ShowUsage();
exit(1);
case Dumpstate::RunStatus::ERROR:
FALLTHROUGH_INTENDED;
case Dumpstate::RunStatus::USER_CONSENT_DENIED:
FALLTHROUGH_INTENDED;
case Dumpstate::RunStatus::USER_CONSENT_TIMED_OUT:
exit(2);
}
}
Dumpstate::RunStatus Dumpstate::ParseCommandlineAndRun(int argc, char* argv[]) {
std::unique_ptr<Dumpstate::DumpOptions> options = std::make_unique<Dumpstate::DumpOptions>();
Dumpstate::RunStatus status = options->Initialize(argc, argv);
if (status == Dumpstate::RunStatus::OK) {
SetOptions(std::move(options));
// When directly running dumpstate binary, the output is not expected to be written
// to any external file descriptor.
assert(options_->bugreport_fd.get() == -1);
// calling_uid and calling_package are for user consent to share the bugreport with
// an app; they are irrelevant here because bugreport is triggered via command line.
// Update Last ID before calling Run().
Initialize();
status = Run(-1 /* calling_uid */, "" /* calling_package */);
}
return status;
}
创建Dumpstate::DumpOptions对象，调用Initialize函数，解析输入参数“-S”。S(大写）会将参数的progress_updates_to_socket设置为ture，这个flag标志着dumpstate将状态告知给调用者（通过socket）
void Dumpstate::DumpOptions::Initialize(BugreportMode bugreport_mode,
const android::base::unique_fd& bugreport_fd_in,
const android::base::unique_fd& screenshot_fd_in,
bool is_screenshot_requested) {
// Duplicate the fds because the passed in fds don't outlive the binder transaction.
bugreport_fd.reset(dup(bugreport_fd_in.get()));
screenshot_fd.reset(dup(screenshot_fd_in.get()));
SetOptionsFromMode(bugreport_mode, this, is_screenshot_requested);
}
Dumpstate::RunStatus Dumpstate::DumpOptions::Initialize(int argc, char* argv[]) {
RunStatus status = RunStatus::OK;
int c;
while ((c = getopt(argc, argv, "dho:svqzpLPBRSV:w")) != -1) {
switch (c) {
// clang-format off
case 'o': out_dir = optarg; break;
case 's': stream_to_socket = true; break;
case 'S': progress_updates_to_socket = true; break;
case 'v': show_header_only = true; break;
case 'q': do_vibrate = false; break;
case 'p': do_screenshot = true; break;
case 'P': do_progress_updates = true; break;
case 'R': is_remote_mode = true; break;
case 'L': limited_only = true; break;
case 'V':
case 'd':
case 'z':
// compatibility no-op
break;
case 'w':
// This was already processed
break;
case 'h':
status = RunStatus::HELP;
break;
default:
fprintf(stderr, "Invalid option: %c\n", c);
status = RunStatus::INVALID_INPUT;
break;
// clang-format on
}
}
for (int i = 0; i < argc; i++) {
args += argv[i];
if (i < argc - 1) {
args += " ";
}
}
// Reset next index used by getopt so this can be called multiple times, for eg, in tests.
optind = 1;
return status;
}
然后调用Dumpstate::Initialize 和Dumpstate::Run，开始收集bugreport的内容。
void Dumpstate::Initialize() {
/* gets the sequential id */
uint32_t last_id = android::base::GetIntProperty(PROPERTY_LAST_ID, 0);
id_ = ++last_id;
android::base::SetProperty(PROPERTY_LAST_ID, std::to_string(last_id));
}
Dumpstate::RunStatus Dumpstate::Run(int32_t calling_uid, const std::string& calling_package) {
Dumpstate::RunStatus status = RunInternal(calling_uid, calling_package);
if (listener_ != nullptr) {
switch (status) {
case Dumpstate::RunStatus::OK:
listener_->onFinished();
break;
php case Dumpstate::RunStatus::HELP:
break;
case Dumpstate::RunStatus::INVALID_INPUT:
listener_->onError(IDumpstateListener::BUGREPORT_ERROR_INVALID_INPUT);
break;
case Dumpstate::RunStatus::ERROR:
listener_->onError(IDumpstateListener::BUGREPORT_ERROR_RUNTIME_ERROR);
break;
case Dumpstate::RunStatus::USER_CONSENT_DENIED:
listener_->onError(IDumpstateListener::BUGREPORT_ERROR_USER_DENIED_CONSENT);
break;
case Dumpstate::RunStatus::USER_CONSENT_TIMED_OUT:
listener_->onError(IDumpstateListener::BUGREPORT_ERROR_USER_CONSENT_TIMED_OUT);
break;
}
}
return status;
}
Dumpstate::Run函数中调用RunInternal实现Bugreport的收集。该函数内容比较多，只关注三个主要流程：主要文件bugreport-*.txt的生成，log、anr等文件copy到zip文件中、zip文件的生成。
Dumpstate::RunStatus Dumpstate::RunInternal(int32_t calling_uid,
const std::string& calling_package) {
DurationReporter duration_reporter("RUN INTERNAL", /* logcat_only = */true);
LogDumpOptions(*options_);
if (!options_->ValidateOptions()) {
MYLOGE("Invalid options specified\n");
return RunStatus::INVALID_INPUT;
}
/* set as high priority, and protect from OOM killer */
setpriority(PRIO_PROCESS, 0, -20);
FILE* oom_adj = fopen("/proc/self/oom_score_adj", "we");
if (oom_adj) {
fputs("-1000", oom_adj);
fclose(oom_adj);
} else {
/* fallback to kernels <= 2.6.35 */
oom_adj = fopen("/proc/self/oom_adj", "we");
if (oom_adj) {
fputs("-17", oom_adj);
fclose(oom_adj);
}
}
MYLOGI("dumpstate info: id=%d, args='%s', bugreport_mode= %s bugreport format version: %s\n",
id_, options_->args.c_str(), options_->bugreport_mode.c_str(), version_.c_str());
// If we are going to use a socket, do it as early as possible
// to avoid timeouts from bugreport.
if (options_->stream_to_socket || options_->progress_updates_to_socket) {
MYLOGD("Opening control socket\n");
control_socket_fd_ = open_socket_fn_("dumpstate");
if (control_socket_fd_ == -1) {
return ERROR;
}
if (options_->progress_updates_to_socket) {
options_->do_progress_updates = 1;
}
}
// 准备文件
if (!PrepareToWriteToFile()) {
return ERROR;
}
// 将标准输出，重定向到临时文件Bugreport-*.tmp文件中
// 通过Bugreport-*.tmp文件，产生最终的Bugreport-*.zip
// Redirect stdout to tmp_path_. This is the main bugreport entry and will be
// moved into zip file later, if zipping.
TEMP_FAILURE_RETRY(dup_stdout_fd = dup(fileno(stdout)));
// TODO: why not write to a file instead of stdout to overcome this problem?
/* TODO: rather than generating a text file now and zipping it later,
it would be more efficient to redirect stdout to the zip entry
directly, but the libziparchive doesn't support that option yet. */
if (!redirect_to_file(stdout, const_cast<char*>(tmp_path_.c_str()))) {
return ERROR;
}
if (chown(tmp_path_.c_str(), AID_SHELL, AID_SHELL)) {
MYLOGE("Unable to change ownership of temporary bugreport file %s: %s\n",
tmp_path_.c_str(), strerror(errno));
}
// 输出头部分信息（就是Bugreport-*.txt最开头的一些版本信息)
// NOTE: there should be no stdout output until now, otherwise it would break the header.
// In particular, DurationReport objects should be created passing 'title, NULL', so their
// duration is logged into MYLOG instead.
PrintHeader();
bool is_dumpstate_restricted = options_->telephony_only
|| options_->wifi_only
|| options_->limited_only;
if (!is_dumpstate_restricted) {
// Dump系统关键服务的状态
// ------ DUMPSYS CRITICAL (/system/bin/dumpsys) ------的信息
// Invoke critical dumpsys first to preserve system state, before doing anything else.
RunDumpsysCritical();
}
if (options_->telephony_only) {
DumpstateTelephonyOnly(calling_package);
} else if (options_->wifi_only) {
DumpstateWifiOnly();
} else if (options_->limited_only) {
DumpstateLimitedOnly();
} else {
// Dump state for the default case. This also drops root.
// dump额外信息
RunStatus s = DumpstateDefaultAfterCritical();
if (s != RunStatus::OK) {
if (s == RunStatus::USER_CONSENT_DENIED) {
HandleUserConsentDenied();
}
return s;
}
}
// 解除重定向
/* close output if needed */
TEMP_FAILURE_RETRY(dup2(dup_stdout_fd, fileno(stdout)));
// 完成zip的打包，删除临时文件
// Zip the (now complete) .tmp file within the internal directory.
FinalizeFile();
// 省略
}
PrepareToWriteToFile函数中，确定bugreport信息写入的文件名。文件名命名方式为bugreport-[device_name]-[build_id]-[localtime]。文件信息会输出到Log中。
dumpstate:
Bugreport dir: [/data/user_de/0/com.android.shell/files/bugreports]Base name: [*] Suffix: [2024-04-22-19-18-14]Log path: [/data/user_de/0/com.android.shell/files/bugreports/bugreport-*-2024-04-22-19-18-14-dumpstate_log-10419.txt] Temporary path: [/data/user_de/0/com.android.shell/files/bugreports/bugreport-*-2024-04-22-19-18-14-.tmp] Screenshot path: []
/*
* Prepares state like filename, screenshot path, etc in Dumpstate. Also initializes ZipWriter
* and adds the version file. Return false if zip_file could not be open to write.
*/
static bool PrepareToWriteToFile() {
MaybeResolveSymlink(&ds.bugreport_internal_dir_);
std::string build_id = android::base::GetProperty("ro.build.id", "UNKNOWN_BUILD");
std::string device_name = android::base::GetProperty("ro.product.name", "UNKNOWN_DEVICE");
ds.base_name_ = StringPrintf("bugreport-%s-%s", device_name.c_str(), build_id.c_str());
char date[80];
strftime(date, sizeof(date), "%Y-%m-%d-%H-%M-%S", localtime(&ds.now_));
ds.name_ = date;
if (ds.options_->telephony_only) {
ds.base_name_ += "-telephony";
} else if (ds.options_->wifi_only) {
ds.base_name_ += "-wifi";
}
if (ds.options_->do_screenshot) {
ds.screenshot_path_ = ds.GetPath(ds.CalledByApi() ? "-png.tmp" : ".png");
}
ds.tmp_path_ = ds.GetPath(".tmp");
ds.log_path_ = ds.GetPath("-dumpstate_log-" + std::to_string(ds.pid_) + ".txt");
std::string destination = ds.CalledByApi()
? StringPrintf("[fd:%d]", ds.options_->bugreport_fd.get())
: ds.bugreport_internal_dir_.c_str();
MYLOGD(
"Bugreport dir: [%s] "
"Base name: [%s] "
"Suffix: [%s] "
"Log path: [%s] "
"Temporary path: [%s] "
"Screenshot path: [%s]\n",
destination.c_str(), ds.base_name_.c_str(), ds.name_.c_str(), ds.log_path_.c_str(),
ds.tmp_path_.c_str(), ds.screenshot_path_.c_str());
ds.path_ = ds.GetPath(ds.CalledByApi() ? "-zip.tmp" : ".zip");
MYLOGD("Creating initial .zip file (%s)\n", ds.path_.c_str());
create_parent_dirs(ds.path_.c_str());
ds.zip_file.reset(fopen(ds.path_.c_str(), "wb"));
if (ds.zip_file == nullptr) {
MYLOGE("fopen(%s, 'wb'): %s\n", ds.path_.c_str(), strerror(errno));
return false;
}
ds.zip_writer_.reset(new ZipWriter(ds.zip_file.get()));
ds.AddTextZipEntry("version.txt", ds.version_);
return true;
}
在PrintHeader函数中，将bugreport-.txt中的头部信息输入到标准输出中，而标准输出已经重定向到了bugreport-.tmp文件中。
void Dumpstate::PrintHeader() const {
std::string build, fingerprint, radio, bootloader, network;
char date[80];
build = android::base::GetProperty("ro.build.display.id", "(unknown)");
fingerprint = android::base::GetProperty("ro.build.fingerprint", "(unknown)");
radio = android::base::GetProperty("gsm.version.baseband", "(unknown)");
bootloader = android::base::GetProperty("ro.bootloader", "(unknown)");
network = android::base::GetProperty("gsm.operator.alpha", "(unknown)");
strftime(date, sizeof(date), "%Y-%m-%d %H:%M:%S", localtime(&now_));
printf("========================================================\n");
printf("== dumpstate: %s\n", date);
printf("========================================================\n");
printf("\n");
printf("Build: %s\n", build.c_str());
// NOTE: fingerprint entry format is important for other tools.
printf("Build fingerprint: '%s'\n", fingerprint.c_str());
printf("Bootloader: %s\n", bootloader.c_str());
printf("Radio: %s\n", radio.c_str());
printf("Network: %s\n", network.c_str());
int64_t module_metadata_version = android::os::GetModuleMetadataVersion();
if (module_metadata_version != 0) {
printf("Module Metadata version: %" PRId64 "\n", module_metadata_version);
}
printf("SDK extension versions [r=%s s=%s]\n",
android::base::GetProperty("build.version.extensions.r", "-").c_str(),
android::base::GetProperty("build.version.extensions.s", "-").c_str());
printf("Kernel: ");
DumpFileToFd(STDOUT_FILENO, "", "/proc/version");
printf("Command line: %s\n", strtok(cmdline_buf, "\n"));
printf("Uptime: ");
RunCommandToFd(STDOUT_FILENO, "", {"uptime", "-p"},
CommandOptions::WithTimeout(1).Always().Build());
printf("Bugreport format version: %s\n", version_.c_str());
printf("Dumpstate info: id=%d pid=%d dry_run=%d parallel_run=%d args=%s bugreport_mode=%s\n",
id_, pid_, PropertiesHelper::IsDryRun(), PropertiesHelper::IsParallelRun(),
options_->args.c_str(), options_->bugreport_mode.c_str());
printf("\n");
}
然后在RunDumpsysCritical函数中，通过ServiceManager获取当前系统的Service，并调用Service的dump，将Service的dump信息输出到bugreport-*.tmp文件中。另外，会通过proto的形式再输出一份service的dump信息。
// frameworks/native/cmds/dumpstate/dumpstate.cpp
static void RunDumpsysText(const std::string& title, int priority, std::chrono::milliseconds timeout,
std::chrono::milliseconds service_timeout) {
DurationReporter duration_reporter(title);
dprintf(STDOUT_FILENO, "------ %s (/system/bin/dumpsys) ------\n", title.c_str());
fsync(STDOUT_FILENO);
RunDumpsysTextByPriority(title, priority, timeout, service_timeout);
}
static void RunDumpsysText(const std::string& title, int priority, std::chrono::milliseconds timeout,
std::chrono::milliseconds service_timeout) {
DurationReporter duration_reporter(title);
dprintf(STDOUT_FILENO, "------ %s (/system/bin/dumpsys) ------\n", title.c_str());
fsync(STDOUT_FILENO);
RunDumpsysTextByPriority(title, priority, timeout, service_timeout);
}
static Dumpstate::RunStatus RunDumpsysTextByPriority(const std::string& title, int priority,
std::chrono::milliseconds timeout,
std::chrono::milliseconds service_timeout) {
auto start = std::chrono::steady_clock::now();
sp<android::IServiceManager> sm = defaultServiceManager();
Dumpsys dumpsys(sm.get());
Vector<String16> args;
Dumpsys::setServiceArgs(args, /* ASProto = */ false, priority);
Vector<String16> services = dumpsys.listServices(priority, /* supports_proto = */ false);
for (const String16& service : services) {
RETURN_IF_USER_DENIED_CONSENT();
std::string path(title);
path.append(" - ").append(String8(service).c_str());
size_t bytes_written = 0;
// 在dumpthread中，调用service的dump
status_t status = dumpsys.startDumpThread(Dumpsys::Type::DUMP, service, args);
if (status == OK) {
dumpsys.writeDumpHeader(STDOUT_FILENO, service, priority);
std::chrono::duration<double> elapsed_seconds;
if (priority == IServiceManager::DUMP_FLAG_PRIORITY_HIGH &&
service == String16("meminfo")) {
// Use a longer timeout for meminfo, since 30s is not always enough.
status = dumpsys.writeDump(STDOUT_FILENO, service, 60s,
/* as_proto = */ false, elapsed_seconds, bytes_written);
} else {
status = dumpsys.writeDump(STDOUT_FILENO, service, service_timeout,
/* as_proto = */ false, elapsed_seconds, bytes_written);
}
dumpsys.writeDumpFooter(STDOUT_FILENO, service, elapsed_seconds);
bool dump_complete = (status == OK);
dumpsys.stopDumpThread(dump_complete);
}
auto elapsed_duration = std::chrono::duration_cast<std::chrono::milliseconds>(
std::chrono::steady_clock::now() - start);
if (elapsed_duration > timeout) {
MYLOGE("*** command '%s' timed out after %llums\n", title.c_str(),
elapsed_duration.count());
break;
}
}
return Dumpstate::RunStatus::OK;
}
在DumpstateDefaultAfterCritical函数中，dump额外信息，以及将log、anr等等文件拷贝到zip文件中。
// frameworks/native/cmds/dumpstate/dumpstate.cpp
Dumpstate::RunStatus Dumpstate::DumpstateDefaultAfterCritical() {
// Capture first logcat early on; useful to take a snapshot before dumpstate logs take over the
// buffer.
DoLogcat();
// Capture timestamp after first logcat to use in next logcat
time_t logcat_ts = time(nullptr);
/* collect stack traces from Dalvik and native processes (needs root) */
if (dump_pool_) {
RETURN_IF_USER_DENIED_CONSENT();
// One thread is enough since we only need to enqueue DumpTraces here.
dump_pool_->start(/* thread_counts = */1);
// DumpTraces takes long time, post it to the another thread in the
// pool, if pool is available
dump_pool_->enqueueTask(DUMP_TRACES_TASK, &Dumpstate::DumpTraces, &ds, &dump_traces_path);
} else {
RUN_SLOW_FUNCTION_WITH_CONSENT_CHECK_AND_LOG(DUMP_TRACES_TASK, ds.DumpTraces,
&dump_traces_path);
}
/* Run some operations that require root. */
ds.tombstone_data_ = GetDumpFds(TOMBSTONE_DIR, TOMBSTONE_FILE_PREFIX, !ds.IsZipping());
ds.anr_data_ = GetDumpFds(ANR_DIR, ANR_FILE_PREFIX, !ds.IsZipping());
ds.AddDir(RECOVERY_DIR, true);
ds.AddDir(RECOVERY_DATA_DIR, true);
ds.AddDir(UPDATE_ENGINE_LOG_DIR, true);
ds.AddDir(LOGPERSIST_DATA_DIR, false);
if (!PropertiesHelper::IsUserBuild()) {
ds.AddDir(PROFILE_DATA_DIR_CUR, true);
ds.AddDir(PROFILE_DATA_DIR_REF, true);
ds.AddzipEntry(ZIP_ROOT_DIR + PACKAGE_DEX_USE_LIST, PACKAGE_DEX_USE_LIST);
}
ds.AddDir(PREREBOOT_DATA_DIR, false);
add_mountinfo();
DumpIpTablesAsRoot();
DumpDynamicPartitionInfo();
ds.AddDir(OTA_METADATA_DIR, true);
// Capture any IPSec policies in play. No keys are exposed here.
RunCommand("IP XFRM POLICY", {"ip", "xfrm", "policy"}, CommandOptions::WithTimeout(10).Build());
// Dump IPsec stats. No keys are exposed here.
DumpFile("XFRM STATS", XFRM_STAT_PROC_FILE);
// Run ss as root so we can see socket marks.
RunCommand("DETAILED SOCKET STATE", {"ss", "-eionptu"}, CommandOptions::WithTimeout(10).Build());
// Run iotop as root to show top 100 IO threads
RunCommand("IOTOP", {"iotop", "-n", "1", "-m", "100"});
// Gather shared memory buffer info if the product implements it
RunCommand("Dmabuf dump", {"dmabuf_dump"});
RunCommand("Dmabuf per-buffer/per-exporter/per-device stats", {"dmabuf_dump", "-b"});
DumpFile("PSI cpu", "/proc/pressure/cpu");
DumpFile("PSI memory", "/proc/pressure/memory");
DumpFile("PSI io", "/proc/pressure/io");
if (dump_pool_) {
RETURN_IF_USER_DENIED_CONSENT();
dump_pool_->waitForTask(DUMP_TRACES_TASK);
// Current running thread in the pool is the root user also. Shutdown
// the pool and restart later to ensure all threads in the pool could
// drop the root user.
dump_pool_->shutdown();
}
if (!DropRootUser()) {
return Dumpstate::RunStatus::ERROR;
}
RETURN_IF_USER_DENIED_CONSENT();
Dumpstate::RunStatus status = dumpstate();
// Capture logcat since the last time we did it.
DOSystemLogcat(logcat_ts);
return status;
}
最后在FinalizeFile函数中，将临时文件Bugreport-.tmp，copy到zip中，并命名为Bugreport-.zip。然后删除临时文件，完成zip文件的落盘。
/*
* Finalizes writing to the file by zipping the tmp file to the final location,
* printing zipped file status, etc.
*/static void FinalizeFile() { bool do_text_file = !ds.FinishZipFile();
if (do_text_file) {
MYLOGE("Failed to finish zip file; sending text bugreport instead\n");
}
std::string final_path = ds.path_;
if (ds.options_->OutputToCustomFile()) {
final_path = ds.GetPath(ds.options_->out_dir, ".zip");
android::os::CopyFileToFile(ds.path_, final_path);
}
if (ds.options_->stream_to_socket) {
android::os::CopyFileToFd(ds.path_, ds.control_socket_fd_);
} else if (ds.options_->progress_updates_to_socket) {
if (do_text_file) {
dprintf(ds.control_socket_fd_,
"FAIL:could not create zip file, check %s ""for more details\n",
ds.log_path_.c_str());
} else {
dprintf(ds.control_socket_fd_, "OK:%s\n", final_path.c_str());
}
}
}
adb将Bugrepo-*.zip pull到本地
当bugreport文件收集好后，会触发adb将相关文件pull到本地(Host)，路径为执行adb命令的路径。
// packages/modules/adb/client/bugreport.cpp
// Custom callback used to handle the output of zipped bugreports.
class BugreportStandardStreamsCallback : public StandardStreamsCallbackInterface {
public:
BugreportStandardStreamsCallback(const std::string& dest_dir, const std::string& dest_file,
bool show_progress, Bugreport* br)
: br_(br),
src_file_(),
dest_dir_(dest_dir),
dest_file_(dest_file),
line_message_(),
invalid_lines_(),
show_progress_(show_progress),
status_(0),
line_(),
last_progress_percentage_(0) {
SetLineMessage("generating");
}
int Done(int unused_) {
// Pull the generated bug report.
if (status_ == 0) {
// 将Bugreport-*.zip文件 pull到本地(host)
status_ =
br_->DoSyncPull(srcs, destination.c_str(), false, line_message_.c_str()) ? 0 : 1;
if (status_ == 0) {
printf("Bug report copied to %s\n", destination.c_str());
} else {
fprintf(stderr,
"Bug report finished but could not be copied to '%s'.\n"
"Try to run 'adb pull %s <directory>'\n"
"to copy it to a directory that can be written.\n",
destination.c_str(), src_file_.c_str());
}
}
return status_;
}
以上就是Android Bugreport实现原理深入分析的详细内容，更多关于Android Bugreport的资料请关注编程客栈(www.devze.com)其它相关文章！
加载中,请稍侯......
精彩评论
