Flask-Docs自动生成Api文档安装使用教程

目录

• Flask-Docs
• 特性
• 安装
• 使用
• 配置
• 如何书写 markdown 格式文档
• Api demo
• 完整代码
• Flask-RESTful Api demo
• flask.views.MethodView Api demo
• 装饰器 @ApiDoc.change_doc
• 调试器

Flask-Docs

影响我写文档的原因可能是代码和文档分离，有时候写完代码会忘记补文档，而且不能及时查看，使用 Flask-Docs 可以解决我的问题，这个插件可以根据代码注释生成文档页面，代码注释改动文档可以及时更新，而且支持离线文档下载，支持在线调试。

Flask-Docs  Flask Api 文档自动生成插件

特性

• 根据代码注释自动生成文档
• 支持离线 markdown 文档下载
• 支持 Flask-RESTful
• 支持 Flask-RESTX
• 支持 flask.views.MethodView
• 支持在线调试

链接 https://github.com/kwkwc/flas...

安装

pip3 install Flask-Docs

使用

from flask import Flask
from flask_docs import ApiDoc
app = Flask(__name__)
ApiDoc(
    app,
    title="Flask-Docs自动生成Api文档安装使用教程",
    version="1.0.0",
    description="A simple app API",
)

配置

# 使用 CDN
# app.config["API_DOC_CDN"] = True
# 禁用文档页面
# app.config["API_DOC_ENABLE"] = False
# SHA256 加密的授权密码，例如这里是 admin
# echo -n admin | shasum -a 256
# app.config["API_DOC_PASSWORD_SHA2"] = "8c6976e5b5410415bde908bd4dee15dfb167a9c873fc4bb8a81f6f2ab448a918"
# 允许显示的方法
# app.config["API_DOC_METHODS_LIST"] = ["GET", "POST", "PUT", "DELETE", "PATCH"]
# 自定义 url_prefix
# app.config["API_DOC_URL_PREFIX"] = "/docs/api"
# 需要排除的 RESTful Api 类名
# app.config["API_DOC_RESTFUL_EXCLUDE"] = ["Todo"]
# 需要显示的 Api 蓝图名称
# app.config["API_DOC_MEMBER"] = ["api", "platform"]
# 需要排除的子成员 Api 函数名称
# app.config["API_DOC_MEMBER_SUB_EXCLUDE"] = ["delete_data"]

如何书写 markdown 格式文档

@@@

在注释结尾用 "@@@" 包含 markdown 格式文档

@@@

查看文档页面

http://127.0.0.1/docs/api/

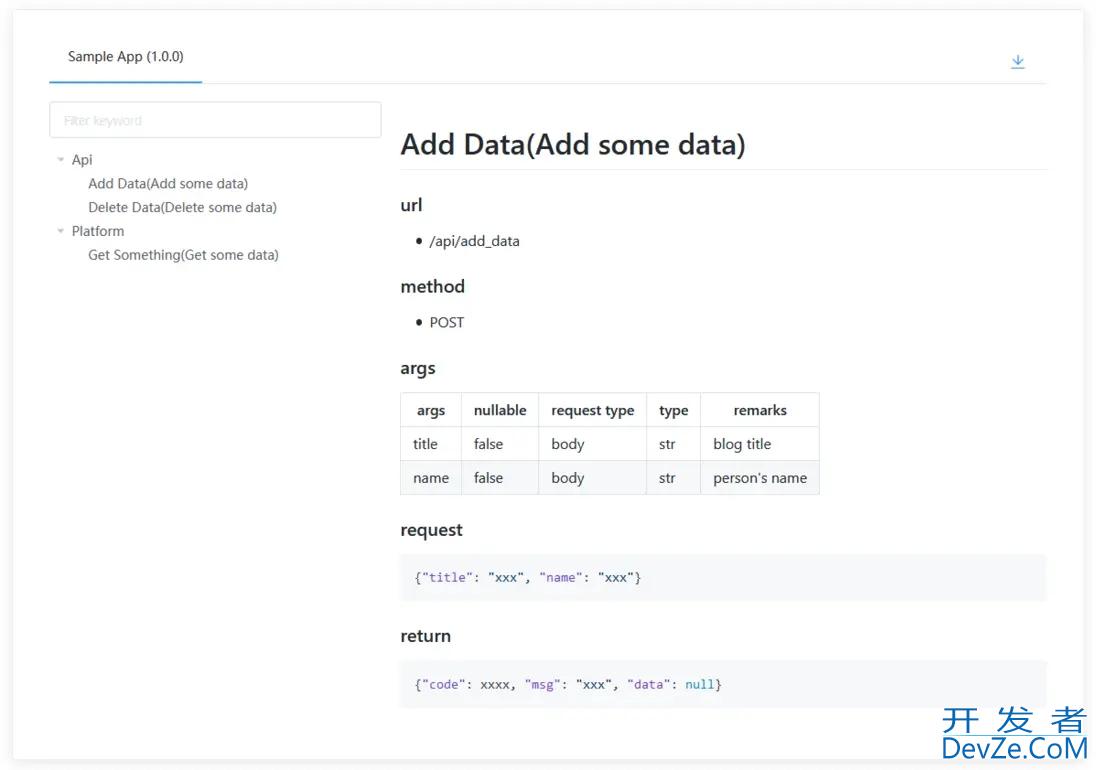

Api demo

@api.route("/add_data", methods=["POST"])
def add_data():
    """Add some data
    @@@
    ### args
    |  args | nullable | request type | type |  remarks |
    |-------|----------|--------------|------|----------|
    | title |  false   |    body      | str  | blog title    |
    | name  |  false   |    body      | str  | person's name |
    ### request
    ```json
    {"title": "xxx", "name": "xxx"}
    ```
    ### return
    ```json
    {"code": xxxx, "msg": "xxx", "data": null}
    ```
    @@@
    """
    return jsonify({"api": "add data"})

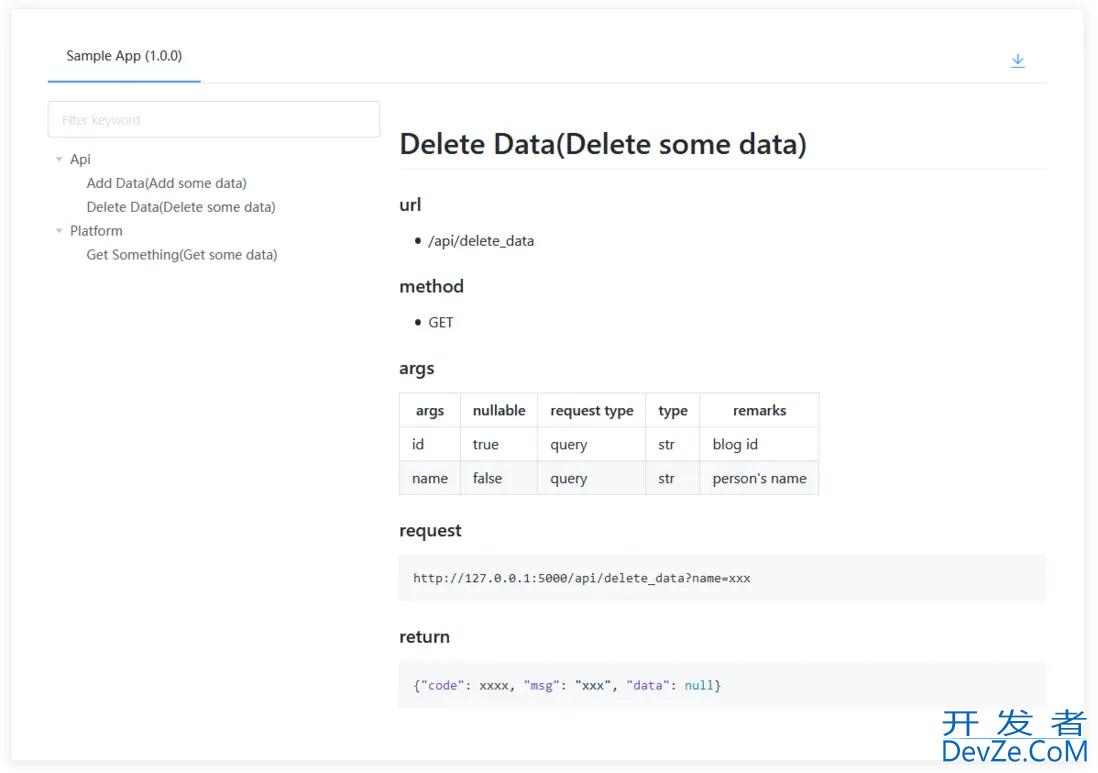

@api.route("/delete_data", methods=["GET"])
def delete_data():
    """Delete some data
    @@@
    ### args
    |  args  | nullable | request type | type |  remarks     |
    |--------|----------|--------------|------|--------------|
    |  id    |  true    |    query     |  str | blog id    |
    |  name  |  false   |    query     |  str | person's name |
    ### request
    ```
    http://127.0.0.1:5000/api/delete_data?name=xxx
    ```
    ### return
    ```json
    {"code": xxxx, "msg": "xxx", "data": null}
    ```
    @@@
    """
    return jsonify({"api": "delete data"})

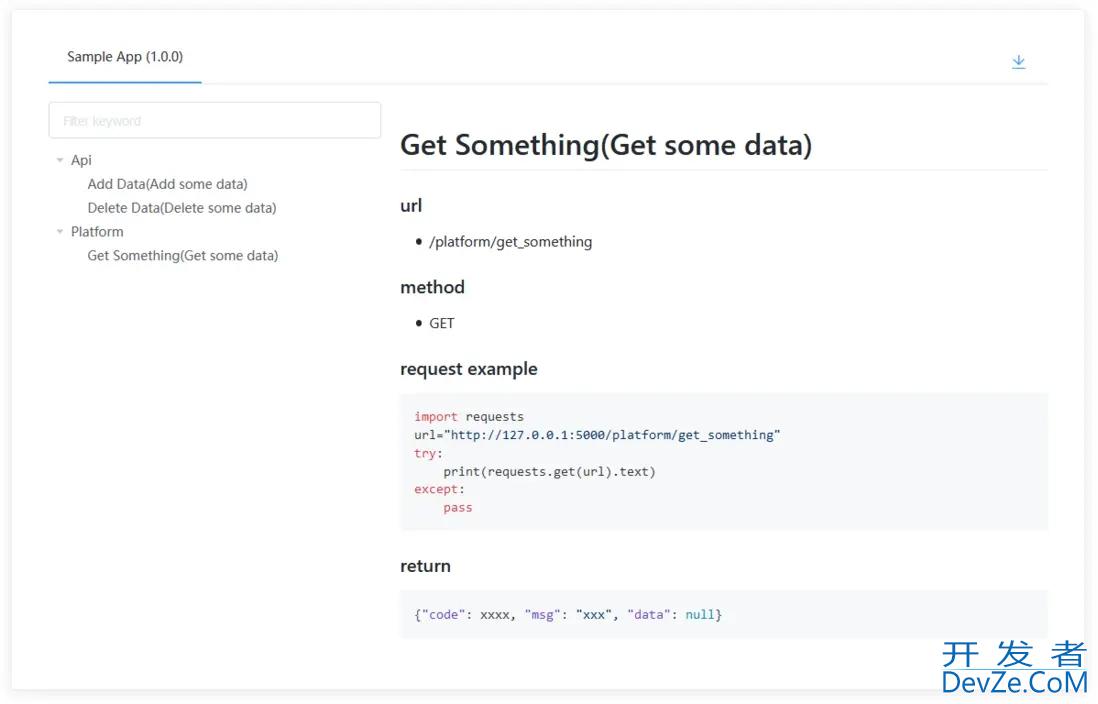

@platform.route("/get_something", methods=["GET"])
def get_something():
    """Get some data
    @@@
    ### request example
    ```python
    import requests
    url="http://127.0.0.1:5000/platform/get_something"
    try:
        print(requests.get(url).text)
    except:
        pass
    ```
    ### return
    ```json
    {"code": xxxx, "msg": "xxx", "data": null}
    ```
    @@@
    """
    return jsonify({"platform": "get something"})

完整代码

from flask import Blueprint, Flask, jsonify
from flask_docs import ApiDoc
app = Flask(__name__)
app.config["API_DOC_MEMBER"] =javascript ["api", "platform"]
ApiDoc(
    app,
    title="Flask-Docs自动生成Api文档安装使用教程",
    version="1.0.0",
    description="A simple app API",
)
api = Blueprint("api", __name__)
platform = Blueprint("platform", __name__)
@api.route("/add_data", methods=["POST"])
def add_data():
    """Add some data
    @@@
    ### args
    |  args | nullable | request type | type |  remarks |
php    |-------|----------|--------------|------|----------|
    | title |  false   |    body      | str  | blog title    |
    | name  |  false   |    body      | str  | person's name |
    ### request
    ```json
    {"title": "xxx", "name": "xxx"}
    ```
    ### return
    ```json
    {"code": xxxx, "msg": "xxx", "data": null}
    ```
    @@@
    """
    return jsonify({"api": "add data"})
@api.route("/delete_data", methods=["GET"])
def delete_data():
    """Delete some data
    @@@
    ### args
    |  args  | nullable | request type | type |  remarks     |
    |--------|----------|--------------|------|--------------|
    |  id    |  true    |    query     |  str | blog id    |
    |  name  |  false   |    query     |  str | person's name |
    ### request
    ```
    http://127.0.0.1:5000/api/delete_data?name=xxx
    ```
    ### return
    ```json
    {"code": xxxx, "msg": "xxx", "data": null}
    ```
    @@@
    """
    return jsonify({"api": "delete data"})
@platform.route("/get_something", methods=["GET"])
def get_something():
    """Get some data
    @@@
    ### request example
    ```python
    import requests
    url="http://127.0.0.1:5000/platform/get_something"
    try:
        print(requests.get(url).text)
    except:
        pass
    ```
    ### return
    ```json
    {"code": xxxx, "msg": "xxx", "data": null}
    ```
    @@@
    """
    return jsonify({"platform": "get something"})
app.register_blueprint(api, url_prefix="/api")
app.register_blueprint(platform, url_prefix="/platform")
if __name__ == "__main__":
    app.run(host="0.0.0.0", port=5000, debug=True)

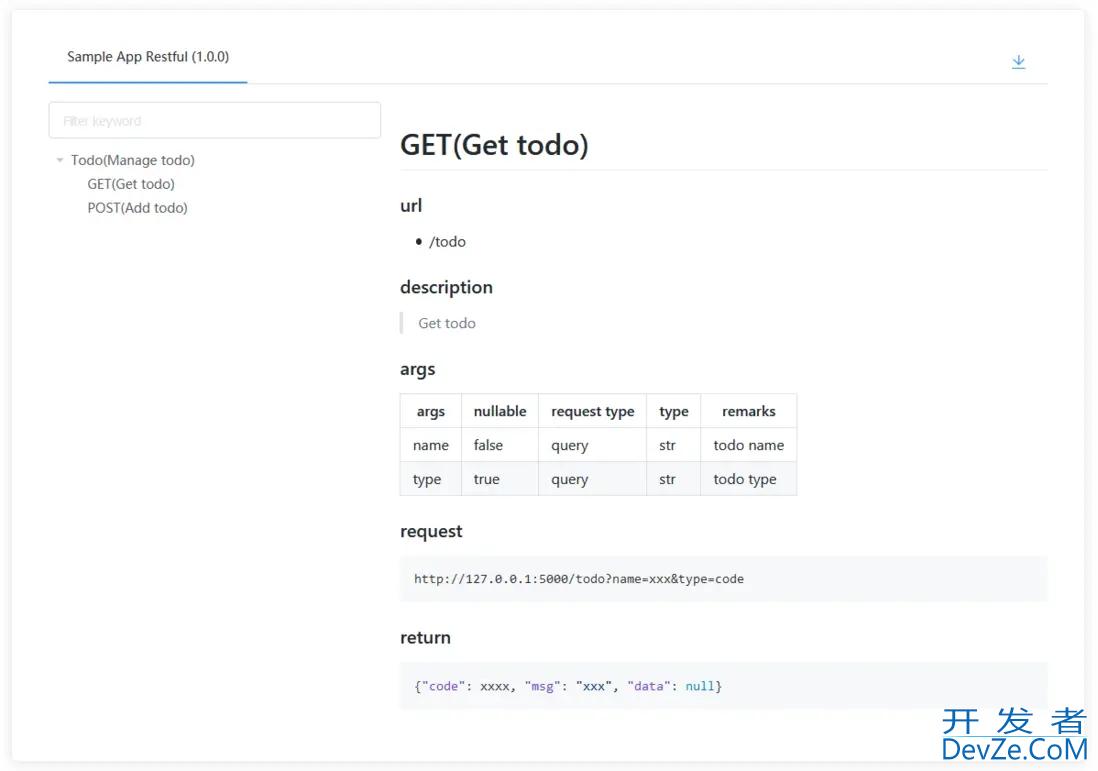

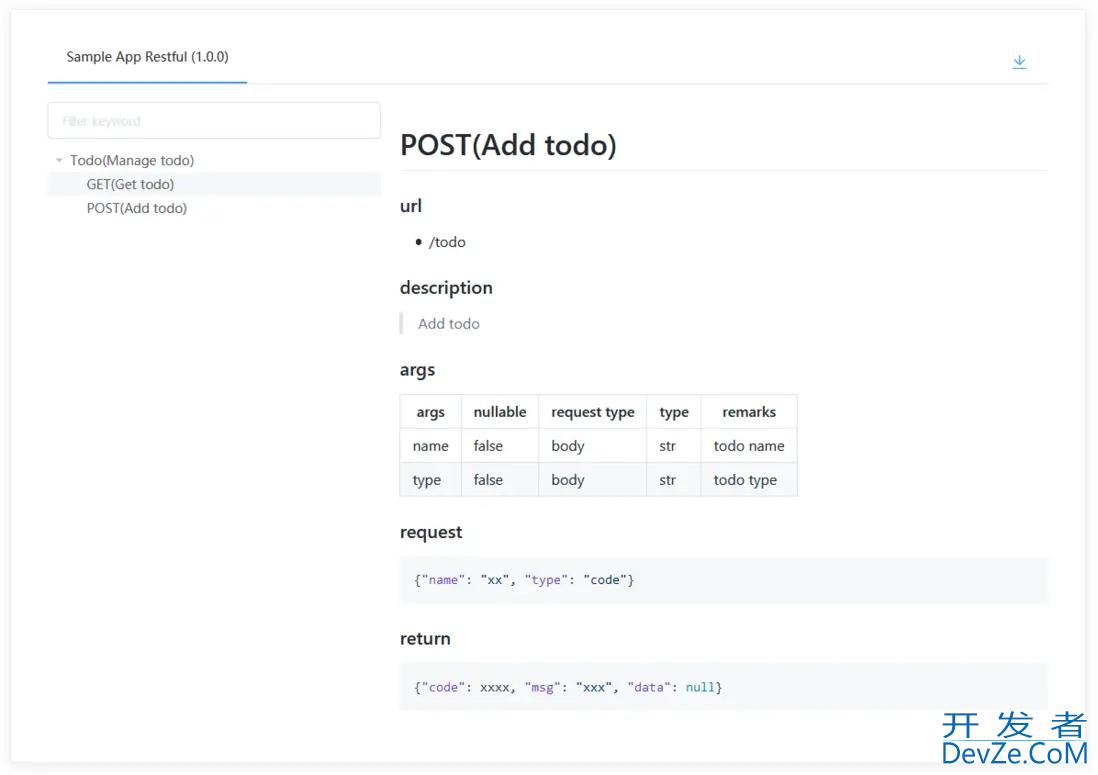

Flask-RESTful Api demo

from flask import Flask
from flask_restful import Api, Resource
from flask_docs import ApiDoc
app = Flask(__name__)
restful_api = Api(app)
ApiDoc(
    app,
    title="Flask-Docs自动生成Api文档安装使用教程",
    version="1.0.0",
    description="A simple app restful API",
)
class Todo(Resource):
    """Manage todo"""
    def post(self):
        """Add todo
        @@@
        ### description
        > Add todo
        ### args
        |  args | nullable | request type | type |  remarks |
        |-------|----------|--------------|------|----------|
        |  name |  false   |    body      | str  | todo name |
        |  type |  false   |    body      | str  | todo type |
        ### request
        ```json
        {"name": "xx", "type": "code"}
        ```
        ### return
        ```json
        {"code": xxxx, "msg": "xxx", "data": null}
        ```
        @@@
        """
        return {"todo": "post todo"}
    def get(self):
        """Get todo
        @@@
        ### description
        > Get todo
        ### args
        |  args | nullable | request type | type |  remarks |
        |-------|----------|--------------|------|----------|
        |  name |  false   |    querandroidy     | str  | todo name |
        |  type |  true    |    query     | str  | todo type |
        ### request
        ```
        http://127.0.0.1:5000/todo?name=xxx&type=code
        ```
        ### return
        ```json
        {"code": xxxx, "msg": "xxx", "data": null}
        ```
        @@@
        """
        return {"todo": "get todo"}
restful_api.add_resource(Todo, "/todo")
if __name__ == "__main__":
    apythonpp.run(host="0.0.0.0", port=5000, debug=True)

flask.views.MethodView Api demo

目前只支持与类名相同的 url_rule

from flask.views import MethodView
class TodoList(MethodView):
    """Manage todolist"""
    def put(self):
        """Change the data
        """
        return jsonify({"toDOS": "put todolist"})
    def delete(self):
        """Delete the data
        """
        return jsonify({"todos": "delete todolist"})
app.add_url_rule("/todolist/", view_func=TodoList.as_view("todolist"))

装饰器 @ApiDoc.change_doc

复用注释

from flask_docs import ApiDoc
return_json_str = '{"code": xxxx, "msg": "xxx", "data": null}'
@api.route("/add_data", methods=["POST"])
@ApiDoc.change_doc({"return_json": return_json_str})
def add_data():
    """Add some data
    @@@
    ### return
    ```json
    return_json
    ```
    @@@
    """
    return jsonify({"api": "add data"})
@api.route("/delete_data", methods=["GET"])
@ApiDoc.change_doc({"return_json": return_json_str})
def delete_data():
    """Delete some data
    return_json
    """
    return jsonify({"api": "delete data"})

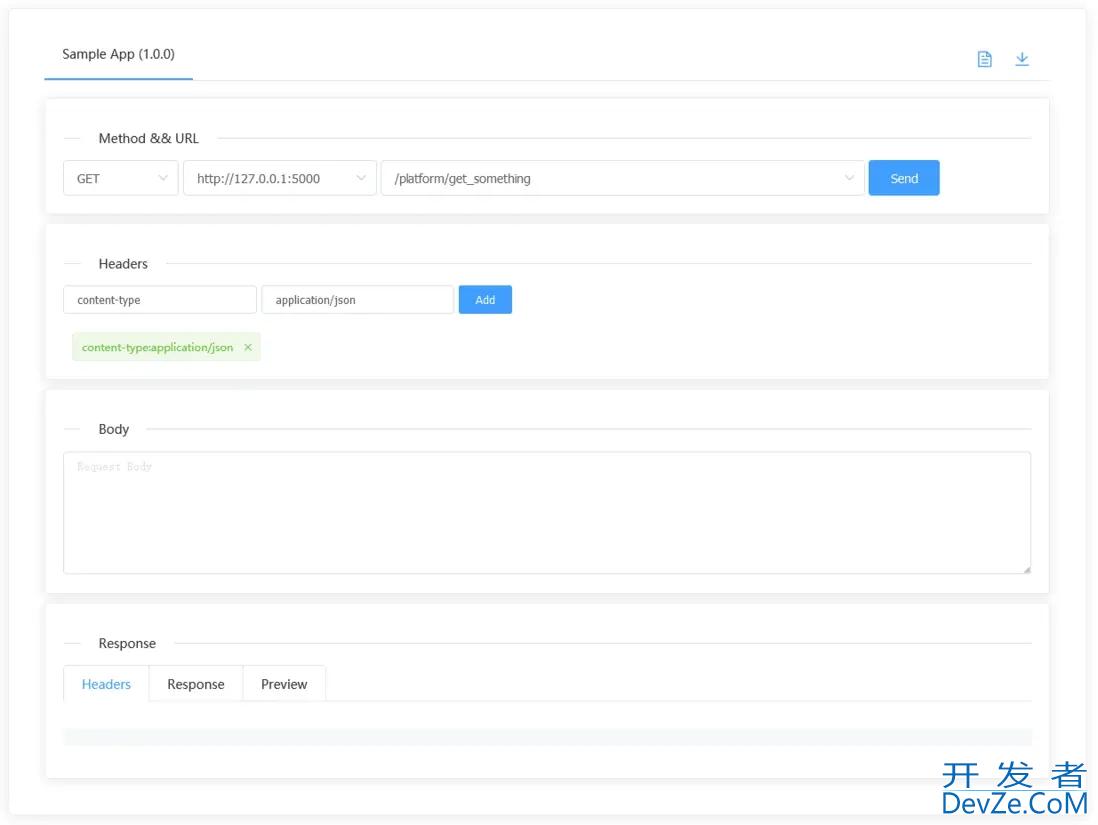

调试器

以上就是Flask-Docs自动生成Api文档安装使用教程的详细内容，更多关于pythonFlask-Docs生成Api文档的资料请关注编程客栈(www.devze.com)其它相关文章！
