Python中常用的8个绘图函数使用详解

目录
  • 常用绘图函数
  • 单选框的更改逻辑
  • 源代码

常用绘图函数

目前只集成了三种绘图函数,即plot, scatter和bar,这个体量不到matplotlib提供的绘图函数的十分之一,接下来要做的自然是扩充绘图函数库。

但一次性也不宜扩充太多,下面列出一些常用的绘图函数,如无说明,小写的x,y,z表示一维数组;大写的X,Y,Z表示二维数组,也就是矩阵;×表示这种绘图函数不支持这种坐标,或者不建议在这种坐标中绘图。

函数类别2Dpolar3D备注
imshow图像X××
pcolormesh伪彩图[X,Y,]ZX,Y,Z×
plot曲线图x[,y]x[,y]x,y[,z]
scatter散点图x,y/X,Yx,yx,y,[,z]可为任意维度
stem茎叶图x,yx,yx,y[,z]
step阶梯图x,yx,yx,y[,z]
bar条形图x,yx,yx,y[,z]
barh横向条形图x,yx,y×

从这个图可以看出,2D坐标中,大部分函数只支持两个变量,极坐标亦然,而3D坐标中要么不支持绘图,要么支持x,y或者x,y,z三种绘图坐标。

单选框的更改逻辑

完成这个功能的改动,只需先更改cbTypeChanged,再更改cbProjNone, cbProjPolar以及cbProj3d这三个函数就可以了。

def cbTypeChanged(self, evt):
    t = self.drawVars['type'].get()
    p = self.drawVars['proj'].get()
    if t in ("图像"):
        self.wDct['proj']['value'] =  ("None")
    elif t in ("横向条形图", "伪彩图"):
        self.wDct['proj']['value'] =  ("None", "polar")
    else:
        self.wDct['proj']['value'] =  ("None", "3d", "polar")
    projs = self.wDct['proj']['value']
    if p not in projs:
        self.drawVars['proj'].set(projs[0])
    self.cbProjChanged(None)

接下来是设置projection的函数,之前我们一直把plot取名为点线图,这个先留着,但不妨碍把曲线图作为另一个名字加上去,但“点线图”这个名字暂时还不能删,因为DrawSystem那边的代码还没有改。

def cbProjNone(self, t):
    if t in ("点线图", "曲线图"):
        self.wDct['dim']['value'] = ('x', 'xy')
    elif t in ("图像"):
        self.wDct['dim']['value'] = ('x')
    elif t in ("伪彩图"):
        self.wDct['dim']['value'] = ('x', 'xyz')
    else:
        self.wDct['dim']['value'] = ('xy')
def cbProjPolar(self, t):
    if t in ("点线图", "曲线图"):
        self.wDct['dim']['value'] = ('x', 'xy')
    elif t in ("伪彩图"):
        self.wDct['dim']['value'] = ('xyz')
    else:
        self.wDct['dim']['value'] = ('xy')
def cbProj3d(self, t):
    self.wDct['dim']['value'] = ('xy', 'xyz')

最后,新建一个全局的常量,用于存储函数名,并在创建slctDct字典时调用。

def initConst(self):
    self.TYPES = [
        "点线图", "曲线图", "散点图", "图像", "伪彩图",
        "条形图", "横向条形图", "茎叶图", "阶梯图"]

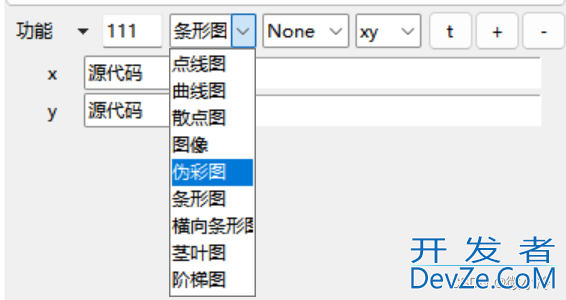

修改后的结果如图所示

Python中常用的8个绘图函数使用详解

源代码

下面给出base.py的源代码。

import numpy as np
import tkinter as tk
import tkinter.ttk as ttk
class DrawStyle(ttk.Frame):
    def __init__(self, master,
        varDct={}, ws=None, func=None, **options):
        super().__init__(master, **options)
        self.pack()
        self.initConst()
        self.initVars()
        self.initWidgets()
    def initConst(self):
        self.VAR_LABS = {
            "线型" : "linestyle", "线宽" : "linewidth",  "线色" : "color",
            "点型" : "marker"   , "点径" : "markersize", "点色" : "markandroideredgecolor",
            "标签" : "label"    , "透明度"    : "alpha", "层号" : "zorder"
        }
        self.STR_KEYS = ["标签"]
        self.COM_KEYS = ["线型", "点型"]
        self.NUM_KEYS = ["线宽", "点径", "透明度"]
        self.INT_KEYS = ["层号"]
        self.CLR_KEYS = ["线色", "点色"]
    def initVars(self):
        self.varDct = {key:tk.StringVar() for key in self.VAR_LABS}
    def newFrame(self):
        frm = ttk.Frame(self)
        frm.pack(side=tk.TOP, fill=tk.X)
        return frm
    def initWidgets(self):
        frm = self.newFrame()
        for i,key in enumerate(["标签", "层号", "透明度"]):
            tk.Label(frm, text=key).grid(row=0, column=i*2, padx=2)
            tmp = ttk.Entry(frm, width=10, textvariable=self.varDct[key])
            tmp.grid(row=0, column=i*2+1, padx=2, pady=2)
        self.initLineMarker(frm)
    def initLineMarker(self, frm):
        enumDct = {
            "点型" : ['.', ',', '1', '2', '3', '4', '+', 'x', '|', '_',
                0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11,
                'o', 'v', '^', '<', '>', '8', 's', 'p', '*',
                'h', 'H', 'D', 'd', 'P', 'X'],
            "线型" : ['-', '--', '-.', ':']
        }
        for i in range(2):
            key = self.COM_KEYS[i]
            ttk.Label(frm, text=key).grid(row=i+1, column=0, padx=2)
            tmp = ttk.Combobox(frm, width=10, textvariable=self.varDct[key])
            tmp.grid(row=i+1, column=1, padx=2, pady=2)
            tmp['value'] = enumDct[key]
            key = self.NUM_KEYS[i]
            ttk.Label(frm, text=key).grid(row=i+1, column=2, padx=2)
            tmp = ttk.Entry(frm, width=10, textvariable=self.varDct[key])
            tmp.grid(row=i+1, column=3, padx=2, pady=2)
            key = self.CLR_KEYS[i]
            ttk.Label(frm, text=key).grid(row=i+1, column=4, padx=2)
            tmp = ttk.Entry(frm, width=10, textvariable=self.varDct[key])
            tmp.grid(row=i+1, column=5, padx=2, pady=2)
    def getOneVar(self, key):
        v = self.varDct[key].get()
        if v=="":
            return ""
        if key in NUM_KEYS:
            return float(v)
        elif key in INT_KEYS:
            return int(v)
        else:
            return v
    def getVarDct(self):
        dct = {self.VAR_LABS[key] : self.varDct[key].get()
            for key in self.varDct}
        return {key : dct[key] for key in dct if dct[key]!=""}
# 绘图类型和维度
# varDct 的格式是 {"sub":sub, "type":slctType, "dim":dim, "proj": proj}
class DrawType(ttk.Frame):
    # ws为两个combobox的宽
    def __init__(self, master,
        varDct = {"sub":"111", "type":'点线图', "dim":"xyz", "proj": "3d"},
        ws=None, func=None, **options):
        super().__init__(master, **options)
        self.pack()
        self.dimChanged = func
        self.initConst()
        self.initVar(varDct)
        self.initWidgets(ws)
    def initVar(self, varDct):
        self.drawVars = {key:tk.StringVar() for key in varDct}
        for key in self.drawVars:
            self.drawVars[key].set(varDct[key])
    def initConst(self):
        self.TYPES = [
            "点线图", "曲线图", "散点图", "图像", "伪彩图",
            "条形图", "横向条形图", "茎叶图", "阶梯图"]
    def initWidgets(self, ws):
        if ws==None: ws = [5, 5, 5, 3]
        slctDct = {'type': self.TYPES,
            'proj': ("None", "3d", "polar"),
            'dim' : ("x", "xy", "xyz")}    # 绘图维度
        keys = ['sub', 'type', 'proj', 'dim']
        self.wDct = {}  # 控件字典
        # 此为设置子图的Entry控件
        self.wDct['sub'] = ttk.Entry(self, phpwidth=ws[0],
            textvariable=self.drawVars['sub'])
        for i, key in enumerate(keys[1:], 1):
            self.wDct[key] = ttk.Combobox(self, width=ws[i],
                textvariable=self.drawVars[key])
            self.wDct[key]['value'] = slctDct[key]
        for key in keys:
            self.wDct[key].pack(side=tk.LEFT, padx=2)
        self.wDct['type'].bind('<<ComboboxSelected>>', self.cbTypeChanged)
        self.wDct['proj'].bind('<<ComboboxSelected>>', self.cbProjChanged)
        self.wDct['dim'].bind('<<ComboboxSelected>>', self.dimChanged)
    def cbTypeChanged(self, evt):
        t = self.drawVars['type'].get()
        p = self.drawVars['proj'].get()
        if t in ("图像"):
            sepythonlf.wDct['proj']['value'] =  ("None")
        elif t in ("横向条形图", "伪彩图"):
            self.wDct['proj']['value'] =  ("None", "polar")
        else:
            self.wDct['proj']['value'] =  ("None", "3d", "polar")
        projs = self.wDct['proj']['value']
        if p not in projs:
            self.drawVars['proj'].set(projs[0])
        self.cbProjChanged(None)
    def cbProjChanged(self, evt):
        p = self.drawVars['proj'].get()
        func = {
            'None': self.cbProjNone,
            '3d': self.cbProj3d,
            'polar' : self.cbProjPolar}
        d = self.wDct['dim'].get()
        t = self.drawVars['type'].get()
        func[p](t)
        dims = self.wDct['dim']['value']
        if d not in dims:
            self.drawVars['dim'].set(dims[0])
        self.dimChanged(None)
    def cbProjNone(self, t):
        if t in ("点线图", "曲线图"):
            self.wDct['dim']['value'] = ('x', 'xy')
        elif t in ("图像"):
            self.wDct['dim']['value'] = ('x')
        elif t in ("伪彩图"):
            self.wDphpct['dim']['value'] =http://www.devze.com ('x', 'xyz')
        else:
            self.wDct['dim']['value'] = ('xy')
    def cbProjPolar(self, t):
        if t in ("点线图", "曲线图"):
            self.wDct['dim']['value'] = ('x', 'xy')
        elif t in ("伪彩图"):
            self.wDct['dim']['value'] = ('xyz')
        else:
            self.wDct['dim']['value'] = ('xy')
    def cbProj3d(self, t):
        self.wDct['dim']['value'] = ('xy', 'xyz')
    def getSub(self):
        return self.drawVars['sub'].get()
    def getType(self):
        return self.drawVars['type'].get()
    def getDim(self):
        return self.drawVars['dim'].get()
    def getProj(self):
        return self.drawVars['proj'].get()
    def getDct(self):
        return {key:self.drawVars[key].get() for key in self.drawVars}
