Spring Security账户与密码验证实现过程

目录

• Introduction
• 前后端分离模式下配置
• AbstractAuthenticationProcessingFilter
• UsernamePasswordAuthenticationFilter

这里使用Spring Boot 2.7.4版本，对应Spring Security 5.7.3版本

本文样例代码地址： spring-security-oauth2.0-sample

关于Username/Password认证的基本流程和基本方法参见官网 Username/Password Authentication

Introduction

Username/Password认证主要就是Spring Security 在 HttpServletRequest中读取用户登录提交的信息的认证机制。

Spring Security提供了登录页面，是前后端不分离的形式，前后端分离时的配置需另加配置。本文基于前后端分离模式来叙述。

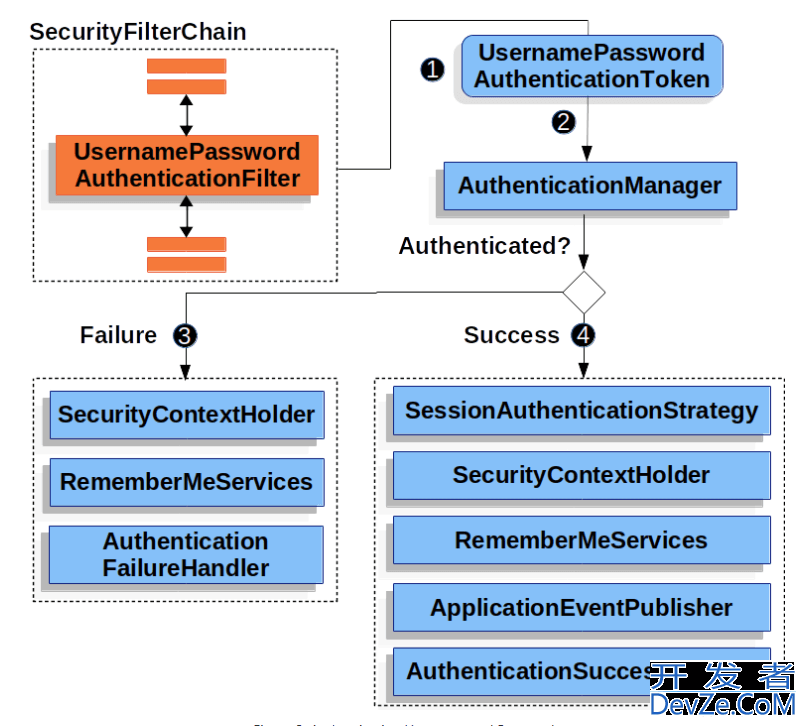

基本流程如下：

Username/Password认证可分为两部分：

• 从HttpServletRequest中获取用户登录信息
• 从密码存储处获取密码并比较

关于获取获取用户登录信息，Spring Security支持三种方式（基本用的都是Form表单提交，即POST方式提交）：

• Form
• Basic
• Digest

关于密码的获取和比对，关注下面几个类和接口：

• UsernamePasswordAuthenticationFilter: 过滤器，父类AbstractAuthenticationProcessingFilter中组合了AuthenticationManager，AuthenticationManager的默认实现ProviderManager中又组合了多个AuthenticationProvider，该接口实现类，有一个DaoAuthenticationProvider负责获取用户密码以及权限信息，DaoAuthenticationProvider又把责任推卸给了UserDetailService。
• PasswordEncoder : 密码加密方式
• UserDetails : 代表用户，包括 用户名、密码、权限等信息
• UserDetailsService : 最终实际调用获取 UserDetails的接口，通常用户实现。

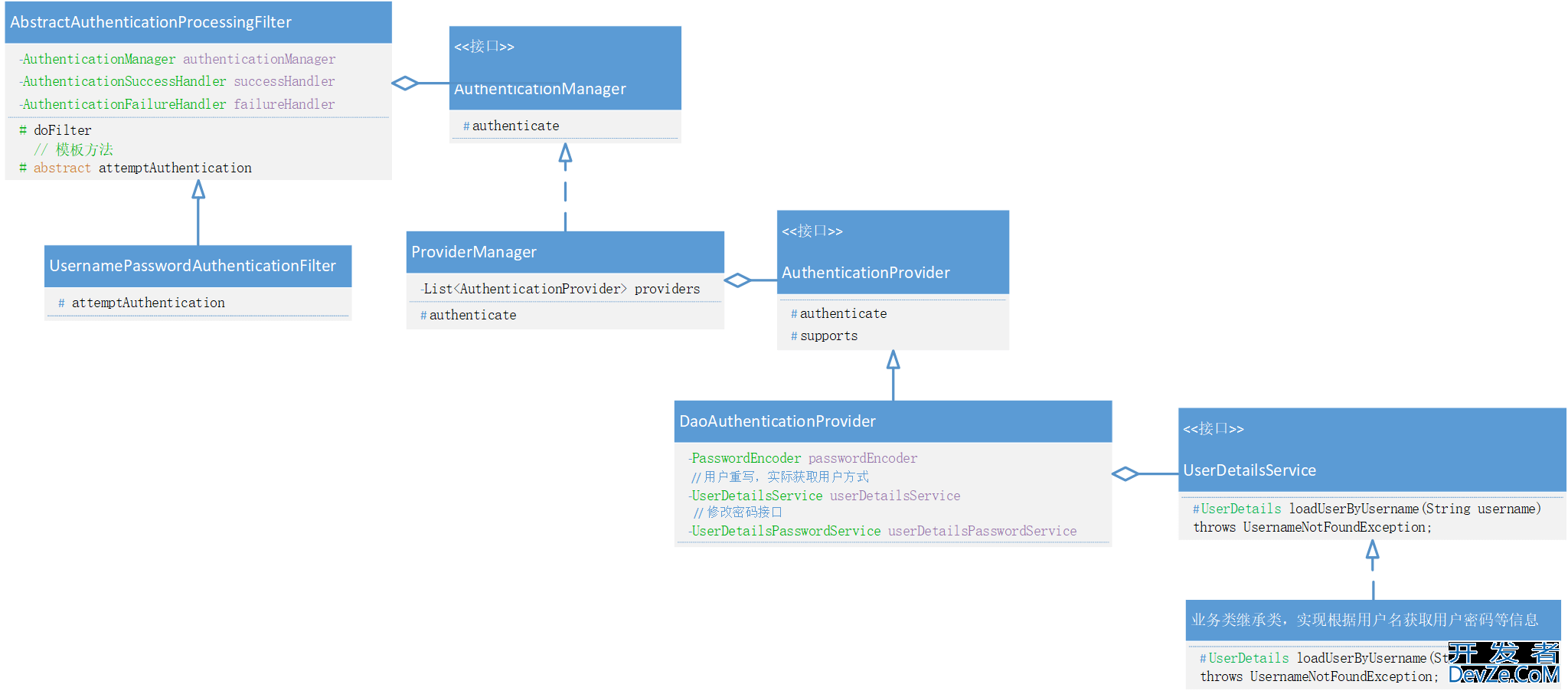

整个流程的UML图如下：

前后端分离模式下配置

先来看对SecurityFilterChain的配置：

@Configuration
@EnableMethodSecurity()
@RequiredArgsConsphptructor
public class SecurityConfig {
	// 自定义成功处理，主要存储登录信息并返回jwt
	private final LoginSuccessHandler loginSuccessHandler;
	// 自定义失败处理，返回json格式而非默认的html
    private final LoginFailureHandler loginFailureHandler;
    private final CustomSessionAuthenticationStrategy customSessionAuthenticationStrategy;
	...
	@Bean
    public SecurityFilterChain securityFilterChain(HttpSecurity http) throws Exception {
    	// 设置登录成功后session处理, 认证成功后
        // SessionAuthenticationStrategy的最早执行，详见AbstractAuthenticationProcessingFilter
        // 执行顺序：
        // 1. SessionAuthenticationStrategy#onAuthentication
        // 2. SecurityContextHolder#setContext
        // 3. SecurityContextRepository#saveContext
        // 4. RememberMeServices#loginSuccess
        // 5. ApplicationEventPublisher#publishEvent
        // 6. AuthenticationSuccessHandler#onAuthenticationSuccess
        http.sessionManagement().sessionAuthenticationStrategy(customSessionAuthenticationStrategy);
		...
		// 前后端不分离，可指定html返回。该项未测试
        // http.formLogin().loginPage("login").loginProcessingUrl("/hello/login");
        // 前后端分离下username/password登录
        http.formLogin()
                .usernameParameter("userId")
                .passwordParameter("password")
                // 前端登陆页面对这个url提交username/password即可
                // 必须为Post请求，且Body格式为x-www-form-urlencoded,如果要接受application/json格式，需另加配置
                .loginProcessingUrl("/hello/login")
                .successHandler(loginSuccessHandler)
                .failureHandler(loginFailureHandler);
                //  .securityContextRepository(...)  // pass
       ...
       return http.build();
	}
	...
}

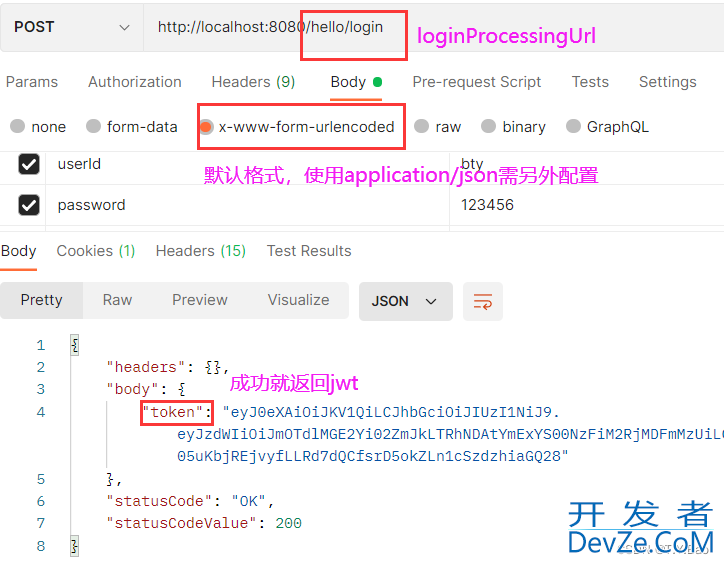

使用Postman测试：编程客栈

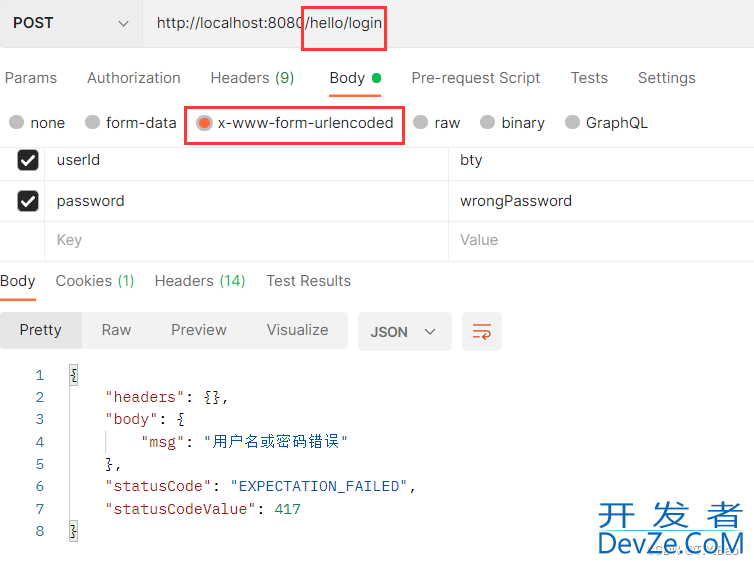

登录成功登陆失败

AbstractAuthenticationProcessingFilter

该类是UsernamePasswordAuthenticationFilter和OAuth2LoginAuthenticationFilter的父类，使用模板模式构建。

UsernamePasswordAuthenticationFilter只负责从HttpServletRequest中获取用户提交的用户名密码，而真正去认证、事件发布、SessionAuthenticationStrategy、AuthenticationSuccessHandler、AuthenticationFailureHandler、SecurityContextRepository、RememberMeServices这些内容均组合在AbstractAuthenticationProcessingFilter中。

public abstract class AbstractAuthenticationProcessingFilter extends GenericFilterBean
		implements ApplicationEventPublisherAware, MessageSourceAware {
	...
	// 委托给子类ProviderManager执行认证，最终由DaoAuthenticationProvider认证
	// DaoAuthenticationProvider中会调用UserDetailsService#loadUserByUsername(username)接口方法
	// 我们只需实现该UserDetailsService接口注入Bean容器即可
	private AuthenticationManager authenticationManager;
	private SessionAuthenticationStrategy sessionStrategy；
	protected ApplicationEventPublisher eventPublisher;
	private RememberMeServices rememberMeServices;
	private AuthenticationSuccessHandler successHandler;
	private AuthenticationFailureHandler failureHandler;
	private SecurityContextRepository securityContextRepository;
	...
	private void doFilter(HttpServletRequest request, HttpServletResponse response, FilterChain chain)
			throws IOException, ServletException {
		...
		try {
			// 模板模式，该方法子类实现
			Authentication authenticationResult = attemptAuthentication(request, response);
			// 1.
			this.sessionStrategy.onAuthentication(authenticationResult, request, response);
			// Authentication success
			if (this.continueChainBeforeSuccessfulAuthentication) {
				chain.doFilter(request, response);
			}
			// 成功后续处理
			successfulAuthentication(request, response, chain, authenticationResult);
		}
		catch (InternalAuthenticationServiceException failed) {
			// 失败后续处理
			unsuccessfulAuthentication(request, response, failed);
		}
		catch (AuthenticationException ex) {
			// Authentication failed
			unsuccessfulAuthentication(request, response, ex);
		}
	}
	// 模板模式，由UsernamePasswordAuthenticationFilter完成
	public abstract Authentication attemptAuthentication(HttpServletRequest request, HttpServletResponse response)
			throws AuthenticationException, IOException, ServletException;}
    protected void successfulAuthentication(HttpServletRequest request, HttpServletResponse response, FilterChain chain,
			Authentication authResult) throws IOException, ServletException {
		SecurityContext context = SecurityContextHolder.createEmptyContext();
		context.setAuthentication(authResult);
		// 2.
		SecurityContextHolder.setContext(context);
		// 3.
		this.securityContextRepository.saveContext(context, request, response);
		// 4.
		this.rememberMeServices.loginSuccess(request, response, authResult);
		if (this.eventPublisher != null) {
			// 5.
			this.eventPublisher.publishEvent(new InteractiveAuthenticationSuccessEvent(authResult, this.getClass()));
		}
		// 6.
		this.successHandler.onAuthenticationSucchttp://www.devze.comess(requestoPPmXkO, response, authResult);
	}
}

UsernamePasswordAuthenticationFilterphp

public class UsernamePasswordAuthenticationFilter extends AbstractAuthenticationProcessingFilter {
	@Override
	public Authentication attemptAuthentication(HttpServletRequest request, HttpServletResponse response)
			throws AuthenticationException {
		if (this.postOnly && !request.getMethod().equals("POST")) {
			throw new AuthenticationServiceException("Authentication method not supported: " + request.getMethod());
		}
		String username = obtainUsername(request);
		username = (username != null) ? username.trim() : "";
		String password = obtainPassword(request);
		password = (password != null) ? password : "";
		UsernamePasswordAuthenticationToken authRequest = UsernamePasswordAuthenticationToken.unauthenticated(username,
				password);
		// Allow subclasses to set the "details" property
		setDetails(request, authRequest);
		// 调用父类中字段去认证，最终是 UserDetailService#loadUserByUsername(String username)，该接口实现类由程序员根据业务定义。
		return this.getAuthenticationManager().authenticate(authRequest);
	}
	// ************** 重要 **************
	// 这里只能通过x-www-urlencoded方式获取，如果前端传过来application/json，是解析不到的
	// 非要用application/json，建议重写UsernamePasswordAuthenticationFilter方法，但由于body中内容默认只能读一次，又要做很多其他配置，比较麻烦，建议这里x-www-urlencoded
	// *******************开发者_JAVA**************
	@Nullable
	protected String obtainUsername(HttpServletRequest request) {
		return request.getParameter(this.usernameParameter);
	}
	@Nullable
	protected String obtainPassword(HttpServletRequest request) {
		return request.getParameter(this.passwordParameter);
	}
}
