SpringBoot 下集成缓存工具类 CacheManager

目录

• 一.自定义工具类定义
• 二.SpringBoot 集成开源缓存组件
• 1.开源缓存组件
• 2.缓存注解
• 3.缓存测试（caffeine）
• 1.Pom依赖
• 2.Yml配置（指定缓存实现类型）
• 3.项目启动类
• 4.自定义缓存配置
• 5.测试类
• 6.测试记录

一.自定义工具类定义

package com.demo.utils;

import org.springframework.util.StringUtils;

import Java.util.LinkedList;
import java.util.List;
import java.util.Map;
import java.util.concurrent.*;
import java.util.concurrent.atomic.AtomicInteger;

/**
 * Description: 缓存工具类
 * 1.部分方法未验证，如有问题请自行修改
 * 2.其他方法请自行添加
 *
 * @Author: zhx & moon hongxu_1234@163.com
 * @Date: 2022-04-07 20:54
 * @version: V1.0.0
 */
public class Cache {

    /**
     * 屏蔽工具类的无参构造 避免工具类被实例化
     */
    private Cache(){}

    /**
     * 缓存留存期 30min 1H 24H
     */
    public static final long CACHE_HOLD_TIME_30M = 30 * 60 * 1000L;
    public static final long CACHE_HOLD_TIME_1H = 2 * CACHE_HOLD_TIME_30M;
    public static final long CACHE_HOLD_TIME_24H = 24 * CACHE_HOLD_TIME_1H;
    public static final long CACHE_HOLD_TIME_FOREVER = -1L;

    /**
     * 缓存容量、最少使用容量
     */
    private static final int CACHE_MAX_CAP = 1000;
    private static final int CLEAN_LRU_CAP = 800;

    /**
     * 缓存当前大小
     */
    private static AtomicInteger CACHE_CURRENT_SIZE = new AtomicInteger(0);

    /**
     * 缓存对象
     */
    private static final Map<String,Node> CACHE_MAP = new ConcurrentHashMap<>(CACHE_MAX_CAP);

    /**
     * 最少使用记录
     */
    private static final List<String> LRU_LIST = new LinkedList<>();

    /**
     * 自动清理标志位
     */
    private static volatile boolean CLEAN_RUN_FLAG = false;

    /**
     * 默认30MIN
     * @param key
     * @param val
     */
    public static void put(String key,Object val){
        put(key,val,CACHE_HOLD_TIME_30M);
    }

    /**
     * 添加永久缓存
     * @param key
     * @param val
     */
    public static void putForever(String key,Object val){
        put(key,val,CACHE_HOLD_TIME_FOREVER);
    }

    /**
     * 添加缓存
     * @param key
     * @param val
     * @param ttlTime
     */
    public static void put(String key,Object val,long ttlTime){
        if (!StringUtils.hasLength(key) || null == val){
            return;
        }
        checkSize();
        updateCacheLru(key);
        CACHE_MAP.put(key,new Node(val,ttlTime));
    }

    /**
     * 获取缓存信息
     * @param key
     * @param clazz
     * @param <T>
     * @return
     */
    public static <T> T get(String key,Class<T> clazz){
        if (!StringUtils.hasLength(key) || !CACHE_MAP.containsKey(key)){
        php    return null;
        }
        updateCacheLru(key);
        return (T) CACHE_MAP.get(key).getVal();
    }

    /**
     * 更新最近使用位置
     * @param key
     */
    private static void updateCacheLru(String key){
        synchronized (LRU_LIST){
            LRU_LIST.remove(key);
            LRU_LIST.add(0,key);
        }
    }

    /**
     * 删除,成功则容量-1
     * @param key
     */
    private static boolean remove(String key){
        Node node = CACHE_MAP.remove(key);
        if (null!=node){
            CACHE_CURRENT_SIZE.getAndDecrement();
            return true;
        }
        return false;
    }

    /**
     * 检查是否超过容量,先清理过期,在清理最少使用
     */
    private static void checkSize(){
        if (CACHE_CURRENT_SIZE.intValue() > CACHE_MAX_CAP){
            deleteTimeOut();
        }
        if (CACHE_CURRENT_SIZE.intValue() > CLEAN_LRU_CAP){
            deleteLru();
        }
    }

    /**
     * 删除最久未使用,尾部删除
     * 永久缓存不会被清除
     */
    private static void deleteLru(){
        synchronized (LRU_LIST){
            while (LRU_LIST.size() > CLEAN_LRU_CAP){
                int lastIndex = LRU_LIST.size() - 1;
                String key = LRU_LIST.get(lastIndex);
                if (!CACHE_MAP.get(key).isForever() && remove(key)){
                    LRU_LIST.remove(lastIndex);
                }
            }
        }
    }

    /**
     * 删除过期
     */
    private static void deleteTimeOut(){
        List<String> del = new LinkedList<>();
        for (Map.Entry<String,Node> entry:CACHE_MAP.entrySet()){
            if (entry.getValue().isExpired()){
                del.add(entry.getKey());
            }
        }
        for (String k:del){
            remove(k);
        }
    }

    /**
     * 缓存是否已存在,过期则删除返回False
   rYeVAuiUC  * @param key
     * @return
     */
    public static boolean contains(String key){
        if (CACHE_MAP.containsKey(key)){
            if (!CACHE_MAP.get(key).isExpired()){
                return true;
            }
            if (remove(key)){
                return false;
            }
            return true;
        }
        return false;
    }

    /**
     * 清空缓存
     */
    public static void clear(){
        CACHE_MAP.clear();
        CACHE_CURRENT_SIZE.set(0);
        LRU_LIST.clear();
    }

    /**
     * 重置自动清理标志
     * @param flag
     */
    public static void setCleanRunFlag(boolean flag){
        CLEAN_RUN_FLAG = flag;
    }

    /**
     * 自动清理过期缓存
     */
    private static void startAutoClean(){

        if (!CLEAN_RUN_FLAG){
            setCleanRunFlag(true);
            ScheduledExecutorService scheduledExecutor = new ScheduledThreadPoolExecutor(1);
            scheduledExecutor.scheduleAtFixedRate(()->{
                try {
                    Cache.setCleanRunFlag(true);
                    while (CLEAN_RUN_FLAG){
                        Cache.deleteTimeOut();
                    }
                } catch (Exception e) {
                    e.printStackTrace();
                }
            },10,Cache.CACHE_HOLD_TIME_1H, TimeUnit.SECONDS);
        }
    }

    /**
     * 缓存对象类
     */
    public static class Node{
        /**
         * 缓存值
         */
        private Object val;
        /**
         * 过期时间
         */
        private long ttlTime;

        public Node(Object val,long ttlTime){
            this.val = val;
            if (ttlTime<0){
                this.ttlTime = ttlTime;
            }else{
                this.ttlTime = System.currentTimeMillis() + ttlTime;
            }
        }

        public Object getVal(){
            return this.val;
        }

        public boolean isExpired(){
            if (this.ttlTime<0){
                return false;
            }
            return System.currentTimeMillis() > this.ttlTime;
        }

        public boolean isForever(){
            if (this.ttlTime<0){
                return true;
            }
            return false;
        }

    }


}

二.SpringBoot 集成开源缓存组件

1.开源缓存组件

随着硬件系统系统扩展和软件升级，缓存在应用中的地位和可应用性日渐提升，SpringBoot 为此设计了一套通用缓存机制（规范）

此规范设计了两个顶层接口 Cache 和 CacheManager 即缓存和缓存管理，通过实现CacheManager 引入缓存组件，即可在SpringBoot项目内通过注解方便的设置缓存

通过 SpringBoot 的缓存自动配置类，查看其可支持哪些缓存组件的使用，部分源码如下：

//org.springframework.boot.autoconfigure.cache.CacheConfigurations
static {
    Map<CacheType, String> mappings = new EnumMap<>(CacheType.class);
    mappings.put(CacheType.GENERIC, GenericCacheConfiguration.class.getName());
    mappings.put(CacheType.HAZELCAST, HazelcastCacheConfiguration.class.getName());
    mappings.put(CacheType.INFINISPAN, InfinispanCacheConfiguration.class.getName());
    mappinpythongs.put(CacheType.JCACHE, JCacheCacheConfiguration.class.getName());
    mappings.put(CacheType.COUCHBASE, CouchbaseCacheConfiguration.class.getName());
    mappings.put(CacheType.REDIS, RedisCacheConfiguration.class.getName());
    mappings.put(CacheType.CAFFEINE, CaffeineCacheConfiguration.class.getName());
    mappings.put(CacheType.CACHE2K, Cache2kCacheConfiguration.class.getName());
    mappings.put(CacheType.SIMPLE, SimpleCacheConfiguration.class.getName());
    mappings.put(CacheType.NONE, NoOpCacheConfiguration.class.getName());
    MAPPINGS = Collections.unmodifiableMap(mappings);
}

2.缓存注解

3.缓存测试（caffeine）

通过 SpringBoot 集成 Caffeine 进行缓存注解演示，相关版本信息参考依赖

1.Pom依赖

<?XML version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.example</groupId>
    <artifactId>LenovoTest</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <maven.compiler.source>19</maven.compiler.source>
        <maven.compiler.target>19</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <spring.version>3.0.0</spring.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <version>${spring.version}</version>
            <exclusions>
                <exclusion>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-starter-logging</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <depe编程客栈ndency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-log4j2</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-aop</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-cache</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>com.github.ben-manes.caffeine</groupId>
            <artifactId>caffeine</artifactId>
            <version>3.1.2</version>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.24</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>2.0.14.graal</version>
        </dependency>
    </dependencies>
</project>

2.Yml配置（指定缓存实现类型）

server:
  port: 8088

spring:
  cache:
   type: caffeine

custom-caffeine:
  specs:
    ## 用户信息写入10S后过期
    userInfo: maximumSize=10,expireAfterWrite=10s
    ## 登陆信息写入5S后过期
    AccessInfo: maximumSize=10,expireAfterWrite=5s

3.项目启动类

package com.demo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cache.annotation.EnableCaching;

/**
 * @author
 * @date
 * @since 1.8
 */
@EnableCaching
@SpringBootApplication
public class TestApplication {

    public static void main(String[] args) {
        SpringApplication.run(TestApplication.class,args);
    }
}

4.自定义缓存配置

如果不通过Yml指定缓存实现类型，则将使用默认实现

package com.demo.comfig;

import com.github.benmanes.caffeine.cache.Caffeine;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.autoconfigure.cache.CacheAutoConfiguration;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.cache.CacheManager;
import org.springframework.cache.caffeine.CaffeineCacheManager;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;

import java.util.HashMap;
import java.util.Iterator;
import java.util.Map;

/**
 * @author
 * @date
 * @since 1.8
 */
@Configuration
public class CustomCaffeineConfig {

    /**
     * 加载 Caffeine 配置
     * @return
     */
    @Bean(name = "caffeineProperties")
    @ConfigurationProperties(prefix = "custom-caffeine.specs")
    public Map<String,String> caffeineProperties(){
        return new HashMap(16);
    }

    /**
     * 自定义 CacheManager
     * @param properties
     * @return
     */
    @Bean
    @Primary
    public CacheManager caffeineManager(@Qualifier("caffeineProperties") Map<String,String> properties){

        CaffeineCacheManager manager = new CaffeineCacheManager();
        Map.Entry<String,String> entry;
        Iterator<Map.Entry<String,String>> iterator = properties.entrySet().iterator();
        while (iterator.hasNext()){
    开发者_开发入门        entry = iterator.next();
            manager.registerCustomCache(entry.getKey(), Caffeine.from(entry.getValue()).build());
        }
        return manager;
    }
}

5.测试类

定义一个 User 对象

package com.demo.entity;

import lombok.Data;

/**
 * @author zhanghx19
 * @date 2023-01-28 15:53
 * @since 1.8
 */
@Data
public class UserInfo {
    private String name;
    private String account;
    private long age;
}

定义一个 Controller 类用于测试

package com.demo.controller;

import com.demo.entity.UserInfo;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cache.Cache;
import org.springframework.cache.CacheManager;
import org.springframework.cache.annotation.CacheEvict;
import org.springframework.cache.annotation.CachePut;
import org.springframework.cache.annotation.Cacheable;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.wephpb.bind.annotation.RestController;

/**
 * @author
 * @date 2023-01-28 11:36
 * @since 1.8
 */

@RestController
@RequestMapping("/test")
public class TestController {

    /**
     * 注入缓存管理器，所有注解操作也可以直接操作管理器实现
     */
    @Autowired
    CacheManager cacheManager;

    /**
     * CachePut 强制刷新缓存
     * @param id
     * @param val
     * @return
     */

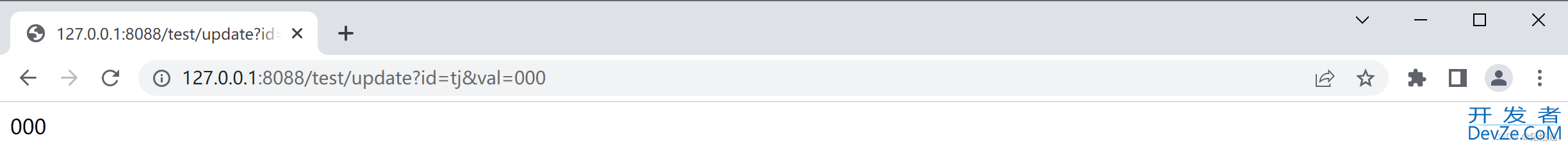

    @GetMapping("/update")
    @CachePut(cacheNames = "test" ,key = "#id")
    public String update(String id,String val){
        //TODO Query Data By @{id}
        return val;
    }

	/**

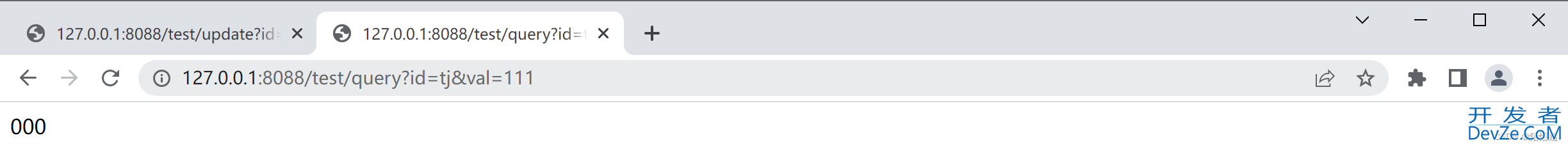

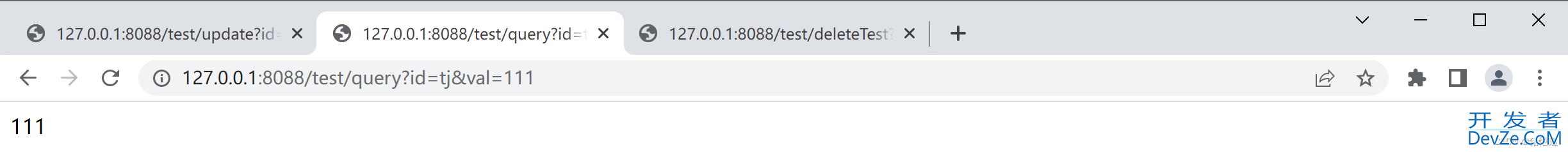

     * Cacheable 查看缓存，存在则直接返回；否则查询数据，添加缓存并返回
     * @param id
     * @param val
     * @return
     */
    @GetMapping("/query")
    @Cacheable(cacheNames = "test" ,key = "#id" )
    public String query(String id,String val){
        //TODO Query Data By @{id}
        return val;
    }

    /**
     * 删除注解内指定的 缓存名下的 Key
     * @param id
     */
    @GetMapping("/deleteTest")
    @CacheEvict(cacheNames = "test",key = "#id")
    public void deleteTest(String id){
    }

    /**
     * 通过 cacheManager 删除缓存
     * @param cacheNames
     * @param id
     */
    @GetMapping("/deleteByNameAndKet")
    public void deleteByNameAndKet(String cacheNames,String id){
        Cache cache = cacheManager.getCache(cacheNames);
        cache.evict(id);
    }

    /**
     * CachePut 强制缓存用户信息 且10秒后过期
     * @param id
     * @param val
     * @return
     */
    @GetMapping("/updateUser")
    @CachePut(cacheNames = "userInfo" ,key = "#id")
    public String updateUser(String id,String val){
        return val;
    }

    /**
     * Cacheable 10秒内缓存不更新，丢失后可刷新为当前值
     * @param id
     * @param val
     * @return
     */
    @GetMapping("/queryUser")
    @Cacheable(cacheNames = "userInfo" ,key = "#id")
    public String queryUser(String id,String val){
        return val;
    }

    /**
     * 缓存对象
     * @param id
     * @param val
     * @return
     */
    @GetMapping("/queryUserById")
    @Cacheable(cacheNames = "userInfo" ,key = "#id")
    public UserInfo getUserInfo(String id,String val){
        UserInfo info = new UserInfo();
        info.setAccount(id);
        info.setName(val);
        info.setAge(System.currentTimeMillis());
        return info;
    }

}

6.测试记录

启动项目，添加强制缓存

利用 Cacheable 尝试刷新缓存（返回已存在值）

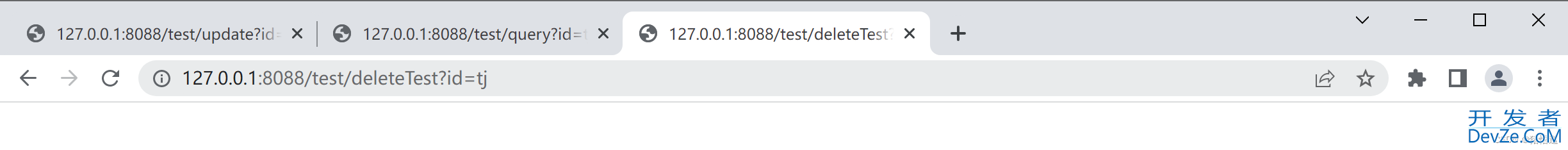

删除缓存

再次利用 Cacheable 尝试刷新缓存（上面清除后则可刷新）

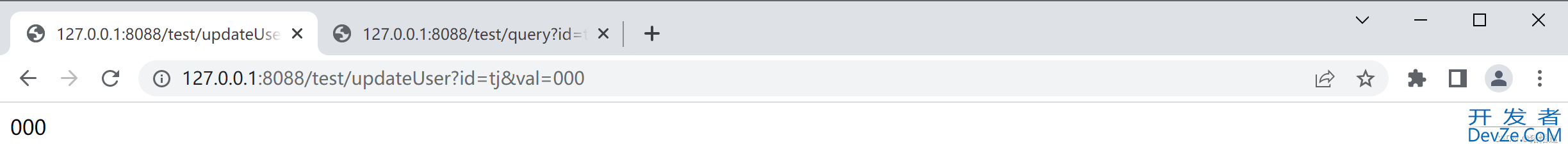

自动过期测试，通过 CachePut 添加用户信息

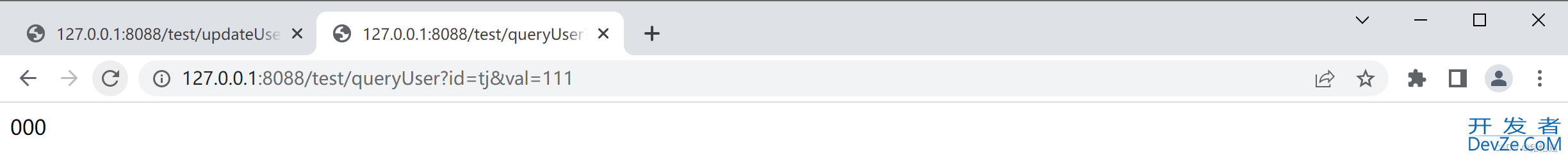

尝试用 Cacheable 刷新缓存，则 10S 后可生效

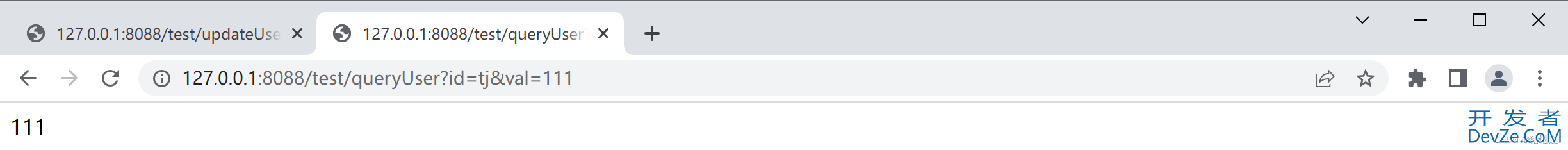

10 秒后

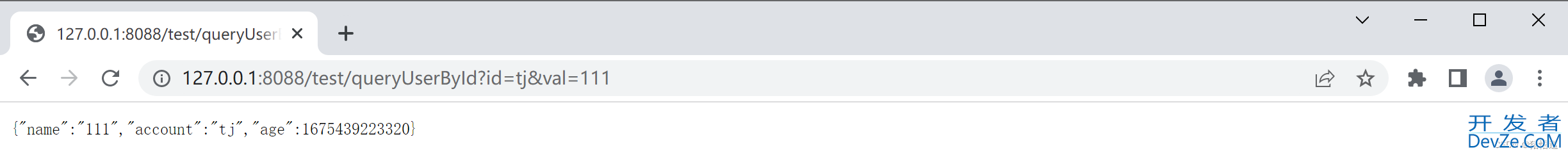

缓存对象信息

 到此这篇关于SpringBoot 下集成缓存工具类 CacheManager的文章就介绍到这了,更多相关Java缓存工具类Cache内容请搜索我们以前的文章或继续浏览下面的相关文章希望大家以后多多支持我们！
