利用Python语言的grpc实现消息传送详解

目录

• 1. grpc开源包的安装
• 2. grpc的使用之传送消息
• 3. grpc的使用之数据传输大小配置
• 4. grpc的使用之超时配置
• 5. grpc之大文件之流stream传输
• 6. grpc之大文件之流async异步传输

1. grpc开源包的安装

# conda
$ conda create -n grpc_env python=3.9

# install grpc
$ pip install grpc -i https://pypi.doubanio.com/simple
$ pip install grpc-tools -i https://pypi.doubanio.com/simple

# 有时proto生成py文件不对就是得换换grpc两个包的版本

2. grpc的使用之传送消息

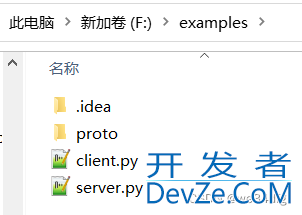

整体结构，client.py server.py 和proto目录下的example.proto

1）在example.proto定义传送体

// 声明
syntax = "proto3";
package proto;

// service创建
service HelloService{
  rpc Hello(Request) returns (Response) {}  // 单单传送消息
}

// 请求参数消息体 1、2是指参数顺序
message Request {
  string data = 1;
}

// 返回参数消息体
message Response {
  int32 ret = 1;    //返回码
  string data = 2;
}

//python -m grpc_tools.protoc -I ./ --python_out=./ --grpc_python_out=./ ./example.proto

2) 在虚拟环境里使用命令生成py文件

$ conda activate grpc_env

$ f:

$ cd F:\examples

$ python -m grpc_tools.protoc -I ./ --python_out=./ --grpc_python_out=./ ./example.proto

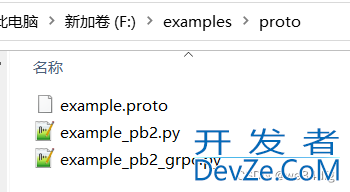

在proto目录下会生成两个py文件，如下图所示：

3) 编辑client.py 和 server.py

# server.py
import time
import grpc
from concurrent import futures
from proto import example_pb2_grpc, example_pb2


class ServiceBack(example_pb2_grpc.HelloServiceServicer):
    """接口的具体功能实现"""

    def Hello(self, request, context):
        """hello"""
        data = request.data
        print(data)
        ret_data = "Response:" + data
        return example_pb2.Response(ret=0, data=ret_data)


def server(ip: str, port: int) -> None:
    server = grpc.server(futures.ThreadPoolExecutor(max_workers=10))  # ⼤⼩为10的线程池
    ai_servicer = ServiceBack()
    example_pb2_grpc.add_HelloServiceServicer_to_server(ai_servicer, server)
    server.add_insecure_port(f"{ip}:{port}")
    server.start()
    try:
        print(f"server is started! ip:{ip} port:{str(port)}")
        while True:
            time.sleep(60 * 60)
    except Exception as es:
        print(es)
        server.stop(0)


if __name__ == '__main__':
    server("127.0.0.1", 8000)
# client.py
import grpc
from proto import example_pb2_grpc, example_pb2


def client(ip: str, port: int) -> None:
    target = str(ip) + ":" + str(port)
    channel = grpc.insecure_channel(target)  # 连接rpc服务器
    cli = example_pb2_grpc.HelloServiceStub(channel)  # 创建Stub

    data = "hello 123"
    request = example_pb2.Request(data=data)
    res = cli.Hello(request)
    print(f"ret：{res.ret}, data：{res.data}")


if __name__ == '__main__':
    client("127.0.0.1", 8000)

3. grpc的使用之数据传输大小配置

默认情况下,gRPC 将传入消息限制为 4 MB。 传出消息没有限制。

1）example.proto定义不变

2）编辑client.py 和 server.py

# server.py
import time
import grpc
from concurrent import futures
from proto import example_pb2_grpc, example_pb2


class ServiceBack(example_pb2_grpc.HelloServiceServicer):
    """接口的具体功能实现"""

    def Hello(self, request, context):
        """hello"""
        data = request.data
        print(data)
        ret_data = "Response:" + data
        return example_pb2.Response(ret=0, data=ret_data)


def server(ip: str, port: int) -> None:
    # 数据传输大小配置
    max_message_length = 1024 * 1024 * 1024  # 1G
    options = [('grpc.max_send_message_length', max_message_length),
               ('grpc.max_receive_message_length', max_message_length),
               ('grpc.enable_retries', 1),
               ]
    server = grpc.server(futures.ThreadPoolExecutor(max_workers=10), options=options)  # ⼤⼩为10的线程池
    ai_servicer = ServiceBack()
    example_pb2_grpc.add_HelloServiceServicer_to_server(ai_servicer, server)
    server.add_insecure_port(f"{ip}:{port}")
    server.start()
    try:
        print(f"server is started! ip:{ip} port:{str(port)}")
        while True:
            time.sleep(60 * 60)
    except Exception as es:
        print(es)
        server.stop(0)


if __name__ == '__main__':
    server("127.0.0.1", 8000)

# client.py
import grpc
from proto import example_pb2_grpc, example_pb2


def client(ip: str, port: int) -> None:
    # 数据传输大小配置
    max_message_length = 1024 * 1024 * 1024  # 1G
    options = [('grpc.max_send_message_length', max_message_length),
               ('grpc.max_receive_message_length', max_message_length),
               ('grpc.enable_retries', 1),
               ]
    target = str(ip) + ":" + str(port)
    channel = grpc.insecure_channel(target, options=options)  # 连接rpc服务器
    cli = example_pb2_grpc.HelloServiceStub(channel)  # 创建Stub

    data = "hello 123" * 1024 * 1024
    request = example_pb2.Request(data=data)
    res = cli.Hello(request)
    print(f"ret：{res.ret}, data：{res.data}")


if __name__ == '__main__':
    client("127.0.0.1", 8000)

4. grpc的使用之超时配置

1）example.proto定义不变

2）编辑client.py 和 server.py

# server.py
import time
import grpc
from concurrent import futures
from proto import example_pb2_grpc, example_pb2


class ServiceBack(example_pb2_grpc.HelloServiceServicer):
    """接口的具体功能实现"""

    def Hello(self, request, context):
        """hello"""
        data = request.data
        print(data)
        time.sleep(2)
        ret_data = "Response:" + data
        return example_pb2.Response(ret=0, data=ret_data)


def server(ip: str, port: int) -> None:
    # 数据传输大小配置
    max_message_length = 1024 * 1024 * 1024  # 1G
    options = [('grpc.max_send_message_length', max_message_length),
               ('grpc.max_receive_message_length', max_message_length),
               ('grpc.enable_retries', 1),
               ]
    server = grpc.server(futures.ThreadPoolExecutor(max_workers=10), options=options)  # ⼤⼩为10的线程池
    ai_servicer = ServiceBack()
    example_pb2_grpc.add_HelloServiceServicer_to_server(ai_servicer, server)
    server.add_insecure_port(f"{ip}:{port}")
    server.start()
    try:
        print(f"server is started! ip:{ip} port:{str(port)}")
        while True:
            time.sleep(60 * 60)
    except Exception as es:
        print(es)
        server.stop(0)


if __name__ == '__main__':
    server("127.0.0.1", 8000)

# client.py
import sys
import grpc
from proto import example_pb2_grpc, example_pb2


def client(ip: str, port: int) -> None:
    # 数据传输大小配置
    max_message_length = 1024 * 1024 * javascript1024  # 1G
    options = [('grpc.max_send_message_length', max_message_length),
               ('grpc.max_receive_message_length', max_message_length),
               ('grpc.enable_retries', 1),
               ]
    target = str(ip) + ":" + str(port)
    channel = grpc.insecure_channel(target, options=options)  # 连接rpc服务器
    cli = example_pb2_grpc.HelloServiceStub(channel)  # 创建Stub
    try:
        data = "hello 123"
        request = example_pb2.Request(data=data)
        res = cli.Hello(request, timeout=1)  # timeout 单位:秒
        print(f"ret：{res.ret}, data：{res.data}")
    except grpc.RpcError as rpc_error:
        print("grpc.RpcError", rpc_error.details())
    except Exception as es:
        print(es)
    finally:
        sys.exit(-1)


if __name__ == '__main__':
    cphplient("127.0.0.1", 8000)

运行结果：

grpc.RpcError Deadline Exceeded

5. grpc之大文件之流stream传输

1）在example.proto重新定义传送体

// 声明
syntax = "proto3";
package proto;

// service创建
service HelloService{
  rpc Hello(Request) returns (Response) {}  // 单单传送消息
  rpc ClientTOServer(stream UpFileRequest) returns (Response) {}  // 流式上传文件
  rpc ServerTOClient(Request) returns (stream UpFileRequest) {}  // 流式下载文件
}

// 请求参数消息体 1、2是指参数顺序
message Request {
  string data = 1;
}

// 返回参数消息体
message Response {
  int32 ret = 1;    //返回码
  string data = 2;
}

message UpFileRequest {
  string filename = 1;
  int64 sendsize = 2;
  int64 totalsize = 3;
  bytes data = 4;
}


//python -m grpc_tools.protoc -I ./ --python_out=./ --grpc_python_out=./ ./example.proto

2）在虚拟环境里使用命令生成py文件，参考2. 2）

3）编辑client.py 和 server.py

# server.py
import os
import开发者_Go学习 time
import grpc
from concurrent import futures
from proto import example_pb2_grpc, example_pb2


class ServiceBack(example_pb2_grpc.HelloServiceServicer):
    """接口的具体功能实现"""

    def Hello(self, request, context):
        """hello"""
        data = request.data
        print(data)
        time.sleep(2)
        ret_data = "Response:" + data
        return example_pb2.Response(ret=0, data=ret_data)

    def ClientTOServer(self, request_iterator, context):
        """上传文件"""
        data = bytearray()
        for UpFileRequest in request_iterator:
            file_name = UpFileRequest.filename
            file_size = UpFileRequest.totalsize
            file_data = UpFileRequest.data
            print(f"文件名称：{file_name}， 文件总长度：{file_size}")
            data.extend(file_data)  # 拼接两个bytes
            print(f"已接收长度：{len(data)}")
        if len(data) == file_size:
            with open("242_copy.mp3", "wb") as fw:
                fw.write(data)
            print(f"{file_name=} 下载完成")
            (ret, res) = (0, file_name)
        else:
            print(f"{file_name=} 下载失败")
            (ret, res) = (-1, file_name)
        return example_pb2.Response(ret=ret, data=res)

    def ServerTOClient(self, request, context):
        """下载文件"""
        fp = request.data
        print(f"下载文件：{fp=}")
        # 获取文件名和文件大小
        file_name = os.path.basename(fp)
        file_size = os.path.getsize(fp)  # 获取文件大小
        # 发送文件内容
        part_size = 1024 * 1024  # 每次读取1MB数据
        count = 1

        with open(fp, "rb") as fr:
            while True:
                try:
                    if count == 1:
                        count += 1
                        yield example_pb2.UpFileRequest(filename=file_name, totalsize=file_size, sendsize=0, data=b"")
                    else:
                        context = fr.read(part_size)
                        if context:
                            yield example_pb2.UpFileRequest(filename=file_name, totalsize=file_size,
                                                            sendsize=len(context),
                                                            data=context)
                        else:
                            print(f"发送完毕")
                            return 0
                except Exception as es:
                    print(es)


def server(ip: str, port: int) -> None:
    # 数据传输大小配置
    max_message_length = 1024 * 1024 * 1024  # 1G
    options = [('grpc.max_send_message_length', max_message_length),
               ('grpc.max_receive_message_length', max_message_length),
               ('grpc.enable_retries', 1),
               ]
    server = grpc.server(futures.ThreadPoolExecutor(max_workers=10), options=options)  # ⼤⼩为10的线程池
    ai_servicer = ServiceBack()
    example_pb2_grpc.add_HelloServiceServicer_to_server(ai_servicer, server)
    server.add_insecure_port(f"{ip}:{port}")
    server.start()
    try:
        print(f"server is started! ip:{ip} port:{str(port)}")
        while True:
            time.sleep(60 * 60)
    except Exception as es:
        print(es)
        server.stop(0)


if __name__ == '__main__':
    server("127.0.0.1", 8000)

# client.py
import os
import sys
import grpc
from proto import example_pb2_grpc, example_pb2


def send_stream_data(fp: str):
    """迭代器发送大文件"""
    # 获取文件名和文件大小
    file_name = os.path.basename(fp)
    file_size = os.path.getsize(fp)  # 获取文件大小
    # 发送文件内容
    part_size = 1024 * 1024  # 每次读取1MB数据
    count = 1

    with open(fp, "rb") as fr:
        while True:
            try:
                if count == 1:
                    count += 1
                    yield example_pb2.UpFileRequest(filename=file_name, totalsize=file_size, sendsize=0, data=b"")
                else:
                    context = fr.read(part_size)
                    if context:
                        yield example_pb2.UpFileRequest(filename=file_name, totalsize=file_size, sendsize=len(context),
                                                        data=context)
                    else:
                        print(f"发送完毕")
                        return 0
            except Exception as es:
                print(es)


def client(ip: str, port: int) -> None:
    # 数据传输大小配置
    max_message_length = 1024 * 1024 * 1024  # 1G
    options = [('grpc.max_send_message_length', max_message_length),
               ('grpc.max_receive_message_length', max_message_length),
               ('grpc.enable_retries', 1),
               ]
    target = str(ip) + ":" + str(port)
    channel = grpc.insecure_channel(target, options=options)  # 连接rpc服务器
    cli = example_pb2_grpc.HelloServiceStub(channel)  # 创建Stub
    try:
        data = "hello 123"
        request = example_pb2.Request(data=data)
        res = cli.Hello(request, timeout=1)  # timeout 单位:秒
        print(f"ret：{res.ret}, data：{res.data}")
    except grpc.RpcError as rpc_error:
        print("grpc.RpcError", rpc_error.details())
    except Exception as es:
        print(es)
    finally:
        sys.exit(-1)


def client_to_server(ip: str, port: int, fp: str):
    """
    流式上传数据。
    """
    # 数据传输大小配置
    max_message_length = 1024 * 1024 * 1024  # 1G
    options = [('grpc.max_send_message_length', max_message_length),
               ('grpc.max_receive_message_length', max_message_length),
               ('grpc.enable_retries', 1),
               ]
    target = str(ip) + ":" + str(port)
    channel = grpc.insecure_channel(target, options=options)  # 连接rpc服务器
    cli = example_pb2_grpc.HelloServiceStub(channel)  # 创建Stub
    try:
        request = send_stream_data(fp=fp)
        res = cli.ClientTOServer(request, timeout=600)  # timeout 单位:秒
        print(f"ret：{res.ret}, data：{res.data}")
    except grpc.RpcError as rpc_error:
        print("grpc.RpcError", rpc_error.details())
    except Exception as es:
        print(es)
    finally:
        sys.exit(-1)


def server_to_client(ip: str, port: int, fp: str):
    """
    流式上传数据。
    """
    # 数据传输大小配置
    max_message_length = 1024 * 1024 * 1024  # 1G
    options = [('grpc.max_send_message_length', max_message_length),
               ('grpc.max_receive_message_length', max_message_length),
               ('grpc.enable_retries', 1),
               ]
    target = str(ip) + ":" + str(port)
    channel = grpc.insecure_channel(target, options=options)  # 连接rpc服务器
    cli = example_pb2_grpc.HelloServiceStub(channel)  # 创建Stub
    try:
        data = bytearray()
        request = example_pb2.Request(data=fp)
        filename = ""
        for res in cli.ServerTOClient(request, timeout=300):
            filename = res.filename
            total_size = res.totalsize
            data += res.data
        if total_size == len(data):
            with open("242_1.mp3", "wb") as fw:
                fw.write(data)
            print(f"{filename=} : {total_size=} 下载完成！")
        else:
            print(f"{filename=} 下载失败！")
    except grpc.RpcError as rpc_error:
        print("grpc.RpcError", rpc_error.details())
    except Exception as es:
        print(es)
    finaphplly:
        sys.exit(-1)


if __name__ == '__main__':
    # client("127.0.0.1", 8000)
    # client_to_server("127.0.0.1", 8000, "242.mp3")
    server_to_client("127.0.0.1", 8000, "242.mp3")

6. grpc之大文件之流async异步传输

# server.py
import os
import time
import grpc
from concurrent import futures
from proto import example_pb2_grpc, example_pb2
import asyncio


class ServiceBack(example_pb2_grpc.HelloServiceServicer):
    """接口的具体功能实现"""

    def Hello(self, request, context):
        """hello"""
        data = request.data
        print(data)
        time.sleep(2)
        ret_data = "Response:" + data
        return example_pb2.Response(ret=0, data=ret_data)

    def ClientTOServer(self, request_iterator, context):
        """上传文件"""
        data = bytearray()
        for UpFileRequest in request_iterator:
            file_name = UpFileRequest.filename
            file_size = UpFileRequest.totalsize
            file_data = UpFileRequest.data
            print(f"文件名称：{file_name}， 文件总长度：{file_size}")
            data.extend(file_data)  # 拼接两个bytes
            print(f"已接收长度：{len(data)}")
        if len(data) == file_size:
            with open("242_copy.mp3", "wb") as fw:
                fw.write(data)
            print(f"{file_name=} 下载完成")
            (ret, res) = (0, file_name)
        else:
            print(f"{file_name=} 下载失败")
            (ret, res) = (-1, file_name)
        return example_pb2.Response(ret=ret, data=res)

    def ServerTOClient(self, request, context):
        """下载文件"""
        fp = request.data
        print(f"下载文件：{fp=}")
        # 获取文件名和文件大小
        file_name = os.path.basename(fp)
        file_size = os.path.getsize(fp)  # 获取文件大小
        # 发送文件内容
        part_size = 1024 * 1024  # 每次读取1MB数据
        count = 1

        with open(fp, "rb") as fr:
            while True:
                try:
                    if count == 1:
                        count += 1
                        yield example_pb2.UpFileRequest(filename=file_name, totalsize=file_size, sendsize=0, data=b"")
                    else:
                        context = fr.read(part_size)
                        if context:
                            yield example_pb2.UpFileRequest(filename=file_name, totalsize=file_size,
                                                            sendsize=len(context),
                                                            data=context)
                        else:
                            print(f"发送完毕")
                            return 0
                except Exception as es:
                    print(es)


async def server(ip: str, port: int) -> None:
    # 数据传输大小配置
    max_message_length = 1024 * 1024 * 1024  # 1G
    options = [('grpc.max_send_message_length', max_message_length),
               ('grpc.max_receive_message_length', max_message_length),
               ('grpc.enable_retries', 1),
               ]
    server = grpc.aio.server(futures.ThreadPoolExecutor(max_workers=10), options=options)  # ⼤⼩为10的线程池
    ai_servicer = ServiceBack()
    example_pb2_grpc.add_HelloServiceServicer_to_server(ai_servicer, http://www.devze.comserver)
    server.add_insecure_port(f"{ip}:{port}")
    await server.start()
    try:
        print(f"server is started! ip:{ip} port:{str(port)}")
        await server.wait_for_termination()
    except Exception as es:
        print(es)
        await server.stop(None)


if __name__ == '__main__':
    loop = asyncio.get_event_loop()
    loop.run_until_complete(asyncio.wait([server("127.0.0.1", 8000)]))
    loop.close()

# client.py
import os
import sys
import grpc
from proto import example_pb2_grpc, example_pb2
import asyncio


def send_stream_data(fp: str):
    """迭代器发送大文件"""
    # 获取文件名和文件大小
    file_name = os.path.basename(fp)
    file_size = os.path.getsize(fp)  # 获取文件大小
    # 发送文件内容
    part_size = 1024 * 1024  # 每次读取1MB数据
    count = 1

    with open(fp, "rb") as fr:
        while True:
            try:
                if count == 1:
                    count += 1
                    yield example_pb2.UpFileRequest(filename=file_name, totalsize=file_size, sendsize=0, data=b"")
                else:
                    context = fr.read(part_size)
                    if context:
                        yield example_pb2.UpFileRequest(filename=file_name, totalsize=file_size, sendsize=len(context),
                                                        data=context)
                    else:
                        print(f"发送完毕")
                        return 0
            except Exception as es:
                print(es)


async def client(ip: str, port: int) -> None:
    # 数据传输大小配置
    max_message_length = 1024 * 1024 * 1024  # 1G
    options = [('grpc.max_send_message_length', max_message_length),
               ('grpc.max_receive_message_length', max_message_length),
               ('grpc.enable_retries', 1),
               ]
    target = str(ip) + ":" + str(port)
    async with grpc.aio.insecure_channel(target, options=options) as channel:  # 连接rpc服务器
        cli = example_pb2_grpc.HelloServiceStub(channel)  # 创建Stub
        try:
            data = "hello 123"
            request = example_pb2.Request(data=data)
            res = await cli.Hello(request, timeout=3)  # timeout 单位:秒
            print(f"ret：{res.ret}, data：{res.data}")
        except grpc.RpcError as rpc_error:
            print("grpc.RpcError", rpc_error.details())
        except Exception as es:
            print(es)
        finally:
            sys.exit(-1)


async def client_to_server(ip: str, port: int, fp: str):
    """
    流式上传数据。
    """
    # 数据传输大小配置
    max_message_length = 1024 * 1024 * 1024  # 1G
    options = [('grpc.max_send_message_length', max_message_length),
               ('grpc.max_receive_message_length', max_message_length),
               ('grpc.enable_retries', 1),
               ]
    target = str(ip) + ":" + str(port)
    async with grpc.aio.insecure_channel(target, options=options) as channel:  # 连接rpc服务器
        cli = example_pb2_grpc.HelloServiceStub(channel)  # 创建Stub
        try:
            request = send_stream_data(fp=fp)
            res = await cli.ClientTOServer(request, timeout=600)  # timeout 单位:秒
            print(f"ret：{res.ret}, data：{res.data}")
        except grpc.RpcError as rpc_error:
            print("grpc.RpcError", rpc_error.details())
        except Exception as es:
            print(es)
        finally:
            sys.exit(-1)


def server_to_client(ip: str, port: int, fp: str):
    """
    流式上传数据。
    """
    # 数据传输大小配置
    max_message_length = 1024 * 1024 * 1024  # 1G
    options = [('grpc.max_send_message_length', max_message_length),
               ('grpc.max_receive_message_length', max_message_length),
               ('grpc.enable_retries', 1),
               ]
    target = str(ip) + ":" + str(port)
    channel = grpc.insecure_channel(target, options=options)  # 连接rpc服务器
    cli = example_pb2_grpc.HelloServiceStub(channel)  # 创建Stub
    try:
        data = bytearray()
        request = example_pb2.Request(data=fp)
        filename = ""
        for res in cli.ServerTOClient(request, timeout=300):
            filename = res.filename
            total_size = res.totalsize
            data += res.data
        if total_size == len(data):
            with open("242_1.mp3", "wb") as fw:
                fw.write(data)
            print(f"{filename=} : {total_size=} 下载完成！")
        else:
            print(f"{filename=javascript} 下载失败！")
    except grpc.RpcError as rpc_error:
        print("grpc.RpcError", rpc_error.details())
    except Exception as es:
        print(es)
    finally:
        sys.exit(-1)


if __name__ == '__main__':
    # asyncio.run(client("127.0.0.1", 8000))
    asyncio.run(client_to_server("127.0.0.1", 8000, "242.mp3"))
    # server_to_client("127.0.0.1", 8000, "242.mp3")

结论： 在本地测了一下不加async和加async的文件上传传送， async还慢点，嘿嘿嘿。

到此这篇关于利用Python语言的grpc实现消息传送详解的文章就介绍到这了,更多相关Python grpc消息传送内容请搜索我们以前的文章或继续浏览下面的相关文章希望大家以后多多支持我们！
