Pytorch实现Fashion-mnist分类任务全过程

目录

• 数据概况
• Fashion-mnist
• 类别标注
• 数据处理
• 对输入进行归一化
• 数据增强
• 定义Resnet网络
• 训练与测试
• 完整代码
• 总结

数据概况

Fashion-mnist

经典的MNIST数据集包含了大量的手写数字。十几年来，来自机器学习、机器视觉、人工智能、深度学习领域的研究员们把这个数据集作为衡量算法的基准之一。

你会在很多的会议，期刊的论文中发现这个数据集的身影。实际上，MNIST数据集已经成为算法作者的必测的数据集之一。

类别标注

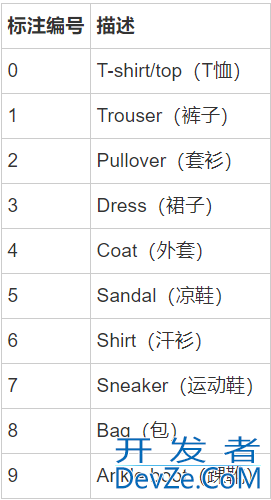

在Fashion-mnist数据集中，每个训练样本都按照以下类别进行了标注：

数据处理

对输入进行归一化

归一化时需要统一进行 x = (x - mean) / std

train_trans = transforms.Compose([
        transforms.RandomCrop(28, padding=2),#数据增强
        transforms.RandomHorizontalFlip(),
        transforms.ToTensor(),
        normalize
    ])
test_trans = transforms.Compose([
        transforms.ToTensor(),
        normalize
    ])
mnist_train = torchvision.datasets.FashionMNIST(root='../data',train=True,download=True,transform=train_trans)
mnist_test = torchvision.datasets.FashionMNIST(root='../data',train=False,download=True,transform=test_trans)
train_iter = torch.utils.data.DataLoader(mnist_train, BATch_size=batch_size, shuffle=True)
test_iter = torch.utils.data.DataLoader(mnist_test, batch_size=batch_size, shuffle=False)
# 求整个数据集的均值
temp_sum = 0
cnt = 0
for X, y in train_iter:
    if y.shape[0] != batch_size:
        break   # 最后一个batch不足batch_size,这里就忽略了
    channel_mean = torch.mean(X, dim=(0,2,3))  # 按channel求均值(不过这里只有1个channel)
    cnt += 1   # cnt记录的是batch的个数，不是图像
    temp_sum += channel_mean[0].item()
dataset_global_mean = temp_sum / cnt
print('整个数据集的像素均值:{}'.format(dataset_global_mean))
# 求整个数据集的标准差
cnt = 0
temp_sum = 0
for X, y in train_iter:
    if y.shape[0] != batch_size:
        break   # 最后一个batch不足batch_size,这里就忽略了
    residual = (X - dataset_global_mean) ** 2
    channel_var_mean = torch.mean(residual, dim=(0,2,3))
    cnt += 1   # cnt记录的是batch的个数，不是图像
    temp_sum += math.sqrt(channel_var_mean[0].item())
dataset_global_std = temp_sum / cnt
print('整个数据集的像素标准差:{}'.format(dataset_global_std))

整个数据集的像素均值:0.2860366729433025

整个数据集的像素标准差:0.35288708155778725

数据增强

加入随机裁剪和翻转

 ============================ step 1/6 数据 ============================
batch_size = 64
normalize = transforms.Normalize(mean=[0.286], std=[0.352])#对像素值归一化
train_trans = transforms.Compose([
        transforms.RandomCrop(28, padding=2),
        transforms.RandomHorizontalFlip(),
        transforms.ToTensor(),
        normalize
    ])
test_trans = transforms.Compose([
        transforms.ToTensor(),
        normalize
    ])
mnist_train = torchvision.datasets.FashionMNIST(root='../data',train=True,download=True,transform=train_trans)
mnist_test = torchvision.datasets.FashionMNIST(root='../data',train=False,download=True,transform=test_trans)
train_iter = torch.utils.data.DataLoader(mnist_train, batch_size=batch_size, shuffle=True)
test_iter = torch.utils.data.DataLoader(mnist_test, batch_size=batch_size, shuffle=False)

定义Resnet网络

class GlobalAvgPool2d(nn.Module):
    """
    全局平均池化层
    可通过将普通的平均池化的窗口形状设置成输入的高和宽实现
    """

    def __init__(self):
        super(GlobalAvgPool2d, self).__init__()

    def forward(self, x):
        return F.avg_pool2d(x, kernel_size=x.size()[2:])


class FlattenLayer(torch.nn.Module):
    def __init__(self):
        super(FlattenLayer, self).__init__()

    def forward(self, x):  # x shape: (batch, *, *, ...)
        return x.view(x.shape[0], -1)


class Residual(nn.Module):
    def __init__(self, in_channels, out_channels, use_1x1conv=False, stride=1):
        """
            use_11conv: 是否使用额外的1x1卷积层来修改通道数
            stride: 卷积层的步幅, resnet使用步长为2的卷积来替代pooling的作用，是个很赞的idea
        """
        super(Residual, self).__init__()
        self.conv1 = nn.Conv2d(in_channels, out_channels, kernel_size=3, padding=1, stride=stride)
        self.conv2 = nn.Conv2d(out_channels, out_channels, kernel_size=3, padding=1)
        if use_1x1conv:
            self.conv3 = nn.Conv2d(in_channels, out_channels, kernel_size=1, stride=stride)
        else:
            self.conv3 = None
        self.bn1 = nn.BatchNorm2d(out_channels)
        self.bn2 = nn.BatchNorm2d(out_channels)

    def forward(self, X):
        Y = F.relu(self.bn1(self.conv1(X)))
        Y = self.bn2(self.conv2(Y))
        if self.conv3:
            X = self.conv3(X)
        return F.relu(Y + X)


def resnet_block(in_channels, out_channels, num_residuals, first_block=False):
    '''
    resnet block
    num_residuals: 当前block包含多少个残差块
    first_block: 是否为第一个block
    一个resnet block由num_residuals个残差块组成
    其中第一个残差块起到了通道数的转换和pooling的作用
  js  后面的若干残差块就是完成正常的特征提取
    '''
    if first_block:
        assert in_channels == out_channels  # 第一个模块的输出通道数同输入通道数一致
    blk = []
    for i in range(num_residuals):
        if i == 0 and not first_block:
            blk.append(Residual(in_channels, out_channels, use_1x1conv=True, stride=2))
        else:
      开发者_JS教程      blk.append(Residual(out_channels, out_channels))
    return nn.Sequential(*blk)


# 定义resnet模型结构
net = nn.Sequential(
    nn.Conv2d(1, 32, kernel_size=3, stride=1, padding=1),  # TODO: 缩小感受野, 缩channel
    nn.BatchNorm2d(32),
    nn.ReLU())
# nn.ReLU(),
# nn.MaxPool2d(kernel_size=2, stride=2))   # TODO：去掉maxpool缩小感受野

# 然后是连续4个block
net.add_module("resnet_block1", resnet_block(32, 32, 2, first_block=True))  # TODO: channel统一减半
net.add_module("resnet_block2", resnet_block(32, 64, 2))
net.add_module("resnet_block3", resnet_block(64, 128, 2))
net.add_module("resnet_block4", resnet_block(128, 256, 2))
# global average pooling
net.add_module("global_avg_pool", GlobalAvgPool2d())
# fc layer
net.add_module("fc", nn.Sequential(FlattenLayer(), nn.Linear(256, 10)))

训练与测试

def evaLuate_accuracy(data_iter, net, device=None):
	#评估模型在测试集的准确率
    if device is None and isinstance(net, torch.nn.Module):
        # 如果没指定device就使用net的device
        device = list(net.parameters())[0].device
    net.eval()
    acc_sum, n = 0.0, 0
    with torch.no_grad():
        for X, y in data_iter:
            acc_sum += (net(X.to(device)).argmax(dim=1) == y.to(device)).float().sum().cpu().item()
            n += y.shape[0]
    net.train()  # 改回训练模式
    return acc_sum / n


def train_model(net, train_iter, test_iter, batch_size, optimizer, device, num_epochs):
    net = net.to(device)
    print("training on ", device)
    loss = torch.nn.CrossEntropyLoss()
    best_test_acc = 0
    for epoch in range(num_epochs):
        train_l_sum, train_acc_sum, n, batch_count, start = 0.0, 0.0, 0, 0, time.time()
        for X, y in train_iter:
            X = X.to(device)
            y = y.to(device)
            y_hat = net(X)
            l = loss(y_hat, y)
            optimizer.zero_grad()
            l.backward()
            optimizer.step()
            train_l_sum += l.cpu().item()
            train_acc_sum += (y_hat.argmax(dim=1) == y).sum().cpu().item()
            n += y.shape[0]
            batch_count += 1
        test_acc = evaluate_accuracy(test_iter, net)
        print('epoch %d, loss %.4f, train acc %.3f, test acc %.3f, time %.1f sec'
              % (epoch + 1, train_l_sum / batch_count, train_acc_sum / n, test_acc, time.time() - start))
        if test_acc > best_test_acc:
            print('find best! save at model/best.pth')
            best_test_acc = test_acc
            torch.save(net.state_dict(), 'model/best.pth')


lr, num_epochs = 0.01, 10
optimizer = torch.optim.Adam(net.parameters(), lr=lr)
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
train_model(net, train_iter, test_iter, batch_size, optimizer, device, num_epochs)

完整代码

import os
import sys
import time
import torch
from torch import nn, optim
import torch.nn.functional as F
import torchvision
from torchvision import transforms



class GlobalAvgPool2d(nn.Module):
    """
    全局平均池化层
    可通过将普通的平均池化的窗口形状设置成输入的高和宽实现
    """

    def __init__(self):
        super(GlobalAvgPool2d, self).__init__()

    def forward(self, x):
        return F.avg_pool2d(x, kernel_size=x.size()[2:])


class FlattenLayer(torch.nn.Module):
    def __init__(self):
        super(FlattenLayer, self).__init__()

    def forward(self, x):  # x shape: (batch, *, *, ...)
        return x.view(x.shape[0], -1)


class Residual(nn.Module):
    def __init__(self, in_channels, out_channels, use_1x1conv=False, stride=1):
        """
            use_11conv: 是否使用额外的1x1卷积层来修改通道数
            stride: 卷积层的步幅, resnet使用步长为2的卷积来替代pooling的作用，是个很赞的idea
        """
        super(Residual, self).__init__()
        self.conv1 = nn.Conv2d(in_channels, out_channels, kernel_size=3, padding=1, stride=stride)
        self.conv2 = nn.Conv2d(out_channels, out_channels, kernel_size=3, padding=1)
        if use_1x1conv:
            self.conv3 = nn.Conv2d(in_channels, out_channels, kernel_size=1, stride=stride)
        else:
            self.conv3 = None
        self.bn1 = nn.BatchNorm2d(out_channels)
        self.bn2 = nn.BatchNorm2d(out_channels)

    def forward(self, X):
        Y = F.relu(self.bn1(self.conv1(X)))
        Y = self.bn2(self.conv2(Y))
        if self.conv3:
            X = self.conv3(X)
        return F.relu(Y + X)


def resnet_block(in_channels, out_channels, num_residuals, first_block=False):
    '''
    resnet block
    num_residuals: 当前block包含多少个残差块
    first_block: 是否为第一个block
    一个resnet block由num_residuals个残差块组成
    其中第一个残差块起到了通道数的转换和pooling的作用
    后面的若干残差块就是完成正常的特征提取
    '''
    if first_block:
        assert in_channels == out_channels  # 第一个模块的输出通道数同输入通道数一致
    blk = []
    for i in range(num_residuals):
        if i == 0 and not first_block:
            blk.append(Residual(in_channels, out_channels, use_1x1conv=True, stride=2))
        else:
            blk.append(Residual(out_channels, out_channels))
    return nn.Sequential(*blk)


# 定义resnet模型结构
net = nn.Sequential(
    nn.Conv2d(1, 32, kernel_size=3, stride=1, padding=1),  # TODO: 缩小感受野, 缩channel
    nn.BatchNorm2d(32),
    nn.ReLU())
# nn.ReLU(),
# nn.MaxPool2d(kernel_size=2, stride=2))   # TODO：去掉maxpool缩小感受野

# 然后是连续4个block
net.add_module("resnet_block1", resnet_block(32, 32, 2, first_block=True))  # TODO: channel统一减半
net.add_module("resnet_block2", resnet_block(32, 64, 2))javascript
net.add_module("resnet_block3", resnet_block(64, 128, 2))
net.add_module("resnet_block4", resnet_block(128, 256, 2))
# global average pooling
net.add_module("global_avg_pool", GlobalAvgPool2d())
# fc layer
net.add_module("fc", nn.Sequential(FlattenLayer(), nn.Linear(256, 10)))

def load_data_fashion_mnist(batch_size, root='../data'):
    """Download the fashion mnist dataset and then load into memory."""

    normalize = transforms.Normalize(mean=[0.28], std=[0.35])
    train_augs = transforms.Compose([
        transforms.RandomCrop(28, padding=2),
        transforms.RandomHorizontalFlip(),
        transforms.ToTensor(),
        normalize
    ])

    test_augs = transforms.Compose([
        transforms.ToTensor(),
        normalize
    ])

    mnist_train = torchvision.datasets.FashionMNIST(root=root, train=True, download=True, transform=train_augs)
    mnist_test = torchvision.datasets.FashionMNIST(root=root, train=False, download=True, transform=test_augs)
    if sys.platform.startswith('win'):
        num_workers = 0  # 0表示不用额外的进程来加速读取数据
    else:
        num_workers = 4
    train_iter = torch.utils.data.DataLoader(mnist_train, batch_size=batch_size, shuffle=True, num_workers=num_workers)
编程    test_iter = torch.utils.data.DataLoader(mnist_test, batch_size=batch_size, shuffle=False, num_workers=num_workers)

    return train_iter, test_iter


print('训练...')
batch_size = 64
train_iter, test_iter = load_data_fashion_mnist(batch_size, root='../data')


def编程 evaluate_accuracy(data_iter, net, device=None):
    if device is None and isinstance(net, torch.nn.Module):
        # 如果没指定device就使用net的device
        device = list(net.parameters())[0].device
    net.eval()
    acc_sum, n = 0.0, 0
    with torch.no_grad():
        for X, y in data_iter:
            acc_sum += (net(X.to(device)).argmax(dim=1) == y.to(device)).float().sum().cpu().item()
            n += y.shape[0]
    net.train()  # 改回训练模式
    return acc_sum / n


def train_model(net, train_iter, test_iter, batch_size, optimizer, device, num_epochs, lr, lr_period, lr_decay):
    net = net.to(device)
    print("training on ", device)
    loss = torch.nn.CrossEntropyLoss()
    best_test_acc = 0
    for epoch in range(num_epochs):
        train_l_sum, train_acc_sum, n, batch_count, start = 0.0, 0.0, 0, 0, time.time()

        if epoch > 0 and epoch % lr_period == 0:  # 每lr_period个epoch，学习率衰减一次
            lr = lr * lr_decay
            for param_group in optimizer.param_groups:
                param_group['lr'] = lr

        for X, y in train_iter:
            X = X.to(device)
            y = y.to(device)
            y_hat = net(X)
     android       l = loss(y_hat, y)
            optimizer.zero_grad()
            l.backward()
            optimizer.step()
            train_l_sum += l.cpu().item()
            train_acc_sum += (y_hat.argmax(dim=1) == y).sum().cpu().item()
            n += y.shape[0]
            batch_count += 1
        test_acc = evaluate_accuracy(test_iter, net)
        print('epoch %d, loss %.4f, train acc %.3f, test acc %.3f, time %.1f sec'
              % (epoch + 1, train_l_sum / batch_count, train_acc_sum / n, test_acc, time.time() - start))
        if test_acc > best_test_acc:
            print('find best! save at model/best.pth')
            best_test_acc = test_acc
            torch.save(net.state_dict(), 'model/best.pth')
            # utils.save_model({
            #    'arch': args.model,
            #    'state_dict': net.state_dict()
            # }, 'saved-models/{}-run-{}.pth.tar'.format(args.model, run))


lr, num_epochs, lr_period, lr_decay = 0.01, 50, 5, 0.1
#optimizer = optim.Adam(net.parameters(), lr=lr)
optimizer = optim.SGD(net.parameters(), lr=lr, momentum=0.9, weight_decay=5e-4)
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
train_model(net, train_iter, test_iter, batch_size, optimizer, device, num_epochs, lr, lr_period, lr_decay)

print('加载最优模型')
net.load_state_dict(torch.load('model/best.pth'))
net = net.to(device)

print('inference测试集')
net.eval()
id = 0
preds_list = []
with torch.no_grad():
    for X, y in test_iter:
        batch_pred = list(net(X.to(device)).argmax(dim=1).cpu().numpy())
        for y_pred in batch_pred:
            preds_list.append((id, y_pred))
            id += 1

print('生成测试集评估文件')
with open('result.csv', 'w') as f:
    f.write('ID,Prediction\n')
    for id, pred in preds_list:
        f.write('{},{}\n'.format(id, pred))

总结

以上为个人经验，希望能给大家一个参考，也希望大家多多支持我们。
