Go语言制作svg格式树形图的示例代码

目录
  • 什么是SVG
    • SVG定义
    • SVG优点
    • 预定义元素
    • 圆形 <circle>
    • 直线 <line>
    • 文字 <text>
  • 结点SVG格式
    • 根结点
    • 子树结点
    • 叶结点
  • 结点坐标
    • 结点文本
      • 二叉树转SVG
        • 全部源代码

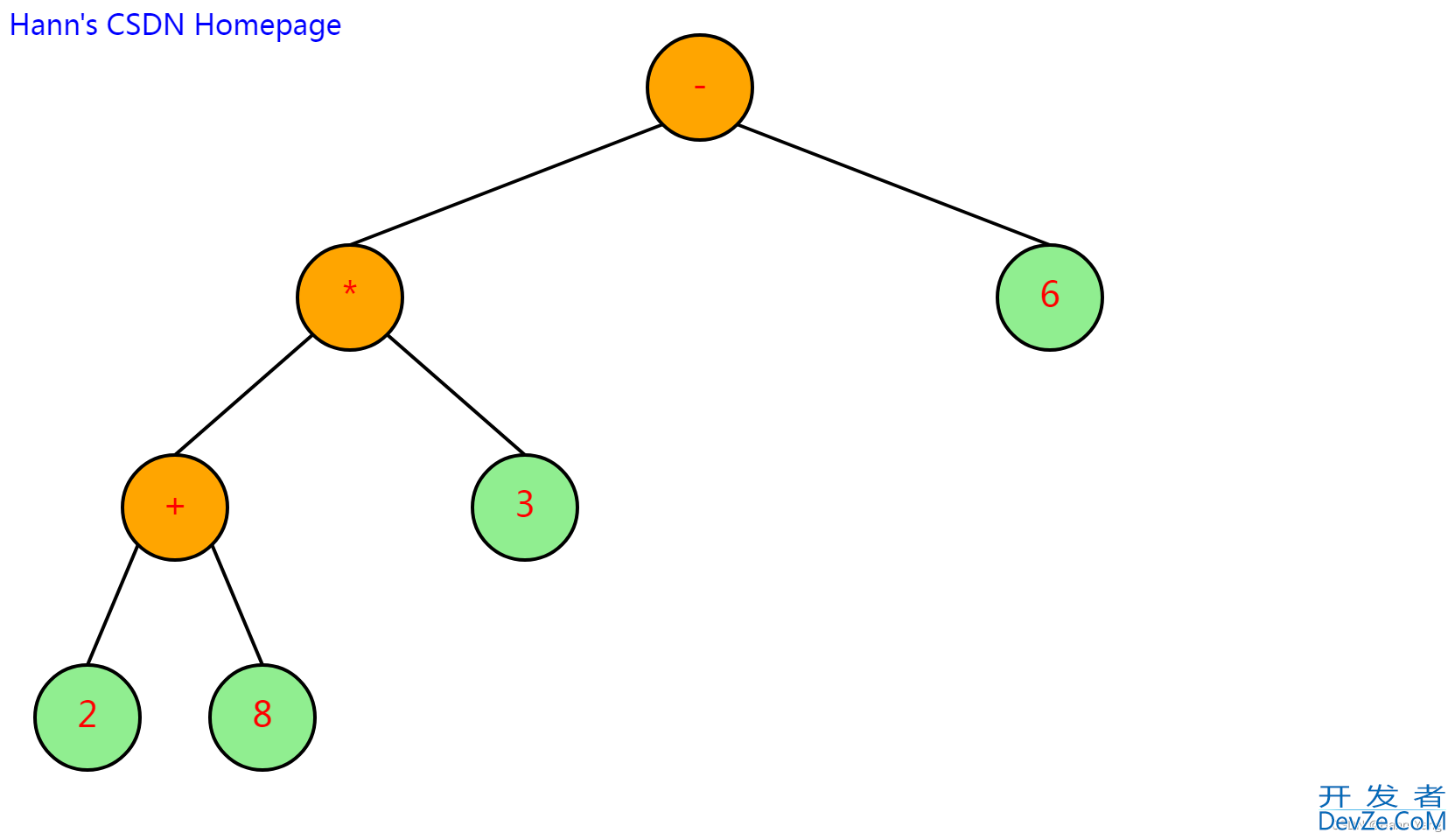

          最近一直在刷二叉树题目,但在要验证结果时,通常用中序遍历、层序遍历查看结果,验证起来没有画图来得直观,所有想到自己动手制作二叉树的树形图。 直接开干,先从svg入手:

          Go语言制作svg格式树形图的示例代码

          什么是SVG

          SVG定义

          SVG是可伸缩矢量图形 (Scalable Vector Graphics),于2003年1月14日成为 W3C 推荐标准。

          SVG 用来定义用于网络的基于矢量的图形

          SVG 使用 XML 格式定义图形

          SVG 是万维网联盟的标准

          SVG 与诸如 DOM 和 XSL 之类的 W3C 标准是一个整体

          SVG优点

          • SVG 可被非常多的工具读取和修改(比如记事本)
          • SVG 与 JPEG 和 GIF 图像比起来,尺寸更小,且可压缩性更强。
          • SVG 图像在放大或改变尺寸的情况下其图形质量不会有所损失
          • SVG 图像可在任何的分辨率下被高质量地打印
          • SVG 可在图像质量不下降的情况下被放大
          • SVG 图像中的文本是可选的,同时也是可搜索的(很适合制作地图)
          • SVG 可以与 JavaScript 技术一起运行
          • SVG 是开放的标准
          • SVG 文件是纯粹的 XML

          预定义元素

          • 矩形 <rect>
          • 圆形 <circle>
          • 椭圆 <ellipse>
          • 直线 <line>
          • 文字 <text>
          • 路径 <path>
          • 折线 <polyline>
          • 多边形 <polygon>

          Go语言制作svg格式树形图的示例代码

          制作二叉树的树形图,就使用圆形、直线、文字三种即可:

          圆形 <circle>

          <svg xmlns="http://www.w3.org/2000/svg" version="1.1">
            <circle cx="150" cy="50" r="30" stroke="black" stroke-width="2" fill="red"/>
          </svg>


          cx和cy属性定义圆点的x和y坐标;r属性定义圆的半径

          如果省略cx和cy,圆的中心会被设置为(0, 0)

          直线 <line>

          <svg xmlns="http://www.w3.org/2000/svg" version="1.1">
            <line x1="50" y1="50" x2="200" y2="200" style="stroke:red;stroke-width:2"/>
          </svg>


          x1,y2 属性定义线条的起始端点坐标

          x2,y2 属性定义线条的结束端点坐标

          文字 <text>

          <svg xmlns="http://www.w3.org/2000/svg" version="1.1">
            <text x="30" y="150" fill="red">Welcome to Hann's HomePage</text>
          </svg>


          x,y 属性定义文字左对齐显示时的起始坐标(居中对齐则是文字中间点)

          fill 属性定义文字的颜色

          Go语言制作svg格式树形图的示例代码

          结点SVG格式

          根结点

          由<circle>和<text>组成,存放结点的数据域

              <g id="0,0">
              <circle cx="400" cy="50" r="30" stroke="black" stroke-width="2" fill="orange" />
              <text x="400" y="50" fill="red" font-size="20" text-anchor="middle" dominant-baseline="middle">1</text>
              </g>


          子树结点

          比根结点多出<line>元素,用来表示父结点左或右指针的指向

              <g id="1,0">
              <circle cx="200" cy="170" r="30" stroke="black" stroke-width="2" fill="orange" />
              <text x="200" y="170" fill="red" font-size="20" text-anchor="middle" dominant-baseline="middle">2</text>
              <line x1="200" y1="140" x2="379" y2="71" style="stroke:black;stroke-width:2"/>
              </g>


          叶结点

          与子树结点相同,为区别显示把<circle>填充色改为greenlight

              <g id="1,1">
              <circle cx="600" cy="170" r="30" stroke="black" stroke-width="2" fill="lightgreen" />
              <text x="600" y="170" fill="red" font-size="20" text-anchor="middle" dominant-baseline="middle">3</text>
              <line x1="600" y1="140" x2="421" y2="71" style="stroke:black;stroke-width:2"/>
              </g>


          结点坐标

          坐标的确定

          结点坐标确定,把二叉树还原成满二叉树,结点位置标记为:

          [ [0,0], [1,0], [1,1], [2,0], [2,1], [2,2], [2,3], [3,0]......],再用循环计算出各点坐标。

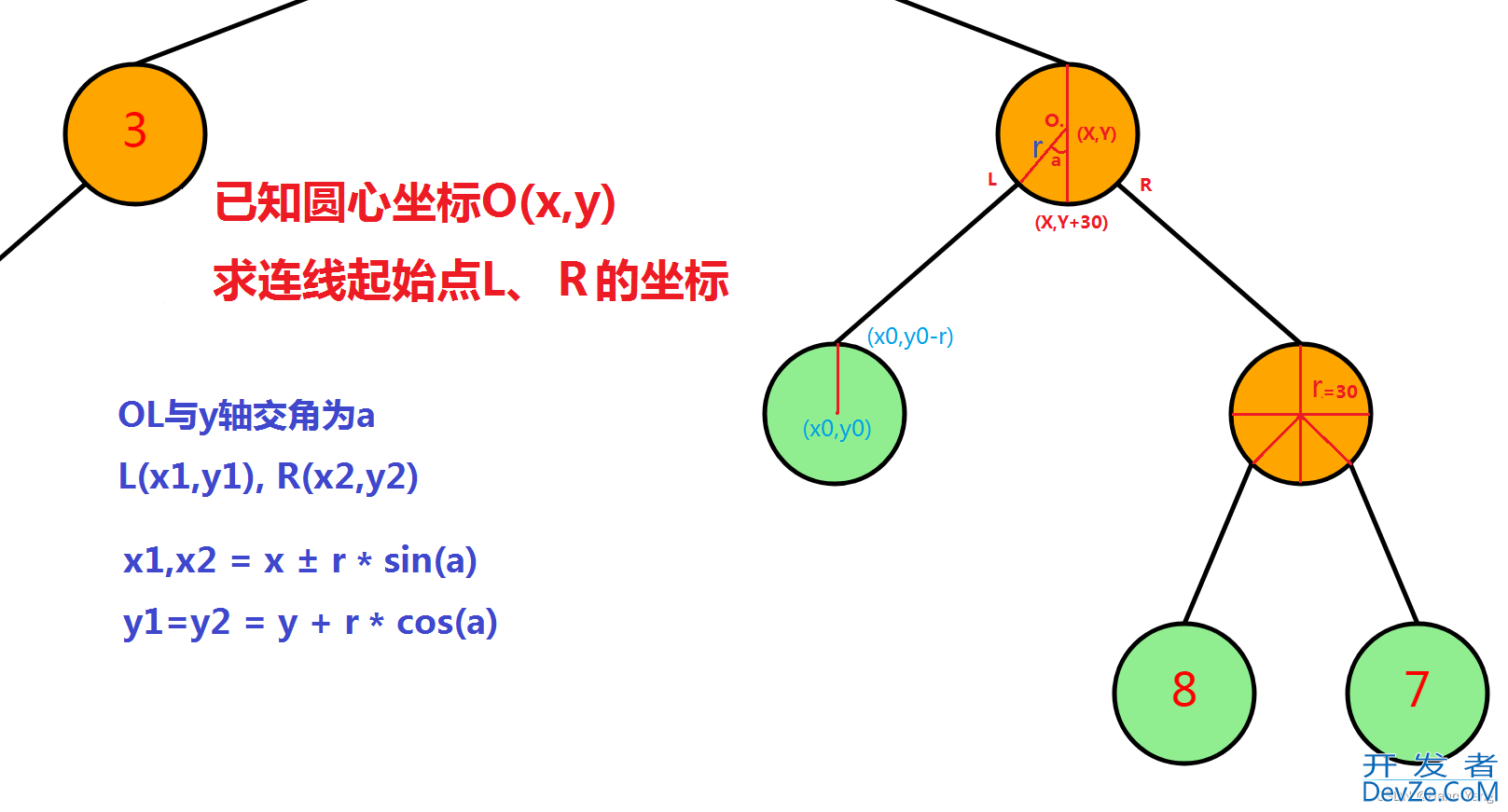

          连线的夹角

          实际上不用考虑连线夹角,只要计算出连线始终两端点的坐标即可:

          Go语言制作svg格式树形图的示例代码

          结点文本

          以字符串形式保存好属性变量的特征关键词,用于遍历二叉树时替换成实际数据:

          func XmlNode(M, N, X, Y int, Data string, Color ...string) string {
              var cColor, tColor string
              R := 30
              Node := `<Tab><g id="M,N">
              <circle cx="X" cy="Y" r="RC" stroke="black" stroke-width="2" fill="COLOR" />
              <text x="X" y="Y" fill="TextColor" font-size="20" text-anchor="middle"
                  dominant-baseline="middle">DATA</text>
              <ROOT/>
              </g><CrLf>`
              if len(Color) == 0 {
                  cColor, tColor = "orange", "red"
              } else if len(Color) == 1 {
                  cColor, tColor = Color[0], "red"
              } else {
                  cColor, tColor = Color[0], Color[1]
              }
              Node = strings.Replace(Node, "M", strconv.Itoa(M), 1)
              Node = strings.Replace(Node, "N", strconv.Itoa(N), 1)
              Node = strings.Replace(Node, "X", strconv.Itoaphp(X), 2)
              Node = strings.Replace(Node, "Y", strconv.Itoa(Y), 2)
              Node = strings.Replace(Node, "RC", strconv.Itoa(R), 1)
              Node = strings.Replace(Node, "DATA", Data, 1)
              Node = strings.Replace(Node, "COLOR", cColor, 1)
              Node = strings.Replace(Node, "TextColor", tColor, 1)
              Node = strings.Replace(Node, "<CrLf>", "\n", -1)
              Node = strings.Replace(Node, "<Tab>", "\t", -1)
              Node = strings.Replace(Node, "\n\t\t", " ", -1)
              return Node
          }

          二叉树转SVG

          遍历二叉树对应的满二叉树,读出数据域并计算坐标,转成svg格式:

          格式转换

          func (bt *biTree) Xml4Tree() string {
              var Xml, Node string
              Head := "<svg xmlns=\"http://www.w3.org/2000/svg\" xmlns:xlink=\"http://www.w3.org/" +
                  "1999/xlink\" version=\"1.1\" width=\"Width\" height=\"Height\">\nCONTENT</svg>"
              Line := `<line x1="X1" y1="Y1" x2="X2" y2="Y2" style="stroke:black;stroke-width:2"/>`
              Link := `<a xlink:href="https://blog.csdn.net/boysoft2002" target="_blank">
              <text x="5" y="20" fill="blue">Hann's CSDN Homepage</text></a>`
              List := bt.LevelNullwith()
              Levels := len(List)
              for i := Levels - 1; i >= 0; i-- {
                  negative := -1
                  TmpXml := ""
                  for j := 0; j < Pow2(i); j++ {
                      t := Pow2(Levels - i - 1)
                      x, y := 50*(2*t*j+t), 120*i+50
                      if List[i][j] != nil {
                          fillColor := "orange"
                          if i == Levels-1 || i > 0 && i < Levels-1 &&
                              List[i+1][j*2] == nil && List[i+1][j*2+1] == nil {
                              fillColor = "lightgreen"
                          }
                          TmpStr := ""
                          switch List[i][j].(type) {
                          case int:
                              TmpStr = strconv.Itoa(List[i][j].(int))
                          case float64:
                              TmpStr = strconv.FormatFloat(List[i][j].(float64), 'g', -1, 64)
                          case string:
                              TmpStr = List[i][j].(string)
             开发者_Go教程             default:
                              TmpStr = "Error Type"
                          }
                          Xml = XmlNode(i, j, x, y, TmpStr, fillColor)
                      }
                      if i > 0 {
                          line1 := strings.Replace(Line, "X1", strconv.Itoa(x), 1)
                          line1 = strings.Replace(line1, "Y1", strconv.Itoa(y-30), 1)
                          negative *= -1
                          x0, y0 := 21, 21
                          x += 50*negative*(2*t*j%2+t) - negative*x0
                          line1 = strings.Replace(line1, "X2", strconv.Itoa(x), 1)
                          line1 = strings.Replace(line1, "Y2", strconv.Itoa(y-120+y0), 1)
                          Xml = strings.Replacepython(Xml, "<ROOT/>", line1, 1)
                      }
                      if List[i][j] != nil {
                          TmpXml += Xml
                      }
                  }
                  Node = TmpXml + Node
              }
              Xml = strings.Replace(Head, "CONTENT", Nowww.devze.comde, 1)
              Xml = strings.Replace(Xml, "Width", strconv.Itoa(Pow2(Levels)*50), 1)
              Xml = strings.Replace(Xml, "Height", strconv.Itoa(Levels*120), 1)
              Xml = strings.Replace(Xml, "<ROOT/>", Link, 1)
              return Xml
          }

          写入文件、调取浏览

              //......
              for index, text := range texts {
                  svgFile := "./biTree0" + strconv.Itoa(index+1) + ".svg"
                  file, err1 = os.Create(svgFile)
                  if err1 != nil {
                      panic(err1)
                  }
                  _, err1 = io.WriteString(file, text)
                  if err1 != nil {
                      panic(err1)
                  }
                  file.Close()
                  exec.Command("cmd", "/c", "start", svgFile).Start()
                  //linux 代码:
                  //exec.Command("xdg-open", svgFile).Start()
                  //MAC 代码:
                  //exec.Command("open", svgFile).Start()
              }
              //......

          全部源代码

          package main

          import (
          	"fmt"
          	"io"
          	"os"
          	"os/exec"
          	"strconv"
          	"strings"
          )

          type btNode struct {
          	Data   interface{}
          	Lchild *btNode
          	Rchild *btNode
          }

          type biTree struct {
          	Root *btNode
          }

          func Build(data interface{}) *biTree {
          	var list []interface{}
          	if data == nil {
          		return &biTree{}
          	}
          	switch data.(type) {
          	case []interface{}:
          		list = append(list, data.([]interface{}).编程客栈..)
          	default:
          		list = append(list, data)
          	}
          	if len(list) == 0 {
          		return &biTree{}
          	}
          	node := &btNode{Data: list[0]}
          	list = list[1:]
          	Queue := []*btNode{node}
          	for len(list) > 0 {
          		if len(Queue) == 0 {
          			//panic("Given array can not build binary tree.")
          			return &biTree{Root: node}
          		}
          		cur := Queue[0]
          		val := list[0]
          		Queue = Queue[1:]
          		if val != nil {
          			cur.Lchild = &btNode{Data: val}
          			if cur.Lchild != nil {
          				Queue = append(Queue, cur.Lchild)
          			}
          		}
          		list = list[1:]
          		if len(list) > 0 {
          			val := list[0]
          			if val != nil {
          				cur.Rchild = &btNode{Data: val}
          				if cur.Rchild != nil {
          					Queue = append(Queue, cur.Rchild)
          				}
          			}
          			list = list[1:]
          		}
          	}
          	return &biTree{Root: node}
          }

          func (bt *biTree) AppendNode(data interface{}) {
          	root := bt.Root
          	if root == nil {
          		bt.Root = &btNode{Data: data}
          		return
          	}
          	Queue := []*btNode{root}
          	for len(Queue) > 0 {
          		cur := Queue[0]
          		Queue = Queue[1:]
          		if cur.Lchild != nil {
          			Queue = append(Queue, cur.Lchild)
          		} else {
          			cur.Lchild = &btNode{Data: data}
          			return
          		}
          		if cur.Rchild != nil {
          			Queue = append(Queue, cur.Rchild)
          		} else {
          			cur.Rchild = &btNode{Data: data}
          			break
          		}
          	}
          }

          func Copy(bt *biTree) *biTree {
          	root := bt.Root
          	if root == nil {
          		return &biTree{}
          	}
          	node := &btNode{Data: root.Data}
          	Queue1, Queue2 := []*btNode{root}, []*btNode{node}
          	for len(Queue1) > 0 {
          		p1, p2 := Queue1[0], Queue2[0]
          		Queue1, Queue2 = Queue1[1:], Queue2[1:]
          		if p1.Lchild != nil {
          			Node := &btNode{Data: p1.Lchild.Data}
          			p2.Lchild = Node
          			Queue1 = append(Queue1, p1.Lchild)
          			Queue2 = append(Queue2, Node)
          		}
          		if p1.Rchild != nil {
          			Node := &btNode{Data: p1.Rchild.Data}
          			p2.Rchild = Node
          			Queue1 = append(Queue1, p1.Rchild)
          			Queue2 = append(Queue2, Node)
          		}
          	}
          	return &biTree{Root: node}
          }

          func Mirror(bt *biTree) *biTree {
          	root := bt.Root
          	if root == nil {
          		return &biTree{}
          	}
          	node := &btNode{Data: root.Data}
          	Queue1, Queue2 := []*btNode{root}, []*btNode{node}
          	for len(Queue1) > 0 {
          		p1, p2 := Queue1[0], Queue2[0]
          		Queue1, Queue2 = Queue1[1:], Queue2[1:]
          		if p1.Lchild != nil {
          			Node := &btNode{Data: p1.Lchild.Data}
          			p2.Rchild = Node
          			Queue1 = append(Queue1, p1.Lchild)
          			Queue2 = append(Queue2, Node)
          		}
          		if p1.Rchild != nil {
          			Node := &btNode{Data: p1.Rchild.Data}
          			p2.Lchild = Node
          			Queue1 = append(Queue1, p1.Rchild)
          			Queue2 = append(Queue2, Node)
          		}
          	}
          	return &biTree{Root: node}
          }

          func (bt *biTree) BForder2D() [][]interface{} {
          	var res [][]interface{}
          	root := bt.Root
          	if root == nil {
          		return res
          	}
          	Queue := []*btNode{root}
          	for len(Queue) > 0 {
          		Nodes := []interface{}{}
          		Levels := len(Queue)
          		for Levels > 0 {
          			cur := Queue[0]
          			Queue = Queue[1:]
          			Nodes = append(Nodes, cur.Data)
          			Levels--
          			if cur.Lchild != nil {
          				Queue = append(Queue, cur.Lchild)
          			}
          			if cur.Rchild != nil {
          				Queue = append(Queue, cur.Rchild)
          			}
          		}
          		res = append(res, Nodes)
          	}
          	return res
          }

          func (bt *biTree) LevelNullwith(Fills ...interface{}) [][]interface{} {
          	var Nodes [][]interface{}
          	var Fill0 interface{}
          	if len(Fills) == 0 {
          		Fill0 = nil
          	} else if len(Fills) == 1 {
          		Fill0 = 编程客栈Fills[0]
          	} else {
          		panic("Error: number of parameters is greater than 1")
          	}
          	root := bt.Root
          	if root == nil {
          		return Nodes
          	}
          	Count := 0
          	Queue := []*btNode{root}
          	for len(Queue) > 0 {
          		nodes := []interface{}{}
          		Level := len(Queue)
          		for Level > 0 {
          			cur := Queue[0]
          			Queue = Queue[1:]
          			nodes = append(nodes, cur.Data)
          			Count++
          			Level--
          			if cur.Lchild != nil {
          				Queue = append(Queue, cur.Lchild)
          			}
          			if cur.Rchild != nil {
          				Queue = append(Queue, cur.Rchild)
          			}
          		}
          		Nodes = append(Nodes, nodes)
          	}
          	newbiTree := Copy(bt)
          	for i := 1; i < Pow2(len(Nodes))-Count; i++ {
          		newbiTree.AppendNode(Fill0)
          	}
          	return newbiTree.BForder2D()
          }

          func XmlNode(M, N, X, Y int, Data string, Color ...string) string {
          	var cColor, tColor string
          	R := 30
          	Node := `<Tab><g id="M,N">
          	<circle cx="X" cy="Y" r="RC" stroke="black" stroke-width="2" fill="COLOR" />
          	<text x="X" y="Y" fill="TextColor" font-size="20" text-anchor="middle"
          		dominant-baseline="middle">DATA</text>
          	<ROOT/>
          	</g><CrLf>`
          	if len(Color) == 0 {
          		cColor, tColor = "orange", "red"
          	} else if len(Color) == 1 {
          		cColor, tColor = Color[0], "red"
          	} else {
          		cColor, tColor = Color[0], Color[1]
          	}
          	Node = strings.Replace(Node, "M", strconv.Itoa(M), 1)
          	Node = strings.Replace(Node, "N", strconv.Itoa(N), 1)
          	Node = strings.Replace(Node, "X", strconv.Itoa(X), 2)
          	Node = strings.Replace(Node, "Y", strconv.Itoa(Y), 2)
          	Node = strings.Replace(Node, "RC", strconv.Itoa(R), 1)
          	Node = strings.Replace(Node, "DATA", Data, 1)
          	Node = strings.Replace(Node, "COLOR", cColor, 1)
          	Node = strings.Replace(Node, "TextColor", tColor, 1)
          	Node = strings.Replace(Node, "<CrLf>", "\n", -1)
          	Node = strings.Replace(Node, "<Tab>", "\t", -1)
          	Node = strings.Replace(Node, "\n\t\t", " ", -1)
          	return Node
          }

          func Pow2(x int) int { //x>=0
          	res := 1
          	for i := 0; i < x; i++ {
          		res *= 2
          	}
          	return res
          }

          func Xml4Full(Levels int) string {
          	var Xml, Node string
          	Head := "<svg xmlns=\"http://www.w3.org/2000/svg\" xmlns:xlink=\"http://www.w3.org/" +
          		"1999/xlink\" version=\"1.1\" width=\"Width\" height=\"Height\">\nCONTENT</svg>"
          	Line := `<line x1="X1" y1="Y1" x2="X2" y2="Y2" style="stroke:black;stroke-width:2"/>`
          	Link := `<a xlink:href="https://blog.csdn.net/boysoft2002" rel="external nofollow"  rel="external nofollow"  target="_blank">
          	<text x="5" y="20" fill="blue">Hann's CSDN Homepage</text></a>`
          	for i := 0; i < Levels; i++ {
          		negative := -1
          		for j := 0; j < Pow2(i); j++ {
          			t := Pow2(Levels - i - 1)
          			x, y := 50*(2*t*j+t), 120*i+50
          			if Levels != 1 && i == Levels-1 {
          				Xml = XmlNode(i, j, x, y, strconv.Itoa(Pow2(i)+j), "lightgreen")
          			} else {
          				Xml = XmlNode(i, j, x, y, strconv.Itoa(Pow2(i)+j))
          			}
          			if i > 0 {
          				line1 := strings.Replace(Line, "X1", strconv.Itoa(x), 1)
          				line1 = strings.Replace(line1, "Y1", strconv.Itoa(y-30), 1)
          				negative *= -1
          				x0, y0 := 21, 21
          				//过连线起始端的半径与纵轴线夹角取45度时x,y坐标修正值21,21[30/1.414]
          				//取30度时 x0,y0:= 15,30-26;取60度时 x0,y0:= 26[15*1.732],15
          				x += 50*negative*(2*t*j%2+t) - negative*x0
          				line1 = strings.Replace(line1, "X2", strconv.Itoa(x), 1)
          				line1 = strings.Replace(line1, "Y2", strconv.Itoa(y-120+y0), 1)
          				Xml = strings.Replace(Xml, "<ROOT/>", line1, 1)
          			}
          			Node += Xml
          		}
          	}
          	Xml = strings.Replace(Head, "CONTENT", Node, 1)
          	Xml = strings.Replace(Xml, "Width", strconv.Itoa(Pow2(Levels)*50), 1)
          	Xml = strings.Replace(Xml, "Height", strconv.Itoa(Levels*120), 1)
          	Xml = strings.Replace(Xml, "<ROOT/>", Link, 1)
          	return Xml
          }

          func (bt *biTree) Xml4Tree() string {
          	var Xml, Node string
          	Head := "<svg xmlns=\"http://www.w3.org/2000/svg\" xmlns:xlink=\"http://www.w3.org/" +
          		"1999/xlink\" version=\"1.1\" width=\"Width\" height=\"Height\">\nCONTENT</svg>"
          	Line := `<line x1="X1" y1="Y1" x2="X2" y2="Y2" style="stroke:black;stroke-width:2"/>`
          	Link := `<a xlink:href="https://blog.csdn.net/boysoft2002" rel="external nofollow"  rel="external nofollow"  target="_blank">
          	<text x="5" y="20" fill="blue">Hann's CSDN Homepage</text></a>`
          	List := bt.LevelNullwith()
          	Levels := len(List)
          	for i := Levels - 1; i >= 0; i-- {
          		negative := -1
          		TmpXml := ""
          		for j := 0; j < Pow2(i); j++ {
          			t := Pow2(Levels - i - 1)
          			x, y := 50*(2*t*j+t), 120*i+50
          			if List[i][j] != nil {
          				fillColor := "orange"
          				if i == Levels-1 || i > 0 && i < Levels-1 &&
          					List[i+1][j*2] == nil && List[i+1][j*2+1] == nil {
          					fillColor = "lightgreen"
          				}
          				TmpStr := ""
          				switch List[i][j].(type) {
          				case int:
          					TmpStr = strconv.Itoa(List[i][j].(int))
          				case float64:
          					TmpStr = strconv.FormatFloat(List[i][j].(float64), 'g', -1, 64)
          				case string:
          					TmpStr = List[i][j].(string)
          				default:
          					TmpStr = "Error Type"
          				}
          				Xml = XmlNode(i, j, x, y, TmpStr, fillColor)
          			}
          			if i > 0 {
          				line1 := strings.Replace(Line, "X1", strconv.Itoa(x), 1)
          				line1 = strings.Replace(line1, "Y1", strconv.Itoa(y-30), 1)
          				negative *= -1
          				x0, y0 := 21, 21
          				x += 50*negative*(2*t*j%2+t) - negative*x0
          				line1 = strings.Replace(line1, "X2", strconv.Itoa(x), 1)
          				line1 = strings.Replace(line1, "Y2", strconv.Itoa(y-120+y0), 1)
          				Xml = strings.Replace(Xml, "<ROOT/>", line1, 1)
          			}
          			if List[i][j] != nil {
          				TmpXml += Xml
          			}
          		}
          		Node = TmpXml + Node
          	}
          	Xml = strings.Replace(Head, "CONTENT", Node, 1)
          	Xml = strings.Replace(Xml, "Width", strconv.Itoa(Pow2(Levels)*50), 1)
          	Xml = strings.Replace(Xml, "Height", strconv.Itoa(Levels*120), 1)
          	Xml = strings.Replace(Xml, "<ROOT/>", Link, 1)
          	return Xml
          }

          func main() {

          	var file *os.File
          	var err1 error

          	list1 := []interface{}{"-", "*", 6, "+", 3, nil, nil, 2, 8}
          	list2 := []interface{}{1, 2, 3, 4, 5, nil, 6, 7, 8}
          	tree1 := Build(list1)
          	tree2 := Build(list2)

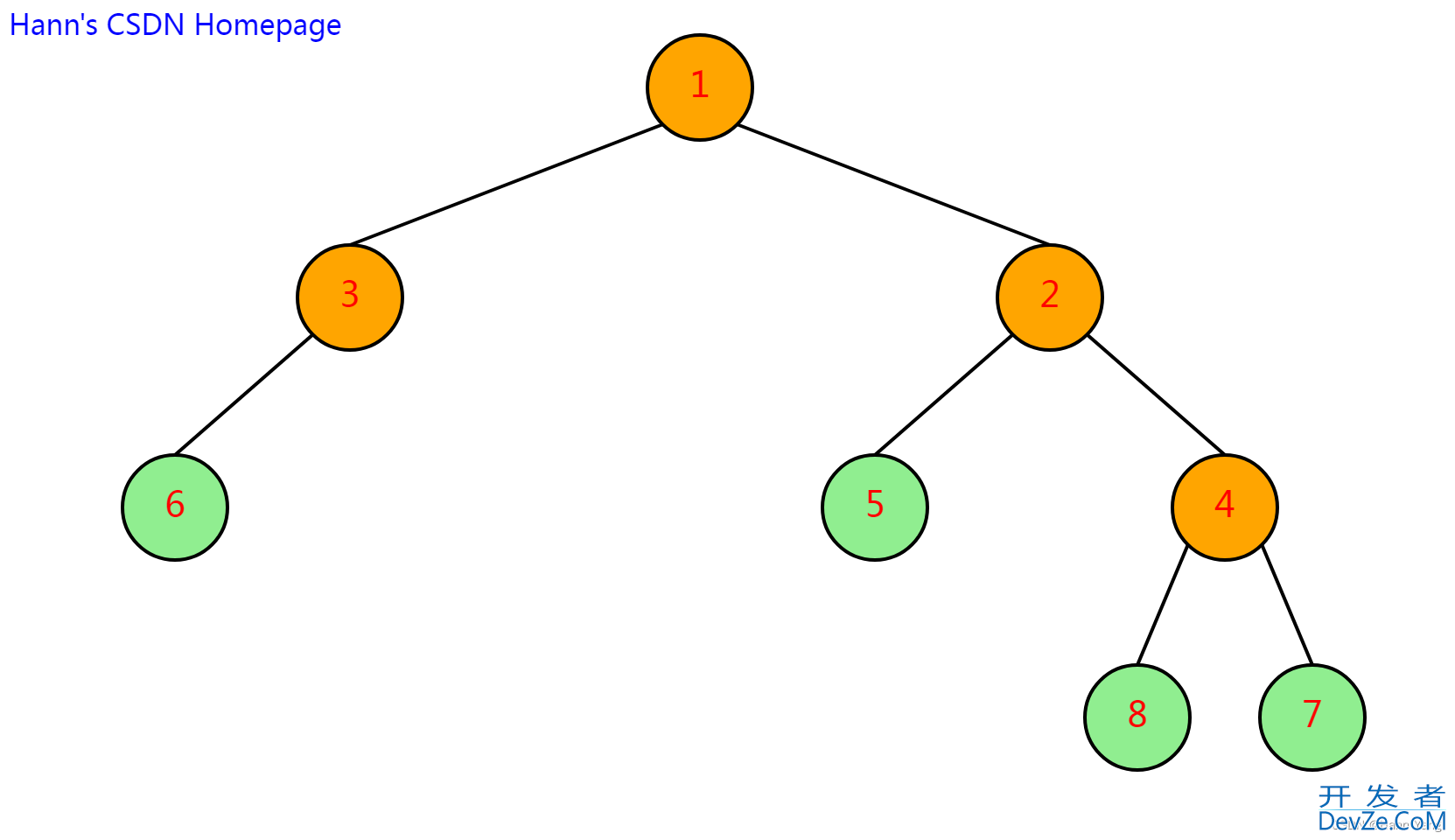

          	tree3 := Mirror(tree2)

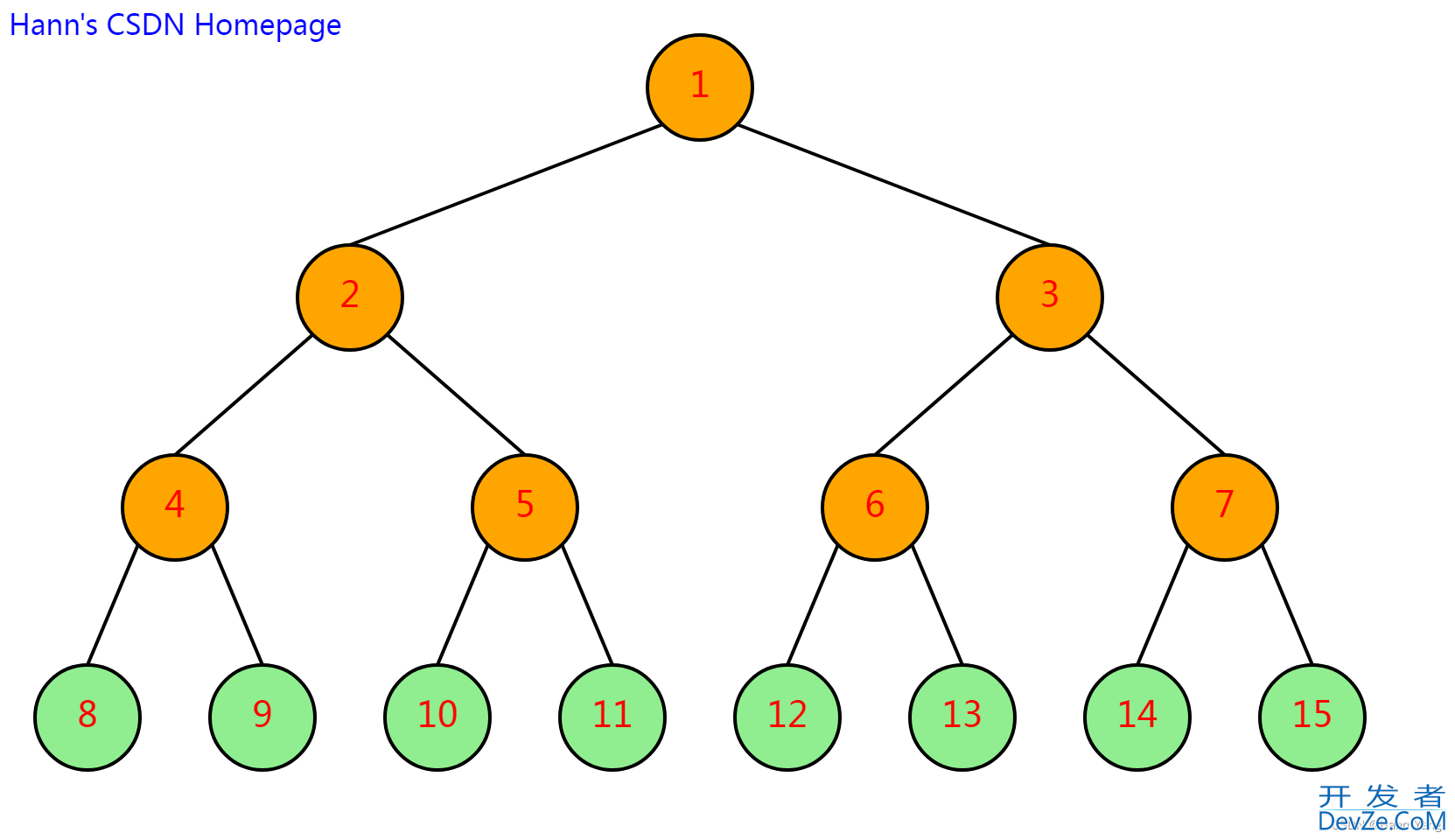

          	texts := []string{tree1.Xml4Tree(), tree2.Xml4Tree(), tree3.Xml4Tree(), Xml4Full(4)}

          	for index, text := range texts {
          		svgFile := "./biTree0" + strconv.Itoa(index+1) + ".svg"
          		file, err1 = os.Create(svgFile)
          		if err1 != nil {
          			panic(err1)
          		}
          		_, err1 = io.WriteString(file, text)
          		if err1 != nil {
          			panic(err1)
          		}
          		file.Close()
          		exec.Command("cmd", "/c", "start", svgFile).Start()
          		//Linux 代码:
          		//exec.Command("xdg-open", svgFile).Start()
          		//Mac 代码:
          		//exec.Command("open", svgFile).Start()
          	}

          	fmt.Println("Welcome to my homepage: https://blog.csdn.net/boysoft2002")
          	exec.Command("cmd", "/c", "start", "https://blog.csdn.net/boysoft2002").Start()

          }

          至此,已达成自己的预想结果,算法实在有点笨拙,但总算成功了。

          到此这篇关于Go语言制作svg格式树形图的示例代码的文章就介绍到这了,更多相关Go语言树形图内容请搜索我们以前的文章或继续浏览下面的相关文章希望大家以后多多支持我们!

          0

          上一篇:

          下一篇:

          精彩评论

          暂无评论...
          验证码 换一张
          取 消

          最新开发

          开发排行榜
