WPF自定义控件的实现

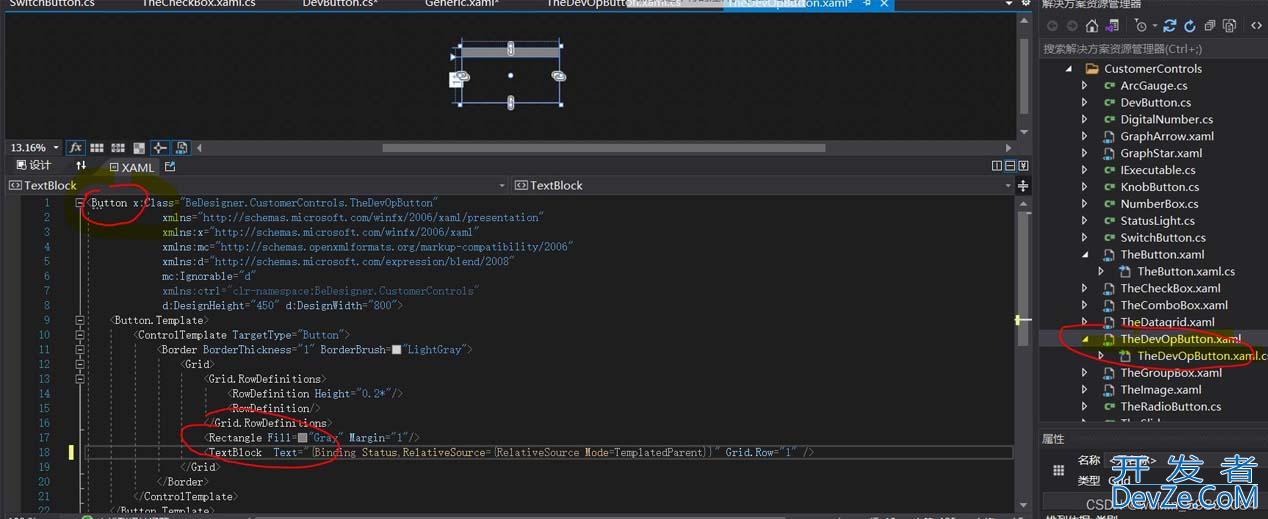

方式一:基于现有控件进行扩展,如基于button进行扩展,UI可直接用xmal进行编辑设计,逻辑用xaml.cs进行编辑

WPF自定义控件的实现

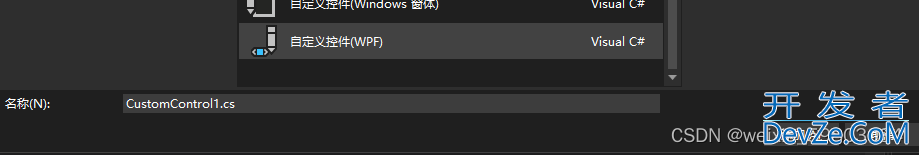

方法二:直接创建wpf自定义控件

WPF自定义控件的实现

本文用方法二开展自定义控件!!!

1.自定义控件的内容在代码cs文件中,自定义控件继承自Control,ui界面可在Genric.xaml中定义。

2.在Generic.xaml中定义控件界面

  <Style  TargetType="{x:Type ctrl:Devbutton}">
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="{x:Type ctrl:DevButton}">
                    <Border Background="{TemplateBinding Background}"
                            BorderBrush="{TemplateBinding BorderBrush}"
                            BorderThickness="{TemplateBinding BorderThickness}">
                            <Grid>
                                <Grid.ColumnDefinitions>
                                    <ColumnDefinition Width="0.1*" MaxWidth="5"/>
                                    <ColumnDefinition/>
                                </Grid.ColumnDefinitions>
                                //自定义控件中的组成 ,需要定义x:name,后台代码需要用到,button中的DevName是后台cs中定义的依赖属性
                                <Rectangle Margin="1" x:Name="statusLed"/>
                                <Button Grid.Column="1lJuQSZi" x:Name="devBtn" Content="{TemplateBinding DevName}"/>
                            </Grid>

                    </Border>
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>

 上述界面中定义了两个控件,组成本自定义控件的外观显示。一个rectangle,用颜色对状态进行显示,一个button,是本自定义控件的主要内容,需要显示设备名称,Click事件/Command需要触发任务。

3.后台处理

3.1  定义自定义属性DevName

        public string DevName
        {
            get { return (string)GetValue(DevNameProperty); }
            set { SetValue(DevNameProperty, value); }
        }
        public static readonly DependencyProperty DevNameProperty =
        DependencyProperty.Register("DevName", typeof(string), typeof(DevButton), new FrameworkPropertyMetadata("", new PropertyChangedCallback(OnDevNameChanged)));
        private static void OnDevNameChanged(DependencyObject sender, DependencyPropertyChangedEventArgs e)
        {
            DevButton ctrl =sender as DevButton;
            ctrl.DevName = e.NewValue.ToString();
        }

3.2  定义与前端界面UI元素对应的信息

        private Rectangle statusLed;
        private Button devBtn;
        public override void OnApplyTemplate()
        {
            //备用方法 Template.FindName(DownButtonKey, this) as Button;
            statusLed = GetTemplateChild("statusLed") as Rectangle;
            devBtn = GetTemplateChild("devBtn") as Button;
            devBtn.Click += DevBtn_Click;
            base.OnApplyTemplate();
        }

依据控件名称查找模板中的控件,并注册button的click事件

3.3  定义事件

       private void DevBtn_Click(object sender, RoutedEventArgs e)
        {
            MessageBox.Show(DevName);
        }

自定义控件主要就是上述几步。总体代码如下:

using System;
using System.Collections.Generic;
using System.Globalization;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;

namespace WpfApp2
{
    /// <summary>
    /// Author:yut 2022-12-21
    /// Function:自定义控件,用于设备的启停控制,同时显示设备的运行状态
    /// <summary>
    public class DevButton : Control
    {

        public DevButton(开发者_Go培训)
        {
            SetCurrentValue(WidthProperty, 100d);
            SetCurrentValue(HeightProperty, 25d);
            SetCurrentValue(BackgroundProperty, Brushes.Yellow);
        }
        static DevButton()
        {
            DefaultStyleKeyProperty.OverrideMetadata(typeof(DevButton), new FrameworkPropertyMetadata(typeof(DevButton)));
        }
        private Rectangle statusLed;
        private Button devBtn;
        public override void OnApplyTemplate()
        {
            statusLed = GetTemplateChild("statusLed") as Rectangle;
            devBtn = GetTemplateChild("devBtn") as Button;
            devBtn.Click += DevBtn_Click;
            base.OnApplyTemplate();
        }

        #region 自定义属性
        public int DevId
       www.devze.com {
            get { return (int)GetValue(DevIdProperty); }
            set { SetValue(DevIdProperty, value); }
        }
        public static readonly DependencyProperty DevIdProperty =
          DependencyProperty.Register("DevId", typeof(int), typeof(DevButton), new FrameworkPropertyMetadata(-1,new PropertyChangedCallback(OnDevIdChanged)));
        private static void OnDevIdChanged(DependencyObject sender, DependencyPropertyChangedEventArgs e)
        {
            DevButton ctrl = (DevButton)sender;
            ctrl.DevId = (int)e.NewValue;
        }

        public string DevName
        {
            get { return (shttp://www.devze.comtring)GetValue(DevNameProperty); }
            set { SetValue(DevNameProperty, value); }
        }
        public static readonly DependencyProperty DevNameProperty =
        DependencyProperty.Register("DevName", typeof(string), typeof(DevButton), new FrameworkPropertyMetadata("", new PropertyChangedCallback(OnDevNameChanged)));
        private static void OnDevNameChanged(DependencyObject sender, DependencyPropertyChangedEventArgs e)
        {
            DevButton ctrl =sender as DevButton;
            ctrl.DevName = e.NewValue.ToString();
        }

        public int DevStatus
        {
            get { return (int)GetValue(DevStatusProperty); }
            set
            {
                SetValue(DevStatusProperty, value);
            }
        }
        public static readonly DependencyProperty DevStatusProperty =
          DependencyProperty.Register("DevStatus", typeof(int), typeof(DevButton), new FrameworkPropertyMetadata(-1,new PropertyChangedCallback(OnDevStatusChanged)));
        private static void OnDevStatusChanged(DependencyObject sender, DependencyPropertyChangedEventArgs e)
        {
            DevButton ctrl = (DevButton)sender;
            ctrl.DevStatus = (int)e.NewValue;
      android      ctrl.StatusBrush=(ctrl.DevStatus>0)?Brushes.Green:Brushes.LightGray;
        }

        public Brush StatusBrush
        {
            get { return (Brush)GetValue(StatusBrushProperty); }
            set
            {
                SetValue(StatusBrushProperty, value);
            }
        }
        public static readonly DependencyProperty StatusBrushProperty =
        DependencyProperty.Register("StatusBrush", typeof(Brush), typeof(DevButton), new FrameworkPropertyMetadata(Brushes.LightGray));

        #endregion


        private void DevBtn_Click(object sender, RoutedEventArgs e)
        {
            MessageBox.Show(DevName);

        }

    }
}
<ResourceDictionary
    XMLns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:ctrl="clr-namespace:WpfApp2">



    <Style  TargetType="{x:Type ctrl:DevButton}">
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="{x:Type ctrl:DevButton}">
                    <Border Background="{TemplateBinding Background}"
                            BorderBrush="{TemplateBinding BorderBrush}"
                            BorderThickness="{TemplateBinding BorderThickness}">

                            <Grid>
                                <Grid.ColumnDefinitions>
                         http://www.devze.com           <ColumnDefinition Width="0.1*" MaxWidth="5"/>
                                    <ColumnDefinition/>
                                </Grid.ColumnDefinitions>
                            <!--Fill="{TemplateBinding DevStatus, Converter={StaticResource IntToBrushes}}"-->
                            <Rectangle Margin="1" x:Name="statusLed" Fill="{TemplateBinding StatusBrush}"/>
                                <Button Grid.Column="1" x:Name="devBtn" Content="{TemplateBinding DevName}"/>
                            </Grid>

                    </Border>
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>
</ResourceDictionary>
<Window x:Class="WpfApp2.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp2"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="800">
    <Grid>
        <StackPanel>
            <Textblock Text="******************"/>
            <local:DevButton DevName="电机" DevStatus="2"/>
            <TextBlock Text="******************"/>
        </StackPanel>
    </Grid>
</Window>

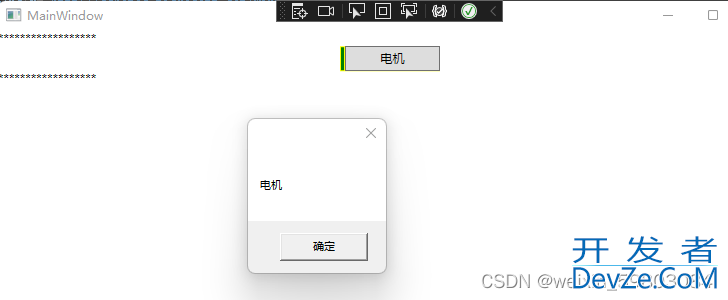

运行效果如下:

WPF自定义控件的实现

到此这篇关于WPF自定义控件的实现的文章就介绍到这了,更多相关WPF自定义控件内容请搜索我们以前的文章或继续浏览下面的相关文章希望大家以后多多支持我们!
