spring-Kafka中的@KafkaListener深入源码解读

目录

• 前言
• 一、总体流程
• 二、源码解读
• 1、postProcessAfterInitialization
• 1.1、processKafkaListener
• 1.2、processListener
• 1.3、registerEndpoint
• 1.4、startIfNecessary
• 2、afterSingletonsInstantiated
• 2.1、afterPropertiesSet
• 2.2、registerAllEndpoints
• 总结

前言

本文主要通过深入了解源码，梳理从spring启动到真正监听kafka消息的这套流程

一、总体流程

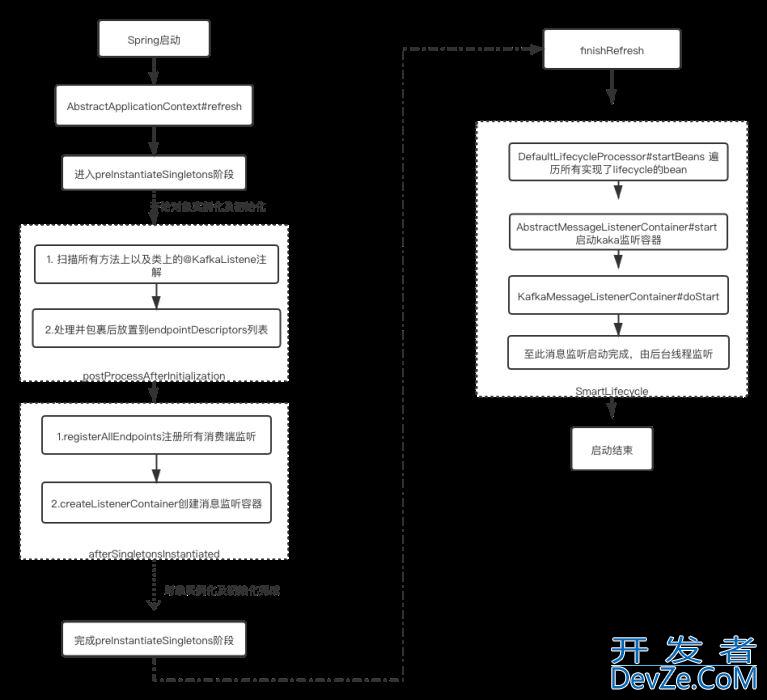

从spring启动开始处理@KafkaListener，到start消息监听整体流程图

二、源码解读

1、postProcessAfterInitialization

KafkaListenerAnnotationBeanPostProcessor#postProcessAfterInitialization

	public Object postProcessAfterInitialization(final Object bean, final String beanName) throws BeansException {
		if (!this.nonAnnotatedClasses.contains(bean.getClass())) {
		    Class<?> targetClass = AopUtils.getTargetClass(bean);

		    // 扫描@KafkaListener注解
			Collection<KafkaListener> classLevelListeners = findListenerAnnotations(targetClass);

			......

			if (annotatedMethods.isEmpty()) {
				this.nonAnnotatedClasses.add(bean.getClass());
				this.logger.trace(() -> "No @KafkaListener annotations found on bean type: " + bean.getClass());
			}
			else {
				// Non-empty set of methods
				for (Map.Entry<Method, Set<KafkaListener>> entry : annotatedMethods.entrySet()) {
					Method method = entry.getKey();
					// 遍历扫描到的所有@KafkaListener注解并开始处理
					for (KafkaListener listener : entry.getValue()) {
						processKafkaListener(listener, method, bean, beanName);
					}
				}
				this.logger.debug(() -> annotatedMethods.size() + " @KafkaListener methods processed on bean '"
							+ beanName + "': " + annotatedMethods);
			}
			// 处理在类上的@KafkaListener注解
			if (hasClassLevelListeners) {
				processMultiMethodListeners(classLevelListeners, multiMethods, bean, beanName);
			}
		}
		return bean;
	}

1.1、processKafkaListener

KafkaListenerAnnotationBeanPostProcessor#processKafkaListener

	protected void processKafkaListener(KafkaListener kafkaListener, Method method, Object bean, String beanName) {
		Method methodToUse = checkProxy(method, bean);
		MethodKafkaListenerEndpoint<K, V> endpoint = new MethodKafkaListenerEndpoint<>();
		endpoinhttp://www.devze.comt.setMethod(methodToUse);
		processListener(endpoint, kafkaListener, bean, methodToUse, beanName);
	}

1.2、processListener

KafkaListenerAnnotationBeanPostProcessor#processListener

将每个kafkaListener转变成MethodKafkaListenerEndpoint并注册到KafkaListenerEndpointRegistrar容器，方便后续统一启动监听

	protected void processListener(MethodKafkaListenerEndpoint<?, ?> endpoint, KafkaListener kafkaListener,
			Object bean, Object adminTarget, String beanName) {

		String beanRef = kafkaListener.beanRef();
		if (Stri开发者_C学习ngUtils.hasText(beanRef)) {
			this.listenerScope.addListener(beanRef, bean);
		}
		endpoint.setBean(bean);
		endpoint.setMessageHandlerMethodFactory(this.messageHandlerMethodFactory);
		endpoint.setId(getEndpointId(kafkaListener));
		endpoint.setGroupId(getEndpointG编程roupId(kafkaListener, endpoint.getId()));
		endpoint.setTopicPartitions(resolveTopicPartitions(kafkaListener));
		endpoint.setTopics(resolveTopics(kafkaListener));
		endpoint.setTopicPattern(resolvePattern(kafkaListener));
		endpoint.setClientIdPrefix(resolveExpressionAsString(kafkaListener.clientIdPrefix(), "clientIdPrefix"));
		String group = kafkaListener.containerGroup();

        ......

        // 注册已经封装好的消费端-endpoint
		this.registrar.registerEndpoint(endpoint, factory);

		if (StringUtils.hasText(beanRef)) {
			this.listenerScope.removeListener(beanRef);
		}
	}

1.3、registerEndpoint

KafkaListenerEndpointRegistrar#registerEndpoint

	public void registerEndpoint(KafkaListenerEndpoint endpoint, KafkaListenerContainerFactory<?> factory) {

	    ......

		KafkaListenerEndpointDescriptor descriptor = new KafkaListenerEndpointDescriptor(endpoint, factory);
		synchronized (this.endpointDescriptors) {
		    // 如果到了需要立即启动监听的阶段就直接注册并监听(也就是创建消息监听容器并启动)
			if (this.startImmediately) { // Register and start immediately
				this.endpointRegistry.registerListenerContainer(descriptor.endpoint,
						resolveContainerFactory(descriptor), true);
			}
			else {
			    // 一般情况都先走这一步，添加至此列表，待bean后续的生命周期 统一注册并启动
				this.endpointDescriptors.add(descriptor);
			}
		}
	}

	public void registerListenerContainer(KafkaListenerEndpoint endpoint, KafkaListenerContainerFactory<?> factory,
			boolean startImmediately) {

        ......

		synchronized (this.listenerContainers) {

			......

			// 1.创建消息监听容器
			MessageListenerContainer container = createListenerContainer(endpoint, factory);
			this.listenerContainers.put(id, container);
			if (StringUtils.hasText(endpoint.getGroup()) && this.applicationContext != null) {
				List<MessageListenerContainer> containerGroup;
				if (this.applicationContext.containsBean(endpoint.getGroup())) {
					containerGroup = this.applicationContext.getBean(endpoint.getGroup(), List.class);
				}
				else {
					containerGroup = new ArrayList<MessageListenerContainer>();
					this.applicationContext.getBeanFactory().registerSingleton(endpoint.getGroup(), containerGroup);
				}
				containerGroup.add(container);
			}

            // 2.是否立即启动消息监听
			if (startImmediately) {
				startIfNecessary(container);
			}
		}
	}

1.4、startIfNecessary

KafkaListenerEndpointRegistry#startIfNecessary

启动消息监听

	private void startIfNecessary(MessageListenerContainer listenerContainer) {
		if (this.contextRefreshed || listenerContainer.isAutoStartup()) {
		    // 启动消息监听
		    // 到这一步之后，消息监听以及处理都是KafkaMessageListenerContainer的逻辑
		    // 到此也就打通了@KafkaListener到MessageListenerContainer消息监听容器的逻辑
			listenerContainer.start();
		}
	}

2、afterSingletonsInstantiated

这一步是实例化(此处的实例化是已经创建对象并完成了初始化操作)之后，紧接着的操作

KafkaListenerAnnotationBeanPostProcessor#afterSingletonsInstantiated

	public void afterSingletonsInstantiated() {
		this.registrar.setBeanFactory(this.beanFactory);

        // 对"注册员"信息的完善
		if (this.beanFactory instanceof ListableBeanFactory) {
			Map<String, KafkaListenerConfigurer> instances =
					((ListableBeanFactory) this.beanFactory).getBeansOfType(KafkaListenerConfigurer.class);
			for (KafkaListenerConfigurer configurer : instances.values()) {
				configurer.configureKafkaListeners(this.registrar);
			}
		}

		if (this.registrar.getEjavascriptndpointRegistry() == null) {
			if (this.endpointRegistry == null) {
				Assert.state(this.beanFactory != null,
						"BeanFactory must be set to find endpoint registry by bean name");
				this.endpointRegistry = this.beanFactory.getBean(
						KafkaListenerConfigUtils.KAFKA_LISTENER_ENDPOINT_REGISTRY_BEAN_NAME,
						KafkaListenerEndpointRegistry.class);
			}
			this.registrar.setEndpointRegistry(this.endpointRegistry);
		}

		......

		// Actually register all listewww.devze.comners
		// 整个方法这里才是关键
		// 创建MessageListenerContainer并注册
		this.registrar.afterPropertiesSet();
	}

2.1、afterPropertiesSet

KafkaListenerEndpointRegistrar#afterPropertiesSet

	public void afterPropertiesSet() {
		registerAllEndpoints();
	}

2.2、registerAllEndpoints

KafkaListenerEndpointRegistrar#registerAllEndpoints

	protected void registerAllEndpoints() {
		synchronized (this.endpointDescriptors) {
			for (KafkaListenerEndpointDescriptor descriptor : this.endpointDescriptors) {
			    // 这里是真正的创建ListenerContainer监听对象并注册
				this.endpointRegistry.registerListenerContainer(
						descriptor.endpoint, resolveContainerFactory(descriptor));
			}
			// 启动时所有消息监听对象都注册之后，便将参数置为true
			this.startImmediately = true; python // trigger immediate startup
		}
	}

总结

以上便是整个流程，总体感觉就是将kafka消息监听融入到spring生命周期中，并完美契合

调试及相关源码版本：

org.springframework.boot:：2.3.3.RELEASE
spring-kafka:2.5.4.RELEASE
