Springboot使用Security实现OAuth2授权验证完整过程
目录
- 第一步-添加依赖
- 第二步-添加代码
- 第三步-初始化数据库
OAuth2获取授权令牌（token）通常有四种方式：授权码模式，简化模式，客户端模式，和密码模式。针对自己系统内用户的登录，通常使用密码模式进行授权。
我们利用Spring Security OAuth2来制作一个授权服务器。
第一步-添加依赖
pom文件中添加如下依赖，引入oauth2相关框架
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-security</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-oauth2</artifactId>
</dependency>
我还是用到了数据库进行存储，我用的jpa连接数据库，使用其他持久层框架（MyBATis）也可以。
引入数据库依赖
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-data-jpa</artifactId>
</dependency>
<!--数据库链接驱动-->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-Java</artifactId>
</dependency>
第二步-添加代码
1 实现UserDetailsService，获取用户
@Servi开发者_开发入门ce public class MyUserDetailsService implements UserDetailsService { @Resource private UserService userService; @Override public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException { //根据用户名获取用户，并验证用户是否有效及权限 //从数据库中获取用户 TUser user = userService.findByUsername(username); if (user == null) { throw new UsernameNotFoundException("用户不存在"); } Set<GrantedAuthority> grantedAuthorities = new HashSet<>(); boolean enabled = user.getStatus() == 1; // 可用性 :true:可用 false:不可用 boolean accountNonExpired = true; // 过期性 :true:没过期 false:过期 boolean credentialsNonExpired = true; // 有效性 :true:凭证有效 false:凭证无效 boolean accountNonLocked = true; // 锁定性 :true:未锁定 false:已锁定 //配置权限 GrantedAuthority grantedAuthority = new SimpleGrantedAuthority("ADMIN"); grantedAuthorities.add(grantedAutwww.devze.comhority); //将用户名和密码及其他配置返还个spring security 进行验证 return new User(username, user.getPassword(), enabled, accountNonExpired, credentialsNonExpired, accountNonLocked, grantedAuthorities); } }
2 添加WebSecurityConfigurerAdapter
@Configuration
@EnableWebSecurity
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {
@Bean
public PasswordEncoder passwordEncoder() {
return new BCryptPasswordEncoder();
}
@Override
@Bean
public AuthenticationManager authenticationManagerBean() throws Exception {
return super.authenticationManagerBean();
}
}
3 添加AuthorizationServerConfigurerAdapter
@Configuration
@EnableAuthorizationServer
public class Oauth2ServerConfig extends AuthorizationServerConfigurerAdapter {
//验证管理器
@Resource
private AuthenticationManager authenticationManager;
//获取用户，自己实现获取用户的相关功能
@Resource
private MyUserDetailsService userService;
//数据库配置
@Resource
private DataSource dataSource;
/**
* 自定义授权服务配置
*/
@Override
public void configure(AuthorizationServerEndpointsConfigurer endpoints) {
endpoints.authenticationManager(authenticationManager)
.userDetailsService(userService)
http://www.devze.com .tokenStore(new JdbcTokenStore(dataSource));
// 配置TokenServices参数
DefaultTokenServices tokenServices = new DefaultTokenServices();
tokenServices.setTokenStore(endpoints.getTokenStore());
tokenServices.setSupportRefreshToken(true);
tokenServices.setClientDetailsService(endpoints.getClientDetailsService());
tokenServices.setTokenEnhancer(endpoints.getTokenEnhancer());
tokenServices.setAccessTokenValiditySeconds((int) TimeUnit.HOURS.toSeconds(12)); // 12小时
tokenServices.setRefreshTokenValiditySeconds((int) TimeUnit.DAYS.toSeconds(30));// 30天
endpoints.tokenServices(tokenServices);
}
/**
* 配置认证客户端
* @param clients
* @throws Exception
*/
@Override
public void configure(ClientDetailsServiceConfigurer clients) throws Exception {
//自定义客户端配置
clients.withClientDetails(clientDetails());
}
//从数据库中获取客户端的配置
public ClientDetailsService clientDetails() {
return new JdbcClientDetailsService(dataSource);
}
/**
* 自定义授权令牌端点的安全约束
* @param security
*/
@Override
public void configure(AuthorizationServerSecurityConfigurer security) {
//自定义安全约束
security.allowFormAuthenticationForClients();
}
}
第三步-初始化数据库
在数据库中创建三个表 oauth_access_token （存储token），oauth_client_details（允许请求授权的客户端），oauth_refresh_token(存储refreshToken)
为了测试，我还建了一个t_user的用户表，这个表可以不导入
CREATE TABLE `oauth_access_token` (
`token_id` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`token` blob NULL,
`authentication_id` varchar(250) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
`user_name` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`client_id` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`authentication` blob NULL,
`refresh_token` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
PRIMARY KEandroidY (`authentication_id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = DYNAMIC;
CREATE TABLE `oauth_client_details` (
`client_id` varchar(250) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
`resource_ids` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`client_secret` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`scope` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`authorized_grant_types` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`web_server_redirect_uri` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`authorities` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`access_token_validity` int(11) NULL DEFAULT NULL,
`refresh_token_validity` int(11) NULL DEFAULT NULL,
`additional_information` varchar(4096) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`autoapprove` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
PRIMARY KEY (`client_id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = DYNAMIC;
-- 初始化了一个客户端的数据
INSERT INTO `oauth_client_details` VALUES ('client', '', '$2a$10$My8G.sWjs/WQN8hdYS862.BsUuoL4p51xyfTIJu2NMMrIQ/JXRc2a', 'web', 'authorization_code,password,refresh_token,client_credentials', NULL, NULL, NULL, NULL, '{\"code\":\"test\"}', NULL);
DROP TABLE IF EXISTS `oauth_refresh_token`;
CREATE TABLE `oauth_refresh_token` (
`token_id` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`token` blob NULL,
`authentication` blob NULL
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = DYNAMIC;
-- 我自己测试用的用户表，这个可以不导入，使用自己系统的用户表
DROP TABLE IF EXISTS `t_user`;
CREATE TABLE `t_user` (
`id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '自增主键',
`username` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '用户名',
`nickname` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '昵称',
`password` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAU编程客栈LT NULL COMMENT '密码',
`status` int(11) NULL DEFAULT NULL COMMENT '状态 1正常 2停用',
`e_mail` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL编程客栈 DEFAULT NULL COMMENT '电子邮箱',
`phone` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '手机号',
PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 2 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;
INSERT INTO `t_user` VALUES (1, 'admin', '管理员', '$2a$10$gD1u5uXEmCFmlvg.hgN7P.zv.sbCOEmX1sFNRHEBRIx6Ad.qydceu', 1, 'admin@admin.com', '15812345678');
在application中配置数据库信息
spring:
application: name: HelloSecurity #数据库配置连接 datasource: url: jdbc:mysql://127.0.0.1:3306/hello_security?useUnicode=true&characterEncoding=utf-8&serverTimezone=Asia/Shanghai username: root password: "123456" driver-class-name: com.mysql.cj.jdbc.Driver jpa: show-sql: trueserver: port: 8080
完成以上步骤后，一个简单的OAuth2授权验证服务器就搭建完成了，我们启动项目，进行测试。

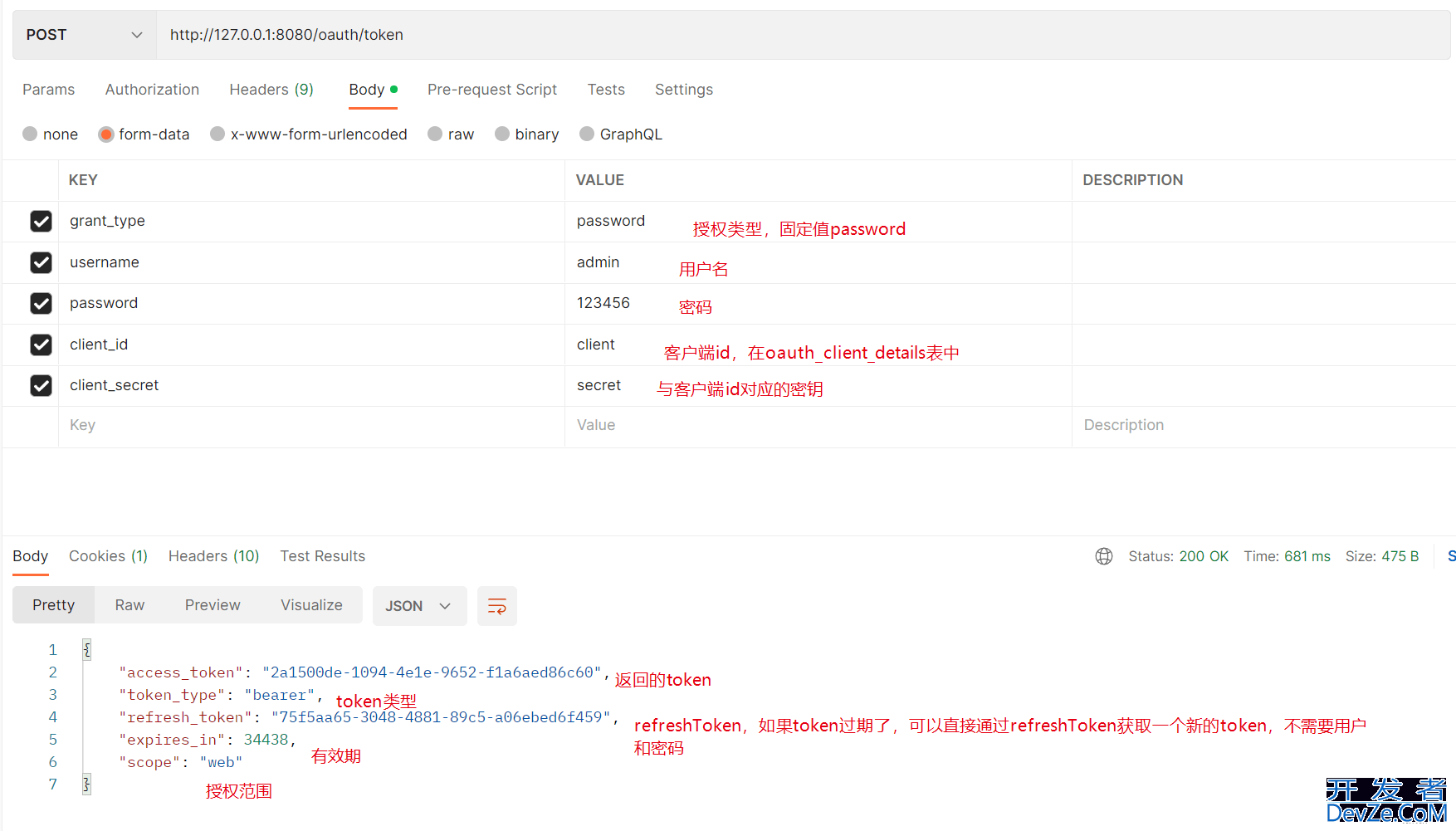

获取token的接口是http://127.0.0.1:8080/oauth/token
源码地址：https://gitee.com/xiaobailovejiajia/hello-security
到此这篇关于Springboot使用Security实现OAuth2授权验证完整过程的文章就介绍到这了,更多相关Springboot Security内容请搜索我们以前的文章或继续浏览下面的相关文章希望大家以后多多支持我们！
