SpringCloud开启session共享并存储到Redis的实现

开发 作者： 一枝花傲寒
目录
  • 一、原架构
  • 二、调整架构以及相应的代码
    • 1、Redis和session的配置
    • 2、增加配置类
    • 3、应答过滤器增加session设置
    • 4、增加控制台处理的过滤器ConsoleFilter
    • 5、前端请求中增加（跨域时）
  • 三、部署模式
    • 1、同域
    • 2、跨域
  • 总结

    备注：以下所有的gateway均指SpringCloud Gateway

    一、原架构

    前端<->gateway<->console后端

    原来session是在console-Access中维护的，当中间有了一层gateway之后，gateway会认为session变了，从而将session的cookie信息重置，导致无法在前端的后续请求无法将cookie带上来

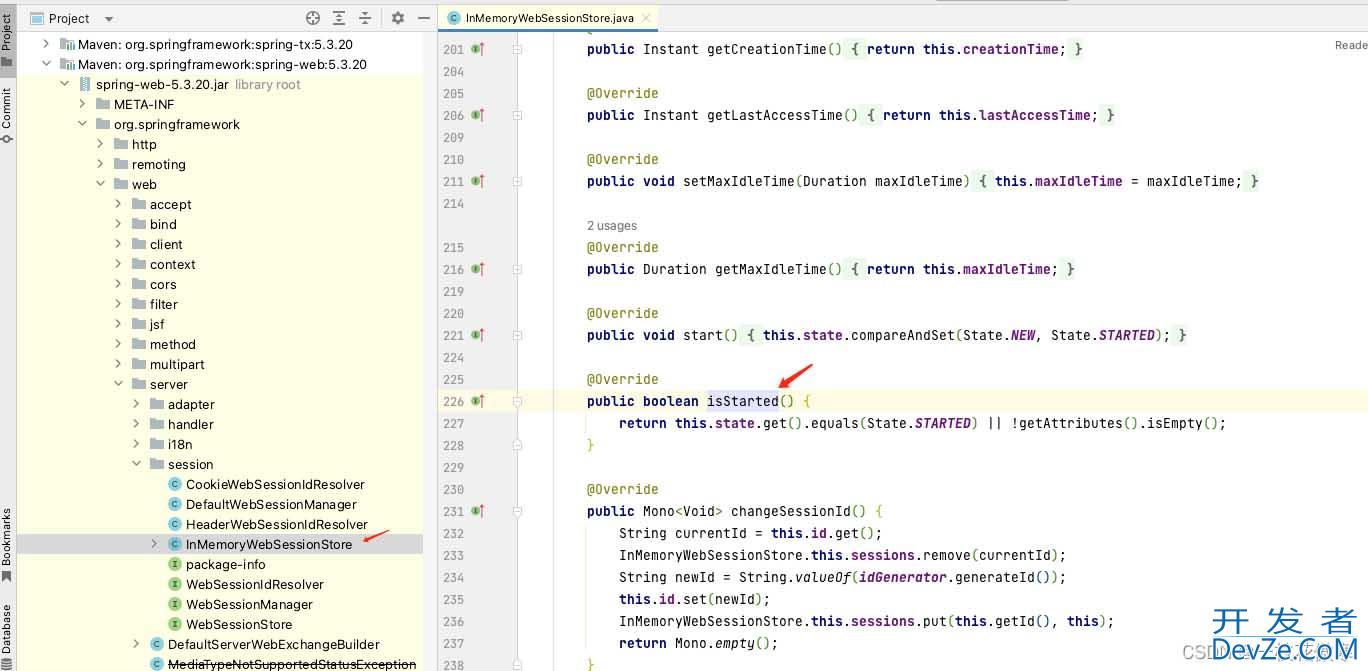

    如下图所示的spring-web的代码中这个state会变成State.NEW而非State.STARTED

    SpringCloud开启session共享并存储到Redis的实现

    在这种情况下，部署的时候只有跳过gateway才能正常进行

    即按照如下方式才能进行session的判断

    前端<->console后端

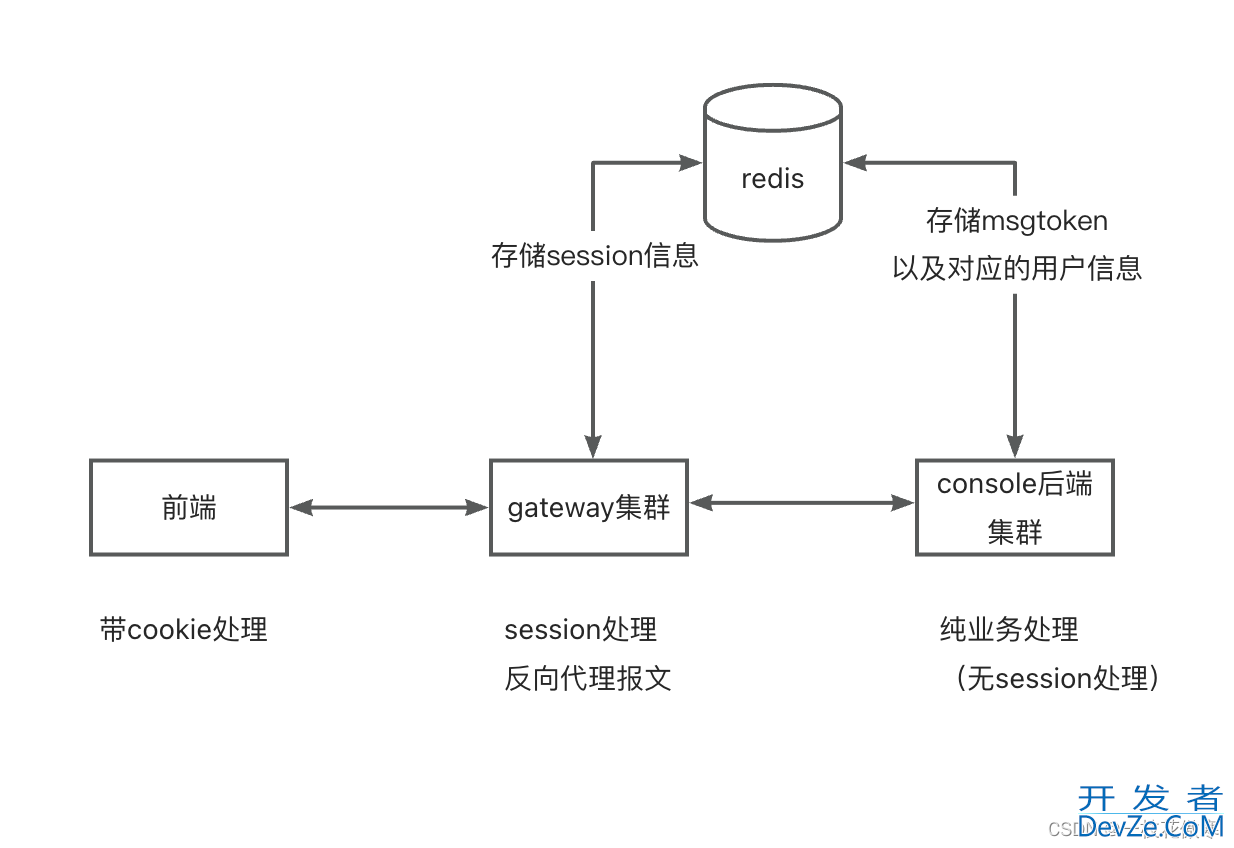

    二、调整架构以及相应的代码

    SpringCloud开启session共享并存储到Redis的实现

    整个业务处理和原来的没有任何改变

    将session的判断控制挪到gateway当中

    首先将console后端中登录以及后续业务当中涉及到session处理的部分都删除

    然后开始改造gateway

    1、Redis和session的配置

    gateway的pom.XML增加

    <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-redis</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.session</groupId>
    <artifactId>spring-session-data-redis</artifactId>
</dependency>

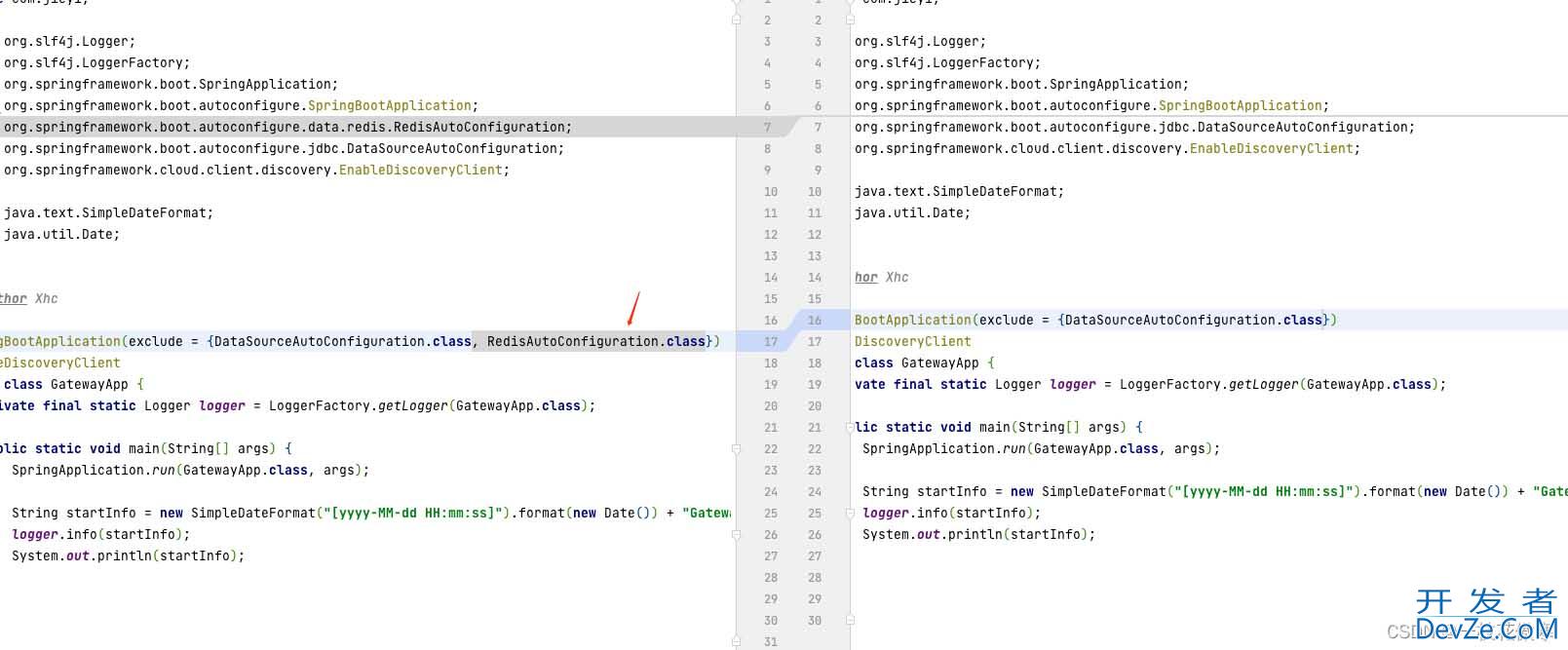

    因为需要依赖Redis了，所以启动类当中删除RedisAutoConfiguration.class

    SpringCloud开启session共享并存储到Redis的实现

    Nacos或者配置文件增加redis配置

    spring.redis.host=127.0.0.1
spring.redis.port=6379
spring.redis.username=redis7
spring.redis.password=XXX
spring.redis.database=10
spring.redis.pool.max-active=100
spring.redis.pool.max-wait=500
spring.redis.pool.max-idle=10
spring.redis.pool.min-idle=10
spring.redis.timeout=1000

    2、增加配置类

    /**
 * 指定saveMode为ALWAYS 功能和flushMode类似
 *
 * @author fengwei
 * @since 2022/11/8
 */

import lombok.extern.slf4j.Slf4j;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.HttpCookie;
import org.springframework.session.SaveMode;
import org.springframework.session.data.redis.config.annotation.web.server.EnableRedisWebSession;
import org.springframework.util.MultiValueMap;
import org.springframework.web.server.ServerWebExchange;
import org.springframework.web.server.session.CookieWebSessionIdResolver;
import org.springframework.web.server.session.WebSessionIdResolver;

import Java.util.Base64;
import java.util.Collections;
import java.util.List;
import java.util.stream.Collectors;

@EnableRedisWebSession(saveMode = SaveMode.ALWAYS, maxInactiveIntervalInSeconds = 1200)
@Configuration
@Slf4j
public class RedisSessionConfig {
    /**
     * @return
     * @reference https://docs.spring.io/spring-session/reference/guides/boot-webflux-custom-cookie.html
     */
    @Bean
    public WebSessionIdResolver webSessionIdResolver() {
        CustomWebSessionIdResolver customWebSessionIdResolver = new CustomWebSessionIdResolver();
        //以下四项配置主要用于跨域调用让客户端处理cookie信息；若同域调用，下面四行可删除
        customWebSessionIdResolver.addCookieInitializer((builder) -> builder.httpOnly(true));
        customWebSessionIdResolver.addCookieInitializer((builder) -> builder.path("/"));
        customWebSessionIdResolver.addCookieInitializer((builder) -> builder.sameSite("None"));
www.devze.com        customWGaiORVoebSessionIdResolver.addCookieInitializer((builder) -> builder.secure(true));
        return customWebSessionIdResolver;
    }

    private static class CustomWebSessionIdResolver extends CookieWebSessionIdResolver {
        // 重写resolve方法 对SESSION进行base64解码
        @Override
        public List<String> resolveSessionIds(ServerWebExchange exchange) {
            MultiValueMap<String, HttpCookie> cookieMap = exchange.getRequest().getCookies();
            // 获取SESSION
            List<HttpCookie> cookies = cookieMap.get(getCookieName());
            if (cookies == null) {
                return Collections.emptyList();
            }
            return cookies.stream().map(HttpCookie::getValue).map(this::base64Decode).collect(Collectors.toList());
        }

        private String base64Decode(String base64Value) {
            try {
                byte[] decodedCookieBytes = Base64.getDecoder().decode(base64Value);
                String decodedCookieString = new String(decodedCookieBytes);
                log.debug("base64Value:{}, decodedCookieString:{} ", base64Value, decodedCookieString);
                return decodedCookieString;
            } catch (Exception ex) {
                //如果转不了base64，就认为原始值就是返回的
                log.debug("Unable to Base64 decode value:{} ", base64Value);
                return base64Value;
            }
        }
    }

}

    3、应答过滤器增加session设置

    在ResponseLogFilter类中增加

    /*如果是控制台登录，则从里面取出securityRandom存在websession里面*/
if (request.getPath().toString().startsWith("/console/access/user/login")) {
    jsONObject jsonObject = JSONObject.parseobject(finalResponseBody);
    if ("0000".equals(jsonObject.getString("result"))) {
        JSONObject jsonObjectData = (JSONObject) jsonObject.get("data");
        String securityRandom = (String) jsonObjectData.get("securityrandom");
        exchange.getSession().subscribe(webSession -> {
            webSession.getAttributes().put("securityrandom", securityRandom);
        });
        try {
            //给200毫秒让进行session开发者_JS教程设置
            Thread.sleep(200);
        } catch (InterruptedException e) {
            throw new RuntimeException(e);
        }
    }
}

    4、增加控制台处理的过滤器ConsoleFilter

    首选在配置文件或者Nacos增加配置项

    #Y标识需要检查session；N表示不检查session。开发的时候可以配置为N
websession.ifcheck=Y

    过滤器ConsoleFilter

    import com.alibaba.cloud.commons.lang.StringUtils;
import com.jieyi.util.OrderedConstant;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.cloud.gateway.filter.GatewayFilterChain;
import org.springframework.cloud.gateway.filter.GlobalFilter;
import org.springframework.core.Ordered;
import org.springframework.core.io.buffer.DataBuffer;
import org.springframework.http.HttpStatus;
import org.springframework.http.server.reactive.ServerHttpRequest;
import org.springframework.stereotype.Component;
import org.springframework.web.server.ServerWebExchange;
import reactor.core.publisher.Flux;
import reactor.core.publisher.Mono;

import java.nio.charset.StandardCharsets;
import java.util.Arrays;
import java.util.List;

/**
 * 控制台登录的过滤器，主要是拿用户凭证的securityRandom
 *
 * @author fengwei
 * @date 2022-11-8
 */
@Component
@Slf4j
public class ConsoleFilter implements GlobalFilter, Ordered {
    private static final List<String> WHITE_LIST = Arrays.asList("/console/access/user/getOtp/V1", "/console/access/user/login/V1");

    @Value("${websession.ifcheck}")
    private String websessionIfcheck;

    @Override
    public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
        ServerHttpRequest request = exchange.getRequest();
        String path = request.getPath().toString();


        //不校验session就直接通过了
        if (!"Y".equals(websessionIfcheck)) {
            return chain.filter(exchange);
        }
        //在url白名单中放行
        boolean isWhiteUrl = WHITE_LIST.stream().anyMatch(path::endsWith);
        if (isWhiteUrl) {
            return chain.filter(exchange);
        }

        if (path.startsWith("/console")) {
            return exchange.getSession().flatMap(webSession -> {
                String securityrandomInSession = webSession.getAttribute("securityrandom");
                log.info("securityrandomInSession:{}", securityrandomInSession);
                if (StringUtils.isEmpty(securityrandomInSession)) {
                    byte[] bytes = "{\"status\":\"401\",\"msg\":\"Not login or login timeout\"}".getBytes(StandardCharsets.UTF_8);
           GaiORVo         DataBuffer buffer = exchange.getResponse().bufferFactory().wrap(bytes);
                    exchange.getResponse().setStatusCode(HttpStatus.UNAUTHORIZED);
                    return exchange.getResponse().writeWith(Flux.just(buffer));
                }
                return chain.filter(exchange);
            });

        } else {
            return chain.filter(exchange);
        }

    }

    @Override
    public int getOrder() {
        return OrderedConstant.LOGGING_FILTER;
    }
}

    5、前端请求中增加（跨域时）

    withCredentials = true

    只有增加这个请求才能携带和处理cookie

    三、部署模式

    1、同域

    对于同域的部署http和https均可（当然更建议https）

    提供一个nginx同域部署的参考：

    server {
  #console-samedomain-test
  listen 38093 ssl;
  proxy_set_header Host $host:38093;
  root html;
  index index.html index.htm;
  ssl_certificate      cert/server.crt;
  ssl_certificate_key  cert/server.key;
  ssl_session_timeout  5m;
  ssl_ciphers  ECDHE-RSA-AES128-GCM-SHA256:ECDHE:ECDH:AES:HIGH:!NULL:!aNULL:!MD5:!ADH:!RC4;
  ssl_protocols TLSv1 TLSv1.1 TLSv1.2;
  ssl_prefer_server_ciphers  on;
  location / {
    proxy_pass http://127.0.0.1:30000/;
  }
  location /ccuconsole {
    proxy_pass http://127.0.0.1:5120/ccuconsole;
  }
}

    该配置为https，走的38093端口

    前端页面访问https://ip:38093/ccuconsole

    所有的请求都通过该同域的ip和端口转发到http://127.0.0.1:30000对应的服务（确保该服务中不存在/ccuconsole开头的路径）中

    2、跨域

    对于跨域的部必须使用https（现在的浏览器版本的要求，浏览器已不再支持http的跨域了）

    提供一个nginx跨域部署的参考：

    server {
  #console-web-crossdomain-test
  listen 38091 ssl;
  proxy_set_header Host $host:38091;
  root html;
  index index.html index.htm;
  ssl_certificate      cert/server.crt;
  ssl_certificate_key  cert/server.key;
  ssl_session_timeout  5m;
  ssl_ciphers  ECDHE-RSA-AES128-GCM-SHA256:ECDHE:ECDH:AES:HIGH:!NULL:!aNULL:!MD5:!ADH:!RC4;
  ssl_protocols TLSv1 TLSv1.1 TLSv1.2;
  ssl_prefer_server_ciphers  on;
  location /ccuconsole {
    proxy_pass http://127.0.0.1:5120/ccuconsole;
  }
}

server {
  #console-crossdomain-test
  listen 38092 ssl;
  proxy_set_header Host $host:38092;
  root html;
  index index.html index.htm;
  ssl_certificate      cert/server.crt;
  ssl_certificate_key  cert/server.key;
  ssl_session_timeout  5m;
  ssl_ciphers  ECDHE-RSA-AES128-GCM-SHA256:ECDHE:ECDH:AES:HIGH:!NULL:!aNULandroidL:!MD5:!ADH:!RC4;
  ssl_protocols TLSv1 TLSv1.1 TLSv1.2;
  ssl_prefer_server_ciphers  on;
  location / {
    proxy_pass http:www.devze.com//127.0.0.1:30000/;
  }
}

    前端页面访问https://ip:38091/ccuconsole

    所有的请求都通过该同域的ip和38092转发到http://127.0.0.1:30000对应的服务（确保该服务中有无/ccuconsole开头的路径并不影响，但是为了可切换同域部署，不推荐存在/ccuconsole开头的路径）中

    总结

    以上为个人经验，希望能给大家一个参考，也希望大家多多支持我们。
